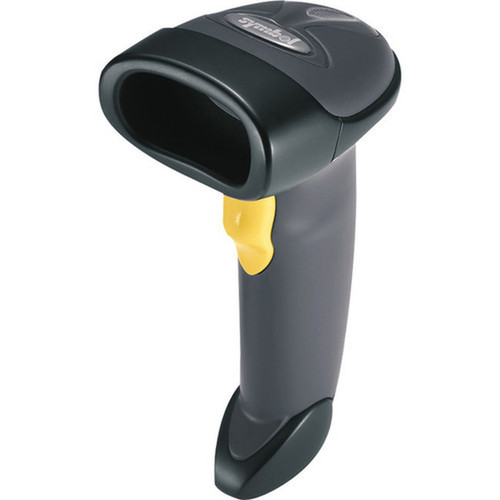

Zebra LS2208-7AZU0100ZNA General Purpose Barcode Scanner - 100 scan/s Laser 1D - USB Cable - Twilight Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner supports a wide range of 1D barcode symbologies, including UPC/EAN, Code 39, Code 128, Codabar, Interleaved 2 of 5, and GS1 DataBar variants, making it versatile for various industry standards. The bi-directional scan pattern enhances scanning flexibility, allowing users to capture barcodes from multiple angles without repositioning the device.
The laser light source provides consistent and accurate decoding, even in challenging lighting conditions. The included USB cable ensures plug-and-play compatibility with most systems, eliminating the need for additional drivers or complex configurations.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The LS2208 combines speed, accuracy, and durability to meet the demands of high-volume scanning applications. Its robust construction and ergonomic design reduce user fatigue, while the environmental compliance with RoHS standards ensures responsible manufacturing.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Speed Performance, Easy Integration.
High-Speed Performance
Achieve rapid data capture with a 100 scan/s rate, minimizing wait times and boosting productivity in fast-paced settings.
- Laser-based decoding for reliability
- Bi-directional scanning for flexibility
Easy Integration
The USB cable connectivity allows for direct connection to computers or POS systems, simplifying deployment and reducing setup complexity.
- Plug-and-play operation
- Compatible with standard USB ports
Deployment / Use Cases
Ideal for retail checkout counters, this scanner accelerates transaction processing by quickly reading product barcodes, reducing customer wait times and improving service efficiency. In warehouse environments, it supports inventory management by enabling fast scanning of pallets, boxes, and individual items during receiving, picking, and shipping operations.
Office settings benefit from its use in asset tracking, where employees can scan barcodes on equipment, documents, or supplies to maintain accurate records. The handheld design makes it suitable for mobile applications, such as stocktaking on shop floors or in storage areas.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Measuring 5.98" in height, 2.48" in width, and 3.31" in depth, the LS2208 offers a compact and lightweight design at 5.15 ounces. The Twilight Black color provides a sleek, professional look that blends seamlessly into various workspaces. Its handheld form factor ensures portability and ease of use, whether placed on a countertop or carried during mobile tasks.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.98" (152 mm), 2.48" (63 mm), 3.31" (84 mm), 5.15 oz (146 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.48" (63 mm)
- Depth
- 3.31" (84 mm)
- Height
- 5.98" (152 mm)
- Weight
- 5.15 oz (146 g)
What's in the Box
The package includes the LS2208 General Purpose Barcode Scanner and a USB cable for immediate setup and operation.
Package contents include USB, LS2208 General Purpose Bar Code Scanner USB Cable, LS2208 General Purpose Bar Code Scanner. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Handheld barcode scanner with laser 1D scanning at 100 scans per second
- Supports a wide range of 1D barcode symbologies including UPC/EAN, Code 128, and GS1 DataBar
- Bi-directional scan pattern for flexible barcode capture from multiple angles
- USB cable connectivity for direct integration with workstations or notebooks
- Twilight Black finish with a compact and ergonomic handheld design
- Environmental compliance with RoHS standards for responsible manufacturing
- Includes USB cable for plug-and-play setup
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | LS2208-7AZU0100ZNA |
| Brand Name | Zebra |
| Product Line | Symbol |
| Product Model | LS2208 |
| Product Name | LS2208 General Purpose Bar Code Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | UPC/EAN UPC/EAN with Supplementals UPC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2 of 5 Discrete 2 of 5 Code 93 MSI Code 11 IATA GS1 DataBar (Formerly RSS) Variants Chinese 2 of 5 |
| Light Source | Laser |
| Scan Rate | 100 scan/s |
| Scan Pattern | Bi-directional |
| Cable Type Included | USB |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Twilight Black |
| Height | 5.98" (152 mm) |
| Width | 2.48" (63 mm) |
| Depth | 3.31" (84 mm) |
| Weight (Approximate) | 5.15 oz (146 g) |
| Miscellaneous | |
| Package Contents | LS2208 General Purpose Bar Code Scanner USB Cable |
| Country of Origin | Mexico |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What types of barcodes can the Zebra LS2208 scanner read?
The LS2208 supports 1D barcode symbologies, including UPC/EAN, UPC/EAN with supplementals, UPC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar variants, and Chinese 2 of 5. This broad compatibility makes it suitable for retail, logistics, and industrial applications.
How fast is the scanning speed of this barcode scanner?
The scanner operates at a rate of 100 scans per second, enabling rapid data capture for high-volume environments like checkout counters or warehouse inventory management. This speed reduces processing time and enhances overall efficiency in scanning tasks.
What connectivity options does the LS2208 offer?
It features USB cable connectivity, with a USB host interface and included USB cable. This wired setup provides stable and direct connection to computers or point-of-sale systems, ensuring reliable data transmission without wireless interference.
Is the LS2208 environmentally friendly?
Yes, the scanner is environmentally friendly and complies with the Restriction of Hazardous Substances (RoHS) standards. This means it is manufactured without certain hazardous materials, aligning with sustainability goals and regulatory requirements.
What is the warranty period for the Zebra LS2208 scanner?
The product comes with a 5-year limited warranty, providing long-term support and peace of mind for businesses relying on consistent scanning performance. This warranty covers defects in materials and workmanship under normal use conditions.
What is included in the package with the LS2208 scanner?
The package contains the LS2208 General Purpose Barcode Scanner and a USB cable. This allows for immediate setup and operation upon unboxing, with no additional accessories required for basic functionality.
