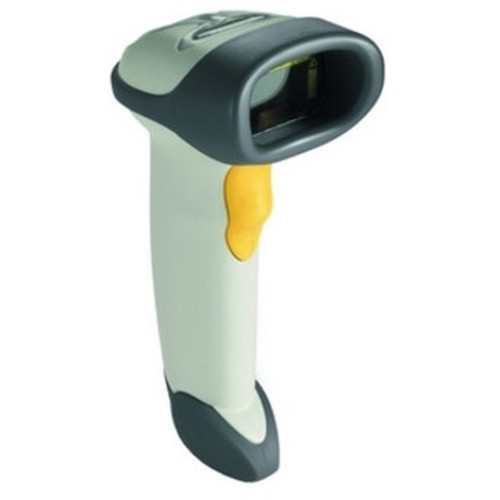

Zebra LS2208-SR20371R Wired Linear Barcode Scanner - 1D Laser - 100 scan/s - Handheld - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The scanner utilizes a laser light source and linear image sensor technology to achieve precise 1D barcode decoding. It supports a comprehensive range of barcode symbologies including UPC/EAN, Code 39, Code 128, Codabar, Interleaved 2 of 5, and many others, ensuring compatibility with global retail and industrial standards.
With a bi-directional scan pattern and a rapid 100 scan/s decode rate, the LS2208-SR20371R minimizes processing delays and enhances workflow efficiency. The cable-based connectivity provides a stable, direct association with host devices, eliminating wireless interference concerns in crowded operational environments.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The LS2208-SR20371R delivers exceptional value through its combination of speed, reliability, and ease of integration. Its high-performance laser scanning engine ensures accurate first-time reads even on poorly printed or damaged barcodes, reducing rescans and operational downtime.
High-Speed Operation
Achieves a decode rate of 100 scans per second, enabling rapid data capture in fast-paced retail checkout and inventory scanning scenarios.
- Bi-directional scanning pattern
- Consistent performance across symbologies
Robust Connectivity
Features multi-interface host support via cable connectivity, providing plug-and-play compatibility with a wide range of POS systems, computers, and terminals.
- Stable wired connection
- No wireless configuration required
Durable Construction
Built to withstand daily use in commercial environments, with an ergonomic handheld design and RoHS-compliant materials for environmental responsibility.
- 5-year limited warranty
- Mexico manufacturing origin
Deployment / Use Cases
This scanner is ideally suited for environments requiring reliable, high-volume barcode reading with direct workstation integration. Its wired connectivity makes it perfect for fixed-point applications where mobility is not required but data integrity is critical.
Common deployment scenarios include retail point-of-sale stations, healthcare medication administration systems, warehouse inventory management stations, and library circulation desks. The scanner's compatibility with numerous barcode symbologies allows it to handle everything from retail UPC codes to industrial Code 39 labels and healthcare ISBT 128 compliance.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Retail Checkout
Provides fast, accurate scanning of product barcodes at cash registers, reducing customer wait times and minimizing pricing errors.
Healthcare Applications
Supports patient identification, medication administration, and specimen tracking through compatibility with healthcare-specific symbologies like ISBT 128.
Physical Profile
The LS2208-SR20371R features a compact handheld form factor measuring 6" (152.40 mm) in height, 2.50" (63.50 mm) in width, and 3.34" (84.84 mm) in depth. Weighing just 5.15 ounces, it offers comfortable one-handed operation during extended scanning sessions. The white housing provides a clean, professional appearance that blends well with various workstation aesthetics while remaining easy to identify in shared environments.
- Width
- 2.50" (63.50 mm)
- Depth
- 3.34" (84.84 mm)
- Height
- 6" (152.40 mm)
- Weight
- 5.15 oz (146.000044 g)
Highlights
- 100 scans per second decode rate for high-speed operation
- Laser light source with linear image sensor for precise 1D barcode reading
- Supports over 20 barcode symbologies including UPC/EAN, Code 128, and ISBT 128
- Wired connectivity with multi-interface host support
- Bi-directional scanning pattern for flexible orientation
- Handheld form factor with ergonomic white design
- 5-year limited warranty for long-term reliability
- RoHS compliant for environmental responsibility
- Made in Mexico with quality manufacturing standards
- Ideal for retail POS, healthcare, and inventory management applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | LS2208-SR20371R |
| Brand Name | Zebra |
| Product Model | LS2208 |
| Product Name | LS2208 Bar Code Reader |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | UPC/EAN UPC/EAN Supplementals Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2 of 5 Discrete 2 of 5 Code 93 MSI Code 11 IATA RSS Variants China Post 2 of 5 UCC/EAN 128 ISBT 128 |
| Light Source | Laser |
| Image Sensor Type | Linear |
| Scan Rate | 100 scan/s |
| Scan Pattern | Bi-directional |
| Interfaces/Ports | |
| Host Interface | Multi-interface |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | White |
| Height | 6" (152.40 mm) |
| Width | 2.50" (63.50 mm) |
| Depth | 3.34" (84.84 mm) |
| Weight (Approximate) | 5.15 oz (146.000044 g) |
| Miscellaneous | |
| Country of Origin | Mexico |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What types of barcodes can the Zebra LS2208-SR20371R scanner read?
This scanner reads 1D barcodes exclusively and supports a comprehensive range of symbologies including UPC/EAN, Code 39, Code 128, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA RSS variants, China Post 2 of 5, UCC/EAN 128, and ISBT 128. This wide compatibility makes it suitable for retail, industrial, and healthcare applications.
How fast is the scanning speed of this barcode reader?
The Zebra LS2208-SR20371R achieves a scan rate of 100 scans per second. This high-speed performance enables rapid data capture in busy environments like retail checkouts and warehouse inventory stations, minimizing processing delays and improving workflow efficiency.
What connectivity options does this scanner support?
This scanner features cable connectivity with multi-interface host support. The wired connection provides stable, reliable communication with workstations, point-of-sale systems, and notebooks without the potential interference issues sometimes associated with wireless scanners.
Is this scanner suitable for healthcare applications?
Yes, the LS2208-SR20371R is well-suited for healthcare environments. It supports ISBT 128 symbology used in blood bank and tissue tracking, along with other medical barcode standards. The reliable laser scanning and consistent performance make it appropriate for patient identification, medication administration, and specimen management applications.
What is the warranty coverage for this barcode scanner?
Zebra provides a 5-year limited warranty for the LS2208-SR20371R barcode scanner. This extended warranty period reflects the product's durable construction and reliability for commercial use, offering peace of mind for business deployments.
What are the physical dimensions and weight of this handheld scanner?
The scanner measures 6 inches (152.40 mm) in height, 2.50 inches (63.50 mm) in width, and 3.34 inches (84.84 mm) in depth. It weighs approximately 5.15 ounces (146.000044 grams), making it lightweight enough for comfortable extended use while maintaining a sturdy construction for daily commercial applications.
What print speed is listed?
Zebra LS2208 Bar Code Reader - Wired - Linear (LS2208-SR20371R) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What sheet capacity, media size, or paper handling detail is listed?
Zebra LS2208 Bar Code Reader - Wired - Linear (LS2208-SR20371R) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
