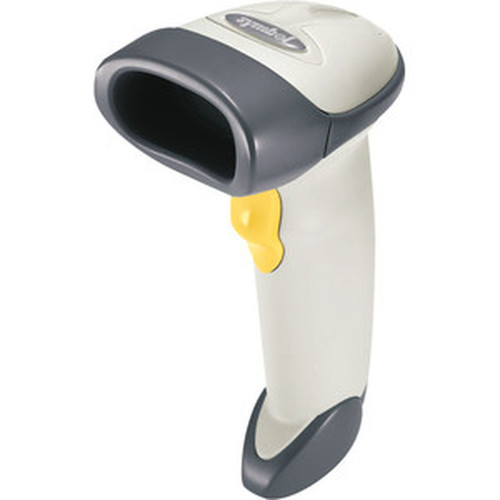

Zebra LS2208-1AZU0100ZNA General Purpose Barcode Scanner - 1D Laser - 100 scan/s - Bi-directional - USB - Cash Register White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the LS2208 scanner is a laser light source that enables scanning at 100 scans per second. This performance level supports high-volume environments where rapid transaction processing is essential. The bi-directional scan pattern increases successful read rates by capturing barcodes from multiple angles.
The scanner supports comprehensive 1D barcode symbology including UPC/EAN, Code 128, Code 39, Interleaved 2 of 5, and GS1 DataBar variants. This broad compatibility ensures the scanner can handle retail product codes, inventory labels, and specialized industrial barcodes.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The LS2208 scanner delivers several distinct advantages for business environments requiring dependable barcode capture. Its combination of speed, accuracy, and durability makes it suitable for both front-counter and back-room operations.
High-Speed Operation
With a 100 scan/s capability, this scanner processes transactions quickly, reducing customer wait times and improving throughput in busy retail settings.
- Laser scanning for consistent performance
- Bi-directional pattern for increased read success
Broad Compatibility
Support for over 15 1D barcode symbologies ensures the scanner can handle diverse labeling requirements across retail, warehouse, and industrial applications.
- Includes UPC/EAN, Code 128, Code 39 variants
- Supports GS1 DataBar for modern retail standards
Deployment / Use Cases
The LS2208 scanner is designed for direct association with workstations and notebooks, making it ideal for fixed POS configurations. Its cable connectivity provides reliable data transmission without wireless interference concerns.
Primary deployment scenarios include retail checkout counters where rapid product scanning is essential, inventory management stations for stock control, and service counters where product lookup speed impacts customer service quality. The scanner's ergonomic handheld design supports both presentation and hand-held scanning modes.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Retail Point of Sale
Integrate directly with cash register systems for efficient checkout operations. The cash register white color blends with traditional POS aesthetics.
Inventory Management
Use for stock counting, receiving, and cycle counting applications where accurate barcode capture supports inventory accuracy.
Physical Profile
The LS2208 features compact dimensions of 5.98" height × 2.48" width × 3.31" depth (152 × 63 × 84 mm) with a lightweight 5.15 oz (146 g) construction. This ergonomic design minimizes hand fatigue during extended scanning sessions while maintaining durability for commercial use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.98" (152 mm), 2.48" (63 mm), 3.31" (84 mm), 5.15 oz (146 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.48" (63 mm)
- Depth
- 3.31" (84 mm)
- Height
- 5.98" (152 mm)
- Weight
- 5.15 oz (146 g)
Highlights
- 100 scans per second laser scanning capability
- Bi-directional scan pattern for increased read success
- USB cable connectivity for reliable workstation integration
- Supports comprehensive 1D barcode symbology
- Cash register white color matches traditional POS aesthetics
- Compact handheld form factor for ergonomic operation
- 5-year limited warranty for long-term reliability
- RoHS compliant for environmental responsibility
- Manufactured in Mexico with Zebra quality standards
- Ideal for retail, inventory, and point-of-sale applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | LS2208-1AZU0100ZNA |
| Brand Name | Zebra |
| Product Line | Symbol |
| Product Model | LS2208 |
| Product Name | LS2208 General Purpose Bar Code Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | UPC/EAN UPC/EAN with Supplementals UPC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2 of 5 Discrete 2 of 5 Code 93 MSI Code 11 IATA GS1 DataBar (Formerly RSS) Variants Chinese 2 of 5 |
| Light Source | Laser |
| Scan Rate | 100 scan/s |
| Scan Pattern | Bi-directional |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Cash Register White |
| Height | 5.98" (152 mm) |
| Width | 2.48" (63 mm) |
| Depth | 3.31" (84 mm) |
| Weight (Approximate) | 5.15 oz (146 g) |
| Miscellaneous | |
| Country of Origin | Mexico |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the scanning speed of the Zebra LS2208 barcode scanner?
The Zebra LS2208 scanner operates at 100 scans per second. This high-speed laser scanning capability enables rapid transaction processing in retail environments, reducing customer wait times at checkout counters and improving overall throughput in busy commercial settings.
What types of barcodes does the LS2208 scanner support?
This scanner supports comprehensive 1D barcode symbology including UPC/EAN, UPC/EAN with supplementals, UPC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar variants, and Chinese 2 of 5. This broad compatibility covers most retail, industrial, and inventory labeling requirements.
What connectivity options does this barcode scanner offer?
The LS2208 features USB cable connectivity for direct association with workstations and notebooks. This wired connection provides reliable data transmission without wireless interference concerns, making it suitable for fixed POS configurations where consistent performance is essential.
What is the warranty coverage for the Zebra LS2208 scanner?
Zebra provides a 5-year limited warranty for the LS2208 barcode scanner. This extended warranty period reflects the product's durability and reliability for commercial applications, offering long-term protection for your investment in point-of-sale or inventory management equipment.
What are the physical dimensions and weight of this scanner?
The LS2208 measures 5.98 inches in height, 2.48 inches in width, and 3.31 inches in depth (152 × 63 × 84 mm). It weighs approximately 5.15 ounces (146 grams). These compact dimensions and lightweight construction contribute to ergonomic handling during extended scanning sessions.
Is the Zebra LS2208 environmentally compliant?
Yes, the LS2208 scanner is environmentally friendly and complies with the Restriction of Hazardous Substances (RoHS) directive. This compliance ensures the product meets international standards for limiting specific hazardous materials in electrical and electronic equipment.
What print speed is listed?
Zebra LS2208 General Purpose Bar Code Scanner - Cable Connectivity - 100 scan/s - 1D - Laser - Bi-directional - USB - Cash Register (LS2208-1AZU0100ZNA) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What sheet capacity, media size, or paper handling detail is listed?
Zebra LS2208 General Purpose Bar Code Scanner - Cable Connectivity - 100 scan/s - 1D - Laser - Bi-directional - USB - Cash Register (LS2208-1AZU0100ZNA) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
