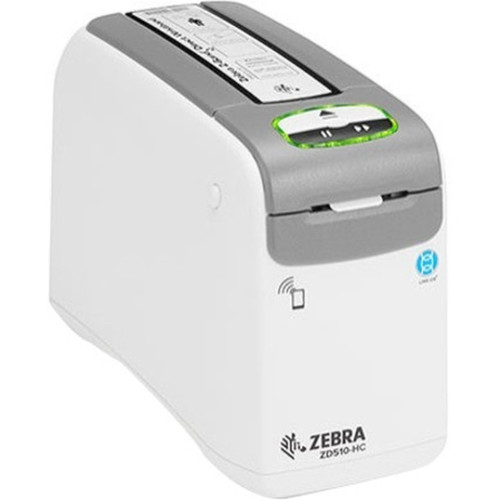

Zebra ZD51013-D01B01FZ ZD510-HC Direct Thermal Wristband Printer - Monochrome - 4.02 in/s - 300 dpi - Portable - USB/Ethernet/Bluetooth/WLAN
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ZD510-HC is a direct thermal print engine that produces sharp, smudge-resistant wristbands without ribbons or toner. The 300 dpi resolution ensures text, barcodes, and graphics remain legible even at small sizes, critical for accurate patient identification and scanning.
The printer includes 256 MB of standard memory for handling complex label formats and buffering print jobs. Multiple connectivity options—USB, Ethernet, Bluetooth, and Wireless LAN—provide flexibility for integration into existing hospital networks, mobile carts, or standalone setups. AC power supply ensures consistent operation without battery limitations.
Relevant factors for this section include Recommended Use, Print Color Capability, Maximum Mono Print Speed, Standard Memory. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ZD510-HC combines specialized wristband printing with robust connectivity and portability, creating a versatile tool for healthcare professionals. Its direct thermal technology eliminates consumable costs associated with ribbons, while the high-speed engine reduces wait times during busy patient intake periods.
Healthcare-Grade Durability
Wristbands printed with the ZD510-HC resist moisture, abrasion, and chemicals commonly found in clinical settings, maintaining integrity throughout a patient's stay.
- Smudge-resistant output
- No ribbons required
- Long-lasting adhesion
Flexible Deployment
Wireless LAN and Bluetooth enable printing from tablets, mobile computers, or bedside terminals, while Ethernet provides stable network integration for centralized print management.
- Supports mobile printing
- Seamless network integration
- Reduces cable clutter
Deployment / Use Cases
The Zebra ZD510-HC excels in healthcare environments where accurate patient identification is non-negotiable. Hospitals use it for admission wristbands, allergy alerts, and fall-risk identifiers, while outpatient clinics deploy it for visitor badges and specimen labeling.
Beyond healthcare, this printer serves mobile event registration, temporary access control at conferences, and inventory tracking in warehouses. Its portability allows teams to set up printing stations quickly in triage areas, pop-up clinics, or disaster response sites without permanent infrastructure.
Patient Admission Workflow
Integrate with EHR systems to print wristbands at bedside during admission, reducing errors and improving patient safety through immediate identification.
Mobile Clinic Operations
Carry the printer between examination rooms or satellite locations, printing wristbands on-demand without returning to a central nursing station.
Physical Profile
Measuring 7.01 inches tall, 5 inches wide, and 9.53 inches deep, the ZD510-HC fits comfortably on medication carts, countertops, or portable stands. The rugged housing withstands frequent movement and cleaning, while the compact design maximizes workspace efficiency. An integrated handle simplifies transport between locations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.01" (178 mm), 1.19" (30.16 mm), 9.53" (242 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 1.19" (30.16 mm)
- Depth
- 9.53" (242 mm)
- Height
- 7.01" (178 mm)
- Length
- 21.97" (558 mm)
Highlights
- Direct thermal printing for wristbands without ribbons or toner
- Monochrome output at 4.02 inches per second for rapid patient identification
- 300 dpi resolution ensures crisp text, barcodes, and graphics
- Portable form factor with integrated handle for mobile deployment
- USB, Ethernet, Bluetooth, and Wireless LAN connectivity options
- Supports wristband media up to 1.19" wide and 21.97" long
- 256 MB standard memory for complex label formats
- Energy Star certified for reduced power consumption
- AC power supply for consistent operation
- Compact dimensions: 7.01" H x 5" W x 9.53" D
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | ZD51013-D01B01FZ |
| Brand Name | Zebra |
| Product Model | ZD510-HC |
| Product Name | ZD510 Healthcare Wristband Printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Wristband Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 4.02 in/s (102 mm/s) |
| Maximum Print Resolution (dpi) | 300 |
| Maximum Print Length | 21.97" (558 mm) |
| Maximum Print Width | 1.19" (30.16 mm) |
| Memory | |
| Standard Memory | 256 MB |
| Interfaces/Ports | |
| USB | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Media Types & Handling | |
| Media Type | Wristband |
| Power Description | |
| Power Source | AC Supply |
| Physical Characteristics | |
| Form Factor | Portable |
| Height | 7.01" (178 mm) |
| Width | 5" (127 mm) |
| Depth | 9.53" (242 mm) |
| Miscellaneous | |
| Energy Star | Yes |
FAQ
What type of media does the Zebra ZD510-HC printer use?
The ZD510-HC is designed specifically for wristband media, supporting standard healthcare wristbands up to 1.19 inches wide and 21.97 inches long. It uses direct thermal technology, which means it prints directly onto thermally sensitive wristband material without requiring ribbons, toner, or ink cartridges. This makes it ideal for patient identification, allergy alerts, and other clinical labeling applications.
How fast does this wristband printer operate?
The Zebra ZD510-HC prints at a maximum speed of 4.02 inches per second (102 mm/s) in monochrome. This speed allows healthcare staff to produce patient wristbands quickly during admissions or transfers, reducing wait times and improving workflow efficiency. The direct thermal engine maintains this speed consistently without warm-up delays.
What connectivity options are available on the ZD510-HC?
This printer offers four connectivity methods: USB for direct computer connection, Ethernet for wired network integration, Bluetooth for short-range wireless printing from mobile devices, and Wireless LAN (Wi-Fi) for network printing without cables. This flexibility supports various deployment scenarios, from bedside printing with tablets to centralized print servers in hospital networks.
Is the ZD510-HC suitable for mobile or portable use?
Yes, the ZD510-HC is designed as a portable printer with a compact form factor, integrated handle, and lightweight construction. It measures 7.01" H x 5" W x 9.53" D, making it easy to carry between departments, patient rooms, or temporary care sites. The AC power supply ensures reliable operation without battery limitations during mobile deployments.
What print resolution does this printer provide?
The ZD510-HC delivers a maximum print resolution of 300 dots per inch (dpi). This high resolution produces sharp, legible text, barcodes, and graphics on wristbands, which is critical for accurate patient identification and barcode scanning in healthcare settings. The direct thermal technology ensures consistent quality without fading or smudging.
Does the printer include memory for storing label formats?
Yes, the ZD510-HC comes with 256 MB of standard memory. This memory allows the printer to store complex wristband formats, fonts, and graphics, reducing the need to retransmit data for each print job. It also helps buffer print jobs during network interruptions, ensuring reliable operation in busy clinical environments.
