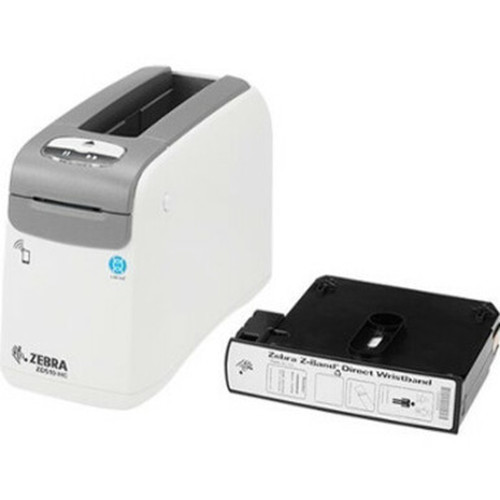

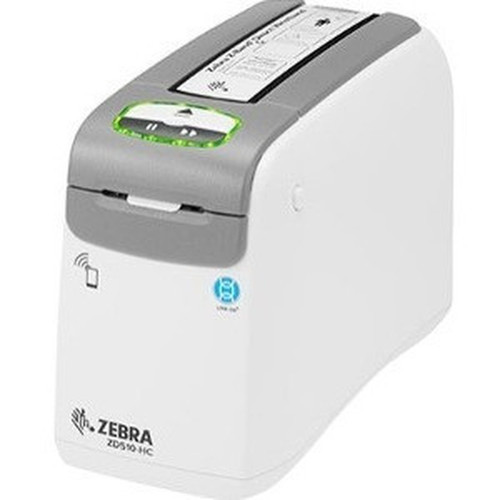

Zebra ZD51013-D01E00FZ ZD510-HC Direct Thermal Printer - Portable Wristband Print - Monochrome - 4.02 in/s - 300 dpi - USB/Ethernet/Bluetooth - 21.97"
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ZD510-HC utilizes direct thermal printing technology, eliminating the need for ribbons or toner cartridges. It operates at a maximum print speed of 4.02 inches per second (102 mm/s) with a 300 dpi resolution, ensuring sharp text and barcodes on wristband media up to 21.97 inches in length and 1.19 inches in width.
With 256 MB of standard memory, the printer handles complex print jobs efficiently. It includes USB, Ethernet, and Bluetooth interfaces for versatile connectivity, supporting both wired and wireless printing environments. The printer is Energy Star certified, reflecting its energy-efficient design.
Relevant factors for this section include Recommended Use, Print Color Capability, Maximum Mono Print Speed, Standard Memory. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ZD510-HC combines portability with robust printing capabilities, making it a versatile solution for wristband printing needs. Its direct thermal technology reduces consumable costs and maintenance, while multiple connectivity options ensure compatibility with existing infrastructure.
High-Speed Printing
Print wristbands quickly at 4.02 in/s, minimizing wait times in high-volume environments such as hospitals or events.
- 4.02 in/s maximum speed
- 300 dpi resolution for clarity
- Supports long print lengths up to 21.97"
Flexible Connectivity
Connect via USB, Ethernet, or Bluetooth to integrate seamlessly with workstations, networks, or mobile devices.
- USB for direct computer connection
- Ethernet for network printing
- Bluetooth for wireless mobility
Deployment / Use Cases
The ZD510-HC is optimized for wristband printing in healthcare, hospitality, and event management. Its portable design allows for deployment at patient bedsides, registration desks, or temporary stations without requiring permanent installation.
In healthcare settings, it prints patient identification wristbands with accurate barcodes and text. For events, it handles attendee wristbands efficiently. The printer's compact size and multiple connectivity options make it suitable for both fixed and mobile printing scenarios.
Relevant factors for this section include Recommended Use, Print Color Capability, Maximum Mono Print Speed, Standard Memory. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Healthcare Identification
Print patient wristbands at point of care with high accuracy and speed, supporting clinical workflow efficiency.
Event Management
Deploy quickly for printing attendee wristbands at conferences, festivals, or venues with reliable output.
Physical Profile
The ZD510-HC features a portable form factor with dimensions of 7.01 inches in height, 5 inches in width, and 9.53 inches in depth. Its lightweight construction and compact design facilitate easy transport and placement in tight spaces. The printer operates on AC power, ensuring consistent performance without battery limitations.
- Width
- 1.19" (30.16 mm)
- Depth
- 9.53" (242 mm)
- Height
- 7.01" (178 mm)
- Length
- 21.97" (558 mm)
Highlights
- Portable direct thermal printer for wristband printing
- Monochrome printing at 4.02 in/s speed
- 300 dpi resolution for sharp text and barcodes
- Maximum print length of 21.97 inches (558 mm)
- USB, Ethernet, and Bluetooth connectivity
- 256 MB standard memory for efficient job handling
- Energy Star certified for energy efficiency
- Compact dimensions: 7.01" H x 5" W x 9.53" D
- AC power supply for reliable operation
- 1-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | ZD51013-D01E00FZ |
| Brand Name | Zebra |
| Product Model | ZD510-HC |
| Product Name | ZD510 Healthcare Wristband Printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Wristband Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 4.02 in/s (102 mm/s) |
| Maximum Print Resolution (dpi) | 300 |
| Maximum Print Length | 21.97" (558 mm) |
| Maximum Print Width | 1.19" (30.16 mm) |
| Memory | |
| Standard Memory | 256 MB |
| Interfaces/Ports | |
| USB | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Bluetooth | Yes |
| Media Types & Handling | |
| Media Type | Wristband |
| Power Description | |
| Power Source | AC Supply |
| Physical Characteristics | |
| Form Factor | Portable |
| Height | 7.01" (178 mm) |
| Width | 5" (127 mm) |
| Depth | 9.53" (242 mm) |
| Miscellaneous | |
| Energy Star | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What type of printing technology does the Zebra ZD510-HC use?
The Zebra ZD510-HC uses direct thermal printing technology. This method applies heat directly to thermally sensitive wristband media, producing images without ink, toner, or ribbons. It simplifies maintenance and reduces consumable costs while delivering durable, smudge-resistant prints suitable for identification purposes.
What is the maximum print speed of this printer?
The maximum mono print speed is 4.02 inches per second (102 mm/s). This speed allows for rapid wristband printing in high-volume environments such as hospitals or events, minimizing wait times and supporting efficient workflow operations without compromising print quality.
What connectivity options are available on the ZD510-HC?
The printer includes USB, Ethernet, and Bluetooth connectivity. USB enables direct connection to a computer, Ethernet supports network integration for shared printing, and Bluetooth provides wireless printing capability from mobile devices. This versatility allows deployment in both wired and wireless environments.
What are the maximum print dimensions supported?
The maximum print length is 21.97 inches (558 mm), and the maximum print width is 1.19 inches (30.16 mm). These dimensions accommodate standard wristband media sizes, ensuring compatibility with common healthcare and event wristband formats while providing ample space for text, barcodes, or graphics.
Is the ZD510-HC Energy Star certified?
Yes, the ZD510-HC is Energy Star certified. This certification indicates that the printer meets energy efficiency guidelines, reducing power consumption during operation and standby modes. It helps lower operational costs and supports environmental sustainability initiatives in business or institutional settings.
What is the warranty period for this printer?
The Zebra ZD510-HC comes with a 1-year limited warranty. This warranty covers defects in materials and workmanship under normal use, providing assurance of product reliability. For specific terms and conditions, refer to Zebra's official warranty documentation or contact their support team.
