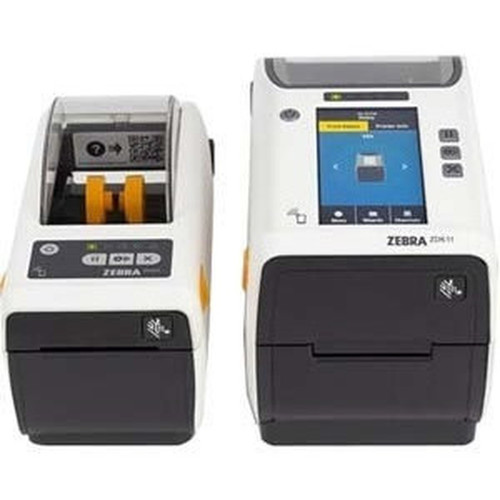

Zebra ZD6AH22-D11B01EZ ZD611D-HC Direct Thermal Label Printer - 4. 3" LCD - Fast Ethernet - USB - 203 dpi - 7. 99 in/s Print Speed - Monochrome Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This direct thermal printer operates without toner or ink, using heat-sensitive media to produce durable monochrome output. It supports an extensive range of barcode symbologies including Code 128, UPC, EAN, PDF417, and Data Matrix, making it suitable for retail, shipping, and inventory applications. The printer includes a real-time clock for time-stamping labels and supports ZPL II, EPL2, XML, and ZPL language emulations for flexible integration.
Connectivity is comprehensive with wired USB and Fast Ethernet ports built in, while optional serial, wireless LAN, and Bluetooth modules expand deployment options. The 256 MB of standard memory supports complex label formats and buffering for continuous operation. Powered by AC supply, the printer operates within a broad temperature range of 40°F to 105°F and 10-90% humidity, ensuring reliability in varied environments.
Key Product Advantages
High-Speed Label Production
With a maximum print speed of 7.99 inches per second, the ZD611D-HC handles high-volume label printing efficiently, reducing wait times in fast-paced retail and logistics operations.
- 203 dpi resolution for sharp barcodes
- Supports wide range of label and tag media
Flexible Connectivity Options
Standard USB and Fast Ethernet provide reliable wired connections, while optional wireless LAN and Bluetooth enable mobile and flexible placement within the workspace.
- Integrates with PC, iOS, and Android platforms
- Optional serial port for legacy systems
Intuitive Operation & Durability
The 4.3-inch LCD offers clear menus and status updates, and the compact dual-wall frame provides durability in desktop environments without occupying excessive space.
- Real-time clock for accurate time-stamping
- Operates in wide temperature and humidity ranges
Deployment / Use Cases
The Zebra ZD611D-HC is ideal for retail point-of-sale, warehouse shipping stations, and healthcare wristband printing where reliable, on-demand label production is critical. Its fast print speed and support for various media types make it suitable for printing price labels, shipping labels, bin tags, and patient identification wristbands.
In retail environments, the printer can be connected via Ethernet to the store network for centralized label printing, or used as a standalone USB printer at individual registers. For mobile applications, optional wireless connectivity allows the printer to be placed conveniently without cable constraints. The robust construction and broad operating temperature range ensure consistent performance in back rooms, loading docks, and clinical settings.
Retail & Point of Sale
Print price labels, shelf tags, and receipts quickly at checkout counters or price verification stations with reliable Ethernet or USB connectivity.
Logistics & Warehouse
Generate shipping labels, packing slips, and inventory bin tags at high speed to keep fulfillment operations moving efficiently.
Physical Profile
The ZD611D-HC features a compact desktop design measuring 5.94 inches high, 4.53 inches wide, and 8.66 inches deep, with a weight of approximately 2.36 pounds. This footprint allows it to fit comfortably on crowded countertops or workstations. The dual-wall frame construction provides durability while maintaining a relatively lightweight profile for easy repositioning when needed.
- Width
- 2.20" (56 mm)
- Depth
- 8.66" (220 mm)
- Height
- 5.94" (151 mm)
- Weight
- 2.36 lb (1070.48 g)
- Length
- 1.54" (39 mm)
What's in the Box
The printer arrives ready for setup with all essential cables and documentation included.
Highlights
- Direct thermal monochrome label printer with 7.99 in/s print speed
- 4.3-inch LCD display for easy status monitoring and configuration
- Standard USB and Fast Ethernet connectivity for flexible deployment
- Supports labels, tags, receipts, and wristbands up to 2.25" width
- Optional wireless LAN and Bluetooth connectivity available
- 256 MB standard memory for complex label formats
- Operates with PC, iOS, and Android platforms
- Energy Star certified and RoHS/REACH compliant
- 2-year limited warranty for peace of mind
- Compact desktop design with dual-wall frame construction
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | ZD6AH22-D11B01EZ |
| Brand Name | Zebra |
| Product Model | ZD611D-HC |
| Product Name | ZD611D-HC Direct Thermal Printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 7.99 in/s (203 mm/s) |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 2.20" (56 mm) |
| Barcode Symbology Supported | Code 39,Codabar,Code 128 (A/B/C),UCC/EAN 128,Code 93,Interleaved 2 of 5,UPC-A,UPC-E,UPC-A with 2 and 5 Add-on,UPC-E with EAN 2 or 5 Digit Extension,EAN-13,EAN-8,EAN-13 With 2 and 5 Digit Extension,EAN-8 With 2 or 5 Digit Extension,POSTNET,Plessey,MSI-3,German Post Code,RSS-14,Maxi Code,PDF417,Micro PDF-417,Macro PDF-417,Data Matrix |
| Connectivity Technology | Wired |
| Real Time Clock | Yes |
| Application/Usage | Desktop |
| Features | LCD Display,Dual Wall Frame,Compact |
| Memory | |
| Standard Memory | 256 MB |
| Interfaces/Ports | |
| USB Host | Yes |
| USB | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Display & Graphics | |
| Display Screen | Yes |
| Screen Size | 4.3" (109.22 mm) |
| Display Screen Type | LCD |
| Media Types & Handling | |
| Media Type | Label,Fanfold,Gap,Notch,Roll Fed,Die-cut Label,Continuous Label,Tag Stock,Continuous Receipt,Wristband |
| Media Sensor | Moveable Reflective/Black Mark Sensor,Multi-position Transmissive/Gap Sensor |
| Media Thickness | 7.5 mil (0.1905 mm) |
| Maximum Roll Diameter | 5" (127 mm) |
| Maximum Label Width | 2.25" (57.15 mm) |
| Maximum Label Length | 1.54" (39 mm) |
| Fonts & Emulation | |
| Language Emulation | ZPL II,EPL2,XML,ZPL |
| Software | |
| Operating System Supported | Link-OS |
| Power Description | |
| Power Source | AC Supply |
| Environmental Conditions | |
| Operating Temperature | 40°F (4.4°C) - 105°F (40.6°C) |
| Operating Relative Humidity | 10% - 90% |
| Storage Temperature | -40°F (-40°C) - 140°F (60°C) |
| Storage Relative Humidity | 5% - 95% |
| Physical Characteristics | |
| Height | 5.94" (151 mm) |
| Width | 4.53" (115 mm) |
| Depth | 8.66" (220 mm) |
| Weight (Approximate) | 2.36 lb (1070.48 g) |
| Miscellaneous | |
| Power Cable Localization | US |
| Package Contents | ZD611D-HC Direct Thermal Printer AC Power Supply Power cord(s) USB cable Quick Start Guide Regulatory Guide |
| Cables Included | AC,USB |
| Power Adapter Included | Yes |
| Optional Connectivity | Serial (RS-232),Wireless LAN,Bluetooth |
| Platform Supported | PC,iOS,Android |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What type of printing technology does the Zebra ZD611D-HC use?
The ZD611D-HC uses direct thermal printing technology, which applies heat to specially coated thermal media to produce monochrome images without requiring ink, toner, or ribbons. This results in lower consumable costs and simplified maintenance compared to thermal transfer or inkjet printers.
What connectivity options are available on this label printer?
Standard connectivity includes USB and Fast Ethernet ports for wired network and direct computer connections. Optional modules are available for serial (RS-232), wireless LAN, and Bluetooth connectivity, allowing integration into both traditional and mobile workflows across PC, iOS, and Android platforms.
What media types and sizes can the ZD611D-HC handle?
This printer supports a variety of media including labels, fanfold, roll-fed labels, die-cut labels, continuous labels, tag stock, continuous receipts, and wristbands. It accommodates media rolls up to 5 inches in diameter, with maximum label dimensions of 2.25 inches wide and 1.54 inches long.
How fast does this printer produce labels?
The ZD611D-HC has a maximum monochrome print speed of 7.99 inches per second (203 mm/s) at 203 dpi resolution. This speed enables rapid label production for retail pricing, shipping labels, and other time-sensitive applications where throughput is important.
What barcode types does this printer support?
It supports an extensive range of barcode symbologies including Code 39, Codabar, Code 128, UCC/EAN 128, Code 93, Interleaved 2 of 5, UPC-A, UPC-E, EAN-13, EAN-8, POSTNET, RSS-14, MaxiCode, PDF417, Micro PDF-417, Macro PDF-417, and Data Matrix. This comprehensive support makes it suitable for retail, logistics, and inventory management applications.
What is included in the warranty for this printer?
Zebra provides a 2-year limited warranty for the ZD611D-HC direct thermal printer. This coverage includes protection against defects in materials and workmanship under normal use, offering reliability assurance for business deployments in retail, warehouse, and healthcare environments.
