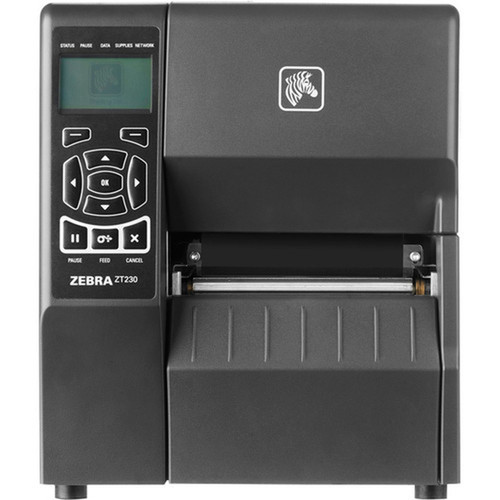

Zebra ZT230 Industrial Direct Thermal Printer Monochrome USB Serial With Built In Cutter And LCD Display ZT23042-D21000FZ
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- ZT230 Industrial Printer
- Power Cord with US Plug
- IEC 60950
- EN 55022 Class B
- EN55024
- EN 61000-3-2
- EN 61000-3-3
- UL
- CE Marking
- FCC-B
- ICES-003
- VCCI
- C-Tick
- NOM
- IRAM
- CCC
- GOST-R
- Unicode
- KCC
- BSMI
- UkrSepr
- PFC
- cTUVus
- S Mark
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 152.40 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 4.09"
Barcode Symbology Supported: Code 11,Code 39,Code 93,Code 128-A,Code 128-B,Code 128-C,UCC Case Codes,ISBT-128,UPC-A,UPC-E,EAN-13,EAN-8,EAN With 2 or 5 Digit Extension,UPC 2 or 5 Digit Extension,Plessey,POSTNET,Standard 2 of 5,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,RSS Composite,Planet Code,Codablock,PDF-417,Code 49,Data Matrix,Maxi Code,QR Code,TLC 39,Micro PDF,RSS-14,Aztec Code,Micro PDF-417,Codabar
Application/Usage: Industrial
Features: Clear Bi-fold Media Side Door,Element Energy Equalizer,Bi-color LED,Icon-graphics
Standard Memory: 128 MB
Flash Memory: 128 MB
Serial Port: Yes
USB: Yes
Display Screen: Yes
Display Screen Type: LCD
Cutter: Yes
Media Type: Continuous Label,Die-cut Label,Notch,Black Mark,Label
Media Sensor: Transmissive Media Sensor,Reflective Media Sensor
Media Thickness: 10 mil
Maximum Roll Diameter: 8"
Maximum Label Width: 4.50" (114.30 mm)
Maximum Label Length: 39" (990.60 mm)
Language Emulation: ZPL II
Power Source: AC Supply
Input Voltage: 110 V AC,220 V AC
Height: 10.90" (276.86 mm)
Width: 9.50" (241.30 mm)
Depth: 17" (431.80 mm)
Weight (Approximate): 9.07 kg
Package Contents:
Cables Included: AC
Platform Supported: PC
Certifications & Standards:
Environmentally Friendly: Yes
Country of Origin: China
Limited Warranty: 1 Year
- Direct Thermal Printer provides you with all the features that you need to print quickly and easily
- Produce high-quality documents with this monochrome printer to increase your productivity
[custom-specifications]
| Specifications | |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | ZT23042-D21000FZ |
| Manufacturer Website Address | http://www.zebra.com |
| Brand Name | Zebra |
| Product Series | ZT200 |
| Product Model | ZT230 |
| Product Name | ZT230 Industrial Printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 152.40 mm/s |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 4.09" |
| Barcode Symbology Supported | Code 11,Code 39,Code 93,Code 128-A,Code 128-B,Code 128-C,UCC Case Codes,ISBT-128,UPC-A,UPC-E,EAN-13,EAN-8,EAN With 2 or 5 Digit Extension,UPC 2 or 5 Digit Extension,Plessey,POSTNET,Standard 2 of 5,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,RSS Composite,Planet Code,Codablock,PDF-417,Code 49,Data Matrix,Maxi Code,QR Code,TLC 39,Micro PDF,RSS-14,Aztec Code,Micro PDF-417,Codabar |
| Application/Usage | Industrial |
| Features | Clear Bi-fold Media Side Door,Element Energy Equalizer,Bi-color LED,Icon-graphics |
| Memory | |
| Standard Memory | 128 MB |
| Flash Memory | 128 MB |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Display & Graphics | |
| Display Screen | Yes |
| Display Screen Type | LCD |
| Cutter | |
| Cutter | Yes |
| Media Types & Handling | |
| Media Type | Continuous Label,Die-cut Label,Notch,Black Mark,Label |
| Media Sensor | Transmissive Media Sensor,Reflective Media Sensor |
| Media Thickness | 10 mil |
| Maximum Roll Diameter | 8" |
| Maximum Label Width | 4.50" (114.30 mm) |
| Maximum Label Length | 39" (990.60 mm) |
| Fonts & Emulation | |
| Language Emulation | ZPL II |
| Power Description | |
| Power Source | AC Supply |
| Input Voltage | 110 V AC,220 V AC |
| Physical Characteristics | |
| Height | 10.90" (276.86 mm) |
| Width | 9.50" (241.30 mm) |
| Depth | 17" (431.80 mm) |
| Weight (Approximate) | 9.07 kg |
| Miscellaneous | |
| Package Contents |
|
| Cables Included | AC |
| Platform Supported | PC |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
