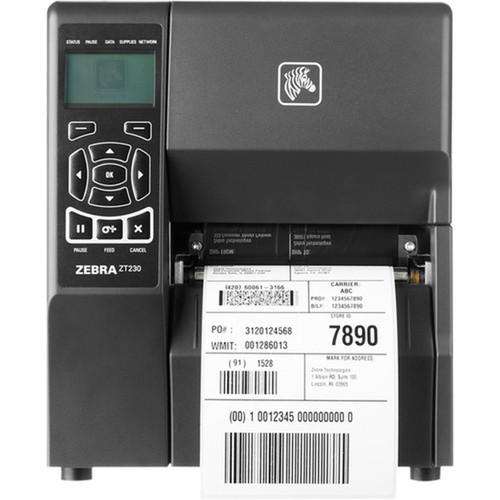

Zebra ZT23042-T31200FZ ZT230 Industrial Desktop Label Printer - Thermal Transfer - 4. 09" Print Width - 152. 4 mm/s Speed - USB/Serial/Ethernet - ZPL
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ZT230 operates with Zebra Programming Language (ZPL) emulation, providing robust control for label design and printing tasks. It includes 128 MB of standard memory and 128 MB of flash memory to store formats, graphics, and fonts, supporting complex labeling requirements.
Connectivity is versatile with USB, serial, and Fast Ethernet ports, allowing integration into both legacy and modern network environments. The printer features an LCD display for status monitoring and supports multiple media types including continuous labels, die-cut labels, notch, and black mark media, with transmissive and reflective sensors for precise media detection.
This section brings together practical product details such as Recommended Use, Print Color Capability, Maximum Mono Print Speed, Standard Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ZT230 combines high performance with operational simplicity, featuring icon-graphics for intuitive navigation and a comprehensive set of industry certifications including UL, CE, FCC, and Energy Star. Its RoHS compliance and energy-efficient design align with modern environmental standards.
Industrial Reliability
Designed for 24/7 operation in harsh environments, with features like a clear bi-fold media side door for easy loading and an element energy equalizer for consistent print quality.
- Peel facility for efficient label application
- Liner take-up spindle reduces waste
- Bi-color LED for quick status indication
Broad Media Compatibility
Handles a wide range of label materials and sizes, maximizing flexibility for different applications.
- Supports continuous, die-cut, notch, and black mark media
- Accepts rolls up to 8 inches in diameter
- Media thickness up to 10 mil
Deployment / Use Cases
This printer excels in environments requiring reliable, high-volume label production. Its industrial application rating makes it a fit for manufacturing floors, where it can print part labels, compliance tags, and safety signage.
The ZT230's support for numerous barcode symbologies, including Code 128, UPC, EAN, Data Matrix, and QR Code, ensures compatibility with global supply chain and tracking systems. Its PC platform support and standard connectivity options facilitate seamless integration into existing IT infrastructures.
Retail & Point of Sale
Ideal for printing price labels, shelf tags, and receipts in retail stores, with fast Ethernet for network integration and USB for direct PC connections.
Warehouse & Logistics
Suited for shipping labels, inventory tags, and barcode labels in distribution centers, leveraging its high-speed printing and durable construction.
Physical Profile
The ZT230 has a compact desktop footprint measuring 10.90 inches high, 9.50 inches wide, and 17 inches deep, with a weight of 9.07 kg. This sturdy build provides stability during operation while fitting comfortably on countertops or workbenches. The design includes practical touches like a clear media door for easy monitoring and robust construction to withstand industrial use.
- Width
- 4.09"
- Depth
- 17" (431.80 mm)
- Height
- 10.90" (276.86 mm)
- Weight
- 9.07 kg
- Length
- 39" (990.60 mm)
What's in the Box
The package includes the ZT230 industrial printer and a power cord with a US plug, ready for setup and integration into your labeling workflow.
Highlights
- Industrial-grade thermal transfer desktop label printer for reliable 24/7 operation
- Maximum print speed of 152.40 mm/s with 203 dpi resolution for crisp barcodes and text
- 4.09" maximum print width handles a wide range of label sizes up to 4.50" wide
- USB, serial, and Fast Ethernet connectivity for flexible network and direct PC integration
- Peel facility and liner take-up spindle for efficient label application and waste management
- Supports continuous, die-cut, notch, and black mark media types with 10 mil thickness
- ZPL emulation with 128 MB memory and 128 MB flash for complex label formats
- LCD display and bi-color LED provide clear status indication and easy operation
- RoHS compliant and Energy Star certified for environmental responsibility
- Includes power cord with US plug and backed by a 1-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | ZT23042-T31200FZ |
| Brand Name | Zebra |
| Product Series | ZT200 |
| Product Model | ZT230 |
| Product Name | ZT230 Industrial Printer |
| Product Type | Direct Thermal/Thermal Transfer Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 152.40 mm/s |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 4.09" |
| Barcode Symbology Supported | Code 11,Code 39,Code 93,Code 128-A,Code 128-B,Code 128-C,UCC Case Codes,ISBT-128,UPC-A,UPC-E,EAN-13,EAN-8,EAN With 2 or 5 Digit Extension,UPC 2 or 5 Digit Extension,Plessey,POSTNET,Standard 2 of 5,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,RSS Composite,Planet Code,Codablock,PDF-417,Code 49,Data Matrix,Maxi Code,QR Code,TLC 39,Macro PDF,RSS-14,Aztec Code,Macro PDF-417 |
| Peel Facility | Yes |
| Application/Usage | Industrial |
| Features | Clear Bi-fold Media Side Door,Bi-color LED,Liner Take Up Spindle,Icon-graphics,Element Energy Equalizer |
| Memory | |
| Standard Memory | 128 MB |
| Flash Memory | 128 MB |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Display & Graphics | |
| Display Screen | Yes |
| Display Screen Type | LCD |
| Media Types & Handling | |
| Media Type | Continuous Label,Die-cut Label,Notch,Black Mark |
| Media Sensor | Transmissive Media Sensor,Reflective Media Sensor |
| Media Thickness | 10 mil |
| Maximum Roll Diameter | 8" |
| Maximum Label Width | 4.50" (114.30 mm) |
| Maximum Label Length | 39" (990.60 mm) |
| Fonts & Emulation | |
| Language Emulation | ZPL |
| Power Description | |
| Power Source | AC Supply |
| Input Voltage | 110 V AC,220 V AC |
| Physical Characteristics | |
| Height | 10.90" (276.86 mm) |
| Width | 9.50" (241.30 mm) |
| Depth | 17" (431.80 mm) |
| Weight (Approximate) | 9.07 kg |
| Miscellaneous | |
| Package Contents | ZT230 Industrial Printer Power Cord with US Plug |
| Platform Supported | PC |
| Certifications & Standards | IEC 60950 EN 55022 Class B EN55024 EN 61000-3-2 EN 61000-3-3 UL CE Marking FCC-B ICES-003 VCCI C-Tick NOM IRAM CCC GOST-R Unicode KCC BSMI UkrSepro |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What type of printing technology does the Zebra ZT230 use?
The Zebra ZT230 uses direct thermal/thermal transfer printing technology. This allows it to produce durable, high-quality labels suitable for industrial and retail environments. Thermal transfer printing involves melting ribbon onto label media, resulting in labels that resist fading, moisture, and abrasion better than standard direct thermal labels.
What connectivity options are available on this label printer?
The ZT230 offers USB, serial, and Fast Ethernet connectivity. This versatile mix supports integration into both modern networked setups and legacy systems with serial connections. The Fast Ethernet port enables reliable network printing in multi-user environments, while USB provides a straightforward direct connection to a PC.
What is the maximum label size this printer can handle?
The printer supports labels up to 4.50 inches (114.30 mm) in width and 39 inches (990.60 mm) in length. It can accommodate media rolls with a maximum diameter of 8 inches. This range covers most common industrial and retail label sizes, including shipping labels, bin tags, and product labels.
Does the ZT230 include a peel function for labels?
Yes, the ZT230 features a peel facility that separates the printed label from its liner, making application quicker and more efficient. This is particularly useful in high-volume settings where operators need to apply labels rapidly without manual peeling. The printer also includes a liner take-up spindle to manage the waste liner neatly.
What barcode symbologies does this printer support?
The printer supports an extensive range of barcode symbologies including Code 11, Code 39, Code 93, Code 128 variants, UPC-A, UPC-E, EAN-13, EAN-8, Data Matrix, QR Code, PDF-417, and many others. This comprehensive support ensures compatibility with global retail, logistics, and industrial standards for tracking and identification.
What is included in the warranty for the Zebra ZT230?
The Zebra ZT230 comes with a 1-year limited warranty from the manufacturer. This warranty covers defects in materials and workmanship under normal use. The printer also carries multiple certifications including UL, CE, FCC, and Energy Star, which attest to its safety, electromagnetic compatibility, and energy efficiency standards.
