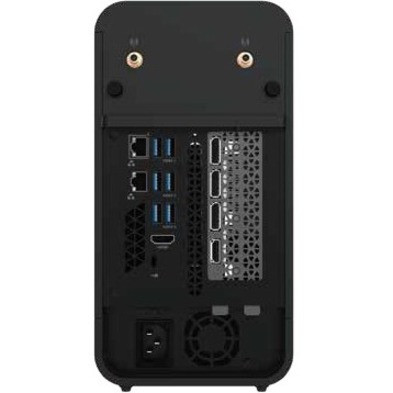

Zotac ZBOX-ECM53060C-U-W2B MAGNUS ONE E Mini Gaming Desktop - Intel Core i5-10400 - 16GB RAM - 512GB SSD + 1TB HDD - GeForce RTX 3060 12GB - Windows
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the MAGNUS ONE E is the Intel Core i5-10400 processor, a 10th generation chip with six cores and twelve threads. It operates at a base frequency of 2.90 GHz and can turbo boost up to 4.30 GHz for increased single-threaded performance. This is paired with an Intel chipset and 16 GB of DDR4 SDRAM installed as a single 16 GB module, leaving one slot open for future expansion. The memory subsystem is Intel Optane ready, allowing for potential acceleration of storage performance.
Graphics are handled by a dedicated ZOTAC GeForce RTX 3060 card featuring 12 GB of dedicated GDDR6 memory. This GPU supports real-time ray tracing, AI-powered DLSS, and is VR Ready, making it capable of driving high-frame-rate gaming and GPU-accelerated creative applications. Storage is split between a primary 512 GB solid-state drive using the PCI Express x4 interface in the M.2 form factor for exceptional speed, and a secondary 1 TB hard disk drive for cost-effective capacity.
Key Product Advantages
The MAGNUS ONE E balances raw power with a remarkably small physical profile. The inclusion of a GeForce RTX 3060 in a mini PC enables desktop-grade gaming and rendering performance where a traditional tower is not feasible. The comprehensive port selection, including high-speed USB 3.1 Gen 2 and multiple display outputs, provides extensive peripheral and multi-monitor support.
Compact Powerhouse
The mini PC form factor, measuring 9.80" x 4.96" x 10.45", houses high-end components typically found in larger towers, perfect for saving desk space or building a portable high-end system.
- Saves substantial desk space
- Easily transportable for LAN events
- Full thermal management for sustained performance
Modern Connectivity Suite
Stay connected with 2.5 Gigabit Ethernet for low-latency networking and IEEE 802.11ax (Wi-Fi 6) for high-speed wireless. The array of USB ports, including a front-panel Type-C, offers flexibility for peripherals, storage, and VR headsets.
Ready-to-Run System
The system arrives with Windows 10 Home 64-bit pre-installed and activated, eliminating setup time for the OS. The dual-storage configuration provides an optimal blend of speed for the system and ample space for files and games.
Deployment / Use Cases
This Zotac desktop is versatile enough to serve as a primary system for gamers, digital creators, and power users who value performance but have limited space. Its capable GPU and processor make it suitable for 1080p and 1440p gaming, video editing, 3D modeling, and software development.
The compact size and clean aesthetics allow it to fit seamlessly into home office setups, dorm rooms, or entertainment centers as a stealthy yet powerful HTPC (Home Theater PC) capable of gaming and 4K media playback. For small business environments or creative studios, it can function as a capable workstation for design tasks, financial modeling, or as a development machine, with the benefit of a small desk footprint.
Localization and Operating System
This Zotac MAGNUS ONE E desktop ships with Microsoft Windows 10 Home 64-bit pre-installed and activated, providing a fully licensed operating system ready for immediate use. The Windows 10 Home edition includes features such as Snap Assist for efficient window management, virtual desktops for organizing workflows, and access to the Microsoft Store for applications and games. This pre-installed configuration eliminates the need for separate OS procurement and installation, streamlining deployment for home, gaming, or small office environments.
The system is configured for general English-language markets with standard US keyboard layout support, making it compatible with common peripherals and input methods. The operating system architecture is 64-bit, enabling full utilization of the system's 16 GB of RAM and modern software applications that require 64-bit processing. This setup ensures broad compatibility with productivity tools, creative software, and gaming titles that leverage the Windows platform, offering a familiar and productive computing environment right from the first boot.
Physical Profile
The MAGNUS ONE E adopts a vertical-standing mini PC chassis with dimensions of 9.80 inches in height, 4.96 inches in width, and 10.45 inches in depth (249 mm x 126 mm x 265.5 mm). This form factor is significantly smaller than a traditional mid-tower, allowing it to be placed vertically on a desk, mounted behind a monitor, or situated on a shelf. The design includes ventilation for the 500-watt power supply and component cooling to maintain stable performance under load.
- Width
- 4.96" (126 mm)
- Depth
- 10.45" (265.50 mm)
- Height
- 9.80" (249 mm)
What's in the Box
The package includes all necessary components to get the system up and running immediately.
Highlights
- Intel Core i5-10400 10th Gen Hexa-core processor with up to 4.30 GHz Turbo Boost.
- 16 GB of DDR4 RAM (single module) for smooth multitasking and application performance.
- Dual storage: 512 GB PCIe NVMe M.2 SSD for speed and a 1 TB HDD for ample file storage.
- Dedicated ZOTAC GeForce RTX 3060 graphics with 12 GB of GDDR6 memory, VR Ready.
- Comprehensive connectivity with 2.5Gb Ethernet, Wi-Fi 6 (802.11ax), and Bluetooth.
- Extensive I/O: 8 USB ports (including USB 3.1 Gen 2 and a front Type-C), 3x DisplayPort, and HDMI.
- Compact Mini PC form factor saves desk space while delivering full desktop performance.
- Windows 10 Home 64-bit operating system pre-installed for immediate productivity.
- Powered by a 500-watt internal power supply for stable operation of all components.
- Includes a 2-year limited warranty for peace of mind.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zotac USA Inc |
| Manufacturer Part Number | ZBOX-ECM53060C-U-W2B |
| Brand Name | Zotac |
| Product Line | MAGNUS ONE |
| Product Series | E |
| Product Model | ZBOX-ECM53060C-U-W2B |
| Product Name | ZBOX MAGNUS ONE ECM53060C with Windows 10 |
| Product Type | Gaming Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 10th Gen |
| Processor Model | i5-10400 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 2.90 GHz |
| Maximum Turbo Speed | 4.30 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Configuration | 1 x 16GB |
| Intel Optane Memory Ready | Yes |
| Storage | |
| Total Hard Drive Capacity | 1 TB |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express x4 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | ZOTAC |
| Graphics Controller Model | GeForce RTX 3060 |
| Graphics Memory Capacity | 12 GB |
| Graphics Memory Technology | GDDR6 |
| Graphics Memory Accessibility | Dedicated |
| VR Ready | Yes |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 3.0 Ports (Front) | 1 |
| Number of USB 3.0 Ports (Rear) | 2 |
| Number of USB 3.1 Gen 2 Ports (Rear) | 4 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.0 Type-C port |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 10 Home |
| Operating System Architecture | 64-bit |
| Power Description | |
| Maximum Power Supply Wattage | 500 W |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 9.80" (249 mm) |
| Width | 4.96" (126 mm) |
| Depth | 10.45" (265.50 mm) |
| Miscellaneous | |
| Package Contents | ZBOX MAGNUS ONE ECM53060C with Windows 10 Power Cord 2 x Wi-Fi Antenna USB Flash Drive with O/S Recovery Quick Install Guide |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What processor is listed for this desktop or workstation?
This product uses the Core i5 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2.90 GHz processor for everyday performance and multitasking.
How much memory is installed?
It includes 16 GB of memory to support responsive multitasking and daily workloads.
What storage configuration is listed?
The system includes 1 TB of storage for applications, files, and everyday business data.
What available ports or connectivity options are listed?
Connectivity options include PCI Express x4, helping the product integrate into common office or home setups.
What operating system or platform detail is listed?
The included operating environment is Windows, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
