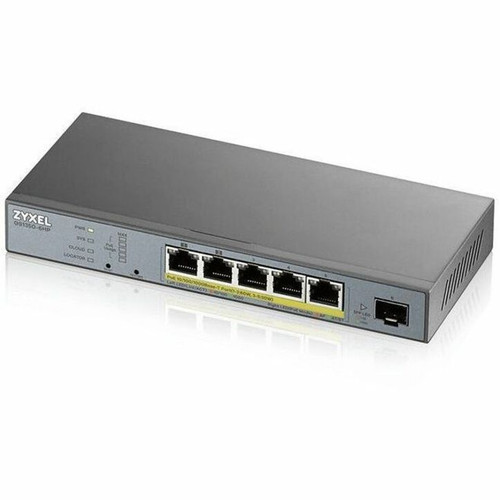

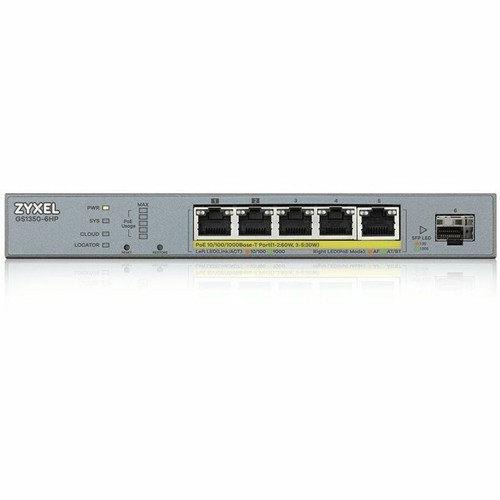

ZyXEL GS1350-6HP 5-Port Gigabit Smart Managed PoE+ Switch with 60W Budget - 1 SFP Slot & Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Gigabit Ethernet speeds across all ports, supporting both twisted pair and optical fiber media types. The five RJ-45 ports deliver PoE+ (802.3at) power to connected devices, with intelligent power management that allocates the 60W budget efficiently.
The single SFP expansion slot accepts standard mini-GBIC transceivers for 1000Base-X fiber connections, providing a dedicated uplink path that doesn't share bandwidth with copper ports. Layer 2 switching capabilities include VLAN support, QoS prioritization, and basic security features for managed network environments.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GS1350-6HP combines compact physical design with comprehensive PoE and management features typically found in larger switches. Its 60W PoE budget supports multiple power-hungry devices simultaneously, while the dedicated SFP slot ensures reliable uplink connectivity without compromising copper port availability.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Intelligent PoE Management, Compact Deployment Ready.
Intelligent PoE Management
Automatic detection and power allocation for PoE/PoE+ devices with per-port power monitoring and overload protection.
- 802.3at PoE+ compliant
- 60W total budget
- Auto-sensing per port
Compact Deployment Ready
Wall-mountable design with included mounting kit saves valuable rack space while keeping cables organized in tight installations.
- Includes wall-mount kit
- Compact 8-inch length
- 1-inch profile depth
Deployment / Use Cases
Ideal for small office networks requiring both data connectivity and device power over a single cable. The GS1350-6HP efficiently powers and connects VoIP phone systems, wireless access points, and IP surveillance cameras while providing managed switching capabilities.
Perfect for retail environments, professional offices, and educational settings where space is limited but network functionality cannot be compromised. The SFP uplink capability makes it suitable for connecting to fiber backbones in multi-building campuses or extending network reach beyond copper limitations.
Small Office VoIP Deployment
Power and connect up to five IP phones while maintaining voice traffic prioritization through QoS features and VLAN segmentation.
Wireless Network Expansion
Deploy multiple wireless access points with PoE+ power while using the SFP uplink for high-speed backhaul connectivity to core network infrastructure.
Physical Profile
Designed for space-constrained installations, the GS1350-6HP features a compact wall-mountable enclosure measuring 8 inches in length, 3 inches in width, and 3.31 inches in depth. The slim 1-inch height profile and lightweight 14.4-ounce construction make it easy to install in telecom closets, behind desks, or on wall surfaces where rack space is unavailable.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1" (25.40 mm), 3" (76.20 mm), 3.31" (84.07 mm), 14.40 oz (408.23 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3" (76.20 mm)
- Depth
- 3.31" (84.07 mm)
- Height
- 1" (25.40 mm)
- Weight
- 14.40 oz (408.23 g)
- Length
- 8" (203.20 mm)
What's in the Box
The switch ships complete with all necessary components for immediate deployment.
Highlights
- 5 Gigabit Ethernet ports with PoE+ support (802.3at)
- 60W total PoE budget for powering multiple devices
- 1 dedicated SFP slot for fiber uplink expansion
- Layer 2 managed switching with VLAN and QoS
- Wall-mountable compact design (8" x 3" x 3.31")
- Gigabit speeds on all ports (10/100/1000 Mbps)
- Supports both twisted pair and fiber optic media
- Includes power adapter and wall-mount kit
- Lifetime limited warranty
- RoHS compliant for environmental safety
Specifications
| Specifications | |
|---|---|
| Manufacturer | ZYXEL Communications Corp. |
| Manufacturer Part Number | GS1350-6HP |
| Brand Name | ZYXEL |
| Product Series | GS1350 |
| Product Model | GS1350-6HP |
| Product Name | 5-port GbE Smart Managed PoE Switch with GbE Uplink |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet PoE+,1 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 1.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | No |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 60 W |
| Power Source | Power Adapter |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 3" (76.20 mm) |
| Depth | 3.31" (84.07 mm) |
| Length | 8" (203.20 mm) |
| Weight (Approximate) | 14.40 oz (408.23 g) |
| Miscellaneous | |
| Package Contents | 5-port GbE Smart Managed PoE Switch with GbE Uplink Power Adapter Wall-mount Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many PoE+ devices can this switch power simultaneously?
The ZyXEL GS1350-6HP features five PoE+ capable ports with a total power budget of 60W. It can power multiple PoE+ devices simultaneously, with the exact number depending on each device's power requirements. The switch intelligently allocates power across ports, supporting combinations such as five lower-power devices or fewer higher-power devices like wireless access points or pan-tilt-zoom cameras.
What type of SFP modules are compatible with this switch?
This switch accepts standard SFP (mini-GBIC) transceivers for 1000Base-X fiber connections. Compatible modules include both multi-mode and single-mode SFPs with LC connectors. The SFP slot is dedicated and not shared with copper ports, providing a reliable uplink path for connecting to fiber backbones or extending network reach beyond the 100-meter limitation of copper cabling.
What management features does this Layer 2 switch provide?
As a smart managed Layer 2 switch, the GS1350-6HP offers VLAN support for network segmentation, QoS (Quality of Service) for traffic prioritization, port mirroring for monitoring, and basic security features including port security and storm control. These management capabilities provide enhanced network control compared to unmanaged switches, making it suitable for business environments requiring traffic optimization and security.
Can this switch be rack-mounted or is it only for wall installation?
The GS1350-6HP is designed specifically for wall mounting with its included wall-mount kit. Its compact dimensions (8" x 3" x 3.31") and lightweight construction make it ideal for wall installations where rack space is limited. While not designed for standard rack mounting, it can be installed in telecom closets, behind desks, or on wall surfaces using the provided mounting hardware.
What is the maximum distance supported for network connections?
For copper connections using twisted pair cabling, the switch supports the standard 100-meter (328-foot) distance for Gigabit Ethernet. When using the SFP slot with fiber optic transceivers, distances extend significantly based on the SFP module type—typically up to 550 meters with multi-mode fiber or 10+ kilometers with single-mode fiber, providing flexible deployment options for extending network reach.
Does this switch support Power over Ethernet (PoE) or PoE+?
The GS1350-6HP supports the PoE+ standard (IEEE 802.3at), which delivers up to 30W per port. This provides sufficient power for most PoE+ devices including wireless access points, VoIP phones with color displays, and pan-tilt-zoom security cameras. The switch automatically detects PoE/PoE+ devices and allocates power accordingly, with overload protection to prevent damage to non-PoE devices.
