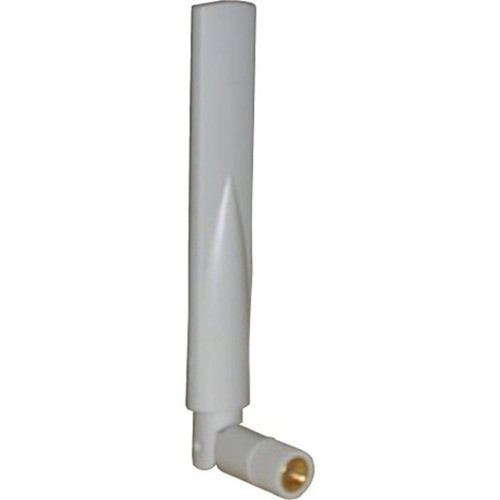

Aruba JW009A AP-ANT-1 Antenna - Dual Band 2.4-2.5 & 4.9-5.875 GHz - 5.8 dBi Omni-Directional - RP-SMA Connector - Direct Mount - Indoor
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The AP-ANT-1 delivers technical performance tailored for indoor wireless networks. Its dual-band capability covers the 2.4-2.5 GHz band for legacy and IoT devices, plus the 4.9-5.875 GHz band for higher-throughput applications and reduced interference. The 5.8 dBi isotropic gain improves signal strength without directional limitations, thanks to the omni-directional design.
The RP-SMA connector ensures a reliable RF connection with minimal loss, compatible with many enterprise and SMB access points. The direct mount form factor allows the antenna to be attached directly to equipment or mounting surfaces, simplifying deployment.
Relevant factors for this section include Directivity, Operating Frequency Range, Antenna Gain (Isotropic), Connector Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This antenna offers several advantages for wireless network deployments. Its omni-directional pattern eliminates the need for precise aiming, providing uniform coverage in all directions. This simplifies installation and reduces alignment errors, making it ideal for environments where access points serve multiple client devices from various angles.
Enhanced Indoor Coverage
The 5.8 dBi gain and broad frequency support improve signal penetration and range in indoor settings, reducing dead zones and supporting consistent connectivity for voice, data, and video applications.
- Broader casting range for improved indoor signals
- Supports both 2.4 GHz and 5 GHz bands
Simplified Deployment
Direct mount design and compact size allow for quick installation on access points or walls, minimizing setup time and hardware requirements.
- Ease of management and installation
- No additional brackets needed for direct attachment
Deployment / Use Cases
The Aruba AP-ANT-1 is optimized for indoor wireless access point deployments. It is commonly used in office buildings, schools, hospitals, and retail stores to extend Wi-Fi coverage and support high-density client environments. The dual-band operation makes it suitable for mixed-device networks, including laptops, smartphones, IoT sensors, and video streaming equipment.
In enterprise settings, this antenna can be deployed with Aruba and other compatible access points to enhance network performance. Its indoor rating ensures reliable operation in controlled environments, while the direct mount form factor supports ceiling, wall, or equipment-mounted installations for flexible placement.
Office Wi-Fi Enhancement
Deploy with access points in open-plan offices or conference rooms to provide uniform coverage for employee devices and guest networks.
Retail and Hospitality
Use in stores or hotels to support point-of-sale systems, customer Wi-Fi, and inventory management devices across multiple frequency bands.
Physical Profile
The antenna measures 0.75 inches in height, 1.54 inches in width, and 5 inches in depth, offering a compact footprint that integrates discreetly into indoor spaces. Its direct mount form factor allows it to attach securely to access points or mounting surfaces without protruding excessively. The design is built for durability in indoor environments, with materials suited for stable performance over time.
- Width
- 1.54" (39.12 mm)
- Depth
- 5" (127 mm)
- Height
- 0.75" (19.05 mm)
Highlights
- Dual-band operation across 2.4-2.5 GHz and 4.9-5.875 GHz frequencies
- 5.8 dBi isotropic gain for improved signal strength
- Omni-directional radiation pattern for uniform coverage
- RP-SMA connector for reliable RF connections
- Direct mount form factor for easy installation
- Compact dimensions: 0.75" H x 1.54" W x 5" D
- Designed for indoor use with wireless access points
- Supports wireless data networks in office and commercial settings
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JW009A |
| Brand Name | HPE |
| Product Model | AP-ANT-1 |
| Product Name | AP-ANT-1 Antenna |
| Product Type | Antenna |
| Technical Information | |
| Directivity | Omni-directional |
| Operating Frequency Range | 2.4 GHz to 2.5 GHz,4.9 GHz to 5.875 GHz |
| Antenna Gain (Isotropic) | 5.8 dBi |
| Interfaces/Ports | |
| Connector Type | RP-SMA |
| Physical Characteristics | |
| Height | 0.75" (19.05 mm) |
| Width | 1.54" (39.12 mm) |
| Depth | 5" (127 mm) |
| Form Factor | Direct Mount |
| Miscellaneous | |
| Application/Usage | Indoor,Wireless Access Point,Wireless Data Network |
| Country of Origin | Taiwan |
FAQ
What frequency bands does the Aruba AP-ANT-1 antenna support?
The antenna supports two frequency ranges: 2.4 GHz to 2.5 GHz and 4.9 GHz to 5.875 GHz. This dual-band coverage allows it to work with standard Wi-Fi devices on the 2.4 GHz band and higher-performance applications on the 5 GHz band, providing flexibility for mixed network environments.
What is the antenna gain and how does it affect performance?
The AP-ANT-1 has an antenna gain of 5.8 dBi isotropic. This gain level enhances signal strength and range compared to lower-gain antennas, improving coverage in indoor spaces. The omni-directional design distributes this gain evenly in all directions, eliminating the need for directional alignment.
What type of connector does this antenna use?
It uses an RP-SMA connector, which is a common RF connector type for wireless access points and networking equipment. This connector ensures a secure and low-loss connection between the antenna and the device, maintaining signal integrity for reliable data transmission.
How is this antenna mounted and installed?
The antenna features a direct mount form factor, meaning it can be attached directly to compatible access points or mounting surfaces without additional brackets. This simplifies installation by reducing hardware requirements and allowing for quick deployment in ceiling, wall, or equipment-mounted configurations.
Is the Aruba AP-ANT-1 suitable for outdoor use?
No, this antenna is designed for indoor applications only. It is rated for use in wireless access points and data networks within controlled indoor environments such as offices, schools, and retail spaces. Outdoor deployment would require antennas specifically built for weather resistance and environmental durability.
What are the dimensions of the antenna?
The antenna measures 0.75 inches (19.05 mm) in height, 1.54 inches (39.12 mm) in width, and 5 inches (127 mm) in depth. These compact dimensions make it easy to integrate into indoor settings without occupying significant space, while still providing effective dual-band performance.
