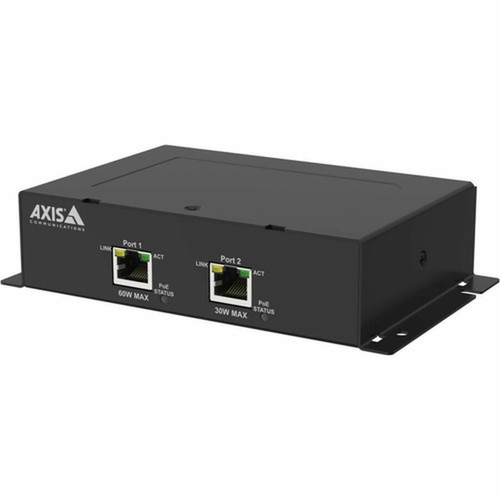

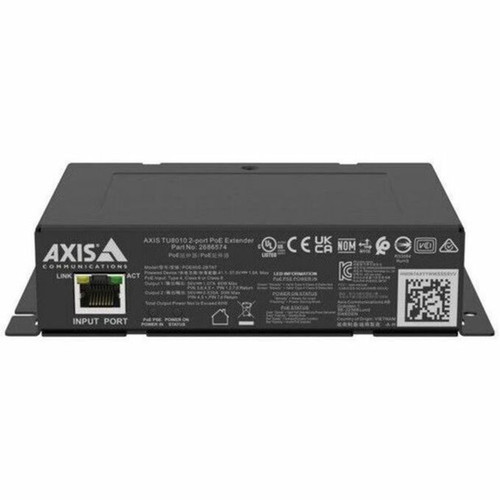

AXIS 02726-001 TU8010 PoE Extender - 2-Port - 90W Output - Wall/Ceiling/Cabinet/DIN Rail Mountable - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TU8010 operates with a single RJ-45 input port and two RJ-45 output ports, distributing PoE power efficiently. It supports a maximum output of 90W, allowing it to power up to two 30W devices simultaneously or a single higher-power device when needed. The extender is compatible with a wide range of Axis products, including box cameras, dome cameras, bullet cameras, and specialized devices like the P8815-2 3D People Counter and D4100-E Network Strobe Siren.
Certifications include IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IP66 for dust and water resistance, and UL 2043 for plenum-rated installations. It meets global standards such as CE, UKCA, cUL, KC, VCCI, RCM, NOM, and BSMI, ensuring compliance in commercial and industrial settings.
Relevant factors for this section include Maximum Output Power, Input Ports, Output Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TU8010 simplifies network power expansion by eliminating the need for additional electrical outlets near remote devices. Its robust design and comprehensive certifications make it a reliable choice for professional installations.
Extended PoE Reach
Extends PoE connections up to 100 meters, enabling flexible placement of powered devices without compromising power delivery.
- Supports up to two 30W devices
- Compatible with existing network infrastructure
Versatile Mounting
Designed for easy integration into various environments with wall, ceiling, cabinet, or DIN rail mounting options.
- Compact footprint
- Durable black housing
High-Power Compatibility
Supports IEEE 802.3bt and High PoE 60W standards, ensuring compatibility with current and future high-power PoE devices.
- 90W total output
- Plenum-rated for air-handling spaces
Deployment / Use Cases
The TU8010 is ideal for extending PoE in surveillance systems, access control networks, and IoT deployments where power outlets are limited or inaccessible. It connects seamlessly to existing network switches or injectors, providing a cost-effective solution for powering remote devices.
Common use cases include powering Axis cameras in large facilities, retail environments, or industrial sites where cameras are mounted on ceilings or walls far from power sources. It also supports specialized Axis devices like strobe sirens or people counters in smart building applications.
Surveillance Systems
Power multiple Axis cameras from a single network drop, reducing cabling complexity and installation time.
IoT and Access Control
Deliver reliable PoE to sensors, door controllers, or other networked devices in commercial or industrial settings.
Physical Profile
The TU8010 features a compact, black design measuring 5.43" wide, 3.86" deep, and 1.46" high, with a weight of 1.21 lb. Its form factor supports wall, ceiling, cabinet, or DIN rail mounting, offering flexibility for integration into racks, enclosures, or direct surface installations. The IP66 rating ensures protection against dust and water ingress, suitable for both indoor and outdoor environments.
- Width
- 5.43" (138 mm)
- Depth
- 3.86" (98 mm)
- Height
- 1.46" (37 mm)
- Weight
- 1.21 lb (550 g)
What's in the Box
The package includes the TU8010 PoE Extender unit and an installation guide for quick setup.
Package contents include TU8010 PoE Extender 2-port Installation Guide, TU8010 PoE Extender 2-port. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Extends PoE connections up to 100 meters
- 90W total output power across two RJ-45 ports
- Supports IEEE 802.3bt and High PoE 60W compatibility
- Plenum-rated (UL 2043) for air-handling spaces
- IP66 rated for dust and water resistance
- Wall, ceiling, cabinet, or DIN rail mountable
- Compatible with a wide range of Axis cameras and devices
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02726-001 |
| Brand Name | AXIS |
| Product Model | TU8010 |
| Product Name | TU8010 PoE Extender 2-port |
| Product Type | PoE Extender |
| Power Description | |
| Maximum Output Power | 90 W |
| Interfaces/Ports | |
| Input Ports | 1 x RJ-45 |
| Output Ports | 2 x RJ-45 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Wall/Ceiling/Cabinet/DIN Rail Mountable |
| Height | 1.46" (37 mm) |
| Width | 5.43" (138 mm) |
| Depth | 3.86" (98 mm) |
| Weight (Approximate) | 1.21 lb (550 g) |
| Miscellaneous | |
| Package Contents | TU8010 PoE Extender 2-port Installation Guide |
| Compatibility | Axis Products: P8815-2 3D People Counter D4100-E Network Strobe Siren M1055-L Box Camera M1075-L Box Camera M1135 Mk II Box Camera M1135-E Mk II Box Camera M1137 Mk II Box Camera M1137-E Mk II Box Camera P1385 Box Camera P1387 Box Camera P1388 Box Camera M2035-LE Bullet Camera P1455-LE Network Camera P1465-LE Bullet Camera P1467-LE Bullet Camera P1468-LE Bullet Camera M3077-PLVE Network Camera M3085-V Dome Camera M3115-LVE Network Camera M3215-LVE Dome Camera M3216-LVE Dome Camera M3905-R Dome Camera M4215-LV Dome Camera M4215-V Dome Camera P3255-LVE Dome Camera P3265-LV Dome Camera P3265-LVE Dome Camera P3267-LV Dome Camera P3267-LVE Dome Camera P3268-LV Dome Camera P3268-LVE Dome Camera P3268-SLVE Dome Camera P3818-PVE Panoramic Camera |
| Certifications & Standards | IEEE 802.3bt IP66 CE UL UKCA IEEE 802.3at IEEE 802.3af IEEE 802at IEEE 802bt cUL KC VCCI RCM NOM C BSM EN 55035 EN 55032 Class A EN 50121-4 EN 61000-6-1 EN 61000-6-2 EN 61000-6-4 FCC Part 15 Subpart B Class A BSMI-mark CAN/CSA C22.2 No. 62368-1 ed. 3 IEC/EN/UL 62368-1 ed. 3 KC-mark NOM-001 UL 2043 (plenum rated) |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum power output of the AXIS TU8010 PoE Extender?
The TU8010 provides a maximum output power of 90W. This total power is distributed across its two RJ-45 output ports, allowing it to support up to two 30W devices simultaneously or allocate more power to a single high-demand device as needed.
Which PoE standards does the TU8010 support?
This extender supports IEEE 802.3bt, IEEE 802.3at, and IEEE 802.3af standards, along with High PoE 60W compatibility. This ensures it can deliver power to a wide range of PoE devices, from lower-power sensors to higher-power cameras and accessories.
How many devices can I connect to the TU8010?
The TU8010 has two RJ-45 output ports, allowing you to connect up to two PoE-powered devices. It is designed to extend PoE from a single input source, making it ideal for branching power to multiple endpoints in surveillance or IoT setups.
What mounting options are available for the TU8010?
The extender is designed for versatile installation with support for wall, ceiling, cabinet, or DIN rail mounting. Its compact dimensions and durable housing make it easy to integrate into various environments, including racks, enclosures, or direct surface mounts.
Is the TU8010 suitable for outdoor use?
Yes, the TU8010 has an IP66 rating, which provides protection against dust and water ingress. This makes it suitable for both indoor and outdoor installations, such as in surveillance applications where devices may be exposed to environmental elements.
What is included in the warranty for the TU8010?
AXIS provides a 3-year limited warranty for the TU8010 PoE Extender. This warranty covers defects in materials and workmanship under normal use, offering peace of mind for commercial and industrial deployments.
