Cisco AIR-AP3802I-S-K9 Aironet 3802I Dual-Band 802. 11ac Wireless Access Point - 5. 20 Gbit/s - 2x RJ-45 with PoE - Ceiling Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Cisco 3802I access point operates on the IEEE 802.11ac Wi-Fi generation, which provides higher data rates, improved multi-user performance, and better efficiency in crowded RF environments compared to previous standards. It utilizes dual concurrent radios to transmit on both the 5 GHz and 2.40 GHz bands simultaneously, allowing network administrators to balance client load and optimize for performance or coverage as needed. The 5.20 Gbit/s maximum wireless transmission speed represents the theoretical aggregate throughput across all spatial streams and bands under ideal conditions.
On the wired side, the access point is equipped with two 10 Gigabit Ethernet RJ-45 ports. One port typically serves as the primary uplink, while the second can be used for daisy-chaining another access point or connecting a wired device. Both ports support IEEE 802.3at PoE+ or similar standards, enabling the access point to be powered directly from a compatible PoE switch or injector. A dedicated management port provides out-of-band configuration access for network administrators, facilitating setup, monitoring, and troubleshooting without disrupting the primary data path.
Key Product Advantages
The Cisco Aironet 3802I stands out for its combination of high-speed wireless performance, flexible deployment options, and enterprise-grade reliability. Its dual-band architecture and advanced radio technologies ensure stable connections even in high-density user environments, making it suitable for modern workplaces, educational institutions, and hospitality venues where Wi-Fi demands are continuously increasing.
Advanced Radio Performance
MIMO and beamforming technologies work together to focus wireless signals toward connected clients, improving throughput, reducing interference, and extending the effective coverage area of the access point.
- Enhanced signal reliability
- Better performance at range
- Improved capacity in dense deployments
Simplified Installation and Power
Power over Ethernet support allows the access point to be installed in locations without readily available AC power outlets, such as ceilings or high walls, using a single network cable for both data and power delivery.
- Reduces cabling requirements
- Lowers installation time and cost
- Enables flexible placement
Robust Management and Control
The dedicated management port and comprehensive management capabilities provide network administrators with efficient tools for configuration, monitoring, and maintenance, ensuring optimal network performance and security.
- Streamlined setup processes
- Centralized network oversight
- Proactive troubleshooting support
Deployment / Use Cases
The Cisco Aironet 3802I is engineered for professional wireless network deployments where performance, reliability, and manageability are paramount. Its ceiling-mount design and PoE capability make it particularly well-suited for installation in office ceilings, conference rooms, classrooms, and retail spaces where aesthetic integration and minimal cabling are important considerations.
In enterprise environments, this access point can serve as a primary Wi-Fi node for general office connectivity, supporting a mix of laptops, smartphones, tablets, and IoT devices. Its dual-band operation allows network administrators to allocate the 5 GHz band for high-throughput applications like video conferencing and large file transfers, while using the 2.40 GHz band for broader coverage and legacy device compatibility. The access point's management features facilitate integration into larger Cisco wireless networks, supporting centralized control, seamless roaming, and consistent security policies across multiple locations.
Corporate Office Wi-Fi
Provides reliable, high-speed wireless access for employees throughout office buildings, supporting productivity applications, cloud services, and collaboration tools without performance degradation.
Education and Campus Networks
Delivers consistent connectivity in classrooms, libraries, and student common areas, accommodating high densities of student devices and supporting digital learning platforms.
Physical Profile

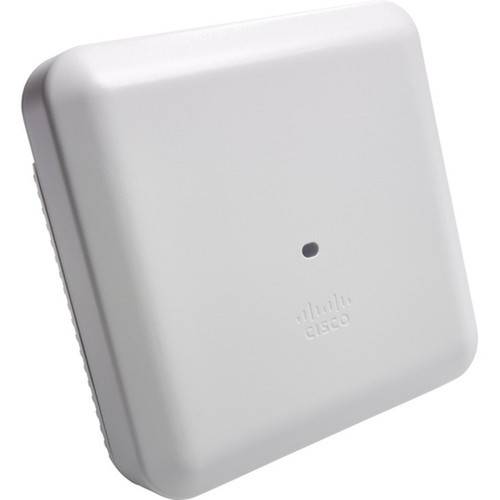

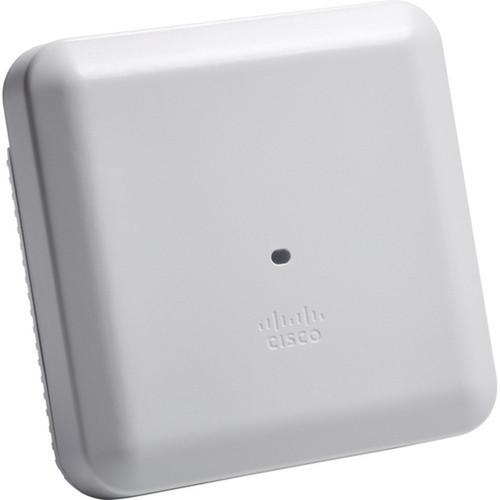

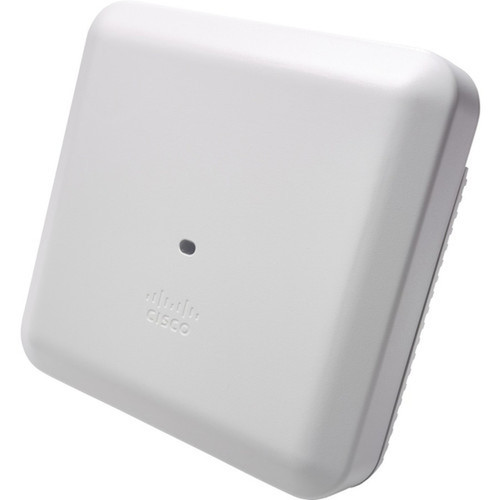

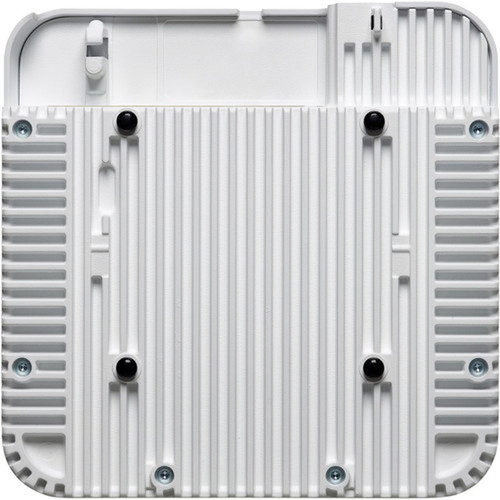

The Cisco Aironet 3802I features a compact, low-profile design with dimensions of 8.66 inches wide, 8.68 inches deep, and 2.46 inches high (219.96 mm x 220.47 mm x 62.48 mm). Its white housing and subtle branding allow it to blend discreetly into ceiling tiles or wall mounts in professional environments. Weighing approximately 4.60 pounds (2086.52 grams), the access point is substantial enough for stable mounting while remaining manageable for installers. The ceiling-mountable form factor includes integrated mounting hardware compatibility for standard T-bar ceilings, and the design facilitates proper airflow to maintain optimal operating temperatures during continuous use.
- Width
- 8.66" (219.96 mm)
- Depth
- 8.68" (220.47 mm)
- Height
- 2.46" (62.48 mm)
- Weight
- 4.60 lb (2086.52 g)
Highlights
- Dual-band 802.11ac wireless access point with speeds up to 5.20 Gbit/s
- Operates on both 5 GHz and 2.40 GHz frequency bands for flexible deployment
- Features MIMO and beamforming technologies for enhanced signal performance
- Includes two 10 Gigabit Ethernet RJ-45 ports with Power over Ethernet (PoE) support
- Ceiling-mountable form factor for discreet installation in professional environments
- Dedicated management port for efficient network configuration and control
- Compact dimensions of 8.66" W x 8.68" D x 2.46" H for flexible placement
- Backed by Cisco's lifetime limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | AIR-AP3802I-S-K9 |
| Brand Name | Cisco |
| Product Line | Aironet |
| Product Series | 3800 |
| Product Model | 3802I |
| Product Name | Aironet 3802I Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ac |
| Frequency Band | 5 GHz,2.40 GHz |
| Wireless Transmission Speed | 5.20 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Interfaces/Ports | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE (RJ-45) Port | Yes |
| VGA | No |
| HDMI | No |
| USB | No |
| Powerline | No |
| Management Port | Yes |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable |
| Height | 2.46" (62.48 mm) |
| Width | 8.66" (219.96 mm) |
| Depth | 8.68" (220.47 mm) |
| Weight (Approximate) | 4.60 lb (2086.52 g) |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What wireless standards does the Cisco Aironet 3802I support?
The Cisco Aironet 3802I supports the IEEE 802.11ac wireless standard, which is the current generation of Wi-Fi technology offering higher speeds, improved efficiency, and better performance in crowded environments compared to older standards like 802.11n. It operates on both the 5 GHz and 2.40 GHz frequency bands simultaneously, providing flexibility for network design and client compatibility.
How fast is this wireless access point?
This access point has a maximum wireless transmission speed of 5.20 Gbit/s. This represents the theoretical aggregate throughput across both frequency bands and all spatial streams under optimal conditions. Actual speeds will vary based on environmental factors, client capabilities, network configuration, and concurrent user load.
Does the Cisco 3802I support Power over Ethernet?
Yes, the Cisco Aironet 3802I includes Power over Ethernet (PoE) support on its RJ-45 ports. This allows the access point to receive both data connectivity and electrical power over a single Ethernet cable from a compatible PoE switch or injector. PoE simplifies installation by eliminating the need for separate power cabling, particularly useful for ceiling-mounted deployments where power outlets may not be readily accessible.
How many Ethernet ports does this access point have?
The Cisco Aironet 3802I has two 10 Gigabit Ethernet RJ-45 ports. One port typically serves as the primary uplink connection to your network switch or router, while the second port can be used for daisy-chaining another access point or connecting a wired device. Both ports support high-speed 10 Gigabit Ethernet connectivity for optimal wired performance.
Is this access point designed for ceiling mounting?
Yes, the Cisco Aironet 3802I features a ceiling-mountable form factor specifically designed for installation in ceiling tiles or on ceiling surfaces. Its low-profile design and white housing allow it to blend discreetly into office environments. The access point includes compatibility with standard mounting hardware for T-bar ceilings, making it suitable for professional deployments in corporate offices, schools, hospitals, and other commercial spaces.
What management capabilities does this access point offer?
The Cisco Aironet 3802I includes a dedicated management port that provides out-of-band access for network configuration, monitoring, and troubleshooting. This allows administrators to manage the access point without affecting the primary data traffic. The access point supports comprehensive management features through Cisco's wireless management platforms, enabling centralized control, security policy enforcement, firmware updates, and performance monitoring across multiple access points in a network.
