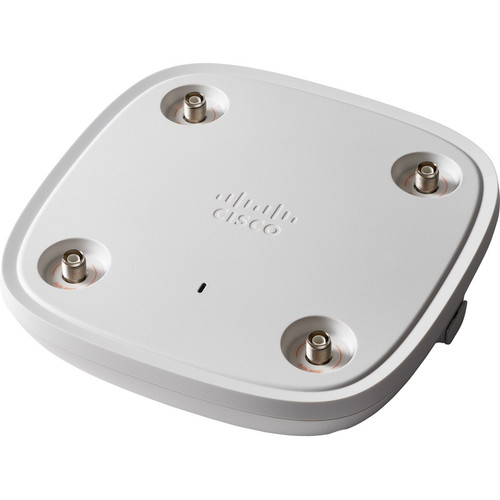

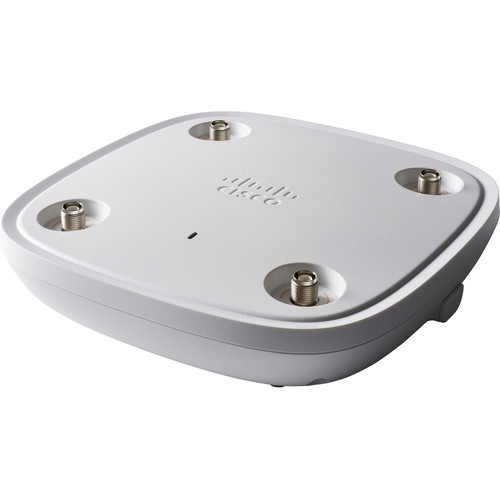

Cisco C9115AXE-EWC-T Catalyst C9115E 802. 11ax Wireless Access Point - 5. 38 Gbit/s - Dual-Band 2. 4/5 GHz - 2. 5 GbE PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This access point operates on both 2.4 GHz and 5 GHz frequency bands, providing flexibility for different client devices and network requirements. The 802.11ax standard includes OFDMA technology that improves efficiency in high-density deployments by allowing multiple devices to share channels simultaneously.
The single 2.5 Gigabit Ethernet port supports Power over Ethernet (PoE) for simplified installation without separate power cabling. Additional connectivity options include a USB port and a dedicated management port for network administration.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Catalyst C9115E provides several advantages for business wireless deployments. Its Wi-Fi 6 capabilities deliver improved performance in congested environments while maintaining backward compatibility with previous Wi-Fi standards.
Enhanced Security
Supports the latest WPA3 encryption standard along with AES, WPA, and WPA2 for comprehensive network protection.
- WPA3 encryption standard
- AES, WPA, WPA2 support
- Data encryption enabled
Simplified Deployment
PoE support eliminates the need for separate power cabling, while the compact design facilitates ceiling or wall mounting in various environments.
- PoE PD port
- Compact 8" × 8" footprint
- Ceiling/wall mounting
Management Capabilities
Includes dedicated management port and USB connectivity for flexible network administration and configuration options.
- Dedicated management port
- USB connectivity
- Efficient network control
Deployment / Use Cases
The C9115E access point is designed for business environments that require reliable, high-performance wireless connectivity. Its dual-band operation and Wi-Fi 6 technology make it suitable for offices, retail spaces, educational institutions, and healthcare facilities where multiple devices connect simultaneously.
The access point's compact design and PoE support simplify installation in ceiling-mounted configurations, while the 2.5 Gigabit Ethernet uplink ensures sufficient bandwidth for high-density client environments. Bluetooth 5 connectivity enables integration with IoT devices for smart building applications.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Office Environments
Supports high-density client connections with efficient channel utilization through OFDMA technology.
Educational Facilities
Provides reliable connectivity for classrooms and common areas with advanced security features for network protection.
Physical Profile
The access point measures 8" wide by 8" deep by 1.70" high (203.20 × 203.20 × 43.18 mm) with a weight of approximately 2.43 lb (1102.23 g). This compact form factor is designed for ceiling or wall mounting in commercial environments. The unit is environmentally compliant with WEEE directives and carries a lifetime limited warranty from the manufacturer.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.70" (43.18 mm), 8" (203.20 mm), 8" (203.20 mm), 2.43 lb (1102.23 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8" (203.20 mm)
- Depth
- 8" (203.20 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 2.43 lb (1102.23 g)
Highlights
- 802.11ax (Wi-Fi 6) wireless standard with 5.38 Gbit/s throughput
- Dual-band operation on 2.4 GHz and 5 GHz frequencies
- 2.5 Gigabit Ethernet port with Power over Ethernet (PoE) support
- MIMO and beamforming technologies for optimized coverage
- Bluetooth 5 for IoT device connectivity
- WPA3 encryption with AES, WPA, and WPA2 support
- Compact 8" × 8" design for ceiling or wall mounting
- Lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C9115AXE-EWC-T |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 9115 |
| Product Model | C9115E |
| Product Name | Catalyst C9115E Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | 802.11ax |
| Bluetooth Standard | Bluetooth 5 |
| Frequency Band | 2.40 GHz,5 GHz |
| Wireless Transmission Speed | 5.38 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | AES,WPA,WPA2,WPA3 |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| Management Port | Yes |
| Physical Characteristics | |
| Height | 1.70" (43.18 mm) |
| Width | 8" (203.20 mm) |
| Depth | 8" (203.20 mm) |
| Weight (Approximate) | 2.43 lb (1102.23 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What wireless standard does this access point support?
The Cisco Catalyst C9115E supports the 802.11ax wireless standard, also known as Wi-Fi 6. This latest Wi-Fi generation provides improved efficiency, higher throughput up to 5.38 Gbit/s, and better performance in high-density environments compared to previous standards like 802.11ac.
Does this access point support Power over Ethernet?
Yes, this access point includes a PoE PD (Power over Ethernet Powered Device) port. This allows the unit to receive both power and data through a single Ethernet cable, simplifying installation by eliminating the need for separate power cabling near the mounting location.
What frequency bands does this access point operate on?
The C9115E operates on dual frequency bands: 2.40 GHz and 5 GHz. This dual-band capability provides flexibility for connecting different types of client devices and helps distribute network traffic across both bands for optimal performance in various deployment scenarios.
What is the maximum wireless throughput of this access point?
This access point delivers a maximum wireless transmission speed of 5.38 Gbit/s. This high throughput supports demanding applications and multiple simultaneous connections, making it suitable for business environments with high-density client requirements.
What security features does this access point include?
The access point supports multiple encryption standards including WPA3, WPA2, WPA, and AES. Data encryption is enabled by default, providing comprehensive protection for wireless network traffic. These security features help safeguard business networks against unauthorized access and data interception.
What is the warranty coverage for this access point?
Cisco provides a lifetime limited warranty for the Catalyst C9115E wireless access point. This warranty coverage demonstrates the product's durability and reliability for long-term deployment in business environments, providing peace of mind for network investments.
