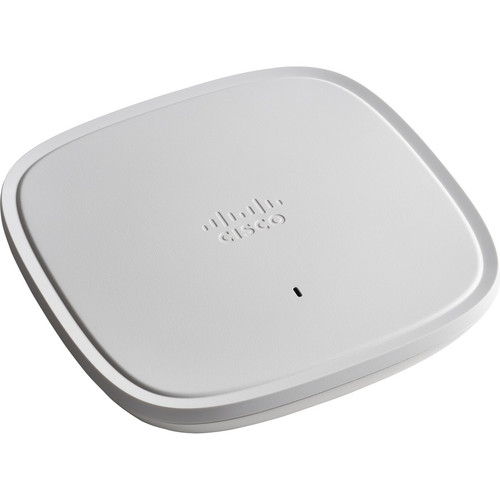

Cisco C9115AXE-Q Catalyst C9115E 802. 11ax Dual Band Indoor Wireless Access Point - 5. 38 Gbit/s - 2. 5GbE - PoE - External Antenna
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The C9115E leverages Wi-Fi 6 (802.11ax) technology to improve network efficiency and capacity. It operates on dual bands, providing flexibility for legacy and modern devices, and includes Bluetooth 5 for peripheral connectivity. The access point features robust data encryption with support for AES, WPA, WPA2, and WPA3 standards, ensuring secure wireless communications.
Connectivity is centered around a 2.5 Gigabit Ethernet port that supports Power over Ethernet (PoE) for simplified installation. Additional interfaces include a USB port and a dedicated management port for network configuration and monitoring. The external antenna design allows for customizable coverage patterns to match specific deployment needs.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Catalyst C9115E combines high throughput with enterprise-grade features to deliver a reliable wireless foundation. Its Wi-Fi 6 capabilities reduce latency and improve performance in crowded environments, while the external antenna form factor offers deployment flexibility for optimal coverage.
Enhanced Wireless Performance
With 802.11ax and dual-band support, this access point maximizes data rates and network efficiency, supporting seamless streaming, video conferencing, and data transfers.
- 5.38 Gbit/s maximum throughput
- MIMO and beamforming technologies
- Bluetooth 5 for device connectivity
Simplified Installation and Management
PoE support eliminates the need for separate power cabling, and the management port provides direct control over network settings and monitoring.
- Single 2.5 Gigabit Ethernet with PoE
- USB and management ports for flexibility
- Indoor design for easy ceiling or wall mounting
Robust Security
Advanced encryption standards protect network traffic, ensuring compliance with modern security requirements for business environments.
- AES, WPA, WPA2, and WPA3 encryption
- Secure data transmission
- Enterprise-grade access control
Deployment / Use Cases
This access point is ideal for indoor environments where reliable, high-speed wireless connectivity is essential. Its compact design and PoE capability make it easy to deploy in offices, classrooms, or retail spaces without extensive infrastructure changes.
Common use cases include providing Wi-Fi coverage for employee workstations, supporting guest networks in hospitality settings, and enabling wireless connectivity for IoT devices in smart buildings. The external antenna allows for tailored coverage patterns, making it adaptable to various floor plans and architectural constraints.
Office and Enterprise Networks
Deliver consistent Wi-Fi performance for productivity applications, video calls, and cloud services across open-plan offices or multi-story buildings.
Education and Campus Environments
Support high-density student and faculty connections in classrooms, libraries, and common areas with efficient bandwidth management.
Physical Profile
The C9115E features a compact form factor measuring 8 inches in width and depth, with a height of 1.70 inches, designed for discreet ceiling or wall mounting. Its external antenna configuration enables adjustable coverage, while the lightweight construction simplifies handling during installation. The indoor-rated build ensures reliable operation in controlled environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.70" (43.18 mm), 8" (203.20 mm), 8" (203.20 mm), 2.43 lb (1102.23 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8" (203.20 mm)
- Depth
- 8" (203.20 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 2.43 lb (1102.23 g)
Highlights
- Wi-Fi 6 (802.11ax) wireless standard for improved efficiency and capacity
- Dual-band operation on 2.4 GHz and 5 GHz frequencies
- Maximum wireless throughput of 5.38 Gbit/s
- 2.5 Gigabit Ethernet port with Power over Ethernet (PoE) support
- External antenna form factor for customizable coverage
- Advanced encryption including WPA3 for enhanced security
- Bluetooth 5 connectivity for peripheral devices
- Compact design suitable for indoor ceiling or wall mounting
- Includes USB and management ports for flexible configuration
- MIMO and beamforming technologies for optimized signal performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C9115AXE-Q |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 9115 |
| Product Model | C9115E |
| Product Name | Catalyst C9115E Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | 802.11ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 5.38 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | AES,WPA,WPA2,WPA3 |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| Management Port | Yes |
| Physical Characteristics | |
| Antenna Form Factor | External |
| Height | 1.70" (43.18 mm) |
| Width | 8" (203.20 mm) |
| Depth | 8" (203.20 mm) |
| Weight (Approximate) | 2.43 lb (1102.23 g) |
User Manual
FAQ
What wireless standard does the Cisco C9115E access point use?
The Cisco C9115E uses the 802.11ax standard, also known as Wi-Fi 6. This latest generation of Wi-Fi technology offers higher data rates, improved efficiency in crowded environments, and better performance for multiple connected devices compared to previous standards like 802.11ac.
Does this access point support Power over Ethernet (PoE)?
Yes, the C9115E includes a PoE PD (Powered Device) port. This allows the access point to receive both power and data over a single Ethernet cable, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
What are the frequency bands supported by this access point?
This access point operates on dual bands: 2.40 GHz and 5 GHz. The 2.4 GHz band provides broader coverage and better penetration through walls, while the 5 GHz band offers higher speeds and less interference, making it suitable for bandwidth-intensive applications.
What is the maximum wireless speed of the C9115E?
The C9115E delivers a maximum wireless transmission speed of 5.38 Gbit/s. This high throughput supports demanding tasks such as 4K video streaming, large file transfers, and real-time collaboration tools without network bottlenecks.
Can the antennas be adjusted or replaced on this access point?
Yes, the C9115E features an external antenna form factor. This design allows for the use of customizable or replaceable antennas to tailor coverage patterns, signal strength, and directionality based on specific deployment needs and environmental factors.
What security features are included with this wireless access point?
The access point supports robust data encryption standards including AES, WPA, WPA2, and WPA3. These protocols ensure secure wireless communications, protect against unauthorized access, and help maintain compliance with enterprise security policies for business networks.
