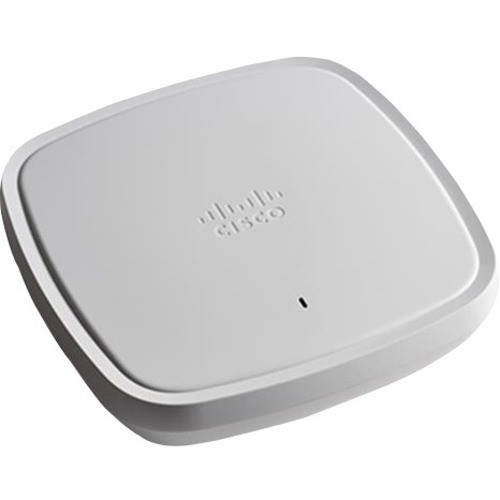

Cisco C9115AXI-K Catalyst C9115AXI Indoor Dual-Band 802. 11ax Wi-Fi 6 Access Point - 5. 38 Gbit/s - 2. 5GbE PoE PD - Internal Antennas
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This access point operates on the 802.11ax wireless standard, commonly known as Wi-Fi 6, which improves efficiency and capacity in dense device environments. It utilizes dual-band radio technology, supporting simultaneous transmission on 2.4 GHz and 5 GHz bands to optimize performance for a variety of client devices. The integrated 2.5 Gigabit Ethernet port provides high-speed uplink connectivity, while Power over Ethernet (PoE) PD support simplifies installation by delivering both data and power over a single cable.
Advanced features include MIMO technology for increased data throughput and beamforming for targeted signal direction, enhancing coverage and reducing interference. Security is enforced through multiple encryption standards, including WPA3, WPA2, WPA, and AES, ensuring compliance with modern security requirements. Bluetooth 5 capability allows for additional wireless connectivity options, such as IoT device integration.
Key Product Advantages
The Cisco Catalyst C9115AXI-K combines high-performance wireless access with enterprise-grade reliability, making it an ideal choice for businesses seeking to upgrade their network infrastructure. Its Wi-Fi 6 capabilities ensure faster data rates and better handling of multiple connected devices, reducing latency and improving user experience in high-traffic environments.
Enhanced Connectivity
With a 2.5 Gigabit Ethernet port and PoE PD support, this access point delivers both high-speed data and power over a single cable, simplifying deployment and reducing cabling complexity.
- Supports Power over Ethernet (PoE) for easy installation
- 2.5GbE uplink for high-bandwidth applications
Advanced Security
Built-in encryption standards, including WPA3, provide robust protection against network threats, ensuring secure wireless communications for sensitive business data.
- WPA3 encryption for enhanced security
- Supports WPA2 and AES for compatibility
Optimized Performance
MIMO and beamforming technologies improve signal strength and coverage, delivering reliable wireless access even in challenging environments with physical obstructions.
- MIMO technology increases throughput
- Beamforming directs signals to connected devices
Deployment / Use Cases
The Cisco Catalyst C9115AXI-K is designed for indoor deployment in a variety of business and institutional settings. Its compact size and internal antennas make it suitable for ceiling or wall mounting in offices, classrooms, retail spaces, and healthcare facilities, where aesthetics and space constraints are important considerations.
This access point is particularly effective in environments requiring high-density wireless connectivity, such as conference rooms, open-plan offices, and public areas with numerous mobile devices. The PoE PD capability allows for flexible placement without the need for nearby power outlets, simplifying installation in hard-to-reach locations. Integration with Cisco Catalyst networking solutions enables centralized management and seamless scalability for growing networks.
Office Networks
Provide reliable Wi-Fi coverage for employees and guests, supporting productivity tools, video conferencing, and cloud applications with minimal latency.
Educational Institutions
Deliver stable wireless access in classrooms and libraries, facilitating online learning, digital resources, and collaborative projects for students and staff.
Physical Profile
The access point features a low-profile design with dimensions of 8" (203.20 mm) in width, 8" (203.20 mm) in depth, and 1.50" (38.10 mm) in height, making it discreet and easy to install in various indoor locations. Its approximate weight of 1.98 lb (898.11 g) ensures secure mounting without excessive load on ceilings or walls. The internal antenna form factor eliminates external protrusions, maintaining a sleek appearance while providing consistent wireless performance.
- Width
- 8" (203.20 mm)
- Depth
- 8" (203.20 mm)
- Height
- 1.50" (38.10 mm)
- Weight
- 1.98 lb (898.11 g)
Highlights
- 802.11ax (Wi-Fi 6) wireless standard for improved efficiency and capacity
- Dual-band operation on 2.4 GHz and 5 GHz frequency bands
- Maximum wireless throughput of 5.38 Gbit/s
- 2.5 Gigabit Ethernet port with PoE PD support for simplified installation
- Internal antennas for a clean, unobtrusive design
- MIMO and beamforming technologies for enhanced coverage and performance
- WPA3, WPA2, WPA, and AES encryption for robust security
- Bluetooth 5 capability for additional wireless connectivity options
- Compact dimensions: 8" x 8" x 1.50" (203.20 mm x 203.20 mm x 38.10 mm)
- Indoor use with ceiling or wall mounting suitability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C9115AXI-K |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 9115 |
| Product Model | C9115AXI |
| Product Name | Catalyst C9115AXI Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | 802.11ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 Hz,5 Hz |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 5.38 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA2,WPA,AES |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| Management Port | Yes |
| Physical Characteristics | |
| Antenna Form Factor | Internal |
| Height | 1.50" (38.10 mm) |
| Width | 8" (203.20 mm) |
| Depth | 8" (203.20 mm) |
| Weight (Approximate) | 1.98 lb (898.11 g) |
User Manual
FAQ
What wireless standard does the Cisco Catalyst C9115AXI-K support?
The Cisco Catalyst C9115AXI-K supports the 802.11ax wireless standard, also known as Wi-Fi 6. This standard provides higher data rates, improved efficiency in dense environments, and better performance for multiple connected devices compared to previous Wi-Fi generations, making it suitable for modern business networks.
Does this access point support Power over Ethernet (PoE)?
Yes, the Cisco Catalyst C9115AXI-K includes a PoE PD (Power over Ethernet Powered Device) port. This allows the access point to receive both data and electrical power over a single Ethernet cable, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
What are the frequency bands supported by this access point?
This access point operates on dual frequency bands: 2.40 Hz (2.4 GHz) and 5 Hz (5 GHz). Dual-band capability enables simultaneous transmission on both bands, optimizing performance for a variety of client devices and reducing congestion in busy wireless environments.
What type of Ethernet port is available on the Cisco Catalyst C9115AXI-K?
The access point features one 2.5 Gigabit Ethernet port (RJ-45). This high-speed uplink port supports data rates up to 2.5 Gbps, providing sufficient bandwidth for demanding applications and ensuring efficient backhaul connectivity to the network infrastructure.
What security encryption standards are supported?
The Cisco Catalyst C9115AXI-K supports multiple encryption standards, including WPA3, WPA2, WPA, and AES. WPA3 offers enhanced security with stronger encryption protocols, while backward compatibility with WPA2 and WPA ensures flexibility for older devices, protecting network traffic from unauthorized access.
Is this access point suitable for indoor or outdoor use?
The Cisco Catalyst C9115AXI-K is designed for indoor use only. It is ideal for deployment in environments such as offices, schools, retail stores, and healthcare facilities, where it can be mounted on ceilings or walls to provide reliable wireless coverage without exposure to outdoor elements.
