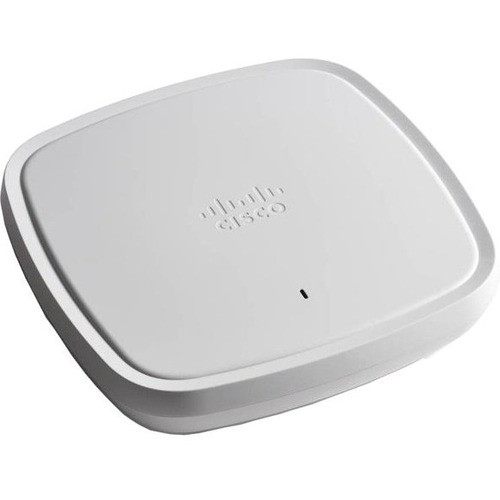

Cisco C9120AXE-EWC-E Catalyst 9120AX Dual-Band 802. 11ax Wi-Fi 6 Access Point - 5. 38 Gbit/s - 2. 5GbE PoE - Bluetooth 5 - MIMO - Beamforming
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on the 802.11ax standard, the C9120AXE-EWC-E enhances network efficiency with technologies like OFDMA and MU-MIMO, reducing latency and improving performance in dense environments. It integrates Bluetooth 5 for low-energy device connectivity and supports comprehensive encryption standards including WPA3 for advanced security.
The access point features a single 2.5 Gigabit Ethernet port that provides high-speed uplink capability and supports Power over Ethernet (PoE) for streamlined power and data delivery. Management capabilities allow for efficient setup, monitoring, and configuration, making it suitable for IT-managed networks.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Catalyst C9120AXE-EWC-E combines cutting-edge wireless technology with enterprise-grade reliability to support demanding business applications. Its high throughput and advanced antenna design ensure consistent performance for voice, video, and data traffic across connected devices.
Enhanced Security
Supports AES, WPA, WPA2, and WPA3 encryption standards to protect network data and maintain compliance with modern security requirements.
- Data Encryption: Yes
- Encryption Standards: AES, WPA, WPA2, WPA3
Simplified Deployment
PoE PD support eliminates the need for separate power cabling, while the compact design and management port facilitate easy installation and ongoing network control.
- PoE PD Port: Yes
- Management Port: Yes
- Weight: 3 lb (1360.78 g)
Deployment / Use Cases
Ideal for office environments, retail spaces, and educational institutions, this access point provides reliable Wi-Fi coverage for high-density user scenarios. Its 802.11ax capabilities make it suitable for supporting IoT devices, mobile applications, and bandwidth-intensive tasks like video conferencing and cloud access.
The PoE functionality allows for ceiling or wall mounting in locations where power outlets are limited, simplifying infrastructure planning. With Bluetooth 5 integration, it can also support location-based services and low-power peripheral connectivity, expanding its utility in smart building deployments.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The access point measures 8.50" wide, 8.05" deep, and 2" high (215.90 mm x 204.47 mm x 50.80 mm), with a weight of approximately 3 lb (1360.78 g). Its compact and lightweight design facilitates easy mounting on ceilings or walls, while the environmentally friendly construction complies with WEEE directives for responsible disposal.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2" (50.80 mm), 8.50" (215.90 mm), 8.05" (204.47 mm), 3 lb (1360.78 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8.50" (215.90 mm)
- Depth
- 8.05" (204.47 mm)
- Height
- 2" (50.80 mm)
- Weight
- 3 lb (1360.78 g)
Highlights
- 802.11ax Wi-Fi 6 standard for high-efficiency wireless performance
- Dual-band operation on 2.4 GHz and 5 GHz frequencies
- Maximum wireless transmission speed of 5.38 Gbit/s
- 2.5 Gigabit Ethernet port with PoE PD support
- Bluetooth 5 for low-energy device connectivity
- MIMO and beamforming technologies for improved coverage
- Advanced encryption with AES, WPA, WPA2, and WPA3
- Compact design with dimensions of 8.50" x 8.05" x 2"
- Lifetime limited warranty for long-term reliability
- Environmentally compliant with WEEE directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C9120AXE-EWC-E |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 9120AX |
| Product Model | C9120AXE |
| Product Name | Catalyst C9120AXE Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | 802.11ax |
| Bluetooth Standard | Bluetooth 5 |
| Frequency Band | 2.40 GHz,5 GHz |
| Wireless Transmission Speed | 5.38 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | AES,WPA,WPA2,WPA3 |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| Management Port | Yes |
| Physical Characteristics | |
| Height | 2" (50.80 mm) |
| Width | 8.50" (215.90 mm) |
| Depth | 8.05" (204.47 mm) |
| Weight (Approximate) | 3 lb (1360.78 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What Wi-Fi standard does the Cisco Catalyst C9120AXE-EWC-E support?
This access point supports the 802.11ax standard, also known as Wi-Fi 6. It provides improved efficiency, higher throughput, and better performance in crowded environments compared to previous Wi-Fi generations, with a maximum wireless transmission speed of 5.38 Gbit/s.
Does this access point support Power over Ethernet (PoE)?
Yes, the Cisco Catalyst C9120AXE-EWC-E includes a PoE PD (Power over Ethernet Powered Device) port. This allows it to receive both power and data through a single Ethernet cable, simplifying installation and reducing the need for separate power outlets near the mounting location.
What frequency bands does this wireless access point operate on?
It operates on dual bands: 2.40 GHz and 5 GHz. This dual-band capability enables flexible network configuration, allowing devices to connect on either band for optimized performance and reduced interference in diverse wireless environments.
What is the Ethernet port speed on this access point?
The access point features one 2.5 Gigabit Ethernet port (RJ-45). This high-speed uplink supports faster data transfer between the wireless network and wired infrastructure, ensuring that the 5.38 Gbit/s wireless throughput is not bottlenecked by the Ethernet connection.
Does this access point include Bluetooth connectivity?
Yes, it integrates Bluetooth 5 technology. This provides low-energy wireless connectivity for peripherals, IoT devices, or location-based services, complementing the Wi-Fi functionality and expanding the access point's capabilities in modern network deployments.
What security features are supported by this access point?
It supports multiple encryption standards including AES, WPA, WPA2, and WPA3. Data encryption is enabled, and features like MIMO and beamforming help secure and optimize signal transmission. These security measures protect network traffic and ensure compliance with current wireless security protocols.
