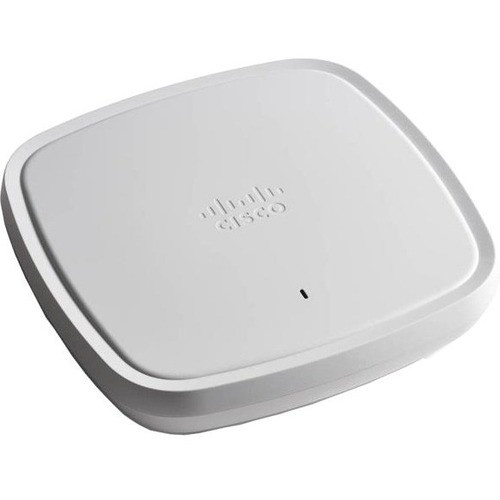

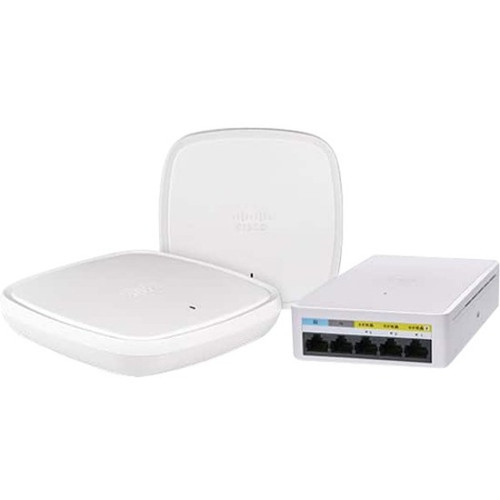

Cisco C9120AXE-EWC-T Catalyst 9120AX 802. 11ax Wireless Access Point - 5. 38 Gbit/s - Dual-Band - 2. 5GbE - PoE - MIMO - Beamforming
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This access point operates on the latest 802.11ax wireless standard, also known as Wi-Fi 6, which improves efficiency and capacity in high-density deployments. It supports simultaneous dual-band operation across 2.40 GHz and 5 GHz frequencies, enabling flexible channel allocation and reduced interference. The 5.38 Gbit/s maximum throughput ensures fast data transfer for bandwidth-intensive applications such as video conferencing, large file transfers, and cloud-based services.
Connectivity is centered around a 2.5 Gigabit Ethernet port that supports Power over Ethernet (PoE), allowing the access point to receive both data and power from a compatible PoE switch or injector. This eliminates the need for separate power cabling and simplifies installation in ceiling or wall mounts. The inclusion of Bluetooth 5 enables proximity-based services and device onboarding, while advanced security features like WPA3 encryption protect network traffic from unauthorized access.
Key Product Advantages
The Cisco Catalyst C9120AXE offers several distinct advantages for business networks. Its support for the latest Wi-Fi 6 standard ensures future-proof performance, while dual-band operation provides flexibility to optimize network traffic. The access point's compact design and PoE capability make it ideal for ceiling or wall mounting in offices, schools, healthcare facilities, and retail spaces.
High-Speed Wireless Performance
With 802.11ax technology and 5.38 Gbit/s throughput, this access point supports next-generation Wi-Fi demands, reducing latency and increasing network capacity for seamless user experiences.
Simplified Deployment with PoE
The integrated PoE PD port allows for single-cable installation, reducing clutter and enabling flexible placement in hard-to-reach areas without nearby power outlets.
Enhanced Signal Reliability
MIMO and beamforming technologies work together to direct wireless signals more efficiently, improving coverage and stability in environments with multiple connected devices.
Deployment / Use Cases
This wireless access point is suited for a variety of indoor deployment scenarios. Its high throughput and advanced radio features make it effective in environments with many concurrent users, such as open-plan offices, conference centers, and hospitality venues. The PoE support simplifies installation in ceiling mounts, allowing for discreet placement that maintains aesthetic appeal while maximizing coverage.
For IT administrators, the management port and USB connectivity offer additional control and configuration options, enabling integration with existing network management systems. The lifetime warranty provides long-term assurance, reducing total cost of ownership and supporting sustainable IT infrastructure planning.
Enterprise Office Networks
Deploy in corporate offices to provide reliable Wi-Fi for employees, supporting high-density device connections and bandwidth-heavy applications like VoIP and video streaming.
Educational and Healthcare Environments
Install in classrooms or patient care areas where consistent wireless coverage is critical for digital learning tools, medical devices, and secure network access.
Physical Profile
The access point has a compact form factor measuring 2 inches in height, 8.50 inches in width, and 8.05 inches in depth, with a weight of approximately 3 pounds. This design facilitates easy installation in standard ceiling tiles or wall mounts, and its low profile helps maintain a clean aesthetic in visible areas. The unit is built with environmentally friendly materials and complies with WEEE directives, aligning with corporate sustainability goals.
- Width
- 8.50" (215.90 mm)
- Depth
- 8.05" (204.47 mm)
- Height
- 2" (50.80 mm)
- Weight
- 3 lb (1360.78 g)
Highlights
- 802.11ax (Wi-Fi 6) wireless standard for improved efficiency and capacity
- Dual-band operation on 2.40 GHz and 5 GHz frequencies
- Maximum wireless throughput of 5.38 Gbit/s
- Single 2.5 Gigabit Ethernet port with PoE PD support
- MIMO and beamforming technologies for enhanced signal reliability
- Advanced encryption including WPA3 for network security
- Bluetooth 5 for proximity services and device onboarding
- Compact design suitable for ceiling or wall mounting
- Lifetime limited warranty for long-term reliability
- Environmentally compliant with WEEE directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C9120AXE-EWC-T |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 9120AX |
| Product Model | C9120AXE |
| Product Name | Catalyst C9120AXE Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | 802.11ax |
| Bluetooth Standard | Bluetooth 5 |
| Frequency Band | 2.40 GHz,5 GHz |
| Wireless Transmission Speed | 5.38 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | AES,WPA,WPA2,WPA3 |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| Management Port | Yes |
| Physical Characteristics | |
| Height | 2" (50.80 mm) |
| Width | 8.50" (215.90 mm) |
| Depth | 8.05" (204.47 mm) |
| Weight (Approximate) | 3 lb (1360.78 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What wireless standard does this access point support?
This Cisco Catalyst access point supports the 802.11ax wireless standard, also known as Wi-Fi 6. This latest standard offers improved network efficiency, higher data rates, and better performance in environments with many connected devices compared to previous Wi-Fi generations like 802.11ac.
Does this access point support Power over Ethernet (PoE)?
Yes, the access point includes a PoE PD (Powered Device) port. This allows it to receive both data and electrical power over a single Ethernet cable from a compatible PoE switch or injector, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
What is the maximum wireless throughput of this access point?
The maximum wireless transmission speed is 5.38 Gbit/s. This high throughput supports bandwidth-intensive applications such as 4K video streaming, large file transfers, and real-time collaboration tools, making it suitable for modern business networks with demanding connectivity requirements.
How many Ethernet ports does this access point have?
It has one network (RJ-45) port, which operates at 2.5 Gigabit Ethernet speed. This port serves as the primary wired uplink to your network infrastructure and also supports PoE for power delivery, providing a streamlined connection for both data and power in a single cable.
What security features are included for network protection?
The access point supports multiple encryption standards including AES, WPA, WPA2, and WPA3. WPA3 is the latest security protocol offering enhanced protection against brute-force attacks and improved encryption for both personal and enterprise networks, ensuring secure wireless communications for sensitive business data.
Is this access point suitable for ceiling mounting?
Yes, its compact dimensions of 2" H x 8.50" W x 8.05" D and weight of approximately 3 pounds make it well-suited for ceiling or wall mounting. The PoE capability further simplifies installation in these locations by reducing cable clutter, allowing for discreet placement that provides optimal wireless coverage throughout the deployment area.
