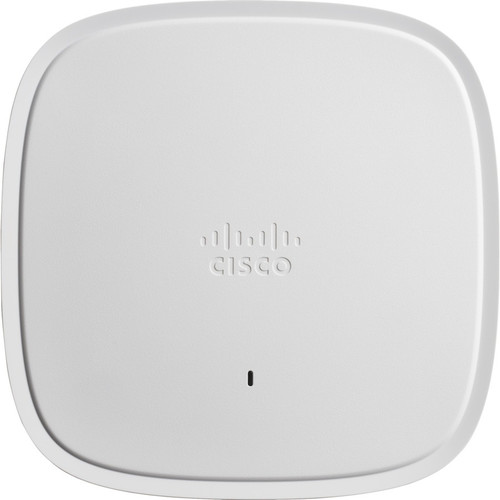

Cisco C9120AXP-EWC-D Catalyst 9120AX Wireless Access Point - 802. 11ax - 5. 38 Gbit/s - Dual-Band - 2. 5GbE - PoE - MIMO - Beamforming
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This access point operates on the latest 802.11ax (Wi-Fi 6) standard, achieving a maximum wireless transmission speed of 5.38 Gbit/s across both 2.4 GHz and 5 GHz frequency bands. It incorporates MIMO and beamforming technologies to enhance signal strength, reduce interference, and improve client performance in crowded networks.
Connectivity is handled by a single 2.5 Gigabit Ethernet RJ-45 port that supports PoE for power and data over one cable. Additional features include Bluetooth 5 for IoT device management, a USB port for expandability, and a dedicated management port for network administration. Security is enforced through AES, WPA, WPA2, and WPA3 encryption standards.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The C9120AXP stands out with its combination of high throughput, advanced radio features, and enterprise-grade durability. It is built to handle the increasing demands of modern wireless networks, from video streaming to cloud-based applications.
Enhanced Performance
Leverages 802.11ax efficiency for faster data rates and better performance in high-density scenarios, ensuring a steady and speedy connection for multiple devices.
- 5.38 Gbit/s max throughput
- Dual-band operation reduces congestion
- MIMO and beamforming optimize coverage
Simplified Deployment
PoE support allows installation in locations without direct power outlets, while the compact design and mounting options facilitate flexible placement in various environments.
- Single-cable PoE power and data
- Wall or ceiling mount ready
- Lightweight at 3 lb for easy handling
Deployment / Use Cases
This access point is ideal for businesses seeking to upgrade their wireless infrastructure to support growing device counts and bandwidth-intensive applications. Its robust feature set makes it suitable for a range of professional settings.
In office environments, it provides reliable Wi-Fi for employees and guests, supporting video conferencing and large file transfers. For retail or hospitality venues, the dual-band capability ensures smooth guest connectivity and point-of-sale operations. Educational institutions benefit from its high-density performance in classrooms and lecture halls.
Enterprise Offices
Deploy in corporate settings to handle high user density with secure, fast Wi-Fi for productivity tools and collaboration applications.
Public Venues
Use in hotels, restaurants, or stores to offer guest Wi-Fi with strong coverage and encryption for safe internet access.
Physical Profile
The access point has a sleek, low-profile design measuring 8.50 inches wide, 8.05 inches deep, and 2 inches high, with a weight of approximately 3 pounds. This compact form factor allows for discreet ceiling or wall mounting in commercial spaces, minimizing visual impact while providing optimal radio placement. The build is environmentally compliant with WEEE directives, reflecting Cisco's commitment to sustainability.
- Width
- 8.50" (215.90 mm)
- Depth
- 8.05" (204.47 mm)
- Height
- 2" (50.80 mm)
- Weight
- 3 lb (1360.78 g)
Highlights
- 802.11ax (Wi-Fi 6) wireless standard for high efficiency and speed
- Dual-band operation on 2.4 GHz and 5 GHz frequencies
- Maximum wireless transmission speed of 5.38 Gbit/s
- 2.5 Gigabit Ethernet uplink with PoE support for simplified installation
- MIMO and beamforming technologies enhance signal quality and range
- Advanced encryption with AES, WPA, WPA2, and WPA3 security
- Bluetooth 5 for IoT device management and connectivity
- Compact, mountable design suitable for ceiling or wall placement
- Lifetime limited warranty for long-term reliability
- Environmentally friendly with WEEE compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C9120AXP-EWC-D |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 9120AX |
| Product Model | C9120AXP |
| Product Name | Catalyst C9120AXP Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | 802.11ax |
| Bluetooth Standard | Bluetooth 5 |
| Frequency Band | 2.40 GHz,5 GHz |
| Wireless Transmission Speed | 5.38 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | AES,WPA,WPA2,WPA3 |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| Management Port | Yes |
| Physical Characteristics | |
| Height | 2" (50.80 mm) |
| Width | 8.50" (215.90 mm) |
| Depth | 8.05" (204.47 mm) |
| Weight (Approximate) | 3 lb (1360.78 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What wireless standard does this access point use?
This Cisco access point uses the 802.11ax standard, also known as Wi-Fi 6. It provides improved efficiency, higher data rates, and better performance in crowded environments compared to older standards like 802.11ac, supporting a maximum throughput of 5.38 Gbit/s.
Does this access point support Power over Ethernet (PoE)?
Yes, it includes a PoE PD (Powered Device) port. This allows the access point to receive both power and data over a single Ethernet cable from a compatible PoE switch or injector, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
What are the frequency bands supported?
It operates on dual bands: 2.40 GHz and 5 GHz. This dual-band capability helps reduce network congestion by distributing devices across different frequencies, improving overall performance and reliability for applications like streaming and video conferencing.
How fast is the Ethernet connection on this access point?
The access point features a 2.5 Gigabit Ethernet port. This high-speed uplink ensures that the wireless throughput is not bottlenecked by the wired connection, making it suitable for environments with heavy data traffic or multiple high-bandwidth users.
What security features are included?
Security is robust with support for AES, WPA, WPA2, and WPA3 encryption standards. These protocols protect data transmissions from unauthorized access, ensuring secure connectivity for business networks and compliance with modern security requirements.
Is this access point suitable for ceiling mounting?
Yes, its compact dimensions of 8.50" x 8.05" x 2" and lightweight design at 3 lb make it ideal for ceiling or wall mounting. This allows for optimal radio placement in commercial spaces like offices or retail stores, providing broad coverage without occupying desk space.
