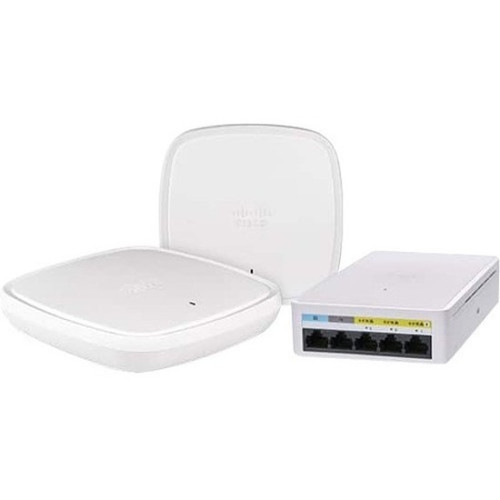

Cisco C9120AXP-EWC-G Catalyst 9120AX 802. 11ax Dual-Band Wireless Access Point - 5. 38 Gbit/s - 2. 5GbE PoE - Bluetooth 5 - MIMO - Beamforming
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This access point operates on both 2.40 GHz and 5 GHz frequency bands, achieving a maximum wireless transmission speed of 5.38 Gbit/s. It leverages 802.11ax technology to improve efficiency in congested environments, offering higher data rates and reduced latency compared to previous Wi-Fi generations.
Connectivity is anchored by a single 2.5 Gigabit Ethernet port that supports Power over Ethernet (PoE) for simplified installation. Additional interfaces include a USB port and a dedicated management port for network administration. The device employs AES, WPA, WPA2, and WPA3 encryption standards to secure data transmissions across the network.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Catalyst C9120AXP stands out with its combination of high-speed wireless performance, advanced radio technologies, and enterprise-grade management capabilities. It is engineered to handle the increasing bandwidth demands of modern workplaces, supporting applications like video conferencing, cloud services, and large file transfers without compromise.
Enhanced Coverage and Reliability
MIMO and beamforming technologies work together to direct wireless signals efficiently, improving coverage in challenging environments and reducing dead zones.
- Optimized signal strength for consistent connectivity
- Better performance in high-interference areas
Simplified Deployment and Power
Power over Ethernet support allows the access point to be installed in locations without direct power outlets, reducing cabling complexity and enabling flexible ceiling or wall mounting.
- Single cable for data and power
- Ideal for ceiling tiles or wall placements
Deployment / Use Cases
This access point is suited for a variety of business and institutional settings where reliable, high-speed wireless connectivity is critical. Its dual-band operation and advanced features make it effective in environments with mixed device types and high user density.
Common deployment scenarios include corporate offices, educational campuses, healthcare facilities, and retail spaces. The unit supports seamless roaming for mobile users and can be integrated into larger Cisco Catalyst networks for centralized management and security policy enforcement.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Enterprise Office Networks
Provide stable Wi-Fi for employees using laptops, smartphones, and IoT devices, ensuring productivity with minimal downtime.
High-Density Venues
Handle large numbers of concurrent users in conference halls, classrooms, or public areas with efficient bandwidth management.
Physical Profile
The access point has a compact design with dimensions of 8.50" (215.90 mm) in width, 8.05" (204.47 mm) in depth, and 2" (50.80 mm) in height, weighing approximately 3 lb (1360.78 g). Its low-profile form factor facilitates discreet ceiling or wall mounting in commercial environments. The build quality supports continuous operation in standard indoor conditions, aligning with WEEE environmental compliance for responsible end-of-life disposal.
- Width
- 8.50" (215.90 mm)
- Depth
- 8.05" (204.47 mm)
- Height
- 2" (50.80 mm)
- Weight
- 3 lb (1360.78 g)
Highlights
- 802.11ax (Wi-Fi 6) dual-band wireless access point for modern business networks
- Maximum wireless throughput of 5.38 Gbit/s on 2.40 GHz and 5 GHz bands
- Single 2.5 Gigabit Ethernet port with Power over Ethernet (PoE) support
- Integrated MIMO and beamforming technologies for enhanced coverage and reliability
- Bluetooth 5 for location services and IoT device connectivity
- Advanced encryption with AES, WPA, WPA2, and WPA3 standards
- Compact design suitable for ceiling or wall mounting in enterprise environments
- Lifetime limited warranty for long-term deployment confidence
- USB and management ports for additional connectivity and administration
- Environmentally compliant with WEEE directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C9120AXP-EWC-G |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 9120AX |
| Product Model | C9120AXP |
| Product Name | Catalyst C9120AXP Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | 802.11ax |
| Bluetooth Standard | Bluetooth 5 |
| Frequency Band | 2.40 GHz,5 GHz |
| Wireless Transmission Speed | 5.38 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | AES,WPA,WPA2,WPA3 |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| Management Port | Yes |
| Physical Characteristics | |
| Height | 2" (50.80 mm) |
| Width | 8.50" (215.90 mm) |
| Depth | 8.05" (204.47 mm) |
| Weight (Approximate) | 3 lb (1360.78 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What Wi-Fi standard does this Cisco access point support?
This access point supports the 802.11ax standard, also known as Wi-Fi 6. It operates on both 2.40 GHz and 5 GHz frequency bands, delivering a maximum wireless transmission speed of 5.38 Gbit/s. This standard improves network efficiency, capacity, and performance in environments with many connected devices.
Does this access point support Power over Ethernet (PoE)?
Yes, it includes a PoE PD (Power over Ethernet Powered Device) port. This allows the access point to receive both data and electrical power over a single Ethernet cable, simplifying installation in locations without direct power outlets, such as ceilings or walls.
What is the Ethernet port speed on this access point?
The access point features one 2.5 Gigabit Ethernet port (RJ-45). This higher-speed port provides ample bandwidth for backhaul connections, supporting the maximum wireless throughput and ensuring minimal bottlenecks in network performance.
What advanced wireless technologies are included?
It incorporates MIMO (Multiple-Input Multiple-Output) and beamforming technologies. MIMO uses multiple antennas to improve data rates and signal reliability, while beamforming directs wireless signals toward connected devices, enhancing coverage and reducing interference in the network.
Does this access point include Bluetooth connectivity?
Yes, it supports Bluetooth 5. This enables additional functionality such as location-based services, asset tracking, and connectivity with Bluetooth-enabled IoT devices, complementing the Wi-Fi capabilities for a more comprehensive wireless solution.
What security features are provided for network protection?
The access point uses robust encryption standards including AES, WPA, WPA2, and WPA3 to secure data transmissions. These protocols help protect against unauthorized access and ensure that wireless communications remain confidential and integrity-protected in business environments.
