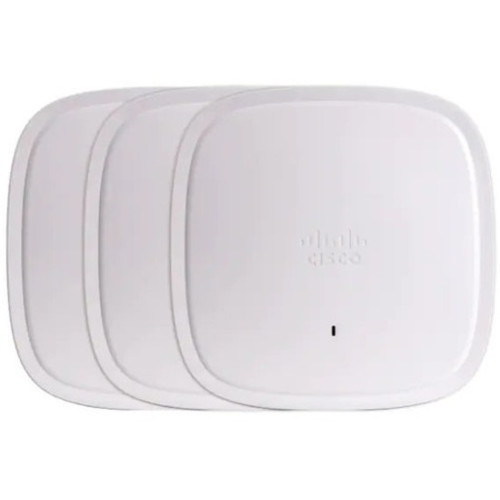

Cisco C9130AXI-EWC-T Catalyst 9130AXI Wi-Fi 6 Access Point - Dual Band 5. 38 Gbit/s - Indoor - Internal Antennas - 5GbE PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Catalyst 9130AXI leverages advanced wireless technologies to maximize network performance and reliability. It incorporates MIMO (Multiple Input, Multiple Output) and beamforming technologies to improve signal strength, coverage, and client capacity, ensuring stable connections even in challenging RF environments.
Security is reinforced with WPA3, WPA2, and AES encryption standards, providing robust protection for sensitive business data. The access point includes a USB port for additional connectivity options and a dedicated management port for streamlined network administration and monitoring.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This access point combines cutting-edge wireless technology with practical design features to meet the demands of modern business networks. Its indoor-focused build, coupled with advanced security and management tools, makes it a dependable choice for organizations seeking to upgrade or expand their wireless infrastructure.
High-Speed Wi-Fi 6 Performance
Delivers up to 5.38 Gbit/s wireless throughput with dual-band support, enabling fast data transfers, smooth video streaming, and responsive applications for business users.
Simplified Deployment with PoE
Features a PoE PD port that allows power and data over a single Ethernet cable, reducing installation complexity and costs while supporting flexible placement in indoor environments.
Enhanced Reliability and Management
Includes internal antennas, beamforming, and MIMO for consistent coverage, along with management capabilities for efficient network setup, configuration, and ongoing control.
Deployment / Use Cases
The Catalyst 9130AXI is engineered for indoor deployments where reliable, high-performance wireless access is critical. Its dual-band operation and advanced technologies make it effective in environments with many connected devices, such as offices, retail stores, healthcare facilities, and hospitality venues.
With its compact design and PoE support, it can be easily mounted on ceilings or walls, integrating seamlessly into existing network infrastructures. The access point's management features allow IT teams to monitor performance, apply updates, and troubleshoot issues remotely, ensuring optimal network operation with minimal downtime.
Office and Enterprise Networks
Ideal for corporate offices, providing high-density Wi-Fi coverage for employees, guests, and IoT devices with secure, manageable connectivity across multiple floors or large open spaces.
Education and Campus Environments
Suited for schools and universities, supporting bandwidth-intensive applications like online learning platforms, video conferencing, and collaborative tools in classrooms, libraries, and common areas.
Physical Profile
The access point has a square form factor with dimensions of 8.90" (226.06 mm) in width, 8.90" (226.06 mm) in depth, and 1.88" (47.75 mm) in height, weighing approximately 3.20 lb (1451.50 g). Its internal antenna design provides a clean, low-profile appearance suitable for discreet installation in professional settings.
Constructed for indoor use, it meets environmental standards including the Waste Electrical and Electronic Equipment Directive (WEEE), reflecting Cisco's commitment to sustainability. The durable build ensures long-term reliability in typical office or commercial conditions.
- Width
- 8.90" (226.06 mm)
- Depth
- 8.90" (226.06 mm)
- Height
- 1.88" (47.75 mm)
- Weight
- 3.20 lb (1451.50 g)
Highlights
- Wi-Fi 6 (IEEE 802.11ax) dual-band access point with up to 5.38 Gbit/s wireless speed
- Internal antennas for a streamlined, low-profile design ideal for ceiling or wall mounting
- 5 Gigabit Ethernet port with PoE PD support for simplified power and data connectivity
- Advanced wireless technologies including MIMO and beamforming for improved coverage and performance
- Robust security with WPA3, WPA2, and AES encryption to protect network data
- Bluetooth 5 for additional connectivity options and device management
- USB port and management port for enhanced configurability and network control
- Lifetime limited warranty and environmentally compliant design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C9130AXI-EWC-T |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 9130AX |
| Product Model | 9130AXI |
| Product Name | Catalyst 9130AXI Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 5 GHz,2.40 GHz |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 5.38 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA2,AES |
| Interfaces/Ports | |
| Ethernet Technology | 5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| Management Port | Yes |
| Physical Characteristics | |
| Antenna Form Factor | Internal |
| Height | 1.88" (47.75 mm) |
| Width | 8.90" (226.06 mm) |
| Depth | 8.90" (226.06 mm) |
| Weight (Approximate) | 3.20 lb (1451.50 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What Wi-Fi standard does this access point support?
This Cisco Catalyst 9130AXI access point supports the IEEE 802.11ax standard, commonly known as Wi-Fi 6. This latest generation of Wi-Fi technology offers higher data rates, improved efficiency in congested environments, and better performance for multiple connected devices compared to previous standards like 802.11ac.
Does this access point support Power over Ethernet (PoE)?
Yes, it includes a PoE PD (Power over Ethernet Powered Device) port. This allows the access point to receive both power and data over a single Ethernet cable from a compatible PoE switch or injector, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
What are the frequency bands and speeds available?
The access point operates on dual bands: 5 GHz and 2.40 GHz. It delivers a maximum wireless transmission speed of 5.38 Gbit/s across these bands, providing high throughput for demanding applications like video streaming, large file transfers, and real-time collaboration tools in business environments.
Are the antennas internal or external?
This model features internal antennas. The integrated antenna design offers a clean, compact form factor that is well-suited for indoor installations such as ceilings or walls, without protruding external elements. It supports MIMO and beamforming technologies to optimize signal coverage and reliability.
What security features are included?
Security features include data encryption with support for WPA3, WPA2, and AES standards. These protocols help protect wireless communications from unauthorized access and ensure data integrity, making the access point suitable for business networks that handle sensitive information and require robust security measures.
What is the warranty for this access point?
Cisco provides a lifetime limited warranty for this Catalyst 9130AXI access point. This warranty covers defects in materials and workmanship for the product's lifetime, offering long-term assurance and support for your investment in reliable wireless networking infrastructure.
