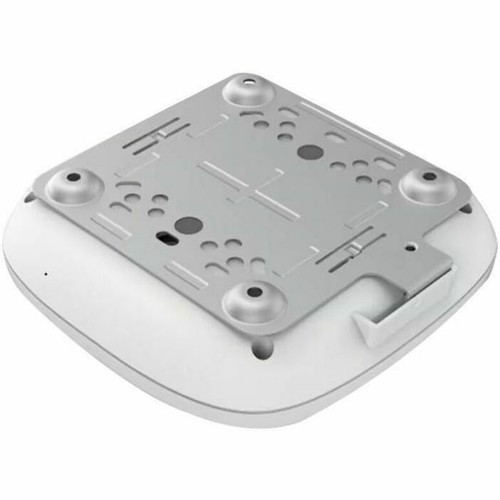

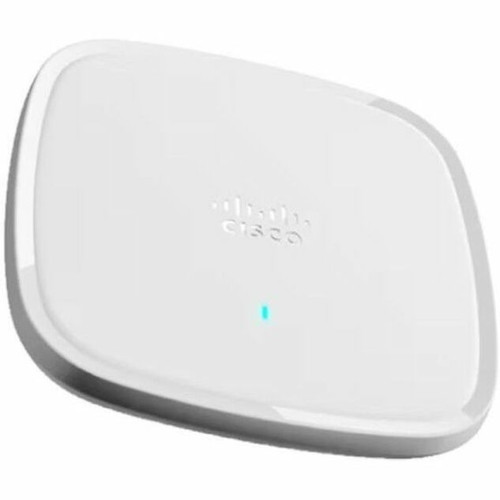

Cisco C9105AXI-A-RF Catalyst 9105AXI Indoor Dual-Band 802. 11ax Wi-Fi 6 Access Point - 1. 48 Gbit/s - Gigabit Ethernet - PoE PD - Internal Antennas
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This access point operates on the 802.11ax standard (Wi-Fi 6), providing dual-band coverage across 2.4 GHz and 5 GHz frequencies with a maximum wireless transmission speed of 1.48 Gbit/s. It incorporates MIMO (Multiple Input, Multiple Output) and beamforming technologies to enhance signal reliability, coverage, and capacity for connected devices.
The unit includes one Gigabit Ethernet port that supports PoE PD, allowing it to receive both data and power over a single network cable. A dedicated management port provides out-of-band configuration capabilities. Security features include WPA3, WPA2, and AES encryption standards to protect network traffic.
This section brings together practical product details such as Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Catalyst 9105AXI offers several advantages for modern wireless networks, combining Cisco's enterprise reliability with the latest Wi-Fi 6 technology to improve network efficiency and user experience.
Enhanced Performance with Wi-Fi 6
802.11ax technology increases network capacity and reduces latency, supporting more simultaneous devices and high-throughput applications like video streaming and VoIP.
- Up to 10x faster than standard Ethernet for wireless clients
- Improved efficiency in dense client environments
Simplified Deployment
PoE PD support eliminates the need for separate power cabling, while the compact internal antenna design allows for discreet installation in offices, classrooms, or retail spaces.
- Single-cable installation with PoE
- Low-profile design for ceiling or wall mounting
Enterprise Security & Management
Advanced encryption standards and a dedicated management port provide secure, controllable network access that meets business requirements for data protection and administrative oversight.
- WPA3/WPA2/AES encryption
- Efficient control over setup and configuration
Deployment / Use Cases
This access point is engineered for indoor enterprise environments where reliable, high-speed wireless connectivity is essential. Its dual-band capability and Wi-Fi 6 features make it suitable for modern workplaces with multiple connected devices per user.
Typical deployment scenarios include office buildings, educational institutions, healthcare facilities, and retail spaces. The compact form factor and PoE support make installation straightforward in drop-ceiling grids or on wall surfaces, while the internal antennas maintain a clean aesthetic.
Office & Corporate Networks
Provide consistent Wi-Fi coverage for employees using laptops, smartphones, and IoT devices, with sufficient bandwidth for cloud applications and video conferencing.
Education & Campus Environments
Support high-density student connectivity in classrooms and common areas, handling simultaneous access from tablets, laptops, and other educational technology.
Physical Profile
The access point measures 5.90 inches wide by 5.90 inches deep by 1.18 inches high (149.86 mm x 149.86 mm x 29.97 mm) and weighs approximately 11.20 ounces (317.51 grams). Its square design and internal antennas create a low-profile appearance that blends into indoor environments. The unit is designed for indoor use only and complies with environmental standards including the Waste Electrical and Electronic Equipment Directive (WEEE).
- Width
- 5.90" (149.86 mm)
- Depth
- 5.90" (149.86 mm)
- Height
- 1.18" (29.97 mm)
- Weight
- 11.20 oz (317.51 g)
Highlights
- 802.11ax Wi-Fi 6 standard for improved network efficiency and capacity
- Dual-band operation on 2.4 GHz and 5 GHz frequencies
- Maximum wireless transmission speed of 1.48 Gbit/s
- MIMO and beamforming technologies for enhanced coverage and reliability
- Single Gigabit Ethernet port with PoE PD support
- Dedicated management port for network configuration
- Internal antenna design for discreet installation
- WPA3, WPA2, and AES encryption for secure connectivity
- Compact dimensions suitable for ceiling or wall mounting
- Lifetime limited warranty from Cisco
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C9105AXI-A-RF |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 9100AX |
| Product Model | 9105AXI |
| Product Name | Catalyst 9100AXI Wireless Access Point |
| Product Condition | Refurbished |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | 802.11ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 1.48 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA2,AES |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Management Port | Yes |
| Physical Characteristics | |
| Antenna Form Factor | Internal |
| Height | 1.18" (29.97 mm) |
| Width | 5.90" (149.86 mm) |
| Depth | 5.90" (149.86 mm) |
| Weight (Approximate) | 11.20 oz (317.51 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What Wi-Fi standard does this access point support?
This Cisco access point supports the 802.11ax standard, also known as Wi-Fi 6. This latest generation of Wi-Fi technology provides higher data rates, increased capacity, and better performance in environments with many connected devices compared to previous standards like 802.11ac.
Does this access point support Power over Ethernet?
Yes, the Catalyst 9105AXI includes a PoE PD (Powered Device) port. This means it can receive both data and electrical power over a single Ethernet cable from a compatible PoE switch or injector, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
What are the frequency bands supported?
This is a dual-band access point that operates on both the 2.4 GHz and 5 GHz frequency bands. This allows it to support a wider range of client devices and distribute network traffic across two separate radio bands for improved performance and reduced congestion.
How many Ethernet ports does this access point have?
The access point has one Gigabit Ethernet port. This port provides the wired uplink connection to your network infrastructure and also supports Power over Ethernet (PoE) for receiving power. There is also a separate management port for out-of-band configuration purposes.
What security encryption standards are supported?
This access point supports WPA3, WPA2, and AES encryption standards. WPA3 is the latest Wi-Fi security protocol offering enhanced protection against brute-force attacks, while WPA2 remains widely compatible. AES encryption provides strong data protection for network traffic.
Is this access point suitable for ceiling mounting?
Yes, the compact design with internal antennas makes this access point well-suited for ceiling mounting in indoor environments. Its low-profile dimensions (5.90" x 5.90" x 1.18") and lightweight construction allow for discreet installation in drop ceilings or surface mounting with appropriate hardware.
What is the maximum wireless speed of this access point?
The Catalyst 9105AXI delivers a maximum wireless transmission speed of 1.48 Gbit/s. This throughput is achieved through 802.11ax technology with dual-band operation, MIMO, and beamforming capabilities, providing sufficient bandwidth for demanding applications and multiple simultaneous users.
What warranty comes with this access point?
This refurbished Cisco access point comes with a lifetime limited warranty from Cisco. This warranty coverage provides long-term assurance of product reliability and support for enterprise deployments, though specific terms and conditions apply as outlined in Cisco's warranty documentation.
