Cisco CBW140AC-A Business 140AC Dual-Band Wireless Access Point - IEEE 802.11ac - 1 Gbit/s - Gigabit Ethernet - PoE - Internal Antenna
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The 140AC operates on both 2.4 GHz and 5 GHz frequency bands, optimizing performance by reducing interference and supporting high-density client environments. MIMO technology enhances signal reliability and throughput, ensuring consistent connectivity for multiple simultaneous users.
Security is reinforced with advanced encryption standards including WPA3, WPA2, WPA, and AES, protecting network data from unauthorized access. The single Gigabit Ethernet port delivers high-speed wired connectivity, while PoE capability allows power and data transmission over a single cable for flexible placement.
Relevant factors for this section include Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This access point combines enterprise-grade wireless performance with straightforward deployment, making it an ideal choice for businesses seeking to upgrade or expand their Wi-Fi networks without complex installations.
Flexible Mounting Options
Designed for versatile installation, the 140AC can be ceiling-mounted for broad coverage, wall-mounted for directional placement, placed on a desktop, or secured on a rail, adapting to various office layouts and space constraints.
- Ceiling mountable
- Wall mountable
- Desktop placement
- Rail-mountable
Enhanced Security Features
With support for WPA3, WPA2, WPA, and AES encryption, the access point provides robust protection for sensitive business data, helping meet compliance requirements and safeguard network integrity against threats.
Eco-Friendly Design
Manufactured in compliance with the Waste Electrical and Electronic Equipment Directive (WEEE), this product supports environmentally responsible disposal and recycling practices, aligning with corporate sustainability goals.
Deployment / Use Cases
The Cisco Business 140AC is well-suited for environments requiring dependable Wi-Fi with minimal setup complexity. Its dual-band operation and Gigabit Ethernet backbone make it effective for handling mixed traffic, from video conferencing and cloud applications to everyday web browsing.
In retail settings, it supports point-of-sale systems and customer Wi-Fi; in offices, it facilitates mobile workstations and IoT devices; and in educational or healthcare spaces, it provides connectivity for staff and visitors. The PoE feature simplifies installation in locations without convenient power outlets, such as ceilings or high walls.
Small Office Deployment
Ideal for offices with 10-50 users, offering stable connectivity for laptops, smartphones, and printers without requiring dedicated IT staff for ongoing management.
Branch Network Expansion
Easily integrates into existing Cisco or mixed-vendor networks to extend wireless coverage in satellite locations, using standard PoE switches for power.
Physical Profile

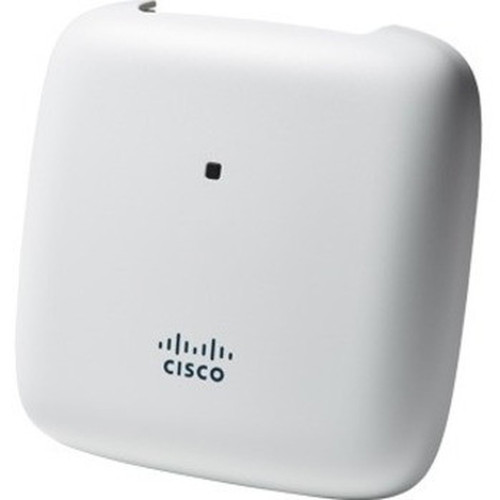

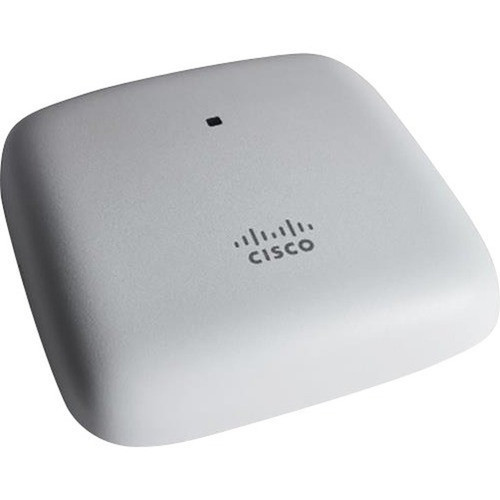

The access point features a low-profile design measuring 6 inches square and 1.3 inches tall, with a weight of 14 ounces. Its internal antennas eliminate external protrusions, making it discreet and suitable for environments where aesthetics matter. The compact footprint allows installation in tight spaces, while the variety of mounting options ensures it can be positioned optimally for signal distribution.
- Width
- 6" (152.40 mm)
- Depth
- 6" (152.40 mm)
- Height
- 1.30" (33.02 mm)
- Weight
- 14 oz (396.89 g)
Highlights
- Dual-band Wi-Fi with IEEE 802.11ac standard for up to 1 Gbit/s speed
- Operates on 2.4 GHz and 5 GHz frequencies to reduce interference
- Single Gigabit Ethernet port with PoE support for simplified cabling
- MIMO technology improves signal reliability and client capacity
- Supports WPA3, WPA2, WPA, and AES encryption for enhanced security
- Flexible mounting: ceiling, wall, desktop, or rail installation
- Internal antennas for a clean, unobtrusive appearance
- Compact dimensions: 6" x 6" x 1.30" and lightweight at 14 oz
- Environmentally compliant with WEEE directives
- Ideal for small to medium business wireless networks
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CBW140AC-A |
| Brand Name | Cisco |
| Product Line | Business |
| Product Series | 100 |
| Product Model | 140AC |
| Product Name | Business 140AC Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ac |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Wireless Transmission Speed | 1 Gbit/s |
| MIMO Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA2,WPA3,WPA,AES |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable,Desktop,Wall Mountable,Rail-mountable |
| Antenna Form Factor | Internal |
| Height | 1.30" (33.02 mm) |
| Width | 6" (152.40 mm) |
| Depth | 6" (152.40 mm) |
| Weight (Approximate) | 14 oz (396.89 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
User Manual
FAQ
What wireless standard does the Cisco Business 140AC support?
The Cisco Business 140AC supports the IEEE 802.11ac wireless standard, which provides high-speed dual-band Wi-Fi with data rates up to 1 Gbit/s. This standard is backward compatible with older Wi-Fi devices while offering improved performance for newer clients on both 2.4 GHz and 5 GHz bands.
Does this access point support Power over Ethernet (PoE)?
Yes, the Cisco Business 140AC includes a PoE PD (Powered Device) port. This allows it to receive both power and data over a single Ethernet cable from a PoE switch or injector, simplifying installation in locations without direct power access, such as ceilings or walls.
What are the mounting options for this wireless access point?
This access point offers versatile mounting options: it can be ceiling-mounted for broad coverage, wall-mounted for directional placement, set on a desktop, or attached to a rail. This flexibility makes it suitable for various environments like offices, retail spaces, or classrooms.
What security encryption standards are supported?
The Cisco Business 140AC supports multiple encryption standards including WPA3, WPA2, WPA, and AES. These protocols help secure wireless communications against unauthorized access, with WPA3 providing the latest enhancements for stronger protection in business networks.
What is the coverage range of this access point?
While specific range metrics depend on environmental factors, the dual-band operation and internal MIMO antennas are designed to provide reliable coverage for typical indoor business spaces. For best results, position it centrally and consider factors like walls and interference when planning deployment.
Can this access point be managed easily in a business network?
Yes, the Cisco Business 140AC is designed for straightforward management, compatible with common network controllers and web-based interfaces. It supports features like VLANs and QoS, allowing IT administrators to configure and monitor performance without specialized training.
