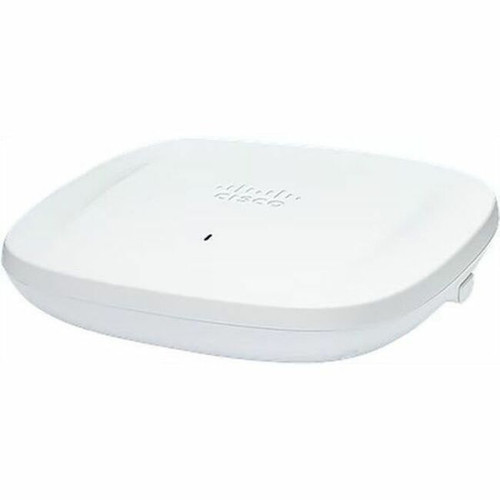

Cisco CW9162I-A Catalyst Tri-Band Wi-Fi 6E Access Point - 3. 90 Gbit/s - 2. 4/5/6 GHz - PoE - Internal Antenna
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Catalyst access point delivers aggregate wireless throughput of 3.90 Gbit/s through advanced radio technologies including MIMO and beamforming, which enhance signal strength and reliability for connected devices. The Wi-Fi 6E certification ensures support for 6 GHz operation, offering wider channels and lower latency for applications like 4K/8K video streaming, VR/AR, and real-time collaboration tools.
Network connectivity is handled through a single 2.5 Gigabit Ethernet port that supports Power over Ethernet (PoE) for simplified installation without separate power cabling. The integrated USB 2.0 port enables peripheral connectivity for network expansion or management purposes, while Bluetooth 5.1 provides additional wireless flexibility for IoT device integration and location services.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The CW9162I-A combines Cisco's enterprise networking expertise with cutting-edge wireless technology to deliver reliable, secure, and high-performance connectivity. Its tri-band architecture with 6 GHz support future-proofs your network investment by accommodating growing device counts and bandwidth-intensive applications without requiring infrastructure upgrades.
Advanced Security Suite
Enterprise-grade encryption includes WPA3-Personal, WPA3-ENT, WPA2 variants, and multiple EAP methods (EAP-TLS, EAP-TTLS, PEAPv0/v1, EAP-FAST) for robust authentication and data protection across all connected devices.
- AES Encryption
- EAP-TLS Support
- WPA3 Compliance
Simplified Deployment
PoE support eliminates separate power cabling requirements, while the internal antenna design and compact form factor enable discreet ceiling or wall mounting in various commercial environments.
- Single Cable Installation
- Clean Aesthetic Integration
- Flexible Mounting Options
Deployment / Use Cases
The Catalyst CW9162I-A is optimized for medium to large enterprise environments where reliable, high-speed wireless connectivity is critical for business operations. Its 3.90 Gbit/s throughput and tri-band design make it particularly suitable for high-density deployments such as corporate offices, university campuses, and healthcare facilities where numerous devices compete for bandwidth.
In retail and hospitality settings, this access point supports seamless customer Wi-Fi experiences while maintaining secure backend operations. The 6 GHz band availability enables dedicated channels for latency-sensitive applications like point-of-sale systems, inventory management, and guest streaming services without interference from legacy devices operating on 2.4 GHz and 5 GHz bands.
Physical Profile
With dimensions of 7.80 inches square and 1.70 inches in height, the CW9162I-A presents a low-profile design suitable for ceiling tile integration or discreet wall mounting. The internal antenna configuration eliminates external protrusions, maintaining aesthetic consistency in professional environments while providing omnidirectional coverage. At approximately 2.05 pounds, the access point is lightweight enough for single-person installation while robust enough for secure mounting in commercial settings.
- Width
- 7.80" (198.12 mm)
- Depth
- 7.80" (198.12 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 2.05 lb (929.86 g)
Highlights
- Tri-band Wi-Fi 6E access point with 2.4, 5, and 6 GHz operation
- 3.90 Gbit/s aggregate wireless throughput for high-density environments
- Single 2.5 Gigabit Ethernet port with Power over Ethernet (PoE) support
- Internal antenna design for clean ceiling or wall mounting
- Advanced WPA3 and enterprise-grade encryption security suite
- MIMO and beamforming technologies for enhanced signal reliability
- Bluetooth 5.1 for IoT device connectivity and location services
- USB 2.0 port for peripheral expansion and management
- Compact 7.80" × 7.80" × 1.70" form factor with 2.05 lb weight
- Lifetime limited warranty with WEEE environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CW9162I-A |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 9162 |
| Product Model | CW9162I |
| Product Name | Catalyst CW9162I Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac/ax/d/h/i |
| Bluetooth Standard | Bluetooth 5.1 |
| Network Band | Tri Band |
| Frequency Band | 2.40 GHz,5 GHz,6 GHz |
| Wireless Transmission Speed | 3.90 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA2-PSK,WPA2-ENT,WPA3-Personal,WPA3-ENT,WPA3,AES,EAP-TLS,EAP-TTLS,MSCHAPv2,EAP,PEAPv0,PEAPv1,EAP-FAST,EAP-SIM,EAP-GTC |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 2.0 |
| Management Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6E |
| Power Description | |
| Power Consumption | 30 W |
| Physical Characteristics | |
| Antenna Form Factor | Internal |
| Height | 1.70" (43.18 mm) |
| Width | 7.80" (198.12 mm) |
| Depth | 7.80" (198.12 mm) |
| Weight (Approximate) | 2.05 lb (929.86 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What Wi-Fi standards does the Cisco CW9162I-A support?
The CW9162I-A supports the latest Wi-Fi 6E (IEEE 802.11ax) standard along with comprehensive backward compatibility including 802.11a/b/g/n/ac/d/h/i. This ensures seamless operation with both modern Wi-Fi 6E devices and legacy wireless equipment across all three frequency bands (2.4 GHz, 5 GHz, and 6 GHz).
Does this access point require separate power cabling?
No, the CW9162I-A includes Power over Ethernet (PoE) support through its single 2.5 Gigabit Ethernet port. This allows both data and power to be delivered over a single network cable, simplifying installation by eliminating the need for separate electrical wiring near the mounting location.
What is the wireless throughput capability of this access point?
This Catalyst access point delivers aggregate wireless throughput of 3.90 Gbit/s across its three frequency bands. This high-speed performance is achieved through Wi-Fi 6E technology, MIMO, and beamforming, making it suitable for bandwidth-intensive applications and high-density client environments.
Can this access point be mounted on ceilings or walls?
Yes, the CW9162I-A is designed for both ceiling and wall mounting with its compact square form factor and internal antenna design. The low-profile 1.70-inch height and 7.80-inch width/depth dimensions allow for discreet integration into commercial spaces without protruding antennas or bulky enclosures.
What security features are included with this wireless access point?
Enterprise-grade security includes WPA3-Personal, WPA3-ENT, WPA2 variants, AES encryption, and multiple EAP authentication methods (EAP-TLS, EAP-TTLS, PEAPv0/v1, EAP-FAST, EAP-SIM, EAP-GTC). This comprehensive security suite protects network traffic and ensures only authorized devices can connect to the wireless infrastructure.
What is the warranty coverage for the Cisco CW9162I-A?
Cisco provides a lifetime limited warranty for this Catalyst access point, offering long-term protection for your network investment. The product also complies with WEEE (Waste Electrical and Electronic Equipment Directive) environmental standards for responsible end-of-life disposal and recycling.
