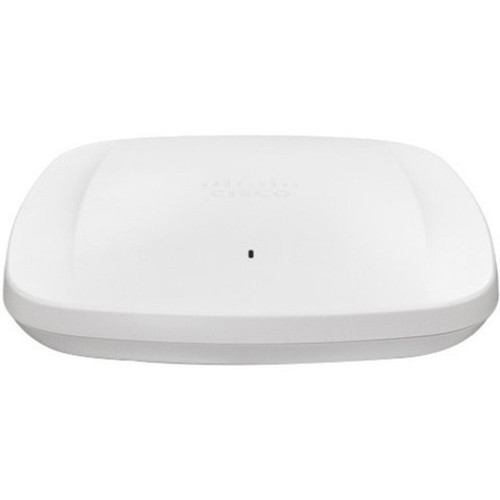

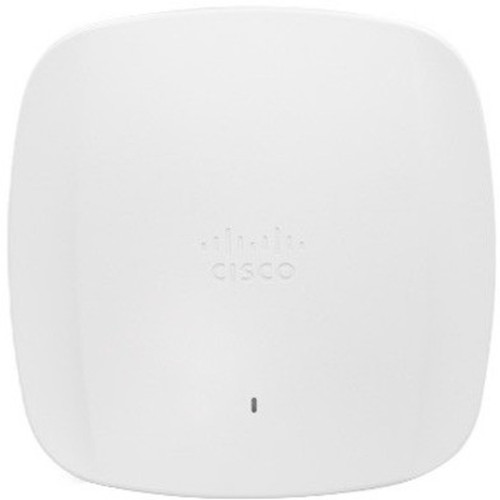

Cisco CW9162I-E Catalyst 9162 Tri-Band Wi-Fi 6E Access Point - 3. 90 Gbit/s - 2. 4/5/6 GHz - Internal Antennas - 2. 5GbE PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This access point leverages Wi-Fi 6E technology to operate in the newly available 6 GHz spectrum, reducing congestion and enabling higher data rates for compatible devices. It uses tri-band radio architecture to simultaneously serve legacy 2.4 GHz clients, mainstream 5 GHz traffic, and high-throughput 6 GHz applications. The 3.90 Gbit/s maximum speed is achieved through advanced modulation, channel bonding, and multi-user MIMO (MU-MIMO) techniques.
On the wired side, the single 2.5GbE RJ-45 port supports PoE PD (Power over Ethernet Powered Device), allowing the unit to be powered and connected over a single cable from a compatible switch or injector. This simplifies installation and reduces cabling overhead. The integrated Bluetooth 5.1 radio enables location services, asset tracking, and IoT device onboarding without additional hardware.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The CW9162I-E delivers enterprise-grade wireless performance with features that optimize network reliability, security, and manageability. Its tri-band design future-proofs deployments by supporting the 6 GHz band for low-latency, high-bandwidth applications like AR/VR, 4K video streaming, and real-time collaboration tools.
Enhanced Security
Supports WPA3-ENT, WPA3-Personal, WPA2-ENT, WPA2-PSK, and AES encryption to protect wireless traffic and meet modern security compliance requirements.
- WPA3-ENT for enterprise
- WPA3-Personal for SMB
- AES encryption standard
Simplified Deployment
Internal antennas eliminate external protrusions for a clean aesthetic, while PoE PD support reduces power cabling needs. The compact size and standard mounting brackets facilitate quick ceiling or wall installation.
- No external antennas
- Single-cable PoE
- Ceiling/wall mount ready
Deployment / Use Cases
This access point is ideal for environments requiring high-density Wi-Fi with minimal interference. The 6 GHz band offers additional clean spectrum for applications sensitive to latency and congestion, making it suitable for modern workplaces, educational campuses, healthcare facilities, and hospitality venues.
In office settings, the CW9162I-E can handle large numbers of concurrent users on video calls, cloud applications, and large file transfers. For retail or public spaces, its tri-band capacity supports guest Wi-Fi, digital signage, and mobile point-of-sale systems without performance degradation. The Bluetooth 5.1 capability also enables location-based services for wayfinding, asset tracking, or proximity marketing when integrated with a compatible platform.
High-Density Offices
Supports dozens of concurrent users with demanding applications across three frequency bands, reducing airtime contention and improving overall network performance.
Education & Healthcare
Delivers reliable connectivity for classrooms, lecture halls, patient rooms, and administrative areas, with WPA3 encryption ensuring data privacy and compliance.
Physical Profile
The access point measures 7.80 inches wide by 7.80 inches deep by 1.70 inches high (198.12 mm x 198.12 mm x 43.18 mm) and weighs approximately 2.05 pounds (929.86 grams). Its low-profile, square design with internal antennas allows for discreet ceiling tile or surface mounting. The unit is finished in a standard matte enclosure suitable for commercial interiors, and its compact footprint minimizes visual impact while providing ample radio performance.
- Width
- 7.80" (198.12 mm)
- Depth
- 7.80" (198.12 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 2.05 lb (929.86 g)
Highlights
- Tri-band Wi-Fi 6E access point with 2.4 GHz, 5 GHz, and 6 GHz radios
- Maximum aggregate wireless throughput of 3.90 Gbit/s
- Internal antennas for a clean, low-profile installation
- Single 2.5 Gigabit Ethernet port with PoE PD support
- Integrated Bluetooth 5.1 for IoT and location services
- Advanced security with WPA3-ENT, WPA3-Personal, and AES encryption
- MIMO and beamforming technologies for improved coverage and capacity
- Compact dimensions (7.80" x 7.80" x 1.70") for ceiling or wall mounting
- USB 2.0 port for peripheral connectivity
- Management port for network configuration and monitoring
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CW9162I-E |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 9162 |
| Product Model | CW9162 |
| Product Name | Catalyst CW9162 Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5.1 |
| Network Band | Tri Band |
| Frequency Band | 2.40 GHz,5 GHz,6 GHz |
| Wireless Transmission Speed | 3.90 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA2-PSK,WPA2-ENT,WPA3-Personal,WPA3-ENT,WPA3,AES |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 2.0 |
| Management Port | Yes |
| Physical Characteristics | |
| Antenna Form Factor | Internal |
| Height | 1.70" (43.18 mm) |
| Width | 7.80" (198.12 mm) |
| Depth | 7.80" (198.12 mm) |
| Weight (Approximate) | 2.05 lb (929.86 g) |
User Manual
FAQ
What Wi-Fi standard does the Cisco CW9162I-E support?
The CW9162I-E supports the IEEE 802.11ax standard, commonly known as Wi-Fi 6E. This includes operation in the 2.4 GHz, 5 GHz, and newly available 6 GHz frequency bands, providing higher throughput, lower latency, and better performance in dense environments compared to previous Wi-Fi generations.
Does this access point require external antennas?
No, this model features internal antennas. The integrated antenna design eliminates the need for external attachments, resulting in a cleaner aesthetic and simplified installation for ceiling or wall mounting in commercial spaces.
How is the CW9162I-E powered?
The access point is powered via Power over Ethernet (PoE) through its single 2.5 Gigabit Ethernet port. It supports PoE PD (Powered Device), meaning it can receive both data and power over a single cable from a compatible PoE switch or injector, reducing cabling complexity.
What is the maximum wireless speed of this access point?
The CW9162I-E offers a maximum aggregate wireless throughput of 3.90 Gbit/s across its tri-band radios. This speed is achieved through Wi-Fi 6E technologies like OFDMA, MU-MIMO, and 160 MHz channel widths, distributing capacity efficiently among connected devices.
Does it include Bluetooth connectivity?
Yes, the access point includes integrated Bluetooth 5.1. This enables additional functionality such as location-based services, asset tracking, IoT device onboarding, and proximity detection without requiring separate Bluetooth hardware.
What security encryption standards are supported?
The CW9162I-E supports multiple encryption standards including WPA3-ENT for enterprise environments, WPA3-Personal for smaller deployments, WPA2-ENT, WPA2-PSK, and AES. These provide robust protection for wireless traffic, helping meet modern security and compliance requirements.
