Cisco CW9166I-E Catalyst 9166 Tri-Band Wi-Fi 6E Access Point - Indoor - 7. 78 Gbps - 5GbE PoE - Ceiling Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This access point implements IEEE 802.11ax technology with MIMO and beamforming capabilities to optimize wireless performance in dense client environments. The tri-band radio design allows simultaneous operation on three frequency bands, reducing congestion and supporting legacy 2.4 GHz devices alongside high-throughput 5 GHz and 6 GHz clients.
Security is handled through comprehensive encryption standards including WPA3-ENT, WPA3-Personal, WPA2-ENT, WPA2-PSK, AES, and legacy WEP/WPA support. Bluetooth 5.1 is integrated for location services and IoT device connectivity. The management port enables out-of-band administration for network control.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The CW9166I-E provides enterprise-grade wireless infrastructure with future-ready capabilities. The 6 GHz band availability offers clean spectrum for high-performance applications while backward compatibility ensures support for existing Wi-Fi devices.
Advanced Radio Technology
Combines MIMO spatial streaming with beamforming to direct signal energy toward connected clients, improving range and reliability in challenging environments.
- Tri-band operation reduces interference
- 6 GHz band for uncongested channels
- Optimized for high-density deployments
Simplified Deployment
Ceiling-mount design with internal antennas eliminates external antenna installation. PoE support reduces wiring complexity by delivering both power and data through the Ethernet cable.
- Single-cable installation
- Clean aesthetic with hidden antennas
- Flexible ceiling grid mounting
Deployment / Use Cases
This access point is engineered for indoor enterprise environments where reliable, high-capacity wireless connectivity is essential. The ceiling-mount form factor makes it ideal for suspended ceiling grids in commercial buildings.
Typical deployment scenarios include corporate offices requiring seamless roaming between access points, educational campuses supporting simultaneous device connections in classrooms, healthcare facilities needing reliable connectivity for medical devices, and retail environments supporting point-of-sale systems and customer Wi-Fi.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Enterprise Office Networks
Provides consistent coverage throughout open-plan offices and meeting rooms with support for bandwidth-intensive applications like video conferencing and large file transfers.
High-Density Public Spaces
Manages hundreds of concurrent connections in airports, conference centers, and stadiums with tri-band design distributing clients across multiple frequency bands.

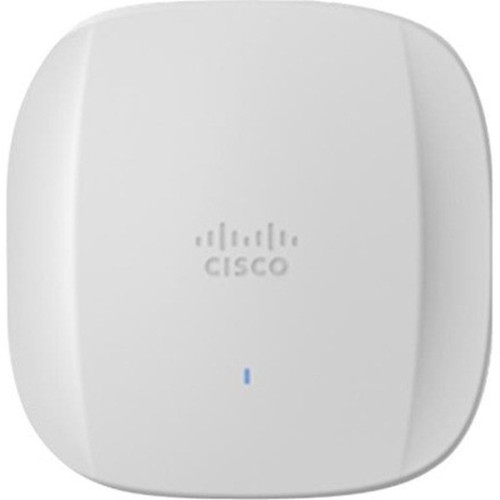

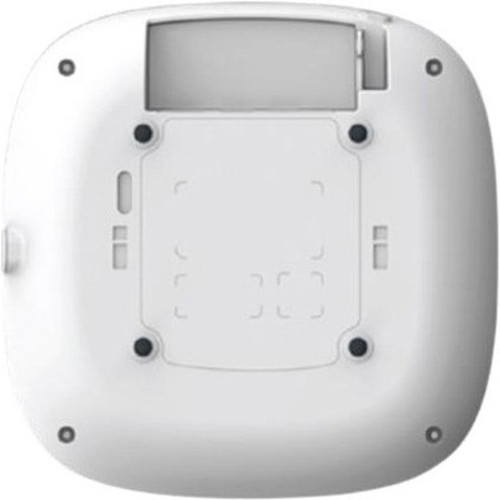

Physical Profile
The CW9166I-E features a square design measuring 9.50 inches in width and depth with a 2.20-inch profile height. The white finish and clean lines allow discreet ceiling integration in professional environments. At 3.54 pounds, it's lightweight enough for standard ceiling tile support while maintaining structural integrity for long-term installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 9.50" (241.30 mm), 9.50" (241.30 mm), 2.20" (55.88 mm), 3.54 lb (1605.72 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 9.50" (241.30 mm)
- Depth
- 2.20" (55.88 mm)
- Height
- 9.50" (241.30 mm)
- Weight
- 3.54 lb (1605.72 g)
Highlights
- Wi-Fi 6E (802.11ax) tri-band access point with 7.78 Gbps maximum throughput
- Operates on 2.4 GHz, 5 GHz, and 6 GHz frequency bands simultaneously
- 5 Gigabit Ethernet port with Power over Ethernet (PoE) support
- Ceiling-mountable form factor with internal antennas
- MIMO and beamforming technology for improved signal quality
- Comprehensive security with WPA3-ENT, WPA3-Personal, and AES encryption
- Bluetooth 5.1 for location services and IoT connectivity
- Compact dimensions: 9.50" × 9.50" × 2.20" (241.30 × 241.30 × 55.88 mm)
- Management port for out-of-band administration
- USB 2.0 port for peripheral connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CW9166I-E |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 9166 |
| Product Model | CW9166I |
| Product Name | Catalyst 9166 CW9166I Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5.1 |
| Network Band | Tri Band |
| Frequency Band | 2.40 GHz,5 GHz,6 GHz |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 7.78 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | AES,WPA3,WPA2-PSK,WPA2-ENT,WPA3-Personal,WPA3-ENT,WEP,WPA |
| Interfaces/Ports | |
| Ethernet Technology | 5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 2.0 |
| Management Port | Yes |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | Internal |
| Height | 9.50" (241.30 mm) |
| Width | 9.50" (241.30 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 3.54 lb (1605.72 g) |
User Manual
FAQ
What Wi-Fi standard does the Cisco CW9166I-E support?
The CW9166I-E supports the IEEE 802.11ax standard, commonly known as Wi-Fi 6E. This latest Wi-Fi generation provides improved efficiency, higher throughput, and reduced latency compared to previous standards. The '6E' designation indicates support for the 6 GHz frequency band in addition to traditional 2.4 GHz and 5 GHz bands.
How many frequency bands does this access point support?
This is a tri-band access point that operates simultaneously on three frequency bands: 2.4 GHz, 5 GHz, and 6 GHz. The tri-band design allows the access point to distribute client devices across different bands, reducing congestion and optimizing performance for both legacy devices (2.4 GHz) and modern high-throughput devices (5 GHz and 6 GHz).
What is the maximum wireless throughput of the CW9166I-E?
The CW9166I-E delivers maximum aggregate wireless throughput of 7.78 Gbit/s (7,780 Mbps) across its three radio bands. This high throughput capacity supports bandwidth-intensive applications like 4K video streaming, large file transfers, and real-time collaboration tools in enterprise environments with many connected devices.
Does this access point support Power over Ethernet (PoE)?
Yes, the CW9166I-E includes a PoE PD (Power Device) port that accepts both data and power over a single Ethernet cable. This simplifies installation by eliminating the need for a separate power outlet near the ceiling mount location. The access point requires a compatible PoE switch or injector that can deliver sufficient power for operation.
What type of Ethernet connectivity does the access point have?
The access point features one 5 Gigabit Ethernet port (5GbE) for wired connectivity. This high-speed uplink ensures the wireless network isn't bottlenecked by the wired connection, allowing the full 7.78 Gbps wireless throughput to be effectively utilized. The port uses a standard RJ-45 connector for compatibility with common Ethernet cabling.
How is this access point typically mounted and installed?
The CW9166I-E is designed for ceiling mounting in indoor commercial environments. Its square form factor fits standard ceiling grid systems, and internal antennas eliminate the need for external antenna installation. The compact 2.20-inch profile allows discreet placement above ceiling tiles, while the 3.54-pound weight is supported by standard ceiling infrastructure.
