EnGenius ECW130 Cloud Managed Wi-Fi 5 (11ac wave 2) 4 x 4 Indoor Access Point - Dual Band 2. 47 Gbit/s - 8 Internal Antennas - PoE - Ceiling/Wall
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ECW130 operates on the IEEE 802.11 a/b/g/n/ac wireless standard, supporting both 2.4 GHz and 5 GHz frequency bands for flexible network planning. Its 4x4 MIMO architecture with eight internal antennas enhances spatial streaming and client capacity, while beamforming technology improves signal strength and reliability for connected devices.
On the wired side, two Gigabit Ethernet ports provide network connectivity, with one port supporting Power over Ethernet (PoE) for simplified installation. The access point consumes 19.10 W under typical operation and includes multiple mounting options for versatile deployment scenarios.
Relevant factors for this section include Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ECW130 combines cloud management with enterprise-grade wireless features to deliver a scalable and manageable Wi-Fi solution. Its 4x4 MIMO design with eight internal antennas provides excellent coverage density, while advanced technologies like beamforming ensure consistent performance for voice, video, and data applications.
Cloud Management
Centralized cloud-based management enables remote configuration, monitoring, and firmware updates across multiple access points without on-site IT presence.
- Simplified multi-site deployment
- Reduced operational overhead
- Scalable network expansion
Enhanced Wireless Performance
The 4x4 MIMO architecture with eight internal antennas supports more simultaneous clients with better throughput, while beamforming technology directs signals toward connected devices for improved reliability.
- Higher client density support
- Reduced dead zones
- Optimized signal strength
Flexible Installation
Multiple mounting options including ceiling, wall, T-bar, and desktop placement allow the ECW130 to adapt to various physical environments and installation requirements.
- Versatile deployment scenarios
- Professional installation options
- Minimal visual footprint
Deployment / Use Cases
The ECW130 is engineered for indoor environments where reliable, high-capacity Wi-Fi is essential. Its cloud management capability makes it particularly suitable for distributed deployments across multiple locations that require centralized oversight without local IT staff.
Typical deployment scenarios include corporate offices requiring seamless roaming between access points, educational institutions with high-density student device usage, retail stores needing reliable point-of-sale and customer Wi-Fi connectivity, and hospitality venues offering guest internet access with secure segmentation.
Relevant factors for this section include Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Enterprise Office Networks
Provides consistent coverage throughout office spaces with support for bandwidth-intensive applications like video conferencing, file transfers, and cloud-based services.
Education & Campus Environments
Handles high-density device connections in classrooms, libraries, and common areas while supporting secure network segmentation for different user groups.

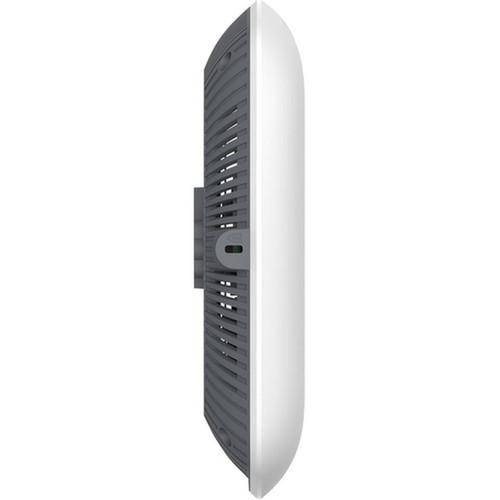

Physical Profile
The ECW130 features a compact design measuring 8.46 inches wide by 8.46 inches deep by 2.20 inches high (214.88 × 214.88 × 55.88 mm), with a weight of approximately 1.39 pounds (630.49 grams). Its low-profile form factor and white finish blend discreetly into ceiling or wall installations, while the internal antenna design maintains a clean aesthetic without external protrusions.
Multiple mounting options include ceiling tiles, wall surfaces, T-bar grid systems, and desktop placement using included hardware. The access point's PoE capability simplifies installation by allowing both power and data to be delivered over a single Ethernet cable.
- Width
- 8.46" (214.88 mm)
- Depth
- 8.46" (214.88 mm)
- Height
- 2.20" (55.88 mm)
- Weight
- 1.39 lb (630.493394 g)
What's in the Box
The ECW130 comes complete with all necessary components for installation and operation.
Highlights
- Cloud-managed Wi-Fi 5 (802.11ac wave 2) indoor access point
- Dual-band operation with 2.47 Gbit/s maximum throughput
- 8 internal antennas in 4x4 MIMO configuration
- Beamforming technology for improved signal direction
- WPA3 and WPA2 encryption standards for enhanced security
- 2 x Gigabit Ethernet ports with PoE support
- Multiple mounting options: ceiling, wall, T-bar, desktop
- Compact design with internal antennas for clean installation
- 19.10 W power consumption for energy efficiency
- 2-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | EnGenius Technologies, Inc |
| Manufacturer Part Number | ECW130 |
| Brand Name | EnGenius |
| Product Series | ECW |
| Product Model | ECW130 |
| Product Name | Cloud Managed ECW130 Wi-Fi 5 (11ac wave 2) 4x4 Indoor Access Point |
| Packaged Quantity | 1 |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 8 |
| Number of Internal Antennas | 8 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 2.47 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3-PSK,WPA3-SAE,WPA3-ENT,WPA2-ENT,WPA2-AES,WPA2-PSK |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
| Power Description | |
| Power Consumption | 19.10 W |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable,Wall Mountable,T-bar Mount,Desktop |
| Antenna Form Factor | Internal |
| Height | 2.20" (55.88 mm) |
| Width | 8.46" (214.88 mm) |
| Depth | 8.46" (214.88 mm) |
| Weight (Approximate) | 1.39 lb (630.493394 g) |
| Miscellaneous | |
| Package Contents | Cloud Managed ECW130 Wi-Fi 5 (11ac wave 2) 4x4 Indoor Access Point 1 x Ceiling-Mount Brackets (9/16" T-Rail) 1 x Ceiling-Mount Brackets (15/16" T-Rail) 1 x Ceiling and Wall Mount Screw Set 1 x Quick Installation Guide |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What wireless standard does the EnGenius ECW130 support?
The ECW130 supports the IEEE 802.11 a/b/g/n/ac wireless standard, which is commonly referred to as Wi-Fi 5. Specifically, it implements the 802.11ac wave 2 specification, providing enhanced features like improved multi-user MIMO capabilities and higher throughput compared to earlier Wi-Fi generations.
How many antennas does this access point have and what type are they?
The ECW130 features eight internal antennas arranged in a 4x4 MIMO configuration. All antennas are internal to the device housing, providing a clean aesthetic without external protrusions while still delivering robust wireless coverage through spatial streaming technology.
Does the ECW130 support Power over Ethernet (PoE)?
Yes, the ECW130 includes a PoE PD (Powered Device) port that supports receiving both power and data over a single Ethernet cable. This simplifies installation by eliminating the need for a separate power outlet near the access point location, which is particularly useful for ceiling and wall-mounted deployments.
What mounting options are available for this access point?
The ECW130 supports multiple mounting configurations including ceiling mounting (with included brackets for both 9/16" and 15/16" T-rails), wall mounting, T-bar grid mounting, and desktop placement. The package includes all necessary mounting hardware and brackets for these installation scenarios.
What encryption and security features does this access point offer?
The ECW130 supports comprehensive encryption standards including WPA3-PSK, WPA3-SAE, WPA3-ENT, WPA2-ENT, WPA2-AES, and WPA2-PSK. These provide robust security for both personal and enterprise deployments, with WPA3 offering enhanced protection against brute-force attacks and improved encryption algorithms.
What is the maximum wireless throughput of the ECW130?
The ECW130 delivers a maximum wireless throughput of 2.47 Gbit/s across its dual-band operation. This combined throughput supports bandwidth-intensive applications and multiple simultaneous client connections, making it suitable for environments with high Wi-Fi demand like offices, classrooms, and retail spaces.
