EnGenius ECW220 Cloud Managed Wi-Fi 6 2×2 Indoor Access Point - 802.11ax - 1.73 Gbit/s - Dual-Band - 4 Internal Antennas - PoE - Ceiling/Wall
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ECW220 leverages Wi-Fi 6 (802.11ax) technology to provide improved efficiency and capacity in high-density wireless environments. It operates on both 2.4 GHz and 5 GHz frequency bands, supporting dual-band connectivity that helps reduce interference and optimize performance for a variety of devices. The access point utilizes 4×4 MIMO (Multiple-Input Multiple-Output) and beamforming to direct signals toward connected clients, enhancing throughput and range while maintaining stable connections even in challenging layouts.
On the wired side, a single Gigabit Ethernet port delivers high-speed uplink connectivity, with PoE PD (Power over Ethernet Powered Device) capability allowing the access point to receive both data and power over a single Ethernet cable. This simplifies installation in locations where power outlets may be limited or inaccessible. The internal antenna design eliminates external protrusions, contributing to a sleek appearance and reducing the risk of damage in busy environments. Advanced features like OFDMA (Orthogonal Frequency Division Multiple Access) and MU-MIMO (Multi-User MIMO) are inherent to the 802.11ax standard, enabling the ECW220 to handle multiple simultaneous connections more efficiently than previous Wi-Fi generations.
Key Product Advantages
The ECW220 stands out with its combination of modern Wi-Fi 6 capabilities, flexible mounting options, and cloud-based management, making it an ideal choice for businesses seeking to upgrade their wireless infrastructure. Its dual-band operation ensures compatibility with a wide range of devices, from legacy equipment to the latest smartphones and laptops, while the high throughput supports bandwidth-intensive applications like video conferencing and file transfers.
Enhanced Coverage and Reliability
With four internal antennas and beamforming technology, the ECW220 provides strong, consistent signal coverage throughout its deployment area, reducing dead zones and improving user experience in offices, classrooms, or retail spaces.
- MIMO technology for better multi-device handling
- Beamforming directs signals to connected clients
- Internal antennas for a clean, protected design
Simplified Installation and Power
PoE support allows the access point to be powered through the Ethernet cable, eliminating the need for a nearby electrical outlet and streamlining setup in ceiling or wall-mounted positions.
- Single-cable deployment for data and power
- Ceiling and wall mount options included
- Compact size for discreet placement
Deployment / Use Cases
The EnGenius ECW220 is well-suited for a variety of business and institutional environments where reliable, high-speed wireless connectivity is essential. Its cloud management capability makes it particularly effective for distributed deployments, allowing centralized control over multiple access points from a single interface. This reduces administrative overhead and ensures consistent policy enforcement across the network.
In office settings, the ECW220 can support a growing number of connected devices, including laptops, smartphones, and IoT sensors, without compromising performance. Its dual-band operation helps balance load between bands, optimizing throughput for both high-speed 5 GHz connections and longer-range 2.4 GHz coverage. For retail or hospitality venues, the access point’s discreet design and mounting flexibility enable installation in ceilings or walls without disrupting aesthetics, while providing guests and staff with seamless internet access. Educational institutions can benefit from the ECW220’s capacity to handle dense device populations in classrooms or lecture halls, supporting digital learning tools and online resources efficiently.
Small to Medium Business Offices
Ideal for offices requiring robust Wi-Fi for daily operations, video calls, and cloud applications, with easy management through EnGenius cloud platforms.
- Supports high-density device environments
- Cloud management for remote oversight
- PoE simplifies wiring in office layouts
Retail and Hospitality Venues
Provides reliable guest Wi-Fi and point-of-sale connectivity, with ceiling mounting options to maintain a clean, professional appearance in customer-facing areas.
- Dual-band reduces interference in busy spaces
- Internal antennas prevent tampering or damage
- Quick installation with included mounting kits
Physical Profile

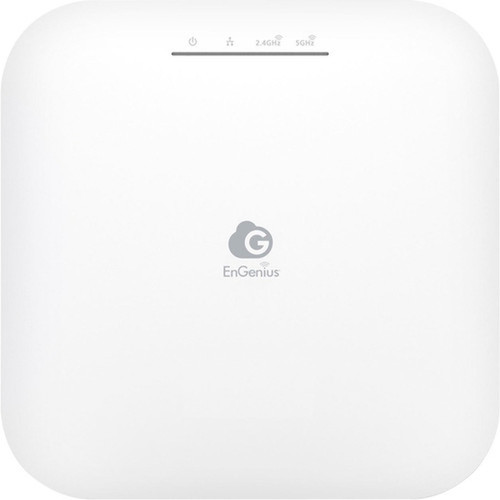

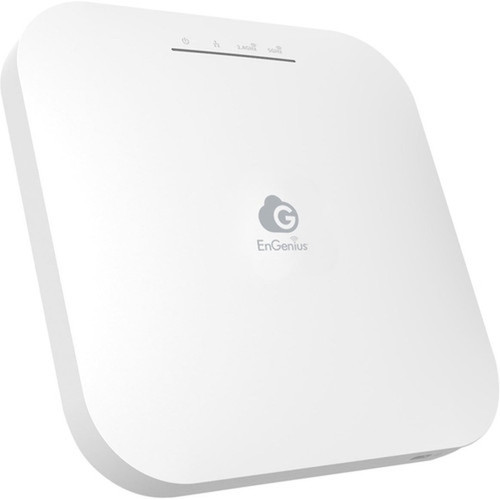

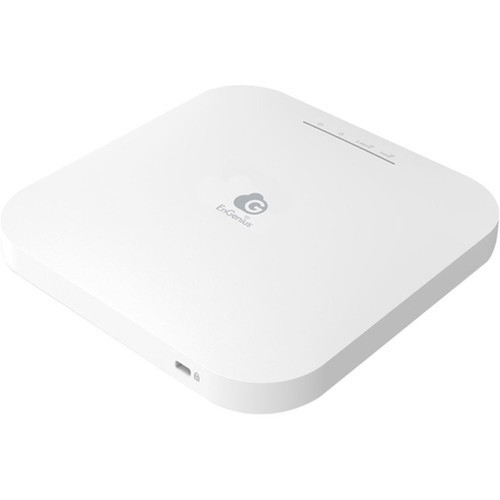

The ECW220 features a compact, low-profile design measuring 6.30 inches in width and depth, with a height of just 1.31 inches, making it unobtrusive when installed on ceilings or walls. Its square shape and white finish allow it to blend into most commercial interiors without drawing attention. The unit weighs approximately 13.60 ounces, ensuring it can be securely mounted without requiring heavy-duty supports. The form factor supports both ceiling and wall mounting, with included hardware for flexible placement based on coverage needs and architectural constraints.
- Width
- 6.30" (160.02 mm)
- Depth
- 6.30" (160.02 mm)
- Height
- 1.31" (33.27 mm)
- Weight
- 13.60 oz (385.55 g)
What's in the Box
The EnGenius ECW220 comes with all necessary components for installation and operation, ensuring a complete out-of-the-box experience.
Highlights
- Wi-Fi 6 (802.11ax) dual-band access point with 1.73 Gbit/s throughput
- Four internal antennas with MIMO and beamforming for enhanced coverage
- Power over Ethernet (PoE) support simplifies installation and power delivery
- Cloud-managed for easy configuration and monitoring from a central platform
- Ceiling and wall mountable with included hardware for flexible placement
- Compact design (6.30" × 6.30" × 1.31") blends discreetly into commercial environments
- Gigabit Ethernet port provides high-speed wired uplink connectivity
- Two-year limited warranty for added reliability and support
Specifications
| Specifications | |
|---|---|
| Manufacturer | EnGenius Technologies, Inc |
| Manufacturer Part Number | ECW220 |
| Brand Name | EnGenius |
| Product Model | ECW220 |
| Product Name | Cloud Managed Wi-Fi 6 2×2 Indoor Wireless Access Point |
| Packaged Quantity | 1 |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | 802.11ax |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 4 |
| Number of Internal Antennas | 4 |
| Wireless Transmission Speed | 1.73 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable,Wall Mountable |
| Height | 1.31" (33.27 mm) |
| Width | 6.30" (160.02 mm) |
| Depth | 6.30" (160.02 mm) |
| Weight (Approximate) | 13.60 oz (385.55 g) |
| Miscellaneous | |
| Package Contents | Cloud Managed Wi-Fi 6 2×2 Indoor Wireless Access Point 1 x Ceiling Mount Base (9/16" Trail) 1 x Ceiling Mount Base (15/16" Trail) 1 x Ceiling and Wall Mount Screw Kit 1 x Quick Installation Guide |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What Wi-Fi standard does the EnGenius ECW220 support?
The EnGenius ECW220 supports the Wi-Fi 6 (802.11ax) standard, which offers improved efficiency, higher capacity, and better performance in environments with many connected devices compared to older standards like 802.11ac. This standard includes features like OFDMA and MU-MIMO to handle multiple simultaneous connections more effectively.
Does this access point support Power over Ethernet (PoE)?
Yes, the ECW220 includes a PoE PD (Powered Device) port, allowing it to receive both data and power over a single Ethernet cable. This simplifies installation by eliminating the need for a separate power outlet near the mounting location, making it ideal for ceiling or wall placements where electrical access may be limited.
How many antennas does the ECW220 have, and are they internal or external?
The ECW220 has a total of four antennas, all of which are internal. This internal design provides a clean, streamlined appearance and reduces the risk of damage or tampering, while still delivering strong signal coverage through MIMO and beamforming technologies.
Can the ECW220 be mounted on both ceilings and walls?
Yes, the ECW220 is designed for flexible mounting options, supporting both ceiling and wall installations. The package includes ceiling mount bases with 9/16-inch and 15/16-inch trails, along with a screw kit, to accommodate various mounting surfaces and ensure secure placement in commercial settings.
What is the wireless transmission speed of this access point?
The ECW220 offers a combined wireless transmission speed of 1.73 Gbit/s across its dual 2.4 GHz and 5 GHz bands. This high throughput supports bandwidth-intensive applications like video streaming, large file transfers, and video conferencing, making it suitable for business environments with demanding connectivity needs.
Is the ECW220 cloud-managed, and what are the benefits?
Yes, the ECW220 is a cloud-managed access point, allowing IT administrators to configure, monitor, and maintain the device remotely through EnGenius cloud platforms. This centralized management reduces administrative overhead, enables quick updates and troubleshooting, and ensures consistent network policies across multiple access points in distributed deployments.
