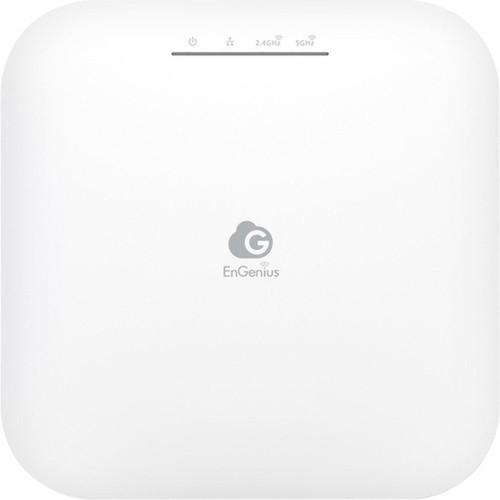

EnGenius ECW230 Cloud Managed Wi-Fi 6 4×4 Indoor Access Point - 802.11ax Dual-Band 3.46 Gbit/s - 8 Internal Antennas - PoE PD - Ceiling/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ECW230 leverages 802.11ax (Wi-Fi 6) standards to enhance network efficiency and capacity. It operates on dual frequency bands, with the 2.4 GHz band offering extended range and the 5 GHz band delivering high-speed data rates. The access point features a 4×4 radio configuration with eight internal antennas, enabling simultaneous data streams to multiple clients and improving overall network performance in congested areas.
Key technical specifications include support for MIMO and beamforming technologies, which dynamically focus wireless signals toward connected devices to boost throughput and reduce interference. The single 2.5 Gigabit Ethernet port provides a high-speed uplink to the network backbone, while PoE PD compatibility ensures flexible power sourcing from compatible switches or injectors. This combination of advanced radio design and streamlined connectivity makes the ECW230 a versatile solution for upgrading existing Wi-Fi infrastructure.
Key Product Advantages
The EnGenius ECW230 offers several distinct advantages for network deployments. Its cloud management capability allows for centralized configuration, monitoring, and updates across multiple access points, reducing administrative overhead and enhancing scalability. The integrated eight-antenna array with beamforming ensures consistent coverage and reliable connections even in challenging environments with physical obstructions or high client density.
High-Density Ready
With 802.11ax efficiency features and 4×4 radio design, the ECW230 supports more concurrent devices with reduced latency, ideal for crowded venues like conference rooms or classrooms.
- OFDMA for multi-user efficiency
- Target Wake Time for battery savings on IoT devices
Simplified Installation
PoE PD support eliminates the need for separate power outlets near the mounting location, while included ceiling and wall mount kits provide flexible placement options.
- Single-cable deployment
- Tool-free mounting options available
Deployment / Use Cases
The ECW230 is well-suited for a variety of commercial and institutional settings. In office environments, it provides stable Wi-Fi for video conferencing, large file transfers, and cloud-based applications. Educational institutions can deploy these access points in classrooms and libraries to support e-learning platforms and student devices without performance degradation.
Retail stores and hospitality venues benefit from the ECW230's ability to handle guest Wi-Fi, point-of-sale systems, and digital signage simultaneously. Its ceiling-mount design makes it unobtrusive in lobbies, restaurants, or retail floors, while wall mounting offers flexibility for corridors or smaller rooms. The cloud management platform enables IT teams to oversee multiple locations remotely, ensuring consistent network policies and quick troubleshooting.
Small to Medium Business
Ideal for offices with 20-100 users, providing reliable Wi-Fi for productivity tools and VoIP systems without requiring dedicated IT staff on-site.
Education and Healthcare
Supports bandwidth-intensive applications like video streaming and electronic health records, with beamforming ensuring coverage in large rooms or patient areas.
Physical Profile
The ECW230 features a compact, square design measuring 8.27 inches in width and depth, with a slim 1.31-inch height that minimizes visual impact when installed. Its lightweight construction at approximately 1.31 pounds simplifies handling during installation. The housing is engineered for durability in indoor environments, with ventilation to maintain optimal operating temperatures. The included mounting bases and screw kit support both standard 9/16-inch and 15/16-inch ceiling tile rails, as well as direct wall mounting, offering flexibility for various architectural layouts.
- Width
- 8.27" (210.06 mm)
- Depth
- 8.27" (210.06 mm)
- Height
- 1.31" (33.27 mm)
- Weight
- 1.31 lb (594.21 g)
What's in the Box
Each ECW230 access point ships with all necessary hardware for immediate deployment. The package includes the access point unit itself, along with mounting accessories to accommodate different installation scenarios.
Highlights
- 802.11ax Wi-Fi 6 dual-band access point with 3.46 Gbit/s throughput
- Eight internal antennas with MIMO and beamforming for enhanced coverage
- Single 2.5 Gigabit Ethernet port with PoE PD support for simplified cabling
- Cloud-managed for centralized control and scalability
- Ceiling and wall mountable with included hardware kits
- Compact design: 8.27" x 8.27" x 1.31" (210 mm x 210 mm x 33 mm)
- Lightweight at approximately 1.31 lb (594 g) for easy installation
- 2-year limited warranty for added reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | EnGenius Technologies, Inc |
| Manufacturer Part Number | ECW230 |
| Brand Name | EnGenius |
| Product Model | ECW230 |
| Product Name | Cloud Managed Wi-Fi 6 4×4 Indoor Wireless Access Point |
| Packaged Quantity | 1 |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | 802.11ax |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 8 |
| Number of Internal Antennas | 8 |
| Wireless Transmission Speed | 3.46 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable,Wall Mountable |
| Height | 1.31" (33.27 mm) |
| Width | 8.27" (210.06 mm) |
| Depth | 8.27" (210.06 mm) |
| Weight (Approximate) | 1.31 lb (594.21 g) |
| Miscellaneous | |
| Package Contents | Cloud Managed Wi-Fi 6 4×4 Indoor Wireless Access Point 1 x Ceiling Mount Base (9/16" Trail) 1 x Ceiling Mount Base (15/16" Trail) 1 x Ceiling and Wall Mount Screw Kit 1 x Quick Installation Guide |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What Wi-Fi standard does the EnGenius ECW230 support?
The ECW230 supports the 802.11ax standard, also known as Wi-Fi 6. This latest generation of Wi-Fi technology offers improved efficiency, higher data rates, and better performance in environments with many connected devices compared to previous standards like 802.11ac.
Does this access point support Power over Ethernet (PoE)?
Yes, the ECW230 features a PoE PD (Power over Ethernet Powered Device) port. This allows it to receive both data and electrical power over a single Ethernet cable from a compatible PoE switch or injector, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
How many antennas does the ECW230 have, and are they external or internal?
The ECW230 has a total of eight antennas, all of which are internal. This internal antenna design provides a clean, low-profile appearance while still delivering strong signal coverage. The antennas are configured in a 4×4 MIMO setup to support multiple simultaneous data streams.
What is the maximum wireless throughput of this access point?
The ECW230 offers a maximum aggregate wireless throughput of 3.46 Gbit/s across its dual 2.4 GHz and 5 GHz bands. This high-speed capability supports bandwidth-intensive applications like 4K video streaming, large file transfers, and real-time collaboration tools without network bottlenecks.
Can the ECW230 be mounted on both ceilings and walls?
Yes, the ECW230 is designed for flexible mounting options. It is both ceiling mountable and wall mountable, with included ceiling mount bases for different tile rail sizes (9/16" and 15/16") and a comprehensive screw kit for various surfaces. This versatility allows installation in diverse environments such as offices, classrooms, or retail spaces.
What management options are available for the ECW230?
The ECW230 is a cloud-managed access point, enabling centralized configuration, monitoring, and firmware updates through EnGenius's cloud platform. This cloud-based management reduces the need for on-site IT intervention, supports scalability across multiple locations, and provides insights into network performance and client connectivity.
