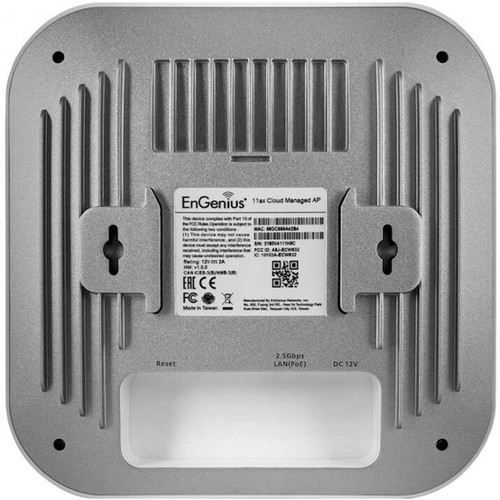

EnGenius ECW230S Cloud Managed Security Access Point - Dual-Band Wi-Fi 6 (802. 11ax) - 3. 46 Gbps - 8 Internal Antennas - Indoor - 2. 5GbE with PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ECW230S implements the IEEE 802.11ax wireless standard, commonly known as Wi-Fi 6, which improves efficiency in high-density environments. It operates on dual frequency bands, providing 2.4 GHz for broader coverage and 5 GHz for higher-speed connections. The eight internal antennas support multi-user MIMO and beamforming technologies, directing signals toward connected devices to enhance reliability and throughput.
Connectivity is centered around a single 2.5 Gigabit Ethernet port that also functions as a PoE PD (Powered Device) port, accepting power from compatible PoE switches or injectors. This port handles both data uplink and power delivery, simplifying cabling. The access point includes Bluetooth 5 for auxiliary device connections and management tasks.
This section brings together practical product details such as Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ECW230S offers several advantages for business wireless deployments. Its cloud management capability allows centralized control of multiple access points from a single interface, reducing administrative overhead. The inclusion of WPA3-ENT and WPA3-PSK encryption standards provides robust security against modern threats, while backward compatibility with WPA2 ensures support for legacy devices.
Advanced Security
Supports WPA3-ENT and WPA3-PSK encryption for enhanced network protection, alongside WPA2-ENT, WPA2-PSK, AES, and WPA2-AES for comprehensive compatibility.
- WPA3-ENT/WPA3-PSK
- WPA2-ENT/WPA2-PSK
- AES Encryption
Efficient Deployment
PoE support eliminates the need for separate power cabling, and multiple mounting options allow flexible placement in office ceilings or walls.
- PoE PD Port
- Ceiling Mountable
- Wall Mountable
Deployment / Use Cases
This access point is ideal for small to medium-sized businesses, retail environments, offices, and educational institutions requiring reliable, high-speed Wi-Fi. Its cloud management makes it suitable for distributed locations where remote configuration and monitoring are beneficial. The indoor design and mounting flexibility allow installation in drop ceilings, wall mounts, or other discreet locations.
Common use cases include providing guest Wi-Fi in hospitality settings, supporting dense device environments in open-plan offices, and delivering connectivity in classrooms or conference rooms. The 2.5 Gigabit Ethernet uplink ensures sufficient bandwidth for backhaul, while Wi-Fi 6 efficiencies improve performance in areas with many concurrent users.
Office Wi-Fi
Deploy in corporate offices to support employee devices, VoIP phones, and IoT equipment with efficient Wi-Fi 6 connectivity and cloud management.
Retail & Hospitality
Provide secure guest access and point-of-sale connectivity in stores, restaurants, or hotels, with easy remote management across multiple sites.
Physical Profile
The ECW230S has a compact, low-profile design with dimensions of 8.27" (210.06 mm) in width and 1.31" (33.27 mm) in height, weighing approximately 1.34 lb (607.81 g). Its internal antenna design maintains a clean aesthetic without external protrusions. The unit is built for indoor use and includes mounting hardware for ceiling or wall installation, with multiple ceiling mount base options provided for different tile types.
- Width
- 8.27" (210.06 mm)
- Height
- 1.31" (33.27 mm)
- Weight
- 1.34 lb (607.81 g)
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- Wi-Fi 6 (802.11ax) dual-band access point with 3.46 Gbps throughput
- Eight internal antennas with MIMO and beamforming technology
- Single 2.5 Gigabit Ethernet port with PoE PD support
- Cloud-managed for simplified deployment and monitoring
- WPA3-ENT and WPA3-PSK encryption for enhanced security
- Indoor design with ceiling and wall mounting options
- Includes Bluetooth 5 for auxiliary connectivity
- Low power consumption at 19.50 watts
- Comes with multiple ceiling mount bases and screw kit
- Backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | EnGenius Technologies, Inc |
| Manufacturer Part Number | ECW230S |
| Brand Name | EnGenius |
| Product Model | ECW230S |
| Product Name | Cloud Managed Security Access Point |
| Packaged Quantity | 1 |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 8 |
| Number of Internal Antennas | 8 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 3.46 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3-ENT,WPA3-PSK,WPA2-PSK,WPA2-ENT,AES,WPA2-AES |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Power Description | |
| Power Consumption | 19.50 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Ceiling Mountable |
| Antenna Form Factor | Internal |
| Height | 1.31" (33.27 mm) |
| Width | 8.27" (210.06 mm) |
| Weight (Approximate) | 1.34 lb (607.81 g) |
| Miscellaneous | |
| Package Contents | Cloud Managed Security Access Point 1 x Ceiling Mount Base (9/16" Trail) 1 x Ceiling Mount Base (15/16" Trail) 1 x Ceiling Mount Base (15/16" Trail) 1 x Ceiling and Wall Mount Screw Kit 1 x Quick Installation Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What Wi-Fi standard does the EnGenius ECW230S support?
The ECW230S supports the IEEE 802.11ax standard, also known as Wi-Fi 6. This latest generation of Wi-Fi technology offers improved efficiency, higher throughput, and better performance in environments with many connected devices compared to previous standards like 802.11ac.
Does this access point support Power over Ethernet (PoE)?
Yes, the ECW230S includes a PoE PD (Powered Device) port. This allows it to receive both power and data over a single Ethernet cable from a compatible PoE switch or injector, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
What are the mounting options for the ECW230S?
This access point is designed for wall or ceiling mounting. The package includes ceiling mount bases with 9/16" and 15/16" trails, along with a ceiling and wall mount screw kit, providing flexibility for installation in various indoor environments such as office drop ceilings or wall surfaces.
How many antennas does the access point have, and are they external?
The ECW230S features eight internal antennas. These are built into the unit's housing, maintaining a clean aesthetic without external antenna protrusions. The internal design supports MIMO and beamforming technologies to optimize wireless signal coverage and client performance.
What encryption standards are supported for network security?
The access point supports multiple encryption standards, including WPA3-ENT and WPA3-PSK for enhanced security, as well as WPA2-ENT, WPA2-PSK, AES, and WPA2-AES for backward compatibility. This range ensures robust protection for modern networks while supporting legacy devices.
What is the maximum wireless throughput of the ECW230S?
The ECW230S delivers a maximum aggregate wireless transmission speed of 3.46 Gbit/s across its dual-band operation. This throughput supports high-speed data transfer for applications like video streaming, large file downloads, and real-time collaboration in business environments.
Can this access point be managed remotely?
Yes, the ECW230S is a cloud-managed access point. It can be configured, monitored, and maintained through EnGenius's cloud management platform, allowing IT administrators to control multiple access points from a central interface, which is particularly useful for multi-site deployments.
What is included in the warranty for this product?
The EnGenius ECW230S comes with a 2-year limited warranty from the manufacturer. This warranty covers defects in materials and workmanship under normal use, providing assurance for business investments in network infrastructure.
