Product Features
Technical Overview
This access point leverages advanced Wave 2 802.11ac technology to maximize network efficiency and client capacity. It features a 4x4 MIMO (Multiple-Input, Multiple-Output) architecture with four external, detachable 5 dBi SMA antennas—two dedicated to the 2.4 GHz band and two for the 5 GHz band. This configuration, combined with beamforming technology, focuses wireless signals toward connected devices to improve signal strength, reduce interference, and extend effective coverage range.
Network connectivity is handled by a single Gigabit Ethernet RJ-45 port, which also functions as a PoE (Power over Ethernet) PD (Powered Device) port. This allows the access point to receive both data and power over a single Ethernet cable from a compatible PoE switch or injector, simplifying installation by eliminating the need for a nearby AC power outlet. A dedicated management port provides direct local access for configuration and monitoring.
Key Product Advantages
The ENH1350EXT stands out by merging high-performance wireless with practical deployment features. Its outdoor rating and flexible mounting system allow network architects to place access points exactly where coverage is needed most, without being constrained by indoor infrastructure.
Optimized Outdoor Performance

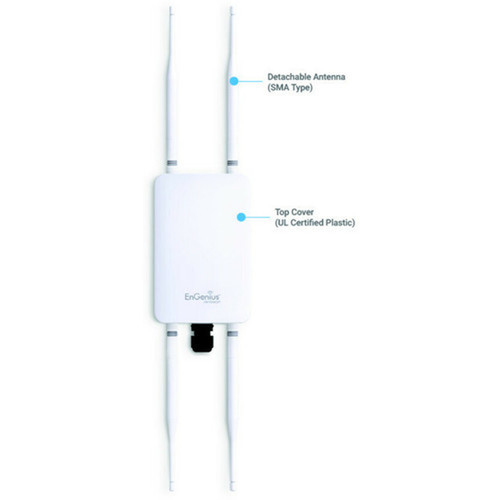

Engineered for external environments, the enclosure protects internal components while the external antenna design allows for optimal signal propagation and potential antenna upgrades to tailor coverage patterns.
- Weather-resistant design for outdoor use
- Detachable SMA antennas for flexibility
Simplified Installation & Power
PoE support drastically reduces installation complexity and cost. Running a single Ethernet cable to the mount point provides both network connectivity and power, enabling clean, efficient deployments in locations without readily available AC power.
- Single-cable deployment with PoE
- Includes PoE adapter (EPA5006GR) in box
Deployment / Use Cases
This access point is ideally suited for extending high-speed, reliable Wi-Fi coverage to areas where traditional indoor access points fall short. Its design addresses common challenges in outdoor and semi-enclosed spaces.
Typical deployment scenarios include providing guest or employee Wi-Fi in outdoor courtyards, patios, and parking lots of hotels, restaurants, and campuses. It is equally effective for covering warehouses, manufacturing floors, and agricultural facilities where large, open spaces require consistent connectivity. The pole-mount capability makes it an excellent choice for mounting on light poles, flagpoles, or dedicated posts to create wireless hotspots in parks, stadiums, or municipal areas.
Relevant factors for this section include Wireless LAN Standard, Frequency Band, Total Number of Antennas, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The access point features a compact, low-profile form factor measuring 4.37 inches wide, 6.83 inches deep, and 1.19 inches high (111 x 173.48 x 30.23 mm), with a weight of approximately 10.4 ounces (295 g). This streamlined design minimizes visual impact while the included comprehensive mounting kit—featuring pole-mounting brackets and a wall-mount screw set—provides secure attachment for virtually any surface or structure encountered in outdoor or industrial settings.
- Width
- 4.37" (111 mm)
- Depth
- 6.83" (173.48 mm)
- Height
- 1.19" (30.23 mm)
- Weight
- 10.40 oz (294.835041 g)
What's in the Box
The package includes all necessary components for a complete installation.
Highlights
- IEEE 802.11ac Wave 2 dual-band access point for high-speed wireless networking.
- Delivers combined wireless speeds up to 1.27 Gbit/s for fast data transfer.
- Equipped with four external 5 dBi SMA antennas for optimized signal coverage.
- Features 4x4 MIMO and beamforming technology to improve connection reliability and range.
- Includes a Gigabit Ethernet port with PoE PD support for simplified single-cable installation.
- Designed for outdoor use with wall-mountable and pole-mountable form factors.
- Package includes a PoE adapter (EPA5006GR) and comprehensive mounting hardware.
- Backed by a 1-year limited warranty from EnGenius.
Specifications
| Specifications | |
|---|---|
| Manufacturer | EnGenius Technologies, Inc |
| Manufacturer Part Number | ENH1350EXT |
| Brand Name | EnGenius |
| Product Line | EnTurbo |
| Product Model | ENH1350EXT |
| Product Name | EnTurbo AC1300 Wave 2 Outdoor Access Point |
| Packaged Quantity | 1 |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ac |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 4 |
| Number of External Antennas | 4 |
| Wireless Transmission Speed | 1.27 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| VGA | No |
| HDMI | No |
| Powerline | No |
| Management Port | Yes |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Pole-mountable |
| Height | 1.19" (30.23 mm) |
| Width | 4.37" (111 mm) |
| Depth | 6.83" (173.48 mm) |
| Weight (Approximate) | 10.40 oz (294.835041 g) |
| Miscellaneous | |
| Package Contents | EnTurbo AC1300 Wave 2 Outdoor Access Point 1 x Power Adapter (54V/0.6A) 1 x PoE Adapter (EPA5006GR) 2 x Pole-Mounting Brackets 1 x Wall-Mount Screw Set 2 x 2.4GHz 5dBi SMA Antennas 2 x 5GHz 5dBi SMA Antennas 1 x Power Cord 1 x Quick Installation Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What wireless standard does the EnGenius ENH1350EXT use, and what are its benefits?
The ENH1350EXT uses the IEEE 802.11ac standard, specifically Wave 2 technology. This provides faster data rates, improved capacity for multiple simultaneous clients, and better overall efficiency compared to older standards like 802.11n. It operates on both the 2.4 GHz and 5 GHz bands, allowing it to support a wider range of devices and reduce congestion on crowded networks.
Does this access point support Power over Ethernet (PoE)?
Yes, the ENH1350EXT has a PoE PD (Powered Device) port. This means it can receive both power and data over a single Ethernet cable from a compatible PoE switch or a PoE injector. The product includes an EPA5006GR PoE adapter in the box, providing flexibility for deployments where a PoE switch is not available, simplifying installation by eliminating the need for a separate power outlet near the mount point.
What type of antennas does it have, and are they removable?
This access point comes with four external, detachable 5 dBi gain SMA antennas. Two are tuned for the 2.4 GHz band and two for the 5 GHz band. The SMA connectors allow the antennas to be removed, which provides installation flexibility—you can orient them for best coverage or potentially replace them with different antennas to customize the radiation pattern for specific deployment needs.
How can I mount the ENH1350EXT access point?
The unit is designed for versatile mounting. It supports both wall mounting and pole mounting. The package includes a complete mounting kit: pole-mounting brackets and a wall-mount screw set. This flexibility allows you to install it on exterior building walls, under eaves, on dedicated posts, light poles, or any other suitable structure to achieve optimal coverage for your outdoor area.
What is the maximum wireless speed this access point can provide?
The EnGenius ENH1350EXT has a maximum aggregate wireless transmission speed of 1.27 Gbit/s (1270 Mbps). This speed is achieved by combining the throughput across its dual radio bands (2.4 GHz and 5 GHz) using its 4x4 MIMO architecture. Actual real-world speeds will vary based on environmental factors, client device capabilities, and network congestion.
Is this access point suitable for outdoor use, and what is its warranty?
Yes, the EnTurbo AC1300 Wave 2 is designed as an outdoor-capable access point, built to withstand external environmental conditions. It is backed by a standard 1-year limited warranty from EnGenius, covering defects in materials and workmanship. For detailed warranty terms and support, refer to the official EnGenius documentation or contact their support team directly.
