EnGenius ENSTATION6 Outdoor Wi-Fi 6 Wireless Bridge - 5 GHz Single Band - 1.17 Gbit/s - PoE - IP55 - Pole/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on the Wi-Fi 6 (802.11ax) standard, the ENSTATION6 supports backward compatibility with 802.11 a/b/g/n/ac networks, ensuring interoperability with existing infrastructure. It leverages MIMO and beamforming technologies to enhance signal strength, stability, and directional focus over long distances. The dual Gigabit Ethernet ports provide wired connectivity options, with one port supporting Power over Ethernet (PoE) for streamlined deployment.
Advanced security is handled through WPA3 encryption suites, including enterprise-grade WPA3-ENT and personal WPA3-PSK (SAE), alongside mixed-mode support for transitional networks. Network management is facilitated via SNMPv1/v2c/v3 protocols, enabling integration into existing monitoring systems. The bridge maintains a low 12.50 W power draw, contributing to energy-efficient operation.
Relevant factors for this section include Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This wireless bridge eliminates the need for costly underground cabling by establishing a high-speed wireless link between separate structures. Its outdoor durability and mounting flexibility make it ideal for deployments where running physical cables is impractical or prohibitively expensive.
High-Speed Wireless Backhaul
Delivers up to 1.17 Gbit/s throughput, providing a fast and reliable alternative to wired Ethernet for connecting buildings.
- Wi-Fi 6 efficiency
- 5 GHz band reduces interference
- MIMO enhances signal quality
Simplified Outdoor Deployment
Includes a PoE injector and comprehensive mounting hardware for pole or wall installation, reducing setup time and complexity.
- IP55 weather resistance
- Internal antennas for clean look
- Low 12.50 W power consumption
Deployment / Use Cases
The ENSTATION6 is purpose-built for creating wireless bridges between buildings, such as connecting a main office to a remote warehouse, annex, or outbuilding. It is equally effective for spanning large outdoor areas like campuses, industrial sites, or agricultural fields where trenching is not feasible.
Common applications include extending corporate network access to temporary structures, providing connectivity for security cameras in remote locations, or linking network segments across parking lots or between multi-building facilities. Its outdoor rating and mounting options suit both permanent installations and temporary setups for events or construction sites.
Relevant factors for this section include Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

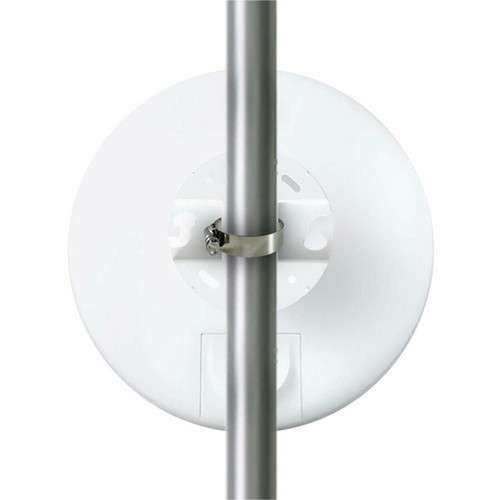

The bridge features a slim, low-profile design measuring 1.49" in height and 7.48" in depth, with a weight of approximately 1.11 lb. Its compact form factor and internal antennas minimize visual impact when mounted on poles or walls. The housing is constructed to withstand outdoor conditions, with an IP55 rating ensuring protection against dust and water jets. Mounting brackets and straps are included for secure attachment to various surfaces.
- Depth
- 7.48" (189.99 mm)
- Height
- 1.49" (37.85 mm)
- Weight
- 1.11 lb (503.49 g)
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- Outdoor Wi-Fi 6 wireless bridge for point-to-point connectivity between buildings
- Operates on 5 GHz single band with up to 1.17 Gbit/s wireless throughput
- IP55 rating for dust and water resistance in harsh outdoor environments
- Includes PoE injector for power over Ethernet, simplifying installation
- Dual Gigabit Ethernet ports for wired network connections
- Supports WPA3 encryption for advanced wireless security
- Features MIMO and beamforming technologies for enhanced signal performance
- Compact design with internal antennas and pole/wall mounting options
- Managed via SNMP protocols for network integration
- Backed by a 1-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | EnGenius Technologies, Inc |
| Manufacturer Part Number | ENSTATION 6 |
| Brand Name | EnGenius |
| Product Model | EnStation6 |
| Product Name | Point to Point WiFi 6 Outdoor AX1200 5GHz Bridge |
| Packaged Quantity | 1 |
| Product Type | Wireless Bridge |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Network Band | Single Band |
| Frequency Band | 5 GHz |
| Indoor/Outdoor | Outdoor |
| Wireless Transmission Speed | 1.17 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3-ENT,WPA3-PSK (SAE),WPA3/WPA2-PSK Mixed,WPA2-PSK (AES),WPA2-ENT |
| Ingress Protection (IP) Rating | IP55 |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Communication Protocols | SNMPv1/v2c/v3 |
| Power Description | |
| Power Consumption | 12.50 W |
| Physical Characteristics | |
| Form Factor | Pole-mountable,Wall Mountable |
| Antenna Form Factor | Internal |
| Height | 1.49" (37.85 mm) |
| Depth | 7.48" (189.99 mm) |
| Weight (Approximate) | 1.11 lb (503.49 g) |
| Miscellaneous | |
| Package Contents | Point to Point WiFi 6 Outdoor AX1200 5GHz Bridge 1 x PoE Injector (EPA5006GR) 1 x Power Cord 2 x Pole Mount Brackets 1 x Pole Mount Strap 1 x Wall Mount Screw Kits 1 x Product Card |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the primary use case for the EnGenius ENSTATION6?
The ENSTATION6 is designed as an outdoor wireless bridge to create a point-to-point connection between two separate buildings or network segments. It eliminates the need to dig trenches and lay expensive Ethernet cables, providing a high-speed wireless alternative for extending network access across distances where wired infrastructure is impractical.
What Wi-Fi standard does this bridge support?
This bridge supports the latest Wi-Fi 6 (IEEE 802.11ax) standard, with backward compatibility for older 802.11 a/b/g/n/ac networks. This ensures high efficiency, improved performance in congested environments, and interoperability with a wide range of existing wireless devices and access points.
Does the ENSTATION6 support Power over Ethernet (PoE)?
Yes, the ENSTATION6 includes a PoE PD (Powered Device) port and comes with a PoE injector (EPA5006GR) in the box. This allows the bridge to receive both power and data over a single Ethernet cable, simplifying installation by reducing the need for separate power outlets at the mounting location.
What mounting options are available for this outdoor bridge?
The bridge is designed for flexible outdoor mounting with included hardware for both pole and wall installations. The package contains two pole mount brackets, a pole mount strap, and wall mount screw kits, enabling secure attachment to various structures without requiring additional purchases.
What is the IP55 rating, and why is it important?
The IP55 rating indicates the bridge is protected against dust ingress (level 5) and water jets from any direction (level 5). This makes it suitable for outdoor use in harsh environments, as it can withstand exposure to rain, dust, and other elements without compromising performance or durability.
What security features does the ENSTATION6 offer?
The bridge supports advanced WPA3 encryption standards, including WPA3-ENT for enterprise networks and WPA3-PSK (SAE) for personal use, along with mixed modes for transitional security. This provides robust protection against unauthorized access and ensures secure data transmission over the wireless link.
