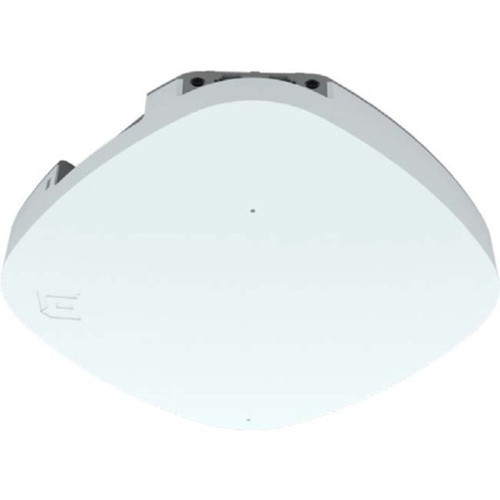

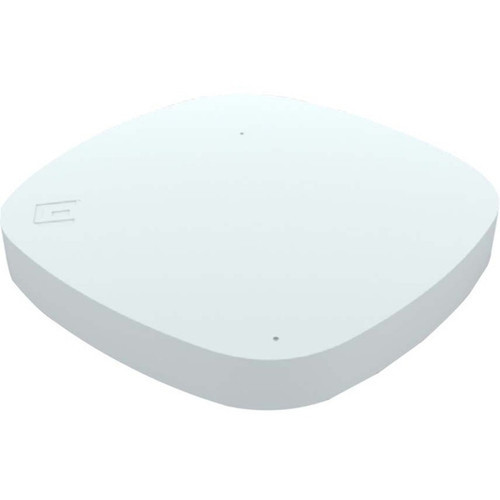

Extreme Networks AP5010-WW Universal Tri-Band Wi-Fi 6802.11ax Indoor Wireless Access Point - 10 Gbit/s - 12 Antennas - PoE - Multi-Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This access point operates on the IEEE 802.11 a/b/g/n/ac/ax wireless standard, ensuring backward compatibility with older Wi-Fi devices while leveraging Wi-Fi 6 efficiencies like improved throughput and reduced latency. The tri-band design allocates dedicated radios across 2.40 GHz, 5 GHz, and 6 GHz spectrums, minimizing interference and maximizing available bandwidth for concurrent users.
On the connectivity front, the AP5010-WW includes two Gigabit Ethernet ports for wired uplinks or daisy-chaining, with Power over Ethernet (PoE) PD support simplifying installation by delivering both data and power over a single cable. A USB 2.0 port provides additional expansion options for peripherals or management tools.
Relevant factors for this section include Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The AP5010-WW stands out with its future-ready Wi-Fi 6 capabilities and flexible deployment options, making it a versatile choice for enterprise, education, and hospitality networks.
High-Density Performance
With 10 Gbit/s throughput and tri-band operation, this access point efficiently manages numerous connected devices, reducing congestion in crowded wireless environments.
- 12 internal antennas for broad coverage
- MIMO and beamforming for targeted signals
Simplified Installation
PoE PD support allows for easy ceiling or wall mounting without separate power outlets, while multiple form factors accommodate various infrastructure setups.
- Flush, wall, ceiling, and T-bar mounts
- Low 25.50 W power consumption
Enhanced Security
WPA3 encryption provides advanced protection against wireless threats, ensuring secure data transmission for sensitive business applications.
- Latest Wi-Fi security standard
- Data encryption enabled
Deployment / Use Cases
The Extreme Networks AP5010-WW is ideal for environments requiring reliable, high-speed wireless connectivity with easy installation and management. Its indoor design and mounting flexibility suit a range of commercial and institutional settings.
In office buildings, the access point supports bandwidth-intensive tasks like video conferencing and large file transfers across multiple floors. For schools and universities, the tri-band capability handles simultaneous connections from students and staff, facilitating digital learning tools and campus-wide networks.
Enterprise Offices
Deploy in corporate settings to ensure seamless connectivity for employees using cloud applications, VoIP systems, and collaborative platforms, with PoE simplifying cable management.
Hospitality Venues
Install in hotels or conference centers to provide guests with fast, secure Wi-Fi for streaming and browsing, leveraging the 6 GHz band for less congested high-speed access.
Physical Profile
The AP5010-WW features a compact, low-profile design with dimensions of 9.50" (241.30 mm) in height and width, and a depth of 1.50" (38.10 mm), making it discreet for ceiling or wall installations. Weighing approximately 2.90 lb (1315.42 g), it is lightweight yet durable for long-term use in indoor environments. The internal antenna form factor contributes to a sleek appearance without external protrusions.
- Width
- 9.50" (241.30 mm)
- Depth
- 1.50" (38.10 mm)
- Height
- 9.50" (241.30 mm)
- Weight
- 2.90 lb (1315.417873 g)
Highlights
- Wi-Fi 6 (802.11ax) tri-band access point for next-generation wireless networks
- 10 Gbit/s maximum throughput supports high-density client environments
- 12 internal antennas with MIMO and beamforming for optimized coverage
- Two Gigabit Ethernet ports with PoE PD for simplified power and data delivery
- Flexible mounting options: flush, wall, ceiling, and T-bar installations
- WPA3 encryption ensures advanced security for business data
- USB 2.0 port for additional peripheral connectivity
- Low power consumption of 25.50 W for energy-efficient operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Extreme Networks, Inc |
| Manufacturer Part Number | AP5010-WW |
| Brand Name | Extreme Networks |
| Product Line | Universal |
| Product Series | AP5000 |
| Product Model | AP5010-WW |
| Product Name | Universal Wireless AP5010 |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Network Band | Tri Band |
| Frequency Band | 2.40 GHz,5 GHz,6 GHz |
| Total Number of Antennas | 12 |
| Number of Internal Antennas | 12 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 10 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3 |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 2.0 |
| Power Description | |
| Power Consumption | 25.50 W |
| Physical Characteristics | |
| Form Factor | Flush Mount,Wall Mountable,Ceiling Mountable,T-bar Mount |
| Antenna Form Factor | Internal |
| Height | 9.50" (241.30 mm) |
| Width | 9.50" (241.30 mm) |
| Depth | 1.50" (38.10 mm) |
| Weight (Approximate) | 2.90 lb (1315.417873 g) |
FAQ
What wireless standards does the AP5010-WW support?
The AP5010-WW supports IEEE 802.11 a/b/g/n/ac/ax, commonly known as Wi-Fi 6. This includes backward compatibility with older Wi-Fi standards (a/b/g/n/ac) while delivering the enhanced speeds, efficiency, and capacity of Wi-Fi 6 for modern networks.
How many frequency bands does this access point use?
This is a tri-band access point, operating on three frequency bands: 2.40 GHz, 5 GHz, and 6 GHz. The tri-band design helps reduce congestion by distributing devices across different spectrums, improving overall network performance and reliability in busy environments.
Does the AP5010-WW support Power over Ethernet (PoE)?
Yes, the AP5010-WW includes PoE PD (Powered Device) support. This allows the access point to receive both data and electrical power over a single Ethernet cable, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
What are the mounting options for this wireless access point?
The AP5010-WW offers versatile mounting options, including flush mount, wall mountable, ceiling mountable, and T-bar mount. This flexibility makes it suitable for various indoor installations, such as office ceilings, classroom walls, or conference room T-bar grids, without requiring custom hardware.
How many antennas does the AP5010-WW have, and are they internal or external?
The AP5010-WW has a total of 12 antennas, all of which are internal. The internal antenna form factor provides a clean, low-profile design that blends into indoor environments while still delivering strong signal coverage through MIMO and beamforming technologies.
What security features are included with this access point?
The AP5010-WW includes WPA3 encryption, the latest Wi-Fi security standard, to protect data transmissions from unauthorized access. It also supports data encryption generally, ensuring secure connectivity for business applications and sensitive information over the wireless network.
