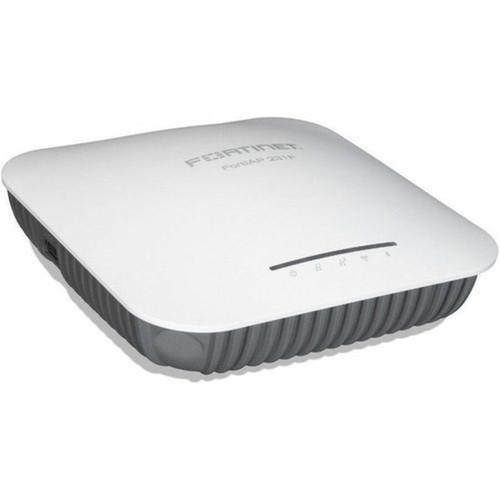

Fortinet FAP-231F-J FortiAP 231F Dual-Band 802. 11ax Indoor Wireless Access Point - 1. 73 Gbit/s - 3 Internal Antennas - PoE PD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FortiAP 231F leverages 802.11ax technology to provide improved network efficiency, higher data rates, and better performance in dense client environments. It operates on dual bands, supporting concurrent 2.4 GHz and 5 GHz transmissions to balance coverage and speed. The access point features three integrated internal antennas, optimized for consistent signal distribution and reduced external clutter.
Connectivity is handled through two Gigabit Ethernet ports, with one supporting PoE PD for both data and power delivery over a single cable. A USB port is available for potential peripheral expansions, while the built-in management port facilitates direct configuration and monitoring. Security is enforced through comprehensive encryption standards including WPA, WPA2, WPA3, WEP, and PSK variants, ensuring network protection across diverse authentication requirements.
Relevant factors for this section include Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FortiAP 231F combines advanced wireless technology with practical design features to deliver a reliable networking solution. Its support for modern encryption protocols ensures secure communications, while the efficient 17 W power draw contributes to lower operational costs. The access point's compact dimensions and lightweight build facilitate easy installation in various indoor settings.
Wi-Fi 6 Efficiency
The 802.11ax standard enhances capacity and reduces latency, making this access point ideal for high-density environments like offices or classrooms where multiple devices connect simultaneously.
Simplified Installation
PoE PD support allows the access point to receive both power and data through a single Ethernet cable, reducing wiring complexity and enabling flexible placement away from power outlets.
Deployment / Use Cases
This access point is suited for environments requiring dependable indoor wireless coverage without extensive infrastructure changes. Its PoE PD compatibility allows integration with existing network switches, simplifying upgrades in buildings with structured cabling. The management port enables direct access for network administrators to configure settings, monitor performance, and troubleshoot without disrupting overall network operations.
For small to medium-sized businesses, the FortiAP 231F offers a cost-effective way to enhance Wi-Fi capabilities. It can be mounted discreetly on ceilings or walls to maintain aesthetic appeal while delivering strong signal coverage. In scenarios where wired backhaul is available, the Gigabit Ethernet ports ensure high-speed connectivity to the core network, supporting seamless roaming and network management.
Office & Enterprise Networks
Deploy the FortiAP 231F in corporate offices to provide stable Wi-Fi for employees, supporting bandwidth-intensive applications like video conferencing and cloud-based tools with its 1.73 Gbit/s throughput.
Educational & Retail Environments
Install in schools or retail stores where consistent wireless coverage is needed across multiple rooms or floors. The dual-band capability and internal antennas ensure reliable connectivity for students, staff, or customers.
Physical Profile
The FortiAP 231F features a compact and lightweight design, measuring 6" (152.40 mm) in width and depth, with a height of 2.86" (72.64 mm). It weighs approximately 1 lb (453.59 g), making it easy to handle and install. The unit is constructed for indoor use and supports multiple mounting options, including ceiling, wall, desktop, and rail configurations, allowing flexible placement to optimize wireless coverage.
Its internal antenna design eliminates protruding external antennas, resulting in a clean appearance suitable for professional environments. The low-profile form factor helps the access point blend into office ceilings or wall mounts without drawing attention. The sturdy build ensures durability in typical indoor conditions, supporting reliable operation over extended periods.
- Width
- 6" (152.40 mm)
- Depth
- 6" (152.40 mm)
- Height
- 2.86" (72.64 mm)
- Weight
- 1 lb (453.59 g)
Highlights
- 802.11ax Wi-Fi 6 standard for improved network efficiency and higher data rates.
- Dual-band operation on 2.4 GHz and 5 GHz frequencies for optimized wireless performance.
- Maximum wireless throughput of 1.73 Gbit/s supports bandwidth-intensive applications.
- Three internal antennas provide reliable coverage without external attachments.
- PoE PD support simplifies installation by delivering power and data over a single Ethernet cable.
- Two Gigabit Ethernet ports enable high-speed wired connections and network expansion.
- Versatile mounting options include ceiling, wall, desktop, and rail configurations.
- Comprehensive encryption standards (WPA, WPA2, WPA3, WEP, PSK variants) ensure network security.
- Low 17 W power consumption for energy-efficient operation.
- Compact dimensions and lightweight design facilitate easy deployment in various indoor settings.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FAP-231F-J |
| Brand Name | Fortinet |
| Product Line | FortiAP |
| Product Model | 231F |
| Product Name | FortiAP 231F Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | 802.11ax |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 3 |
| Number of Internal Antennas | 3 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 1.73 Gbit/s |
| MIMO Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA,WPA2,WPA3,WEP,WPA-PSK,WPA2-PSK,WPA3-PSK |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
| USB | Yes |
| Management Port | Yes |
| Power Description | |
| Power Consumption | 17 W |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable,Wall Mountable,Desktop,Rail-mountable |
| Antenna Form Factor | Internal |
| Height | 2.86" (72.64 mm) |
| Width | 6" (152.40 mm) |
| Depth | 6" (152.40 mm) |
| Weight (Approximate) | 1 lb (453.59 g) |
| Miscellaneous | |
| Country of Origin | Taiwan |
User Manual
FAQ
What Wi-Fi standard does the Fortinet FortiAP 231F support?
The Fortinet FortiAP 231F supports the 802.11ax standard, also known as Wi-Fi 6. This latest Wi-Fi generation offers improved network efficiency, higher data rates, and better performance in environments with many connected devices, making it suitable for modern office and enterprise networks.
Does this access point support Power over Ethernet (PoE)?
Yes, the FortiAP 231F includes a PoE PD (Power over Ethernet Powered Device) port. This allows the access point to receive both electrical power and network data through a single Ethernet cable, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
How many Ethernet ports are available on the FortiAP 231F?
The FortiAP 231F features two Gigabit Ethernet ports. These ports provide high-speed wired connections for network uplink or additional devices, supporting data transfer rates up to 1 Gbit/s to ensure fast and reliable network performance.
What mounting options are supported by this wireless access point?
This access point supports multiple mounting options, including ceiling, wall, desktop, and rail configurations. This versatility allows flexible deployment in various indoor environments, such as offices, schools, or retail spaces, to optimize wireless coverage and integration with existing infrastructure.
What is the wireless throughput of the FortiAP 231F?
The FortiAP 231F offers a maximum wireless throughput of 1.73 Gbit/s. This high-speed capability supports bandwidth-intensive applications like video streaming, large file transfers, and video conferencing, ensuring smooth network performance for users across both 2.4 GHz and 5 GHz bands.
What security features are included with this access point?
The FortiAP 231F includes robust security features with support for multiple encryption standards, including WPA, WPA2, WPA3, WEP, and PSK variants (WPA-PSK, WPA2-PSK, WPA3-PSK). These protocols help protect wireless communications from unauthorized access, ensuring secure network connectivity for business and organizational use.
