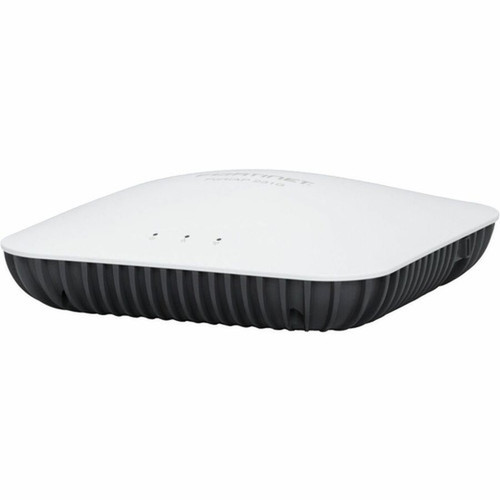

Fortinet FAP-231G-E FortiAP 231G Tri-Band Wi-Fi 6 Access Point - 4. 08 Gbps - 6 Antennas - PoE - Indoor
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FortiAP 231G operates on the IEEE 802.11ax wireless standard, commonly known as Wi-Fi 6, which enhances network efficiency, reduces latency, and improves performance in congested environments. The tri-band architecture allows simultaneous operation across three frequency bands, providing flexibility for network segmentation and load balancing.
MIMO technology enables multiple data streams to be transmitted and received simultaneously, increasing overall network capacity and reliability. Data encryption is supported with comprehensive security standards including WPA, WPA2, WPA3, and WEP, ensuring secure wireless communications.
The access point includes two network ports with support for both Gigabit Ethernet and 2.5 Gigabit Ethernet, providing high-speed wired connectivity. Power over Ethernet (PoE) capability allows the device to receive both data and electrical power through a single cable, simplifying installation and reducing cable clutter.
Key Product Advantages
The FortiAP 231G offers several distinct advantages for network administrators and IT professionals seeking reliable, high-performance wireless infrastructure. Its combination of advanced wireless technology, flexible deployment options, and comprehensive security features makes it a valuable addition to any modern network environment.
Enhanced Wireless Performance
Wi-Fi 6 technology with tri-band support delivers faster speeds, improved efficiency, and better performance in high-density environments compared to previous wireless standards.
- 4.08 Gbit/s maximum throughput
- Simultaneous 2.4/5/6 GHz operation
- Reduced latency for real-time applications
Simplified Installation & Power
Power over Ethernet support eliminates the need for separate power cables, while multiple mounting options provide installation flexibility for various environments.
- Single-cable power and data delivery
- Ceiling, wall, and rail mounting options
- Compact footprint for discreet placement
Robust Security & Management
Comprehensive encryption standards and management capabilities ensure secure wireless communications and efficient network control.
- WPA3 encryption support
- Dedicated management port
- Centralized configuration options
Deployment / Use Cases
The FortiAP 231G is designed for indoor deployment in environments requiring reliable, high-speed wireless connectivity. Its combination of performance features and installation flexibility makes it suitable for various commercial and enterprise applications where consistent wireless coverage is essential.
In office environments, this access point can support large numbers of connected devices while maintaining performance for business applications, video conferencing, and cloud-based services. Educational institutions can deploy these access points in classrooms, libraries, and common areas to provide students and staff with reliable internet access for learning resources and collaboration tools.
Enterprise Office Networks
Provide consistent wireless coverage throughout office spaces with support for high-density device connections and bandwidth-intensive business applications.
Educational Facilities
Deploy in classrooms and common areas to support student devices, interactive learning tools, and administrative systems with reliable Wi-Fi connectivity.
Physical Profile
The FortiAP 231G features a compact design measuring 7.18 inches in width and 2.12 inches in height, with a weight of approximately 1.75 pounds. This streamlined form factor allows for discreet installation in various environments without occupying excessive space.
Multiple mounting options including ceiling, wall, and rail mounting provide installation flexibility to suit different architectural requirements. The internal antenna design contributes to the clean aesthetic while maintaining effective wireless coverage.
- Width
- 7.18" (182.37 mm)
- Height
- 2.12" (53.85 mm)
- Weight
- 1.75 lb (793.79 g)
What's in the Box
The package includes all necessary components for immediate deployment of the wireless access point in your network environment.
Highlights
- Wi-Fi 6 (IEEE 802.11ax) wireless standard for improved efficiency and performance
- Tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz frequency bands
- Maximum wireless transmission speed of 4.08 Gbit/s for bandwidth-intensive applications
- Six antennas total with four internal and two external antennas for optimal coverage
- Power over Ethernet (PoE) support for simplified installation and reduced cable requirements
- Two network ports with Gigabit Ethernet and 2.5 Gigabit Ethernet capability
- USB 3.0 port for additional connectivity options and peripheral support
- Multiple mounting options including ceiling, wall, and rail mounting
- Comprehensive security with WPA, WPA2, WPA3, and WEP encryption standards
- Lifetime limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FAP-231G-E |
| Brand Name | Fortinet |
| Product Line | FortiAP |
| Product Model | 231G |
| Product Name | FortiAP 231G Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ax |
| Network Band | Tri Band |
| Frequency Band | 2.40 GHz,5 GHz,6 GHz |
| Total Number of Antennas | 6 |
| Number of Internal Antennas | 4 |
| Number of External Antennas | 2 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 4.08 Gbit/s |
| MIMO Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA,WPA2,WPA3,WEP |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet,2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE (RJ-45) Port | Yes |
| USB | Yes |
| USB Standard | USB 3.0 |
| Management Port | Yes |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable,Wall Mountable,Rail-mountable |
| Antenna Form Factor | Internal |
| Height | 2.12" (53.85 mm) |
| Width | 7.18" (182.37 mm) |
| Weight (Approximate) | 1.75 lb (793.79 g) |
| Miscellaneous | |
| Package Contents | FortiAP 231G Wireless Access Point Ceiling, T-Rail and Wall Mounting Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What wireless standard does the FortiAP 231G support?
The FortiAP 231G supports the IEEE 802.11ax wireless standard, commonly known as Wi-Fi 6. This latest wireless technology provides improved network efficiency, reduced latency, and better performance in congested environments compared to previous Wi-Fi standards. The access point delivers maximum wireless transmission speeds of 4.08 Gbit/s while supporting advanced features like OFDMA and Target Wake Time for optimized client connectivity.
How many frequency bands does this access point support?
This is a tri-band access point that operates simultaneously across three frequency bands: 2.4 GHz, 5 GHz, and 6 GHz. This tri-band architecture allows for flexible network design, enabling administrators to segment traffic across different bands or dedicate specific bands to particular applications or device types. The inclusion of the 6 GHz band provides additional spectrum for high-performance applications while reducing congestion on traditional wireless frequencies.
Does the FortiAP 231G support Power over Ethernet?
Yes, the FortiAP 231G includes Power over Ethernet (PoE) support through its RJ-45 network ports. This allows the access point to receive both data connectivity and electrical power through a single Ethernet cable, eliminating the need for separate power cables and electrical outlets near the installation location. PoE simplifies deployment, reduces cable clutter, and enables more flexible placement options in environments where power outlets may be limited or inconveniently located.
What mounting options are available for this access point?
The FortiAP 231G offers multiple mounting options including ceiling mounting, wall mounting, and rail mounting capabilities. This flexibility allows network administrators to install the access point in the most appropriate location for optimal wireless coverage based on the specific environment. The included mounting kit contains all necessary hardware for each installation method, making deployment straightforward regardless of the chosen mounting approach.
How many antennas does the FortiAP 231G have?
The access point features a total of six antennas, with four internal antennas and two external antennas. This antenna configuration is designed to optimize wireless signal propagation and coverage area while maintaining a clean aesthetic appearance. The combination of internal and external antennas helps ensure reliable connectivity across the supported frequency bands, with the antenna design contributing to the access point's overall performance in various deployment scenarios.
What security encryption standards are supported?
The FortiAP 231G supports comprehensive wireless security encryption standards including WPA, WPA2, WPA3, and WEP. This range of security options allows network administrators to implement appropriate security measures based on their specific requirements and compatibility with client devices. The inclusion of WPA3 provides the latest security enhancements for wireless networks, offering improved protection against various attack vectors while maintaining backward compatibility with existing security protocols.
