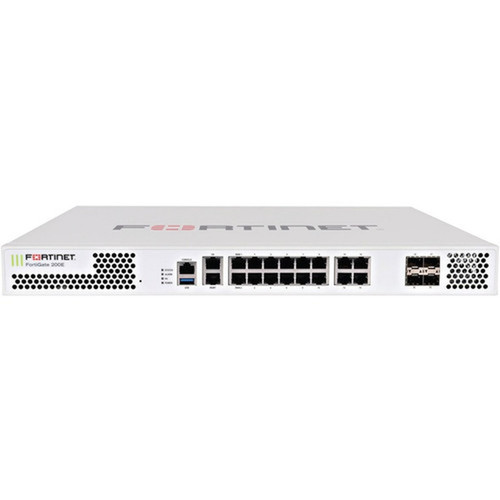

Fortinet FG-200E FortiGate 200E Network Security Firewall - 16-Port Gigabit Ethernet - 4x SFP Slots - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FortiGate 200E operates on Gigabit Ethernet technology, supporting network standards of 10/100/1000Base-T and 1000Base-X for versatile connectivity. It does not include wireless LAN capabilities, focusing instead on wired network security. The appliance features 16 RJ-45 ports for copper connections, complemented by a USB port for administrative functions. PoE is not supported on the RJ-45 ports, aligning with its core security appliance role.
Expansion is facilitated through four SFP slots, allowing for fiber uplinks or additional network interfaces. The device is fully manageable, providing granular control over security policies and network traffic. Its physical dimensions are optimized for rack deployment, with a height of 1.70 inches, width of 17 inches, and depth of 11.90 inches, weighing approximately 11.90 pounds.
Relevant factors for this section include Firewall Protection Supported, Total Number of Ports, USB, PoE (RJ-45) Port. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FortiGate 200E combines high port density with advanced security features to protect network perimeters effectively. Its 16 Gigabit Ethernet ports enable direct connections to multiple devices, reducing the need for additional switches in small to medium-sized deployments. The integrated threat protection suite, including antivirus and intrusion prevention, provides layered defense against malware and unauthorized access attempts.
High Port Density
Sixteen Gigabit Ethernet ports allow for extensive device connectivity, supporting network expansion without external hardware.
- Reduces switch dependency
- Simplifies cable management
Flexible Expansion
Four SFP slots offer options for fiber connectivity, enabling long-distance links or high-speed uplinks to core switches.
- Supports fiber optics
- Enhances network design flexibility
Rack-Optimized Design
The 1U rack-mountable form factor saves space in server racks and facilitates organized installation in data centers.
- Standard rack compatibility
- Professional cable routing
Deployment / Use Cases
The FortiGate 200E is ideal for edge security deployments in branch offices, small businesses, or as a dedicated firewall for specific network segments. Its port count and manageability make it suitable for environments requiring granular control over internet access and internal traffic. The appliance can serve as the primary security gateway, inspecting inbound and outbound traffic for threats while maintaining network performance.
Common use cases include securing remote offices with multiple connected devices, protecting server networks with high-throughput requirements, and serving as a perimeter firewall in educational or retail settings. The lack of wireless LAN and PoE focuses its application on wired network security, where reliability and throughput are priorities over wireless connectivity.
Branch Office Security
Deploy as the main firewall for remote locations, providing threat protection and application control for local networks.
Server Network Protection
Use to isolate and secure server racks, leveraging high port density for direct connections to critical infrastructure.
Physical Profile
The FortiGate 200E features a compact, rack-mountable design with a 1U height, making it suitable for standard server racks. Its dimensions of 1.70 inches in height, 17 inches in width, and 11.90 inches in depth ensure it fits seamlessly into most data center environments. The appliance weighs approximately 11.90 pounds, balancing sturdiness with ease of installation. The rack-mountable form factor supports professional cable management, helping maintain organized and secure network setups.
- Width
- 17" (431.80 mm)
- Depth
- 11.90" (302.26 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 11.90 lb (5397.75 g)
Highlights
- 16 Gigabit Ethernet ports for high-density connectivity
- Integrated threat protection with antivirus and intrusion prevention
- Four SFP expansion slots for fiber optic uplinks
- Rack-mountable 1U form factor for data center deployment
- Manageable via centralized security policies
- Supports application control and threat protection
- No wireless LAN, focused on wired security
- USB port for administrative functions
- Compact dimensions optimized for rack installation
- Made in Taiwan with enterprise-grade reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FG-200E |
| Brand Name | Fortinet |
| Product Line | FortiGate |
| Product Model | 200E |
| Product Name | FortiGate 200E Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Antivirus,Application Control,Threat Protection,Intrusion Prevention |
| Interfaces/Ports | |
| Total Number of Ports | 16 |
| USB | Yes |
| PoE (RJ-45) Port | No |
| Number of Network (RJ-45) Ports | 16 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T,1000Base-X |
| Wireless Specifications | |
| Wireless LAN | No |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Management & Protocols | |
| Manageable | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.70" (43.18 mm) |
| Width | 17" (431.80 mm) |
| Depth | 11.90" (302.26 mm) |
| Weight (Approximate) | 11.90 lb (5397.75 g) |
| Miscellaneous | |
| Country of Origin | Taiwan |
FAQ
How many Ethernet ports does the FortiGate 200E have?
The FortiGate 200E includes 16 Gigabit Ethernet ports, all using RJ-45 connectors for copper network connections. This high port count allows direct attachment of multiple devices such as computers, servers, or switches without requiring an additional network switch, simplifying infrastructure in small to medium deployments.
Does this firewall support Power over Ethernet (PoE)?
No, the FortiGate 200E does not support Power over Ethernet on its RJ-45 ports. It is designed primarily as a security appliance, focusing on threat protection and network traffic management rather than power delivery to connected devices like IP phones or wireless access points.
What expansion options are available with the FortiGate 200E?
The appliance features four SFP expansion slots, compatible with SFP (mini-GBIC) modules. These slots enable fiber optic connections for long-distance links or high-speed uplinks, providing flexibility in network design. There are no other expansion slots beyond these SFP ports.
Is the FortiGate 200E rack-mountable?
Yes, the FortiGate 200E is rack-mountable with a 1U form factor, meaning it occupies one unit of vertical space in a standard server rack. Its dimensions are 1.70 inches in height, 17 inches in width, and 11.90 inches in depth, making it suitable for data center or network closet installations.
What security features does this firewall include?
The FortiGate 200E supports multiple security protections, including antivirus, application control, threat protection, and intrusion prevention. These features work together to detect and block malware, manage application usage, prevent unauthorized access, and defend against network-based attacks, providing layered security for enterprise environments.
Can the FortiGate 200E be managed remotely?
Yes, the FortiGate 200E is manageable, allowing administrators to configure security policies, monitor traffic, and perform updates through a centralized management interface. This manageability supports remote administration, making it easier to maintain consistent security across multiple locations or network segments.
