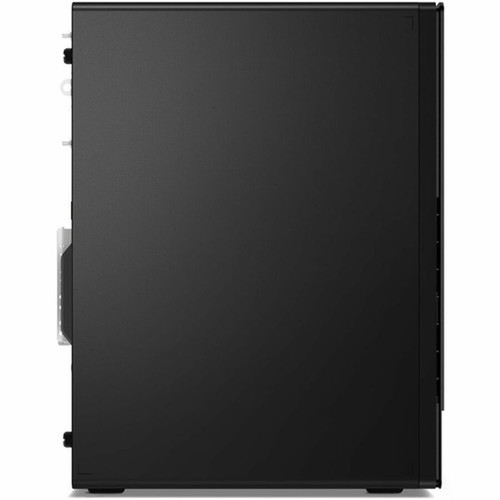

Lenovo 12V20016US ThinkCentre M90t Gen 5 Desktop - Intel Core i9-14900 14th Gen - 32GB DDR5512GB NVMe SSD - AMD Radeon RX 6600 LE 8GB - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the ThinkCentre M90t Gen 5 is the Intel Core i9-14900 processor, part of the 14th Gen Raptor Lake family. This tetracosa-core CPU features 24 cores (8 performance cores and 16 efficiency cores) and 32 threads, with a base clock of 2.0 GHz and maximum turbo frequency of 5.80 GHz. Intel vPro technology enhances security, manageability, and stability for enterprise deployments. The platform is supported by the Intel Q670 chipset, which provides robust connectivity and I/O capabilities.
Memory performance is driven by dual-channel DDR5 SDRAM running at 4400 MHz, configured as two 16 GB modules for optimal bandwidth. Storage is handled by a 512 GB M.2 NVMe SSD using the PCI Express 4.0 x4 interface, delivering sequential read/write speeds significantly faster than SATA-based solutions. The system includes a built-in DVD-Writer optical drive for legacy media support and data backup.
Key Product Advantages
The ThinkCentre M90t Gen 5 combines workstation-grade components with the reliability and manageability expected from Lenovo's business desktop lineup. The tower chassis offers practical expandability for additional storage drives, expansion cards, or memory upgrades, supporting long-term investment protection. The inclusion of a dedicated AMD Radeon RX 6600 LE graphics card separates this system from integrated graphics solutions, providing substantial GPU power for design, visualization, and multimedia tasks.
Professional Graphics Performance
The AMD Radeon RX 6600 LE features 8 GB of dedicated GDDR6 memory, enabling smooth handling of complex 3D models, high-resolution video timelines, and multi-display setups without taxing system RAM.
- Accelerates rendering and encoding
- Supports multiple 4K displays
- GDDR6 memory for high bandwidth
Enterprise-Grade Management
Intel vPro technology and Windows 11 Pro provide comprehensive tools for IT administrators to remotely manage, secure, and maintain devices across distributed environments.
- Hardware-enhanced security
- Remote troubleshooting capabilities
- Out-of-band management
Deployment / Use Cases
This desktop is ideally suited for professional environments where computational power, graphics capability, and system reliability are critical. Creative studios can leverage the Core i9 processor and Radeon graphics for video editing, 3D animation, and graphic design workflows. Engineering and architectural firms will appreciate the CPU's multi-threaded performance for CAD applications, simulation software, and finite element analysis.
In corporate settings, the ThinkCentre M90t Gen 5 serves as a powerful workstation for data analysts, software developers, and financial modelers who require fast processing of large datasets and complex calculations. The tower form factor allows IT departments to customize configurations with additional storage, specialized I/O cards, or upgraded components as project requirements evolve. The system's environmental certifications make it appropriate for organizations with sustainability mandates.
Localization and Operating System
This system ships with Microsoft Windows 11 Pro pre-installed in English. Windows 11 Pro includes BitLocker device encryption, Hyper-V for virtualization, Remote Desktop functionality, and enhanced security features like Windows Defender Application Guard. The operating system is fully licensed for commercial use and receives regular security updates from Microsoft.
Keyboard localization is configured for English (US) layout, with traditional key placement and standard modifier keys. The included USB keyboard follows Lenovo's business-oriented design with comfortable typing experience and durable construction.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The ThinkCentre M90t Gen 5 utilizes a traditional tower form factor measuring 14.80 inches in height, 6.69 inches in width, and 11.73 inches in depth (376 x 170 x 298 mm). This compact yet expandable design fits comfortably under desks or in standard workstation configurations. The chassis features a professional black finish that blends seamlessly into office environments.
Weighing approximately 14.33 pounds (6.5 kg), the system is substantial enough for stable operation while remaining manageable for IT staff during deployment or maintenance. The tower orientation provides excellent thermal management with optimized airflow across critical components, supporting sustained performance during extended workloads.
- Width
- 6.69" (170 mm)
- Depth
- 11.73" (298 mm)
- Height
- 14.80" (376 mm)
- Weight
- 14.33 lb (6500 g)
What's in the Box
The package includes all essential components for immediate setup and operation.
Highlights
- Intel Core i9-14900 14th Gen processor with 24 cores and 32 threads
- 32 GB DDR5 memory at 4400 MHz for smooth multitasking
- 512 GB PCI Express NVMe 4.0 SSD for fast boot and load times
- AMD Radeon RX 6600 LE dedicated graphics with 8 GB GDDR6 memory
- Windows 11 Pro operating system with commercial features
- Tower form factor for easy expansion and customization
- Comprehensive connectivity including Wi-Fi 6, Bluetooth, and 9 USB ports
- Enterprise management with Intel vPro technology
- Environmental certifications: ENERGY STAR 8.0, EPEAT Gold, TCO Certified
- 3-year onsite warranty for reliable support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 12V20016US |
| Brand Name | Lenovo |
| Product Line | ThinkCentre |
| Product Series | M90t Gen 5 |
| Product Model | 12V20016US |
| Product Name | ThinkCentre M90t Gen 5 12V20016US Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i9 |
| Processor Generation | 14th Gen |
| Processor Model | i9-14900 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 32 |
| Processor Speed | 2 GHz |
| Maximum Turbo Speed | 5.80 GHz |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
| Memory | |
| Standard Memory | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 4400 MHz |
| Memory Configuration | 2 x 16GB |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Optical Drive Type | DVD-Writer |
| Optical Media Supported | DVD±RW |
| Display & Graphics | |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | Radeon RX 6600 LE |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Technology | GDDR6 |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Number of USB 3.2 Gen 1 Ports | 6 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with 15W charging(front) |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 500 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Height | 14.80" (376 mm) |
| Width | 6.69" (170 mm) |
| Depth | 11.73" (298 mm) |
| Weight (Approximate) | 14.33 lb (6500 g) |
| Miscellaneous | |
| Package Contents | ThinkCentre M90t Gen 5 12V20016US Desktop Computer USB Traditional Keyboard USB Calliope Mouse |
| Features | Security Slot |
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0,GREENGUARD |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year, Onsite |
User Manual
FAQ
What processor does this Lenovo ThinkCentre desktop use?
This system features the Intel Core i9-14900, a 14th Gen processor with 24 cores (8 performance cores and 16 efficiency cores) and 32 threads. It operates at a base frequency of 2.0 GHz with maximum turbo speeds up to 5.80 GHz, delivering exceptional multi-threaded performance for demanding applications like video editing, 3D rendering, and data analysis.
How much memory is installed and what type is it?
The ThinkCentre M90t Gen 5 comes with 32 GB of DDR5 SDRAM installed as two 16 GB modules running at 4400 MHz. This dual-channel configuration provides high bandwidth for memory-intensive tasks, and the DDR5 technology offers improved power efficiency and performance compared to previous DDR4 generations.
What storage configuration does this desktop include?
Storage is provided by a 512 GB PCI Express NVMe 4.0 x4 SSD in the M.2 form factor. This NVMe SSD delivers significantly faster data transfer speeds compared to SATA SSDs or traditional hard drives, resulting in quicker system boot times, faster application loading, and rapid file transfers for productivity workflows.
Does this system have dedicated graphics or integrated graphics?
This configuration includes a dedicated AMD Radeon RX 6600 LE graphics card with 8 GB of GDDR6 memory. This provides substantial GPU power for graphics-intensive tasks like video editing, 3D modeling, and design applications, offering better performance than integrated graphics solutions for professional visual workloads.
What operating system is pre-installed on this desktop?
The system ships with Microsoft Windows 11 Pro pre-installed in English. Windows 11 Pro includes commercial features such as BitLocker encryption, Remote Desktop, Hyper-V virtualization, and enhanced security controls, making it suitable for business environments that require robust management and protection capabilities.
What expansion capabilities does the tower form factor provide?
The tower chassis offers practical expansion options for future upgrades, including additional drive bays for more storage, available PCIe slots for expansion cards like specialized I/O or additional graphics, and memory slots to increase RAM capacity. This design supports evolving business needs and allows customization for specific application requirements.
