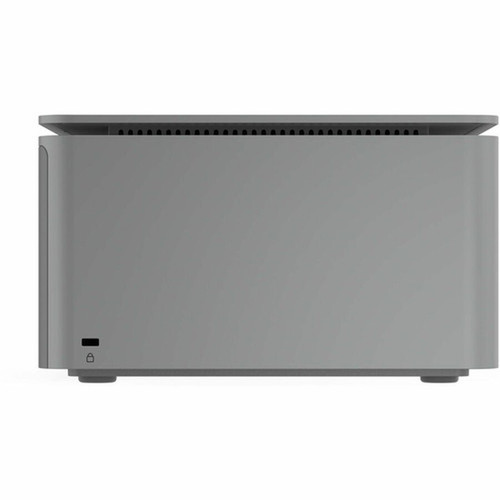

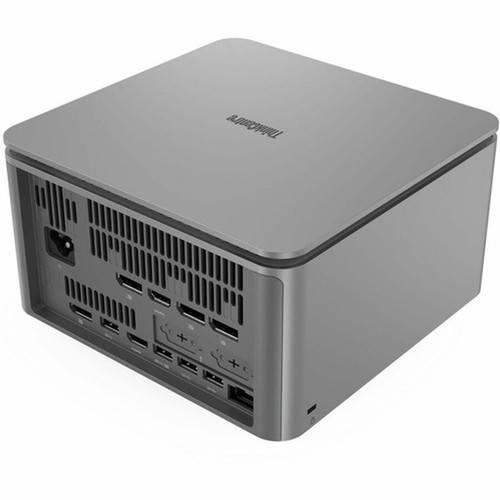

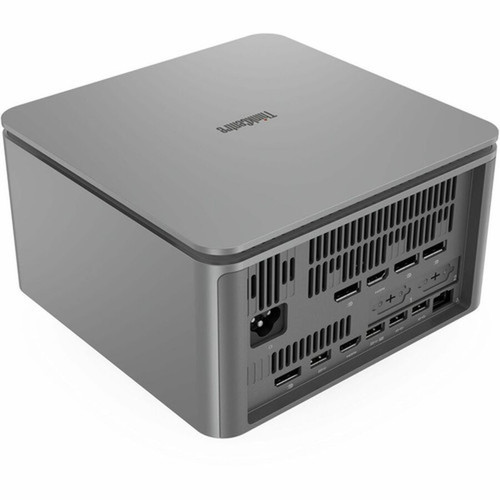

Lenovo 12W1001ECA ThinkCentre neo Ultra Tiny Desktop - Intel Core i7-14700 vPro - 64GB DDR5 - 1TB NVMe SSD - GeForce RTX 4060 8GB - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of this ThinkCentre neo Ultra sits Intel's i7-14700 processor, featuring 20 physical cores and 28 threads that scale from a 2.10 GHz base clock to 5.40 GHz turbo frequencies. Intel vPro technology enhances security and remote manageability for IT departments, while the platform supports DDR5 memory at 5200 MHz speeds across two 32 GB modules for a total of 64 GB capacity.
Storage performance comes from a PCI Express NVMe 4.0 x4 SSD in the M.2 form factor, offering 1 TB of high-speed capacity with sequential read/write speeds that significantly outpace SATA SSDs. The NVIDIA GeForce RTX 4060 discrete GPU includes 8 GB of GDDR6 memory and dedicated processing cores for ray tracing, AI acceleration, and high-resolution rendering tasks.
Key Product Advantages
This ThinkCentre neo Ultra balances substantial computing power with an exceptionally compact footprint. The Tiny form factor occupies minimal desk space while housing high-performance components typically found in larger towers. The combination of vPro-enabled Intel Core i7 processing, ample DDR5 memory, and fast NVMe storage creates a responsive platform for multitasking, virtualization, and content creation workloads.
Enterprise-Grade Security & Management
Intel vPro technology provides hardware-enhanced security features, remote manageability capabilities, and stability assurances for business environments. Combined with Windows 11 Pro's security stack, this desktop meets corporate IT requirements for endpoint protection and centralized administration.
- Hardware-based threat detection
- Out-of-band remote management
- Windows 11 Pro security features
Professional Graphics Performance
The NVIDIA GeForce RTX 4060 GPU delivers dedicated graphics processing with 8 GB of GDDR6 memory, supporting demanding visual applications including 3D modeling, video editing, architectural visualization, and engineering simulations.
- 8 GB dedicated GDDR6 memory
- Ray tracing and AI acceleration
- Multiple display support
Deployment / Use Cases
The 12W1001ECA configuration excels in space-constrained professional environments where performance cannot be compromised. Its compact dimensions make it ideal for financial trading desks, engineering workstations, design studios, medical imaging stations, and educational computer labs where desk real estate is limited but computing demands are high.
Creative professionals will appreciate the GeForce RTX 4060's rendering capabilities for video production, 3D animation, and graphic design workflows. Business users benefit from the vPro management features for secure remote administration, while the French OS and keyboard localization make this system ready for deployment in French-speaking regions without additional configuration.
Compact Workstation Solution
With dimensions of just 7.68" wide x 7.52" deep x 4.25" high, this Tiny form factor desktop delivers workstation-level performance in approximately one-tenth the volume of traditional tower PCs, perfect for crowded office environments or multi-monitor setups.
- Fits in tight spaces
- Minimal desk footprint
- Full workstation capabilities
Professional Content Creation
The combination of 20-core Intel processor, 64 GB RAM, fast NVMe storage, and dedicated RTX graphics creates an efficient platform for video editing, 3D rendering, CAD work, and architectural visualization where both CPU and GPU performance matter.
- Video editing and rendering
- 3D modeling and CAD
- Architectural visualization
Localization and Operating System
This ThinkCentre neo Ultra ships with Windows 11 Pro pre-installed in French language, providing a complete business operating system with enhanced security features, BitLocker encryption, Remote Desktop functionality, and enterprise management tools. The French localization extends throughout the OS interface, applications, and system utilities.
Complementing the software localization, the included USB Calliope keyboard features French AZERTY layout with accented characters and language-specific key labels. This complete French-language configuration eliminates localization work for IT departments deploying systems in French-speaking offices, educational institutions, or government environments.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The Tiny form factor measures just 4.25" (108 mm) in height, 7.68" (195 mm) in width, and 7.52" (191 mm) in depth, with a weight of approximately 7.72 lb (3500 g). This compact design allows placement in spaces where traditional desktops won't fit, including under monitors, on wall mounts, or in crowded equipment racks.
Finished in Luna Gray, the chassis presents a professional appearance suitable for corporate, educational, and healthcare environments. The small footprint doesn't sacrifice connectivity, with seven USB ports (including high-speed Type-C), Gigabit Ethernet, and wireless networking all accessible from the compact enclosure.
- Width
- 7.68" (195 mm)
- Depth
- 7.52" (191 mm)
- Height
- 4.25" (108 mm)
- Weight
- 7.72 lb (3500 g)
What's in the Box
This desktop ships as a complete system ready for immediate setup and use. The package includes all necessary components for a full computing solution.
Highlights
- Intel Core i7-14700 processor with 20 cores, 28 threads, and vPro technology for enterprise management
- 64 GB of DDR5 memory at 5200 MHz speed for demanding multitasking and virtualization workloads
- 1 TB PCI Express NVMe 4.0 x4 SSD delivers exceptional storage performance and rapid system responsiveness
- NVIDIA GeForce RTX 4060 graphics with 8 GB dedicated GDDR6 memory for professional visualization and rendering
- Tiny form factor chassis measures just 4.25"H x 7.68"W x 7.52"D for space-constrained environments
- Windows 11 Pro operating system with French language localization pre-installed
- French-localized USB keyboard included for immediate deployment in French-speaking regions
- Comprehensive connectivity with Gigabit Ethernet, Wi-Fi 6 (802.11ax), Bluetooth, and 7 USB ports
- 350W power supply supports the high-performance components within the compact enclosure
- Enterprise features include security slot, ENERGY STAR 8.0 certification, and EPEAT Gold environmental rating
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 12W1001ECA |
| Brand Name | Lenovo |
| Product Line | ThinkCentre |
| Product Series | neo Ultra |
| Product Model | 12W1001ECA |
| Product Name | ThinkCentre neo Ultra 12W1001ECA Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Generation | 14th Gen |
| Processor Model | i7-14700 |
| Processor Core | Icosa-core (20 Core) |
| Processor Threads | 28 |
| Processor Speed | 2.10 GHz |
| Maximum Turbo Speed | 5.40 GHz |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 5200 MHz |
| Memory Configuration | 2 x 32GB |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | NVIDIA |
| Graphics Controller Model | GeForce RTX 4060 |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Technology | GDDR6 |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Number of USB 3.2 Gen 2x2 Type-C Ports | 1 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | French |
| Power Description | |
| Maximum Power Supply Wattage | 350 W |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Luna Gray |
| Form Factor | Tiny |
| Height | 4.25" (108 mm) |
| Width | 7.68" (195 mm) |
| Depth | 7.52" (191 mm) |
| Weight (Approximate) | 7.72 lb (3500 g) |
| Miscellaneous | |
| Package Contents | ThinkCentre neo Ultra 12W1001ECA Desktop Computer USB Calliope Keyboard USB Calliope Mouse |
| Features | Security Slot |
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),GREENGUARD,TCO Certified |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1-year, Onsite |
User Manual
FAQ
What processor does this Lenovo ThinkCentre neo Ultra desktop use?
This desktop features Intel's 14th Generation Core i7-14700 processor with 20 physical cores and 28 threads. The CPU operates at a base frequency of 2.10 GHz with turbo boost capabilities up to 5.40 GHz. It includes Intel vPro technology for enhanced security features and remote manageability in business environments, making it suitable for demanding professional workloads.
How much memory is installed and what type does it use?
The system comes with 64 GB of DDR5 SDRAM installed across two 32 GB modules. The memory operates at 5200 MHz speed, providing substantial bandwidth for memory-intensive applications like virtualization, data analysis, video editing, and 3D rendering. The dual-channel configuration optimizes performance for professional workloads that benefit from high memory capacity and speed.
What storage configuration does this desktop include?
Storage is provided by a 1 TB PCI Express NVMe 4.0 x4 solid-state drive in the M.2 form factor. This NVMe SSD delivers significantly faster data transfer speeds compared to SATA SSDs or traditional hard drives, with sequential read/write performance that accelerates application loading, file transfers, and system responsiveness for productivity and creative applications.
What graphics capabilities does this ThinkCentre offer?
Graphics processing is handled by an NVIDIA GeForce RTX 4060 discrete graphics card with 8 GB of dedicated GDDR6 memory. This GPU provides substantial rendering power for CAD applications, 3D modeling, video editing, architectural visualization, and engineering simulations. The dedicated graphics memory ensures smooth performance in graphically demanding professional applications.
What operating system and localization does this system include?
The desktop ships with Windows 11 Pro pre-installed in French language. This provides a complete business operating system with enhanced security features, BitLocker encryption, Remote Desktop functionality, and enterprise management tools. The system includes a French-localized USB keyboard, making it ready for immediate deployment in French-speaking business, educational, or government environments.
How compact is the Tiny form factor chassis?
The Tiny form factor measures just 4.25 inches (108 mm) in height, 7.68 inches (195 mm) in width, and 7.52 inches (191 mm) in depth, weighing approximately 7.72 pounds (3500 grams). This compact design allows placement in spaces where traditional desktop towers won't fit, making it ideal for crowded offices, trading desks, medical stations, or multi-monitor setups where desk space is limited.
