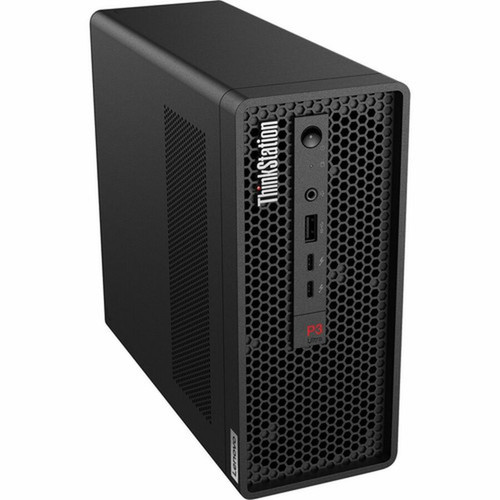

Lenovo 30HA0066US ThinkStation P3 Ultra Workstation - Intel Core i9-14900K 14th Gen - 32GB DDR5 - 1TB NVMe SSD - Windows 11 Pro - Ultra Small Form
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the ThinkStation P3 Ultra leverages the Intel W680 chipset and a 14th Gen Core i9-14900K processor operating at 3.20 GHz with Intel vPro technology for enhanced manageability and security. The memory subsystem uses DDR5 SDRAM running at 4.80 GHz, with one 32 GB module installed in a four-slot configuration that supports up to 128 GB total capacity for future upgrades.
Storage is handled by a PCI Express NVMe 4.0 x4 SSD delivering fast boot times and rapid file transfers, backed by NVMe and Serial ATA controller support. Graphics are powered by a dedicated 8 GB controller, suitable for CAD, video editing, and visualization applications. Networking includes dual Ethernet with 2.5 Gigabit and Gigabit ports, plus integrated wireless LAN and Bluetooth for flexible connectivity.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines high-end performance with an ultra-compact design, offering professional users a powerful tool that fits easily on a desk or in a rack. The Intel Core i9-14900K processor with 24 cores provides substantial compute power for parallelized tasks, while the DDR5 memory and NVMe SSD ensure low-latency data handling.
Compact Professional Power
The ultra-small form factor measures just 7.95" x 3.43" x 8.78" and weighs under 8 pounds, making it deployable in tight spaces without sacrificing the expansion slots and ports expected in a full workstation.
- Fits in space-limited offices or labs
- Maintains four memory slots and multiple I/O ports
- Easy to relocate or integrate into existing setups
Advanced Connectivity Suite
With five USB 3.2 Gen 2 ports, two Thunderbolt 4 ports, DisplayPort, and dual Ethernet including 2.5 Gigabit, the system supports high-speed peripherals, multiple displays, and fast network transfers.
- Thunderbolt 4 for 40 Gbps data and display
- 2.5 Gigabit Ethernet for high-bandwidth networking
- USB 3.2 Gen 2 for fast external storage
Deployment / Use Cases
The ThinkStation P3 Ultra is designed for professionals who require workstation-grade performance in environments where space is at a premium. Its balanced configuration of CPU, memory, storage, and graphics makes it suitable for a range of intensive applications.
In engineering and design offices, it can run CAD software, finite element analysis, and 3D modeling tools. For media production, it handles video editing, animation, and compositing workflows. In scientific and financial settings, it accelerates data analysis, simulations, and quantitative modeling. The small footprint also makes it ideal for edge computing deployments, remote offices, or as a secondary rendering node.
Engineering & Design
Run Autodesk AutoCAD, SolidWorks, or ANSYS simulations with the multi-core CPU and dedicated graphics, all in a compact chassis that fits under a desk or in a lab bench.
Media Production & Analysis
Edit 4K video, process large datasets, or render animations using the fast NVMe storage and high memory bandwidth, with Thunderbolt 4 for external GPU or storage expansion.
Localization and Operating System
This workstation ships with Windows 11 Pro pre-installed in English, providing a professional operating system with enhanced security features, BitLocker encryption, and remote management capabilities. The keyboard is localized for English, ensuring a familiar layout for North American users.
Windows 11 Pro includes support for domain join, Group Policy, and Hyper-V virtualization, making it suitable for business environments that require centralized management. The English OS language simplifies deployment and support in English-speaking regions.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The ultra-small form factor measures 7.95 inches in height, 3.43 inches in width, and 8.78 inches in depth (202 mm x 87 mm x 223 mm), with a weight of approximately 7.94 pounds (3600 grams). This compact design allows the workstation to be placed vertically or horizontally, fitting easily on a desk, shelf, or in a rack with optional mounting hardware.
The chassis is built to accommodate professional cooling for sustained performance, with a 300 W power supply ensuring stable operation under load. The small footprint reduces desk clutter while maintaining accessibility to front and rear ports for daily use.
- Width
- 3.43" (87 mm)
- Depth
- 8.78" (223 mm)
- Height
- 7.95" (202 mm)
- Weight
- 7.94 lb (3600 g)
What's in the Box
The package includes the ThinkStation P3 Ultra SFF workstation (model 30HA0066US), a keyboard, a mouse, and a power adapter, providing everything needed for immediate setup and use.
Highlights
- Intel Core i9-14900K 14th Gen processor with 24 cores and 32 threads for high-performance computing
- 32 GB of DDR5 SDRAM running at 4.80 GHz for fast data handling and multitasking
- 1 TB PCI Express NVMe 4.0 x4 SSD for rapid storage access and quick boot times
- Dedicated 8 GB graphics memory for accelerated visual and rendering workloads
- Ultra-small form factor (7.95" H x 3.43" W x 8.78" D) ideal for space-constrained environments
- Windows 11 Pro operating system with English language and keyboard localization
- Comprehensive connectivity including 5 USB 3.2 Gen 2 ports, 2 Thunderbolt 4 ports, and 2.5 Gigabit Ethernet
- Intel vPro technology for enhanced manageability and security in business settings
- 300 W power supply for reliable energy delivery under heavy loads
- 3-year limited warranty with onsite service and Premier Support upgrade options
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HA0066US |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P3 Ultra |
| Product Model | 30HA0066US |
| Product Name | ThinkStation P3 Ultra SFF 30HA0066US |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i9 |
| Processor Generation | 14th Gen |
| Processor Model | i9-14900K |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 32 |
| Processor Speed | 3.20 GHz |
| Processor Socket | Socket LGA-1700 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 4 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 1 x 32GB |
| Error Checking | Non-ECC |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| DisplayPort | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 300 W |
| Physical Characteristics | |
| Form Factor | Ultra Small |
| Height | 7.95" (202 mm) |
| Width | 3.43" (87 mm) |
| Depth | 8.78" (223 mm) |
| Weight (Approximate) | 7.94 lb (3600 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P3 Ultra SFF 30HA0066US Keyboard Mouse Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does the Lenovo ThinkStation P3 Ultra 30HA0066US use?
This workstation is equipped with an Intel Core i9-14900K 14th Gen processor. It features 24 cores and 32 threads, operates at a base speed of 3.20 GHz, and includes Intel vPro technology for business-grade manageability and security. The processor uses the Socket LGA-1700 and is designed for high-performance computing tasks like rendering, simulation, and data analysis.
How much memory is installed and what type is it?
The system comes with 32 GB of DDR5 SDRAM installed as a single 32 GB module running at 4.80 GHz. It has four memory slots in total, supporting a maximum capacity of 128 GB for future expansion. The memory uses non-ECC technology and is optimized for fast data transfer between the CPU and storage, enhancing overall system responsiveness.
What storage configuration does this workstation have?
Storage is provided by a 1 TB PCI Express NVMe 4.0 x4 solid-state drive (SSD). This NVMe interface delivers high sequential read and write speeds, significantly reducing load times for applications and large files. The drive is managed by an NVMe and Serial ATA controller, ensuring efficient data handling for professional workloads.
What graphics capabilities are included?
The workstation includes a dedicated graphics controller with 8 GB of dedicated memory. This configuration supports accelerated visual tasks such as 3D modeling, video editing, and CAD applications, providing smoother performance compared to integrated graphics. It is suitable for moderate to high-demand graphical workloads in professional environments.
What are the physical dimensions and form factor?
The ThinkStation P3 Ultra has an ultra-small form factor, measuring 7.95 inches in height, 3.43 inches in width, and 8.78 inches in depth (202 mm x 87 mm x 223 mm). It weighs approximately 7.94 pounds (3600 grams). This compact design allows it to fit in tight spaces like small offices, labs, or racks, making it ideal for environments where desk space is limited.
What operating system and connectivity options are included?
The workstation comes pre-installed with Windows 11 Pro in English, offering professional features like BitLocker encryption and remote management. Connectivity includes five USB 3.2 Gen 2 ports, two Thunderbolt 4 ports, DisplayPort, 2.5 Gigabit Ethernet, Gigabit Ethernet, wireless LAN, and Bluetooth. This suite supports high-speed peripherals, multiple displays, and fast network transfers for versatile professional use.
