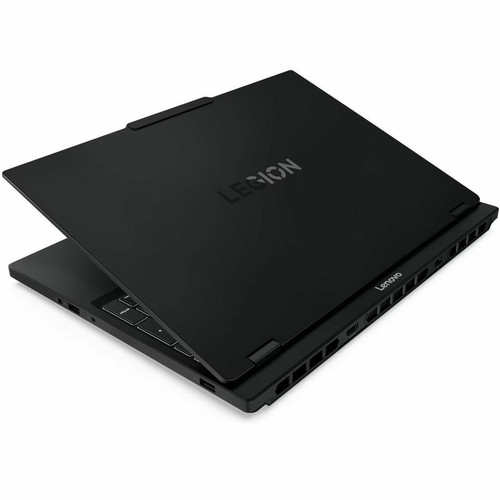

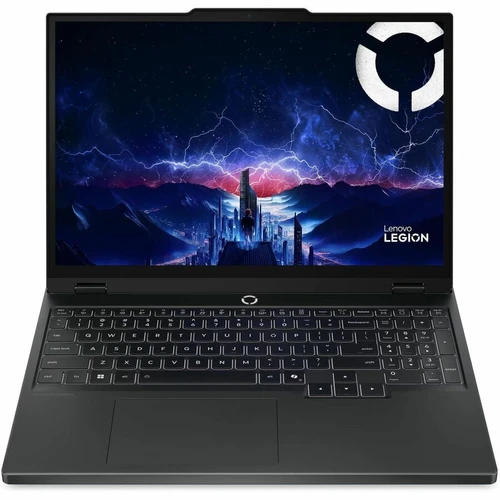

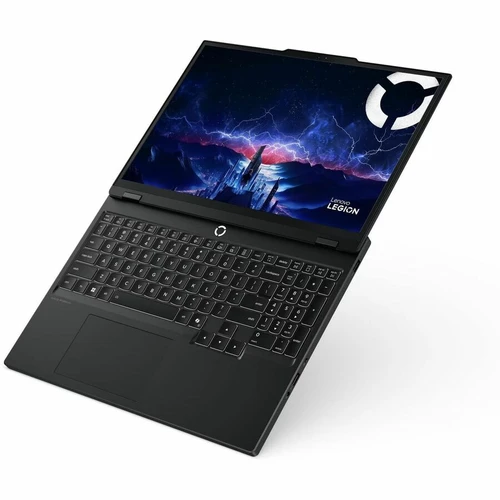

Lenovo 83F0001QUS Legion 5 15IAX10 Gaming Notebook - 15.1" OLED WQXGA 165Hz - Intel Core Ultra 7255HX - 16GB RAM - 1TB SSD - NVIDIA GeForce RTX 5060
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of this Legion 5 is the Intel Core Ultra 7 255HX processor, an icosa-core (20-core) CPU with a maximum turbo speed of 5.20 GHz. It includes Intel's AI Boost NPU delivering 13 TOPS for efficient on-device AI tasks such as live transcription and smart filters. The system is paired with 16 GB of DDR5 memory running at 5600 MHz, with one slot occupied by a 16 GB module and one free slot available for expansion up to 32 GB.
Storage is handled by a 1 TB M.2 SSD, providing fast boot times and ample space for games and applications. Graphics are powered by the dedicated NVIDIA GeForce RTX 5060 with 8 GB of GDDR7 memory, ensuring smooth performance in modern titles and creative software.
Relevant factors for this section include Release Month, Release Year, AI-powered, Processor Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This Legion 5 stands out with its combination of AI-ready processing, high-refresh OLED display, and robust connectivity. The Intel AI Boost NPU accelerates AI workloads directly on the device, reducing reliance on cloud services and improving responsiveness for tasks like content creation filters and real-time translations.
OLED Visual Experience
The 15.1-inch OLED screen covers 100% of the DCI-P3 color gamut, offering rich contrast and accurate colors ideal for gaming and media consumption. With a 165 Hz refresh rate, motion appears exceptionally smooth.
Comprehensive Connectivity
Connectivity includes Gigabit Ethernet, Wi-Fi 7 (802.11be), Bluetooth, four USB ports (three Type-A, one Type-C), one Thunderbolt 4 port, HDMI, and an RJ-45 network jack for versatile peripheral and network options.
Deployment / Use Cases
This notebook is engineered for gamers, content creators, and professionals who need portable power. The dedicated NVIDIA graphics and high-refresh display make it suitable for competitive gaming and video editing, while the AI capabilities enhance productivity applications.
Its balance of performance and portability also suits students and remote workers who require a single device for both work and entertainment. The inclusion of Windows 11 Pro provides advanced security and management features for business environments.
Gaming and Esports
With the GeForce RTX 5060 and 165 Hz OLED display, this Legion 5 delivers high frame rates and responsive gameplay for competitive titles and immersive AAA games.
Creative and AI Workloads
The Core Ultra 7 processor with AI Boost accelerates tasks like video rendering, 3D modeling, and AI-driven applications, making it a capable tool for creative professionals.
Localization and Operating System
This model comes with Windows 11 Pro pre-installed in English, offering a familiar and secure operating environment with features like BitLocker encryption and remote management. The keyboard is localized to English and includes a backlight for comfortable typing in low-light conditions.
The operating system language is set to English, ensuring all system menus, help files, and default applications are in English for straightforward use in English-speaking regions.
Relevant factors for this section include Release Month, Release Year, AI-powered, Processor Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The Legion 5 has a compact and portable design, measuring 0.85 inches in height, 13.58 inches in width, and 10.05 inches in depth. It weighs approximately 4.19 pounds (1900 grams), making it easy to carry for mobile use. The Eclipse Black color with a mix of aluminum and polycarbonate materials gives it a sleek, durable finish suitable for both home and office settings.
- Width
- 13.58" (344.90 mm)
- Depth
- 10.05" (255.35 mm)
- Height
- 0.85" (21.54 mm)
- Weight
- 4.19 lb (1900 g)
What's in the Box
The package includes the Legion 5 15IAX10 83F0001QUS notebook, a standard battery, and a 245 W AC adapter. All necessary components for immediate use are provided.
Highlights
- 15.1-inch OLED display with WQXGA resolution and 165 Hz refresh rate for vibrant, smooth visuals
- Intel Core Ultra 7 255HX processor with 20 cores and Intel AI Boost NPU for efficient AI tasks
- 16 GB DDR5 5600 MHz memory with one free slot for expansion up to 32 GB
- 1 TB M.2 SSD for fast storage and ample capacity
- NVIDIA GeForce RTX 5060 dedicated graphics with 8 GB GDDR7 memory
- Windows 11 Pro operating system with English language and keyboard localization
- Comprehensive connectivity including Wi-Fi 7, Thunderbolt 4, HDMI, and multiple USB ports
- Eclipse Black color with aluminum and polycarbonate construction for a premium, durable design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 83F0001QUS |
| Brand Name | Lenovo |
| Product Line | Legion |
| Product Series | 5 15IAX10 |
| Product Model | 83F0001QUS |
| Product Name | Legion 5 15IAX10 83F0001QUS |
| Product Type | Gaming Notebook |
| Technical Information | |
| Release Month | June |
| Release Year | 2025 |
| AI-powered | Yes |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core Ultra 7 |
| Processor Model | 255HX |
| Maximum Turbo Speed | 5.20 GHz |
| Processor Core | Icosa-core (20 Core) |
| Processor Threads | 20 |
| NPU Manufacturer | Intel |
| NPU Name | AI Boost |
| NPU Performance | 13 TOPS |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Supported System Memory | 32 GB |
| System Memory Technology | DDR5 SDRAM |
| System Memory Speed | 5600 MHz |
| System Memory Form Factor | SoDIMM |
| Installed Slot Memory | 16 GB |
| Installed Slot Memory Configuration | 1 x 16GB |
| Total Number of Memory Slots | 2 |
| Number of Occupied Memory Slots | 1 |
| Number of Free Memory Slots | 1 |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Screen Size | 15.1" |
| Screen Mode | WQXGA |
| Display Screen Type | OLED |
| Screen Resolution | 2560 x 1600 |
| Brightness | 500 cd/m² |
| Color Gamut | 100% DCI-P3 |
| Standard Refresh Rate | 165 Hz |
| Touchscreen | No |
| Graphics Controller Manufacturer | NVIDIA |
| Graphics Controller Model | GeForce RTX 5060 |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Technology | GDDR7 |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| Wimax | No |
| Ethernet Technology | Gigabit Ethernet |
| Bluetooth | Yes |
| WWAN Supported | No |
| Built-in Devices | |
| Front Camera/Webcam | Yes |
| Front Camera/Webcam Resolution | 5 Megapixel |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Type-A Ports | 3 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Input Devices | |
| Keyboard Localization | English |
| Keyboard Backlight | Yes |
| Power Description | |
| Included Charger Power | 245 W |
| USB Power Delivery Support | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Eclipse Black |
| Cover Material | Aluminum,Polycarbonate,Acrylonitrile Butadiene Styrene (ABS) |
| Height | 0.85" (21.54 mm) |
| Width | 13.58" (344.90 mm) |
| Depth | 10.05" (255.35 mm) |
| Weight (Approximate) | 4.19 lb (1900 g) |
| Miscellaneous | |
| Package Contents | Legion 5 15IAX10 83F0001QUS Standard Battery AC Adapter |
| Charger Included | Yes |
| Features | Low Blue Light,Flicker-free |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | Base Warranty 1-year, Courier or Carry-in Included Upgrade 3Y Legion Ultimate Support with Onsite |
User Manual
FAQ
What are the key specifications of the display on this Legion 5 notebook?
The display is a 15.1-inch OLED screen with a WQXGA resolution of 2560 x 1600. It features a 165 Hz refresh rate for smooth motion, 500 cd/m² brightness, and covers 100% of the DCI-P3 color gamut, delivering vibrant colors and high contrast for gaming and media.
How does the Intel Core Ultra 7 255HX processor enhance performance?
The Intel Core Ultra 7 255HX is an icosa-core (20-core) processor with a maximum turbo speed of 5.20 GHz. It includes an integrated NPU called Intel AI Boost that delivers 13 TOPS for accelerating on-device AI tasks like live transcription and smart filters, improving efficiency in AI-enhanced applications.
Can the memory be upgraded on this notebook?
Yes, the notebook has two memory slots with one occupied by a 16 GB DDR5 module. One slot is free, allowing for expansion up to a total of 32 GB of system memory. The memory runs at 5600 MHz for fast data access.
What graphics card is included and what are its capabilities?
It includes a dedicated NVIDIA GeForce RTX 5060 graphics card with 8 GB of GDDR7 memory. This provides strong performance for gaming, video editing, and 3D rendering, supporting modern graphics APIs and features for enhanced visual quality.
What operating system and localization features are pre-installed?
The notebook comes with Windows 11 Pro pre-installed in English. The keyboard is localized to English and includes a backlight for visibility in low-light conditions, making it ready for use in English-speaking environments.
What connectivity options are available on this Legion 5 model?
Connectivity includes Gigabit Ethernet, Wi-Fi 7 (802.11be), Bluetooth, four USB ports (three USB 3.2 Gen 1 Type-A and one USB 3.2 Gen 2 Type-C), one Thunderbolt 4 port, HDMI output, and an RJ-45 network jack. It also has a 5-megapixel front camera for video calls.
