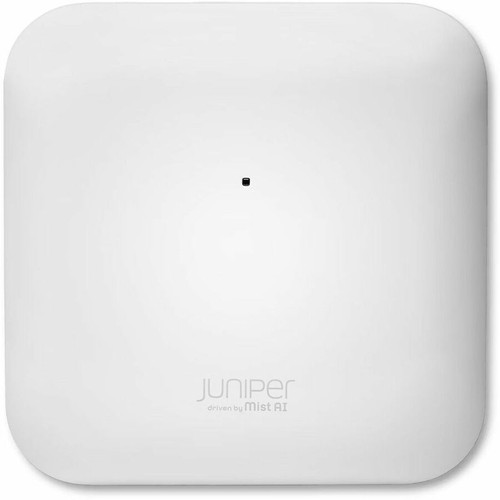

Mist AP47-WW Tri-Band Wi-Fi 7 Wireless Access Point - 28. 80 Gbit/s - 12 Antennas - PoE - Indoor
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Mist AP47-WW leverages Wi-Fi 7 technology to achieve maximum theoretical speeds of 28.80 Gbit/s across its tri-band radio configuration. It operates on the 2.4 GHz, 5 GHz, and 6 GHz frequency bands, providing flexibility for channel allocation and reducing interference in congested wireless environments. The device incorporates 12 internal/external antennas that support both Single User and Multi-User MIMO operations, enhancing spatial streaming and client capacity.
Connectivity is handled through two RJ-45 network ports that support multiple Ethernet standards, including 10 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet, and Fast Ethernet. Power over Ethernet (PoE) capability allows the access point to receive both data and power over a single cable, simplifying deployment. Additional features include Bluetooth 5.4 for peripheral connectivity, a USB 2.0 port for expandability, and AI-driven optimization for automated network tuning and troubleshooting.
Key Product Advantages
The Mist AP47-WW stands out with its combination of cutting-edge wireless technology and practical deployment features. Its Wi-Fi 7 foundation ensures readiness for emerging high-bandwidth applications, while backward compatibility protects investments in existing client devices. The tri-band design maximizes available spectrum, reducing congestion and improving performance in dense user environments.
High-Density Ready
With 12 antennas and MU-MIMO support, this access point efficiently serves numerous concurrent users without performance degradation, ideal for offices, classrooms, or public venues.
- 12-antenna array
- MU-MIMO technology
- Tri-band frequency support
Simplified Installation
PoE support eliminates the need for separate power cabling, while the universal mounting bracket and rail-mountable form factor offer flexible placement options on ceilings, walls, or racks.
- PoE powered
- Universal mounting bracket included
- Rail-mountable design
Intelligent Management
AI-powered features automate network optimization, proactively identify issues, and adapt to changing environmental conditions, reducing administrative overhead and improving reliability.
- AI-driven optimization
- Automated troubleshooting
- Performance adaptation
Deployment / Use Cases
The Mist AP47-WW is engineered for indoor environments where reliable, high-speed wireless connectivity is critical. Its robust throughput and advanced features make it suitable for enterprise offices, educational institutions, healthcare facilities, and retail spaces that require consistent network performance for business applications, video conferencing, and cloud services.
In high-density scenarios such as conference centers, lecture halls, or open-plan offices, the access point's tri-band operation and 12-antenna design help manage numerous connected devices simultaneously. The PoE capability and flexible mounting options streamline installation in both new constructions and retrofits, while the AI-powered management reduces ongoing maintenance efforts. For organizations planning network upgrades, this Wi-Fi 7 access point provides a future-proof foundation that supports evolving wireless demands.
Physical Profile
The Mist AP47-WW features a compact design measuring 10" (254 mm) in width and height, with a depth of 2.36" (60 mm). Weighing approximately 4.41 lb (2000 g), it is designed for easy installation on ceilings, walls, or rails using the included universal mounting bracket. The internal/external antenna form factor maintains a clean aesthetic while providing optimal radio performance. The device is intended for indoor use only, with construction that meets typical commercial environmental requirements.
- Width
- 10" (254 mm)
- Depth
- 2.36" (60 mm)
- Height
- 10" (254 mm)
- Weight
- 4.41 lb (2000 g)
What's in the Box
The package includes everything needed for immediate deployment of the wireless access point.
Highlights
- Wi-Fi 7 wireless access point with 28.80 Gbit/s maximum throughput
- Tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz frequencies
- 12 antennas with internal/external form factor for optimal coverage
- Supports MU-MIMO and beamforming technologies for efficient multi-client communication
- Two RJ-45 ports with 10 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet, and Fast Ethernet support
- Power over Ethernet (PoE) capability simplifies installation
- AI-powered features for automated network optimization and troubleshooting
- Rail-mountable design with included universal mounting bracket
- Bluetooth 5.4 and USB 2.0 ports for expanded connectivity options
- Lifetime limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Juniper Networks, Inc |
| Manufacturer Part Number | AP47-WW |
| Brand Name | Mist |
| Product Model | AP47 |
| Product Name | AP47 Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Bluetooth Standard | Bluetooth 5.4 |
| Network Band | Tri Band |
| Frequency Band | 2.40 GHz,5 GHz,6 GHz |
| Total Number of Antennas | 12 |
| Number of Internal Antennas | 12 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 28.80 Gbit/s |
| MIMO Technology | Yes |
| MIMO Type | Single User/Multi User MIMO |
| Beamforming Technology | Yes |
| AI-powered | Yes |
| Interfaces/Ports | |
| Ethernet Technology | 10 Gigabit Ethernet,5 Gigabit Ethernet,Gigabit Ethernet,Fast Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 2.0 |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 7 |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Antenna Form Factor | Internal/External |
| Height | 10" (254 mm) |
| Width | 10" (254 mm) |
| Depth | 2.36" (60 mm) |
| Weight (Approximate) | 4.41 lb (2000 g) |
| Miscellaneous | |
| Package Contents | AP47 Wireless Access Point 1 x Universal Mounting Bracket |
| Country of Origin | Vietnam |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What Wi-Fi generation does the Mist AP47-WW support?
The Mist AP47-WW is a Wi-Fi 7 wireless access point, supporting the latest IEEE 802.11be standard. It also maintains backward compatibility with previous Wi-Fi generations including 802.11a/b/g/n/ac/ax, ensuring connectivity with both new and legacy client devices.
What is the maximum wireless speed of this access point?
This access point delivers maximum theoretical wireless transmission speeds up to 28.80 Gbit/s. This high throughput supports bandwidth-intensive applications, multiple concurrent users, and future network demands in business environments.
How many frequency bands does the AP47-WW operate on?
The AP47-WW is a tri-band access point operating on three frequency bands: 2.4 GHz, 5 GHz, and 6 GHz. This multi-band design provides flexibility for channel allocation, reduces interference, and optimizes performance across different device types and applications.
Does this access point support Power over Ethernet?
Yes, the Mist AP47-WW includes a PoE PD (Power over Ethernet Powered Device) port. This allows the access point to receive both data and electrical power over a single Ethernet cable, simplifying installation by eliminating the need for separate power cabling near the mounting location.
How many Ethernet ports are available on this device?
The access point features two RJ-45 network ports that support multiple Ethernet standards: 10 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet, and Fast Ethernet. These ports provide flexible wired connectivity options for uplinks, daisy-chaining, or connecting wired devices.
What mounting options are available for this access point?
The Mist AP47-WW is designed for rail-mountable installation and includes a universal mounting bracket in the package. This allows flexible deployment on ceilings, walls, or equipment rails, making it suitable for various indoor environments including offices, classrooms, and commercial spaces.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
What management, monitoring, or control option is listed?
10 Gigabit Ethernet,5 Gigabit Ethernet,Gigabit Ethernet,Fast Ethernet.
