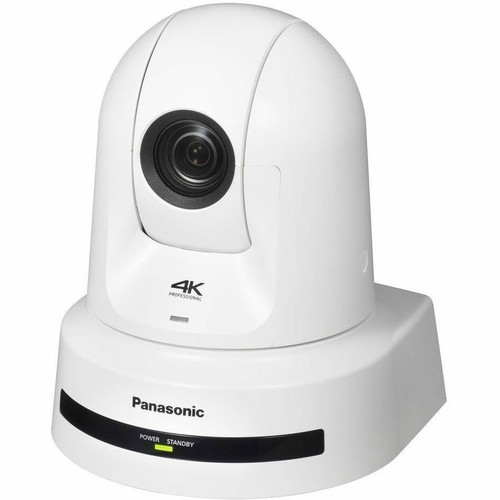

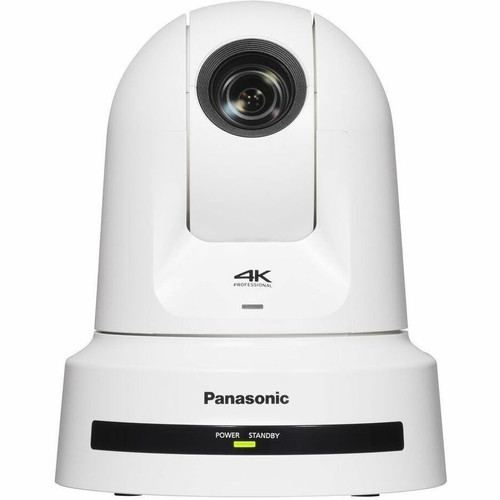

Panasonic AWUE80WPJ 8. 4MP 4K PTZ Dome Network Camera with 24x Optical Zoom - Infrared Night Vision - PoE++
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built around a 1/2.5" MOS sensor, the AW-UE80WPJ delivers 8.4-megapixel clarity at up to 60 frames per second in 4K. The varifocal lens provides a 24x optical zoom range from 4.1 mm to 98.9 mm, with a maximum aperture of f/1.8 for low-light performance.
Video signal formats include PAL and NTSC, with analog outputs supporting NDI, SDI, and 3G-SDI for broadcast integration. The camera's exposure control ranges from 1/10000 to 1/25 second, and it includes day/night operation with automatic gain control, white balance, and noise detection.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
High-Resolution PTZ Performance
The 8.4MP sensor and 24x optical zoom provide detailed imagery across wide and telephoto ranges, essential for identifying subjects at distance or monitoring large areas.
- 8.4MP 4K resolution
- 24x optical zoom
- 74.1° horizontal field of view
Versatile Connectivity and Power
Support for PoE++, PoE+, and 12V DC power options offers flexible deployment. Wired networking with HDMI, NDI, and SDI outputs ensures compatibility with both IP and legacy video systems.
- PoE++ and 12V DC power
- HDMI and SDI outputs
- Extensive IP protocol support
Professional-Grade Imaging Features
Infrared night vision enables 24/7 operation, while features like FreeD support for AR/VR systems and a direct drive system for quiet, responsive PTZ movement cater to advanced production and security needs.
- Infrared night vision
- FreeD for AR/VR
- Quiet direct drive system
Deployment / Use Cases
The AW-UE80WPJ is designed for environments where high-resolution monitoring and reliable performance are critical. Its dome form factor and multiple mount options make it suitable for discreet installation in corporate facilities, educational campuses, retail spaces, and public venues.
In live production settings, the camera's support for NDI, SDI, and FreeD protocols allows integration into broadcast and AR/VR systems. The 24x zoom and 60 fps capability are ideal for capturing dynamic events, sports, or detailed surveillance where subject tracking and clarity are paramount.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
Housed in a white dome enclosure, the camera measures 8.30" x 6.69" x 6.70" (210.82 mm x 169.93 mm x 170.18 mm) and weighs approximately 4.40 lb (1995.81 g). Its compact design supports ceiling, tripod, wall, and pole mounting, offering flexibility for various installation scenarios.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 8.30" (210.82 mm), 6.69" (169.93 mm), 6.70" (170.18 mm), 4.40 lb (1995.81 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.69" (169.93 mm)
- Depth
- 6.70" (170.18 mm)
- Height
- 8.30" (210.82 mm)
- Weight
- 4.40 lb (1995.81 g)
- Length
- 4.1 mm (0.16")
What's in the Box
The package includes the AW-UE80 4K Professional PTZ Camera and a ceiling mount, providing essential components for immediate deployment.
Package contents include AW-UE80 4K Professional PTZ Camera Ceiling Mount, AW-UE80 4K Professional PTZ Camera. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 8.4MP 4K resolution at 60 fps for detailed video capture
- 24x optical zoom with 74.1° wide-angle field of view
- Infrared night vision for 24/7 monitoring capability
- Supports H.264, H.265, and MJPEG video formats
- PoE++, PoE+, and 12V DC power options for flexible installation
- HDMI, NDI, SDI, and 3G-SDI video outputs
- Extensive IP protocol support including RTMP, RTP, and RTSP
- Dome form factor with ceiling, tripod, wall, and pole mount options
- FreeD support for AR/VR system integration
- Direct drive system for quiet and responsive PTZ movement
Specifications
| Specifications | |
|---|---|
| Manufacturer | Panasonic |
| Manufacturer Part Number | AW-UE80WPJ |
| Brand Name | Panasonic |
| Product Line | Professional |
| Product Model | AW-UE80 |
| Product Name | AW-UE80 4K Professional PTZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | MOS |
| Image Sensor Size | 1/2.5" |
| Color Supported | Color |
| Field of View | Horizontal angle of view: 74.1° (wide) to 3.3° (tele)Vertical angle of view: 46.0° (wide) to 1.9° (tele)Diagonal angle of view: 81.8° (wide) to 3.8° (tele) |
| Effective Camera Resolution | 8.4 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Video Signal Format | PAL,NTSC |
| Horizontal Resolution | 1500 TVL |
| Analog Video Signal Format | NDI,SDI,3G-SDI |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.1 mm (0.16") |
| Maximum Focal Length | 98.9 mm (3.89") |
| Lens Included | Yes |
| Minimum Aperture | f/4 |
| Maximum Aperture | f/1.8 |
| Optical Zoom | 24x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/25 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Protocols | RTMP,RTP,RTSP,SRTP,TCP,UDP,TCP/IP,UDP/IP,HTTP,HTTPS,DHCP,DNS,DDNS,NTP,IGMP,ICMP,ARP,DHCPv6,MLD |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | PoE++,DC,PoE+ |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Ceiling Mount,Tripod Mount,Wall Mount,Pole Mount |
| Form Factor | Dome |
| Height | 8.30" (210.82 mm) |
| Width | 6.69" (169.93 mm) |
| Depth | 6.70" (170.18 mm) |
| Weight (Approximate) | 4.40 lb (1995.81 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Miscellaneous | |
| Features | Day/Night,Gain Control,White Balance,Noise Detection,Mirror |
| Package Contents | AW-UE80 4K Professional PTZ Camera Ceiling Mount |
User Manual
FAQ
What is the resolution and frame rate of this camera?
The Panasonic AW-UE80WPJ captures 8.4-megapixel video at a maximum resolution of 3840 x 2160 (4K) and supports frame rates up to 60 frames per second. This high resolution and smooth motion capture are ideal for detailed surveillance and live production applications.
Does this camera support night vision?
Yes, the camera includes infrared night vision, enabling clear monitoring in low-light or no-light conditions. This feature ensures 24/7 operational capability for security and surveillance deployments.
What power options are available for this network camera?
The camera supports PoE++ (802.3bt), PoE+ (802.3at), and 12V DC power inputs. PoE++ allows for higher power delivery over Ethernet, simplifying installation by reducing the need for separate power cables in many setups.
What video outputs and protocols does this camera support?
Video outputs include HDMI, NDI, SDI, and 3G-SDI, catering to both IP and broadcast environments. It supports IP protocols such as RTMP, RTP, RTSP, SRTP, and HTTP/HTTPS, ensuring compatibility with a wide range of recording and streaming systems.
What is the optical zoom range and field of view?
The camera features a 24x optical zoom with a varifocal lens ranging from 4.1 mm to 98.9 mm. The horizontal field of view is 74.1° at the wide end, providing broad coverage, and narrows to 3.3° at full telephoto for detailed distant observation.
How is this camera mounted and what are its dimensions?
The dome-form-factor camera measures 8.30" high, 6.69" wide, and 6.70" deep (210.82 mm x 169.93 mm x 170.18 mm), weighing approximately 4.40 lb. It supports ceiling, tripod, wall, and pole mounting, offering versatile installation options for different environments.
What display size or resolution is listed?
It features a display specification of 8.4 Megapixel, giving you clear visuals for work and media use.
