- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- Takes minimal energy and effort to get installed internally
Marketing Information: - RS422 pin-outs match an SMPTE video standard-compatible controlling device.
- For DB9 equipment, if the peripheral operates on the RS422 signal, use only one DB9 converter. But if the transmitting and receiving equipment only operates on RS-232, use two converters.
- Provides 115.2-kbps speed for distances up to 4000 feet (1219.2 m).
Total Number of Ports: 2Maximum Distance Supported: 4000 ftForm Factor: InternalEnvironmentally Friendly: YesEnvironmental Certification: WEEECountry of Origin: United StatesTAA Compliant: YesLimited Warranty: 1 Year
[custom-specifications]
Specifications
Manufacturer: Black Box Corporation
Manufacturer Part Number: IC1474A-F
Manufacturer Website Address: http://www.blackbox.com
Brand Name: Black Box
Product Model: IC1474A-F

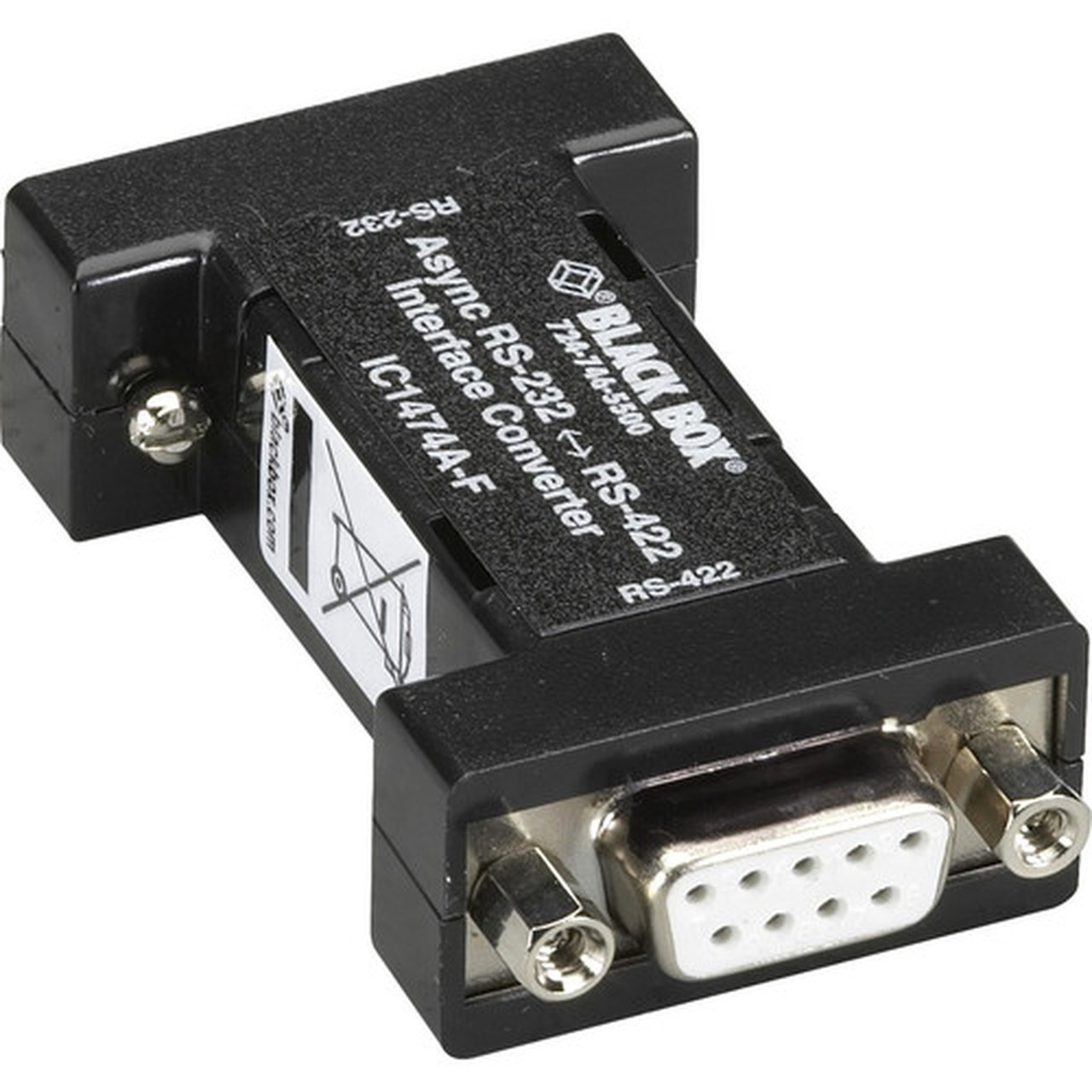

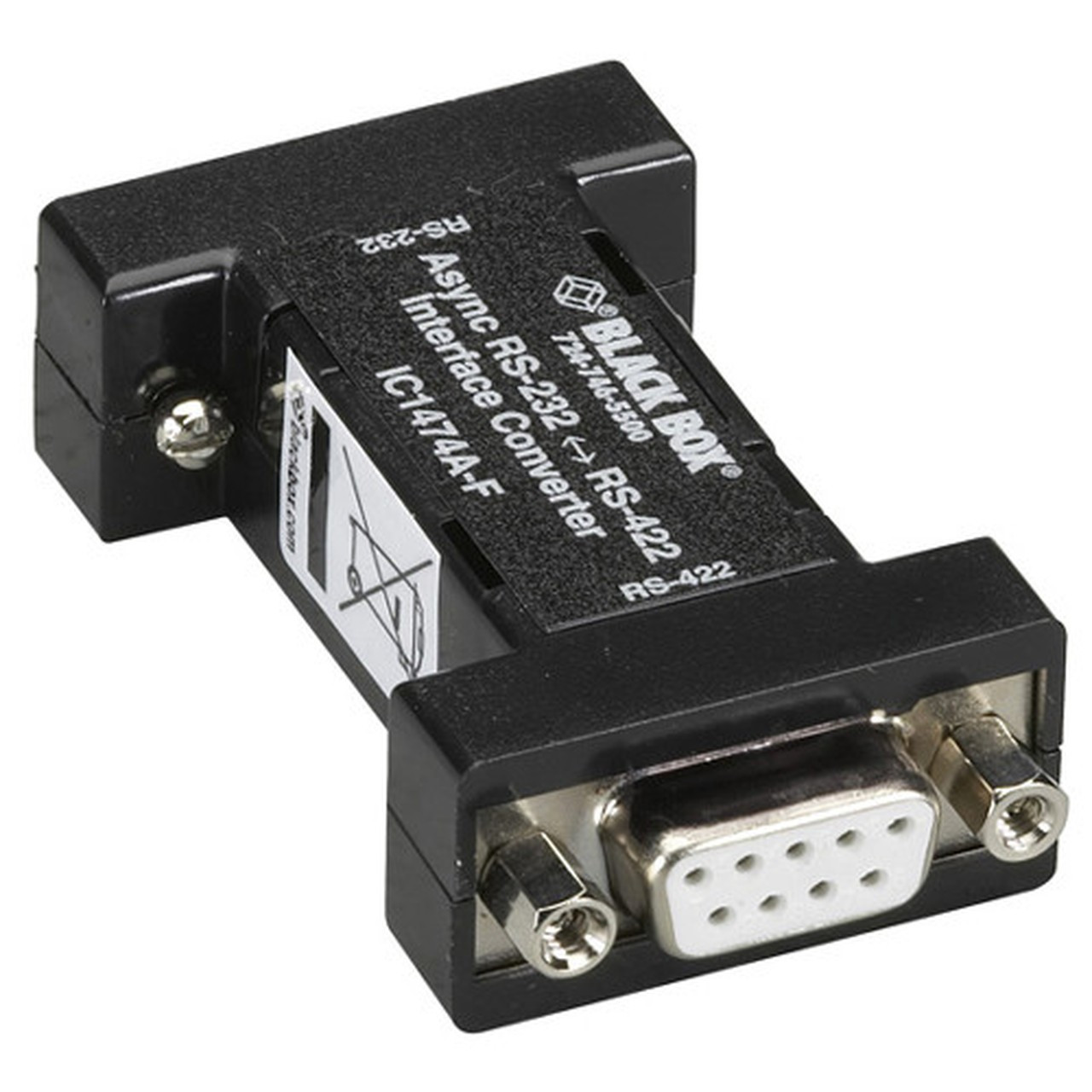

Product Name: RS232 to RS-422 Interface Bidirectional Converter
Product Condition: New
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Media & Performance
Maximum Distance Supported: 4000 ft
Physical Characteristics
Form Factor: Internal
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country of Origin: United States
TAA Compliant: Yes
Warranty
Limited Warranty: 1 Year
[/custom-specifications]
