- Extend VGA video up to 500 feet (152.4 m) on ordinary CAT5, CAT5e, or CAT6 cable.
- Ideal for digital signage applications, such as exhibits, retail, trade shows, and airports.
- Has a 2-kV avalanche diode, which provides greater electrostatic discharge (ESD) protection and more reliable operation.
- An equalization (gain) control on the remote unit enables you to fine-tune the picture.
[custom-specifications]
SpecificationsManufacturer: Black Box Corporation
Manufacturer Part Number: AC555A-R2
Manufacturer Website Address: http://www.blackbox.com
Brand Name: Black Box

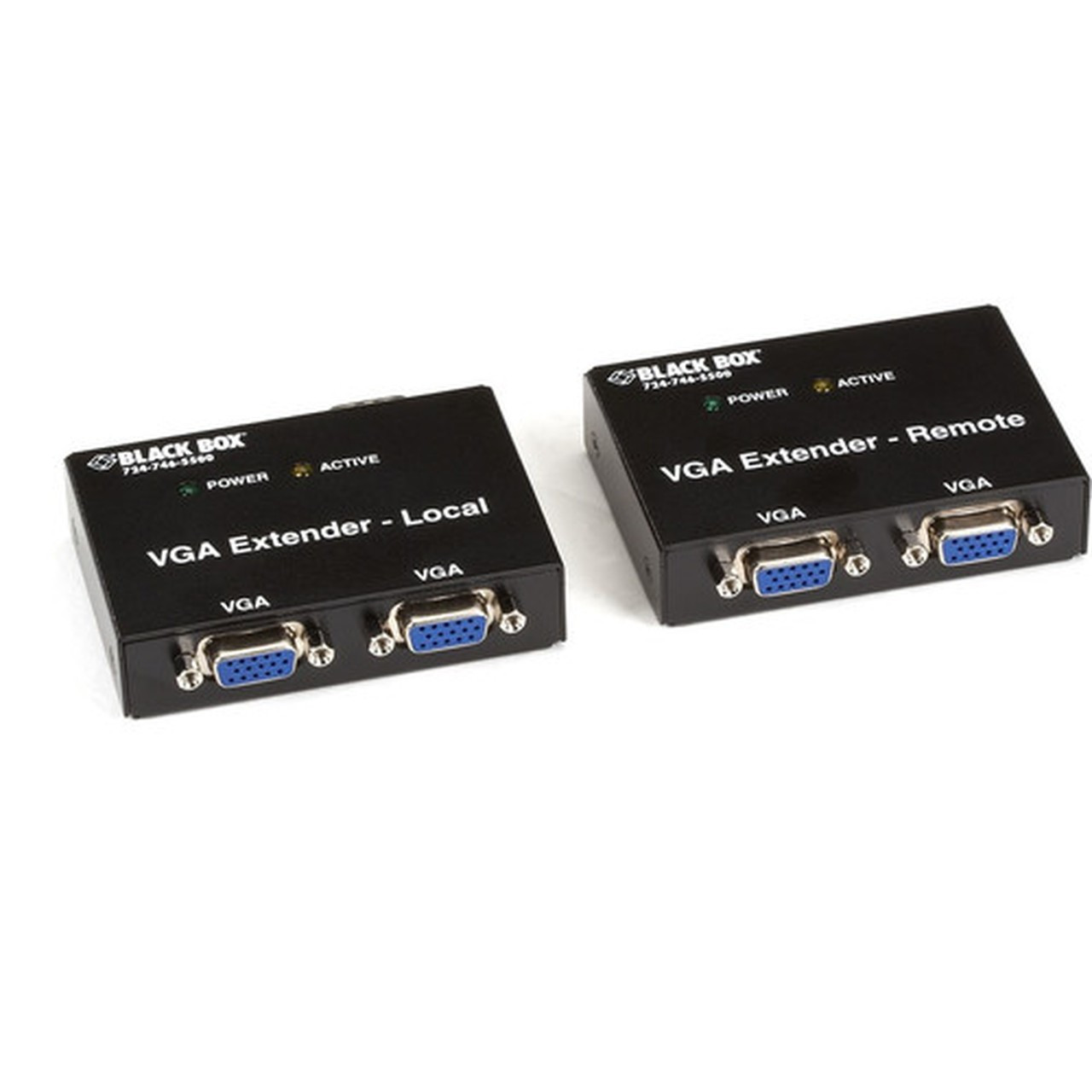

Product Name: VGA Extender Kit, 2-Port Local, 2-Port Remote
Product Type: Video Extender Transmitter/Receiver
Technical InformationConnectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 4
Maximum Operating Distance: 500 ft (152400 mm)
VideoGraphics Modes: XGA
Maximum Video Resolution: 1024 x 768
Interfaces/PortsNetwork (RJ-45): Yes
VGA In: Yes
VGA Out: Yes
Number of Network (RJ-45) Ports: 2
Number of VGA Inputs: 1
Number of VGA Outputs: 4
Media & PerformanceMedia Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Physical CharacteristicsTransmitter Height: 3.60" (91.44 mm)
Transmitter Width: 7.30" (185.42 mm)
Transmitter Depth: 9.50" (241.30 mm)
Receiver Height: 3.60" (91.44 mm)
Receiver Width: 7.30" (185.42 mm)
Receiver Depth: 9.50" (241.30 mm)
Transmitter Weight (Approximate): 362.9 g
MiscellaneousPackage Contents:
- VGA Extender Kit, 2-Port Local, 2-Port Remote
- 4 x Rubber Feet
- 6-ft. (1.8-m) VGA Male to VGA Female Cable
- 2 x 6-ft. (1.8-m) Power Cords
- 2 x Power Supplies
- Manual
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
WarrantyLimited Warranty: 3 Year
[/custom-specifications]
