Eaton G4 EVMIL630X 42-Outlets PDU - Metered - NEMA L6-30P - 24 x IEC 60320 C13, 18 x IEC 60320 C39 - 230 V AC - Circuit Breaker - - 10 (EVMIL630X)

Marketing Information:

Features | Single-Phase Metered Input PDU Ideal for Data Center Managers with Large-Scale Distributed IT

The EVMIL630X G4 Rack PDU is ideal for streamlining PDU procurement and deployment within a 42U rack in an enterprise data center, colocation data center or distributed IT infrastructure. Equipped to meet even the most diverse data center rack power needs, the EVMIL630X delivers versatile, enterprise-quality power distribution.

Market-Leading Cybersecurity Ensures Your Data Is Kept Safe

Chain-of-trust encryption and secure firmware boot capability prevent the EVMIL630X PDU from being a cyberattack vulnerability point on a network. An embedded, hot-swappable gigabit network module (GNM) offers enhanced management and cybersecurity, including zero-trust architecture and zero-touch provisioning. The EVMIL630X is compatible with select Eaton Brightlayer Data Centers suite software solutions that enable extensive automation and remote management to shorten response times to power issues and ensure timely updates for stronger cybersecurity.

Remote Management Saves Time and Money

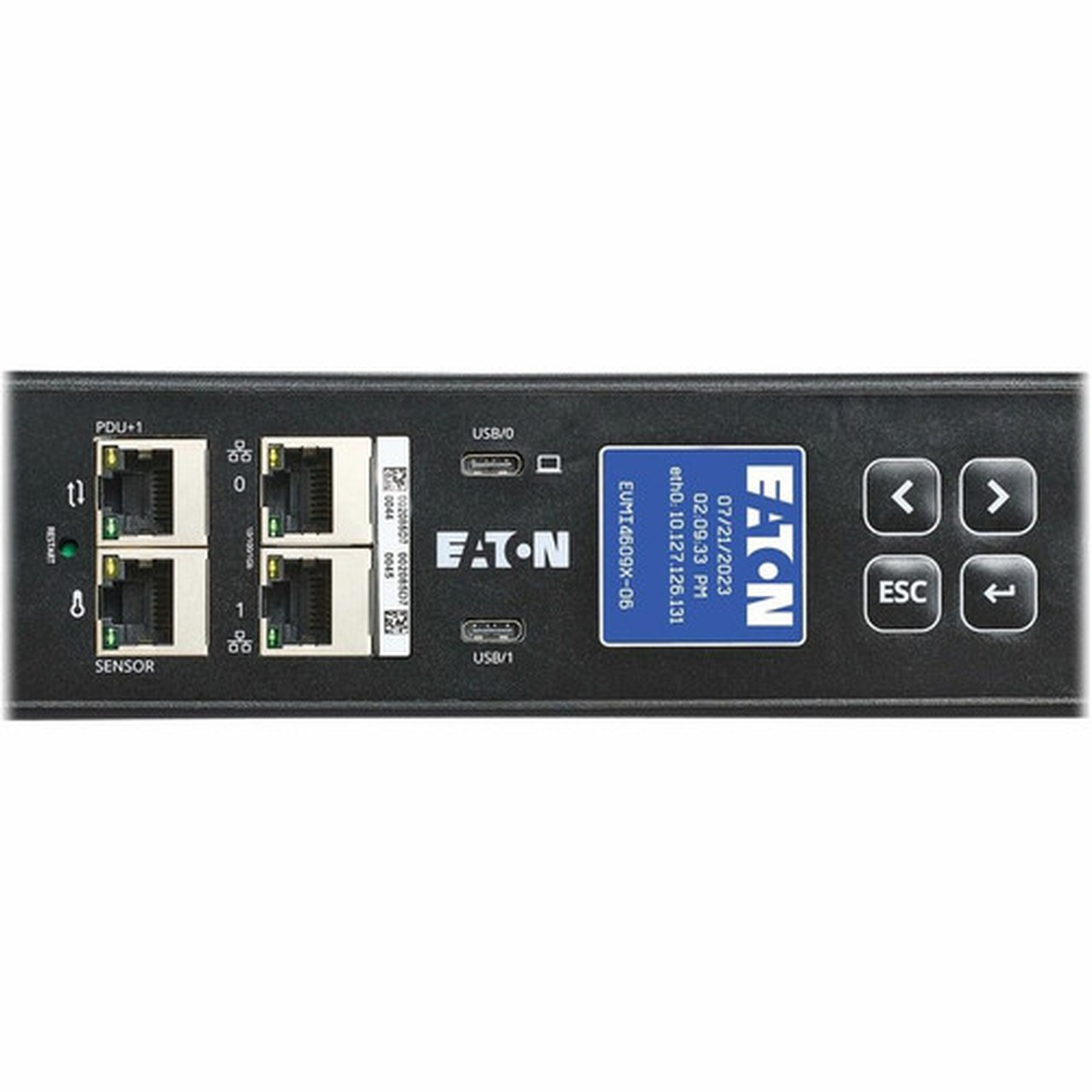

The GNM with multi-color screen supports performance management software for real-time reports, trend charts, dashboards and alerts that are prioritized by severity, as well as remote troubleshooting and automated responses during power events. The EVMIL630X is compatible with optional environmental sensors (sold separately) that provide alerts about temperature, humidity and dry-contact device connections.

42 Outlets Give You Plenty of Power Options

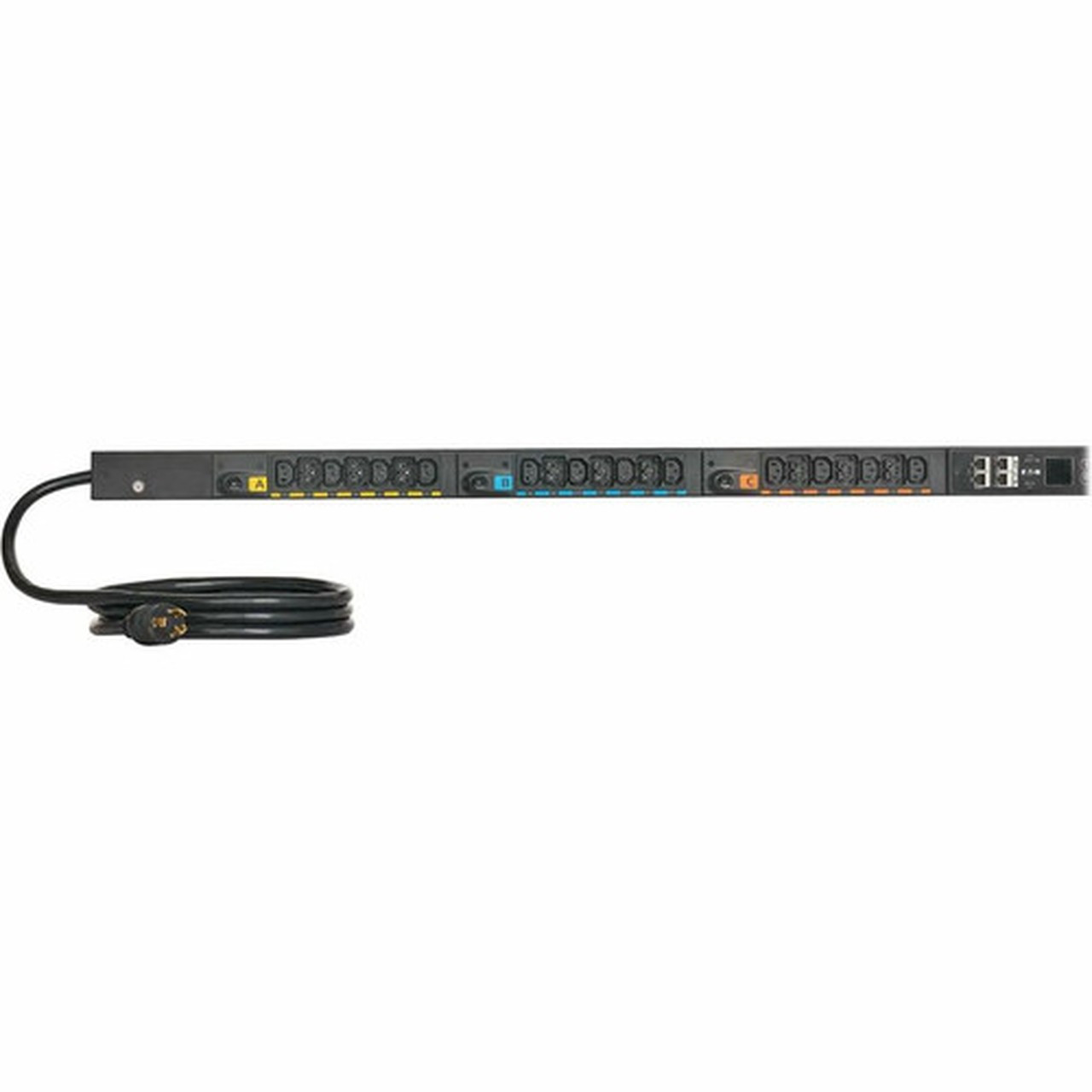

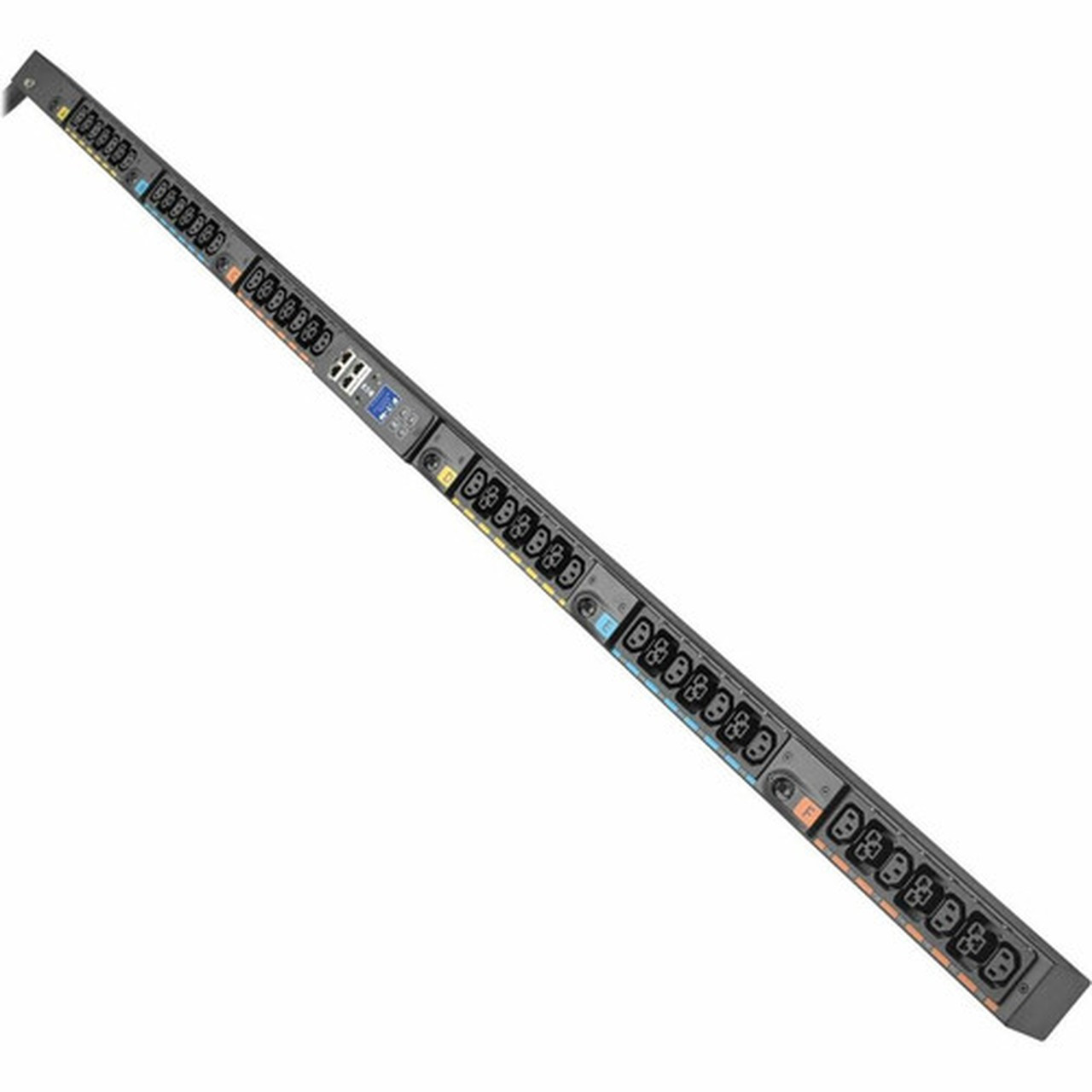

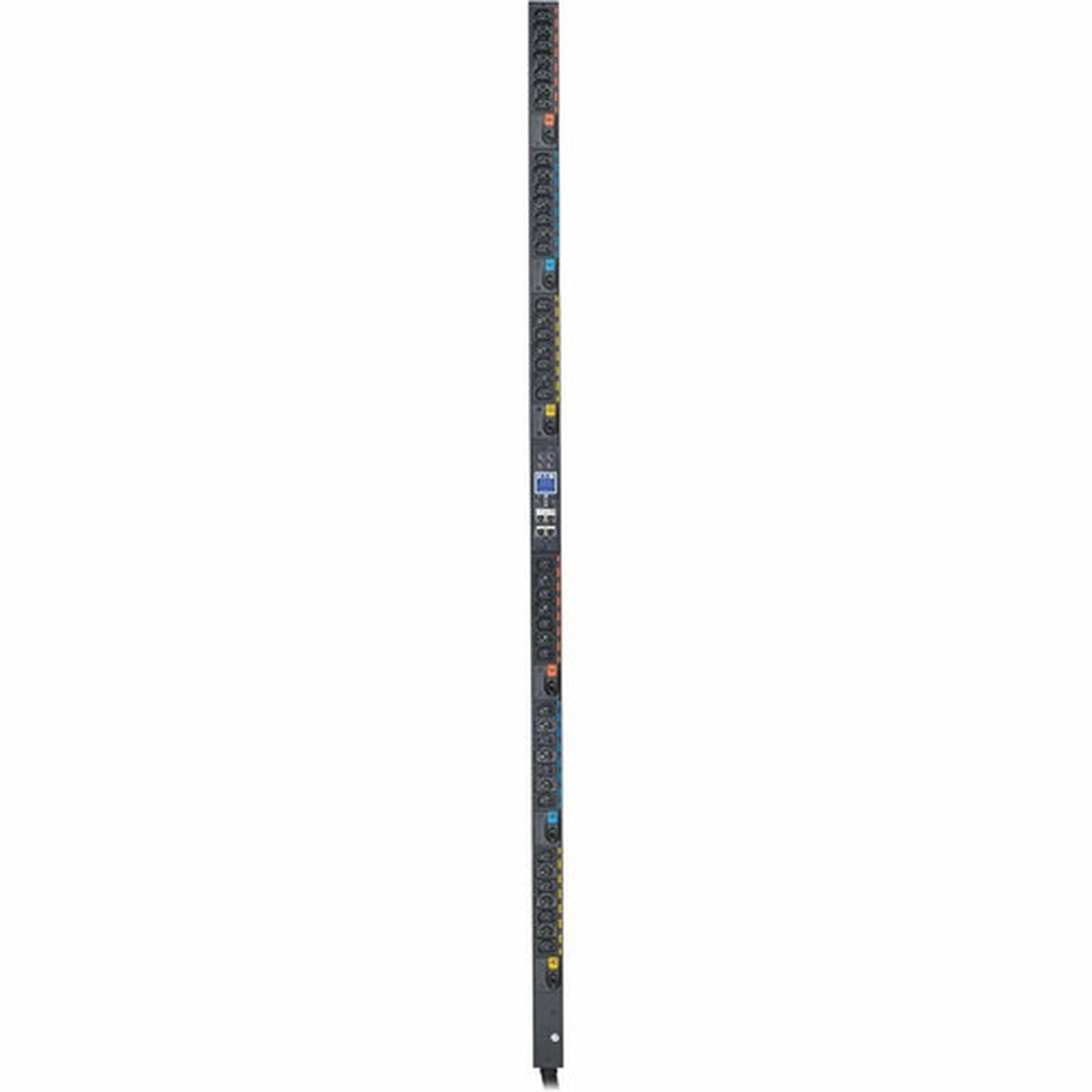

The EVMIL630X features 24 C13 outlets, which accept C14 connectors, and 18 high-retention C39 combo outlets, which accept both C14 and C20 connectors, adding flexibility to deployments and reducing the quantity of PDUs you will need to purchase and install. The outlets are evenly distributed into six color-coded load banks, to improve load balancing and organize connections in a crowded rack.

Convenient Box-to-Rack Installation

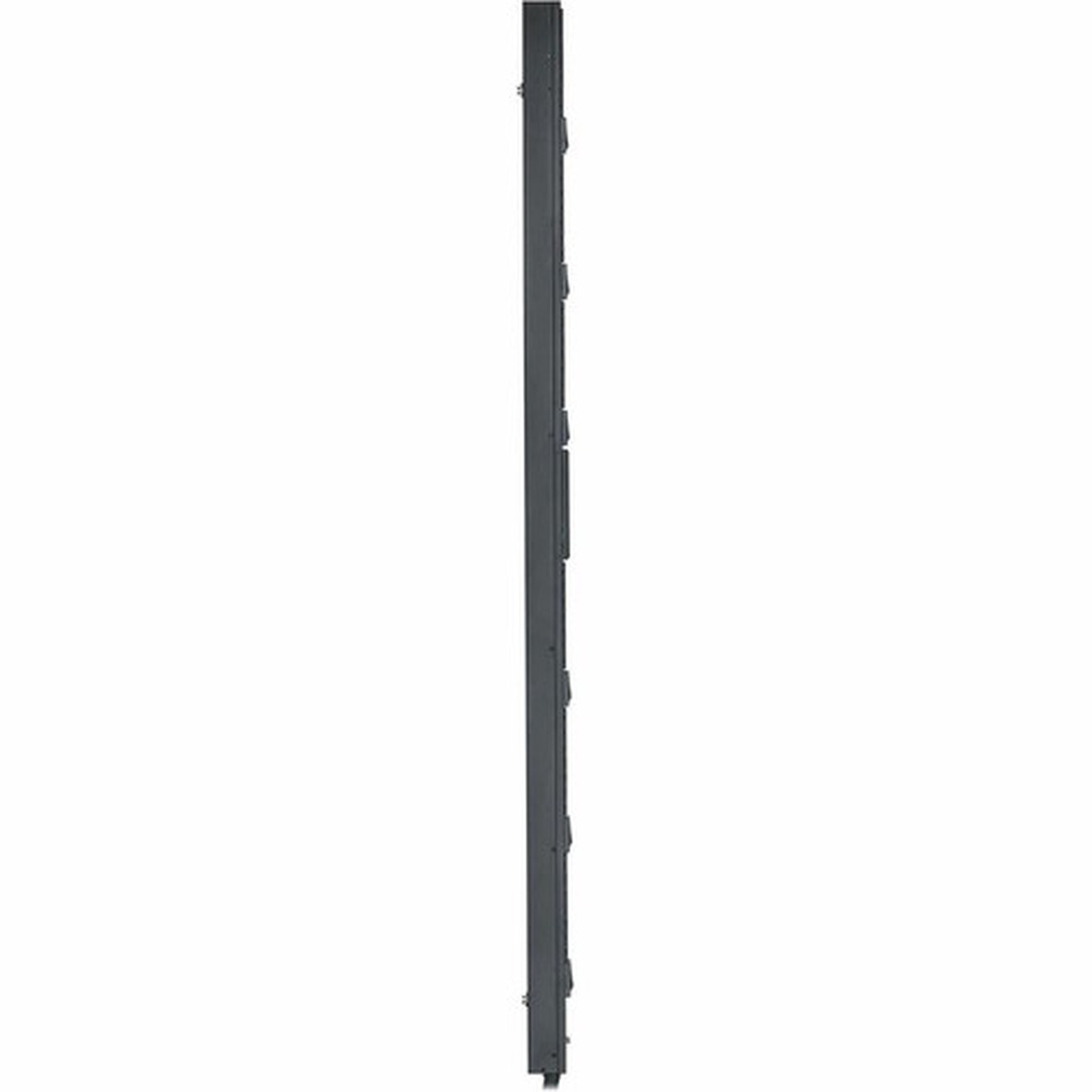

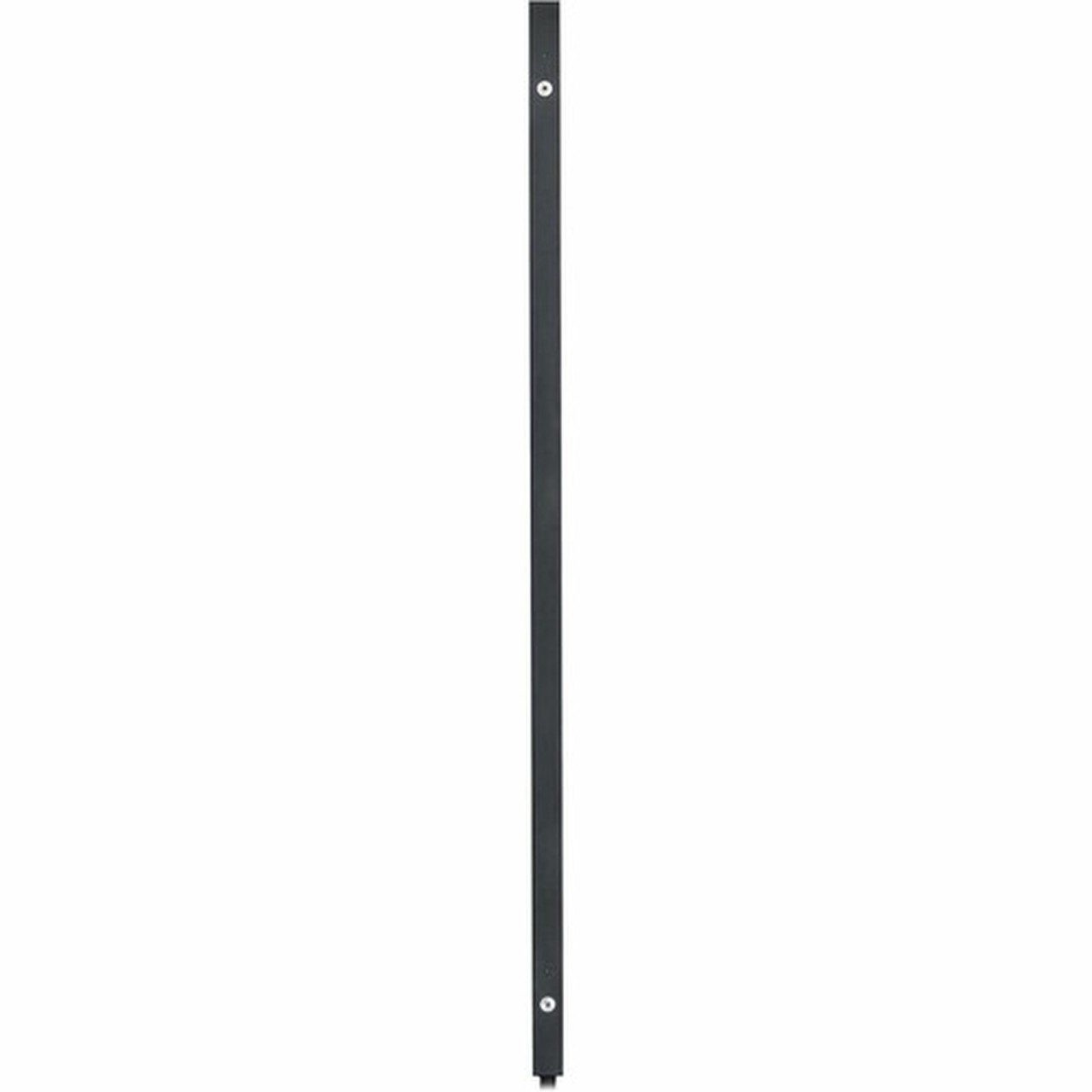

This EVMIL630X PDU features toolless mounting buttons that allow front- or side-facing rack installation, depending on your rack's layout and your power needs. The 10-foot power cord with L6-30 input connects to a compatible AC source. Low-profile circuit breakers are flush with the lightweight aluminum chassis, and the narrow two-inch width saves space within the rack for revenue-generating equipment. You can cascade up to 32 EVMIL630X models with each model maintaining its own individual IP address from a single network connection point.

PDU Type: Metered

Phase: Single Phase

Plug/Connector Type: NEMA L6-30P

Receptacle Type: IEC 60320 C13,IEC 60320 C39

Receptacle Detail: 24 x IEC 60320 C13,18 x IEC 60320 C39

Protection Type: Circuit Breaker

Features: LCD Display

Input Voltage: 230 V AC

Input Voltage Range: 200 V AC - 240 V AC

Output Voltage: 208 V AC

Power Rating (VA): 5.80 kVA

Power Rating (Watt): 5.80 kW

Input Current: 30 A

Management:

• SNMP
• Network Management Card

Network (RJ-45): Yes

Product Color: Black

Mounting Orientation: Vertical/Toolless

Mount Type: Rack-mountable,Button Mount

Form Factor: Vertical

Rack Height: 0U

Cord Length: 10 ft

Height: 68.10" (1729.74 mm)

Width: 2.09" (53.09 mm)

Depth: 2.05" (52.07 mm)

Weight (Approximate): 7.50 kg

Minimum Operating Temperature: 32°F (0°C)

Maximum Operating Temperature: 140°F (60°C)

Package Contents:

• G4 EVMIL630X 42-Outlets PDU
• Mounting Buttons

Application/Usage: Data Center,IT Equipment

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
