- Provides deep visibility, diagnostics, and packet capture for network technicians and engineers to quickly resolve issues impacting single or multiple devices and network segments.
- Automatically discovers, inventories, and documents network infrastructure devices, endpoints, and connection paths across multiple VLANs and subnets; detects common problems and generates topology maps in Link-Live.
- Comprehensive AutoTest validates and troubleshoots all aspects of network connectivity and services.
- Verifies available link speed from 10Mbps to 10Gbps, tests PoE, identifies connected switch port and VLAN.
- LinkRunner AT 4000 Advanced Network & Cable Tester
- Power Supply with Regional Power Plugs
- WireView Cable ID #1
- RJ-45 Coupler
- 850nm Multimode 1 Gbps SFP
- Getting Started Guide
- Shoulder Sling Bag
Marketing Information:
Advanced Copper and Fiber Network Testing, Diagnostics, Discovery, and Mapping
Overview

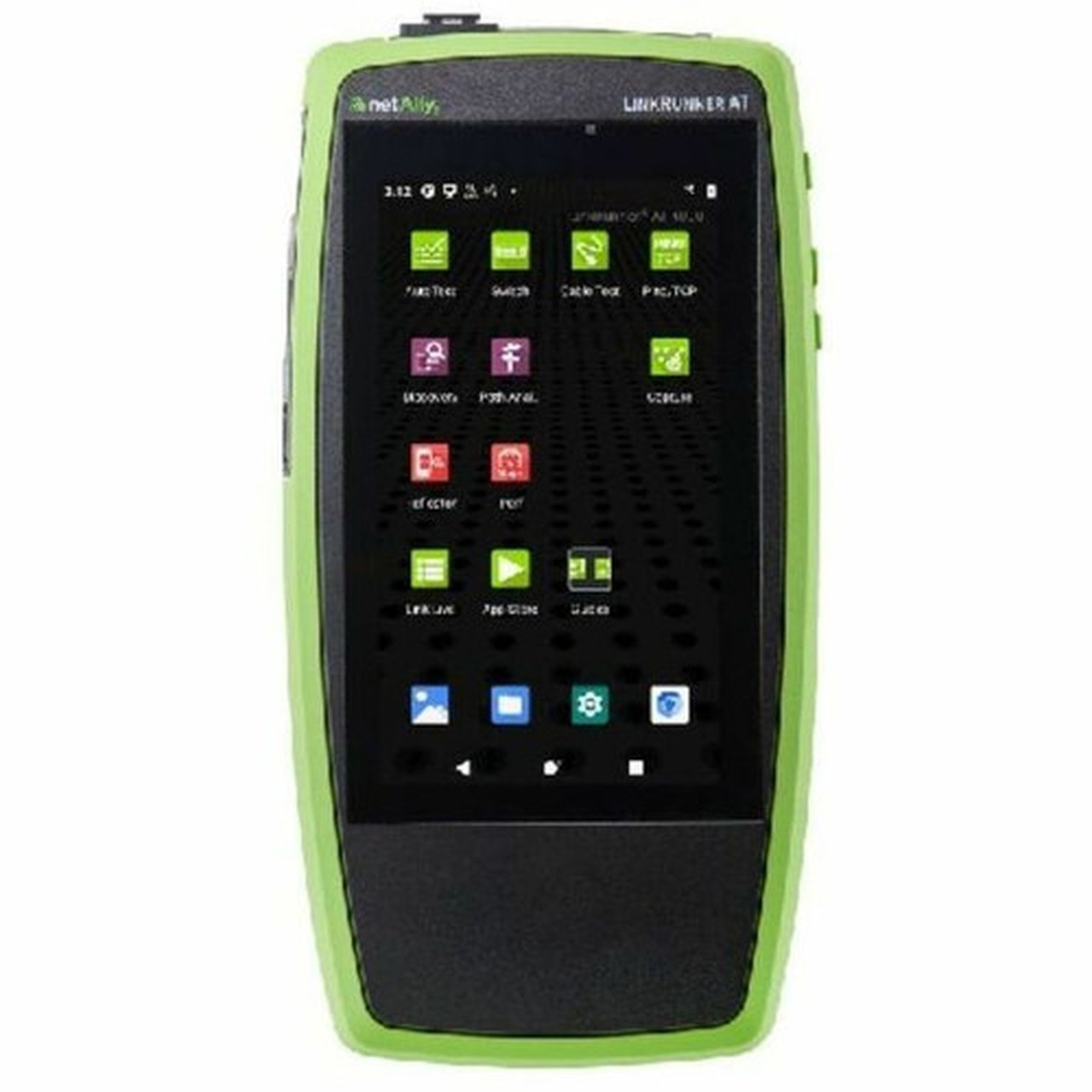

The LinkRunner AT 4000 is an advanced cable and network tester for Multigigabit NBASE-T and fiber Ethernet networks, including comprehensive network discovery and topology mapping with advanced diagnostics and problem detection for in-depth troubleshooting.
Using network discovery and layer 2 and 3 path analysis, the LinkRunner AT 4000 offers comprehensive network visibility to help resolve issues impacting multiple devices - not just a single link - while still providing the automated tests for moves/ adds/changes validation and troubleshooting that the LinkRunner AT family of test solutions is known for.
Test results can be automatically uploaded to the Link-Live collaboration, reporting, and analysis platform to improve teamwork between network engineers and technicians, creating greater job visibility, better project control, and improved tester fleet management. Independent management plane via wired or Wi-Fi connection (with optional adapters) allows remote operation and result uploading separate from the network under test.
Device Function: Network Testing,Cable Testing,PoE Testing,Fiber Optic Cable Testing,LAN Cable Testing
USB: Yes
Network (RJ-45): Yes
Number of USB Ports: 2
Number of Network (RJ-45) Ports: 2
Wireless LAN: No
Media Type Supported: Twisted Pair,Optical Fiber
Network Standard: 1000Base-T,1000Base-X,1000Base-SX,1000Base-LX,1000Base-ZX,100Base-FX
Ethernet Technology: Gigabit Ethernet
Display Screen Type: LCD
Total Number of Expansion Slots: 1.0
Expansion Slot Type: SFP
Number of SFP Slots: 1
Battery Size Supported: Proprietary Battery Size
Battery Rechargeable: Yes
Battery Life: 9 Hour
Battery Chemistry: Lithium Ion (Li-Ion)
Input Voltage: 120 V AC,230 V AC
Height: 7.72" (196.09 mm)
Width: 4.02" (102.11 mm)
Depth: 1.65" (41.91 mm)
Weight (Approximate): 480.8 g
Package Contents:
- Automatically discover and instantly generate a topology map of your networks using the Link-Live™ reporting and analysis platform.
- Comprehensive AutoTest validates and troubleshoots all aspects of network connectivity and services including DHCP and DNS, as well as response time of cloud and on-prem HTTP and FTP services.
- Verifies link speed/duplex for 10/100 Mbps and 1 Gbps, with detection of NBASE-T and Multigigabit 2.5G, 5G and 10 Gbps links.
- Discovers nearest connected switch name and port information via CDP/LLDP/EDP, including VLANs; monitors VLAN trunk traffic.
- Validates Power over Ethernet switching and cabling up to 90W 802.3bt with TruePower™ loading.
- Advanced twisted-pair cable tests for length, wiremap, and faults such as shorts, opens, mis-wires (split pairs, crossovers), fiber optic link signal strength power measurement and SFP diagnostics. Locate cable endpoints with optional WireView adapters.
- In-depth analysis tools like Path Analysis and line-rate packet capture help solve complex issues.
- Automate reporting/documentation and enable collaboration with test result uploads, management, and tester remote control via Link-Live™
[custom-specifications]
Specifications | |
Manufacturer | NetAlly |
Manufacturer Part Number | LRAT-4000 |
Manufacturer Website Address | http://www.netally.com |
Brand Name | NetAlly |
Product Line | LinkRunner |
Product Model | LRAT-4000 |
Product Name | LinkRunner AT 4000 Advanced Network & Cable Tester |
Product Type | Cable/Network Tester |
Technical Information | |
Device Function | Network Testing,Cable Testing,PoE Testing,Fiber Optic Cable Testing,LAN Cable Testing |
Interfaces/Ports | |
USB | Yes |
Network (RJ-45) | Yes |
Number of USB Ports | 2 |
Number of Network (RJ-45) Ports | 2 |
Wireless Specifications | |
Wireless LAN | No |
Media & Performance | |
Media Type Supported | Twisted Pair,Optical Fiber |
Network & Communication | |
Network Standard | 1000Base-T,1000Base-X,1000Base-SX,1000Base-LX,1000Base-ZX,100Base-FX |
Ethernet Technology | Gigabit Ethernet |
Display & Graphics | |
Display Screen Type | LCD |
I/O Expansions | |
Total Number of Expansion Slots | 1.0 |
Expansion Slot Type | SFP |
Number of SFP Slots | 1 |
Battery Information | |
Battery Size Supported | Proprietary Battery Size |
Battery Rechargeable | Yes |
Battery Life | 9 Hour |
Battery Chemistry | Lithium Ion (Li-Ion) |
Power Description | |
Input Voltage | 120 V AC,230 V AC |
Physical Characteristics | |
Height | 7.72" (196.09 mm) |
Width | 4.02" (102.11 mm) |
Depth | 1.65" (41.91 mm) |
Weight (Approximate) | 480.8 g |
Miscellaneous | |
Package Contents |
|
