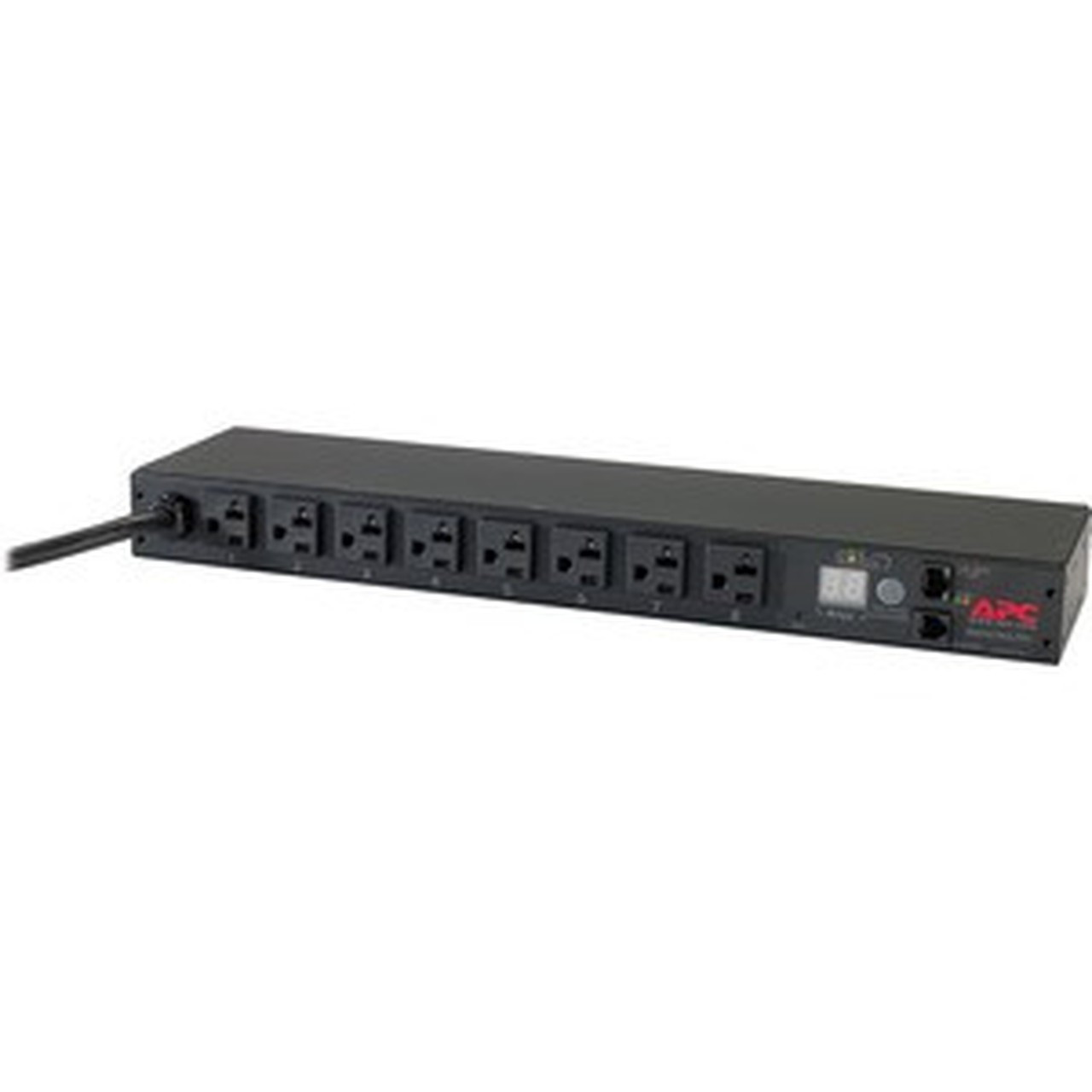

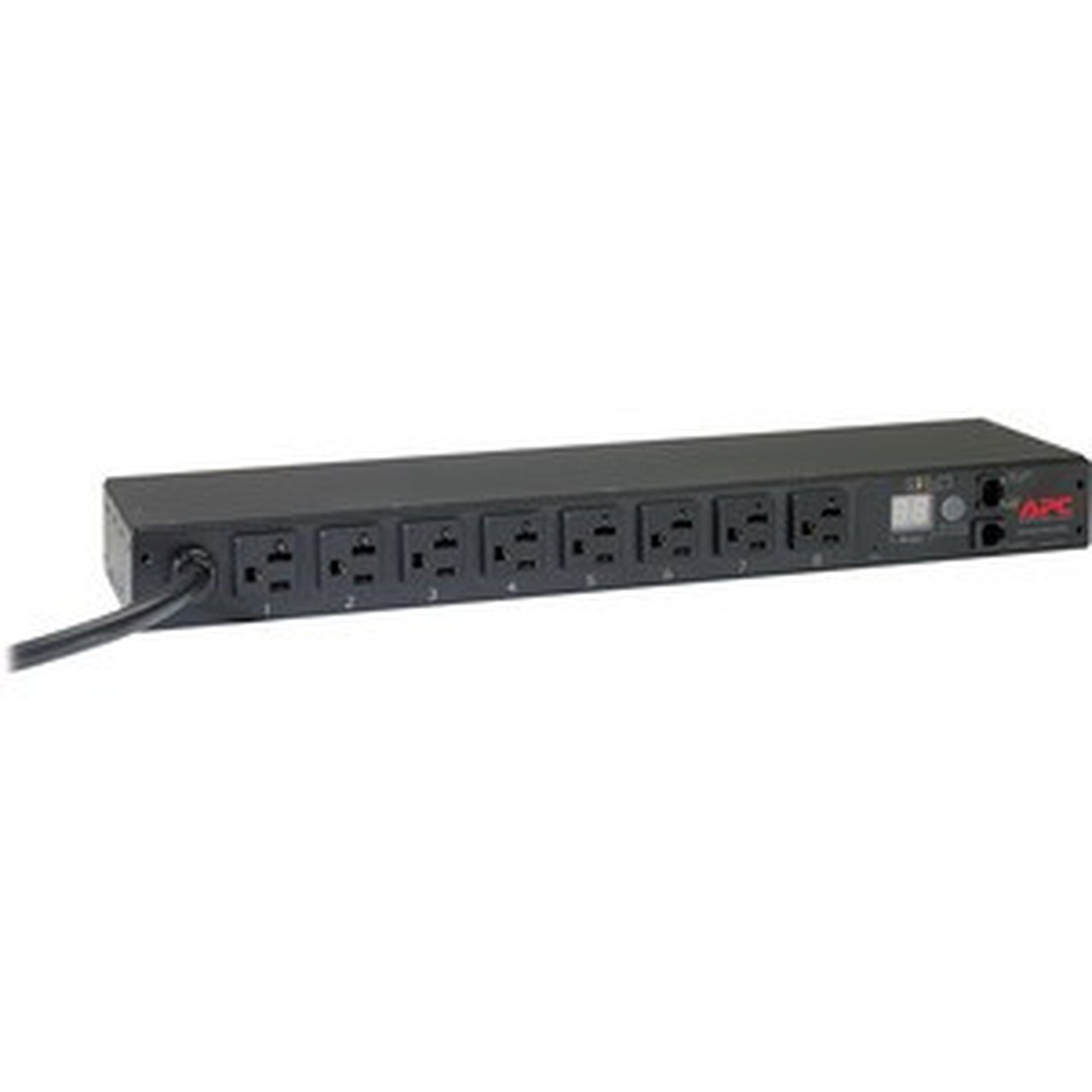

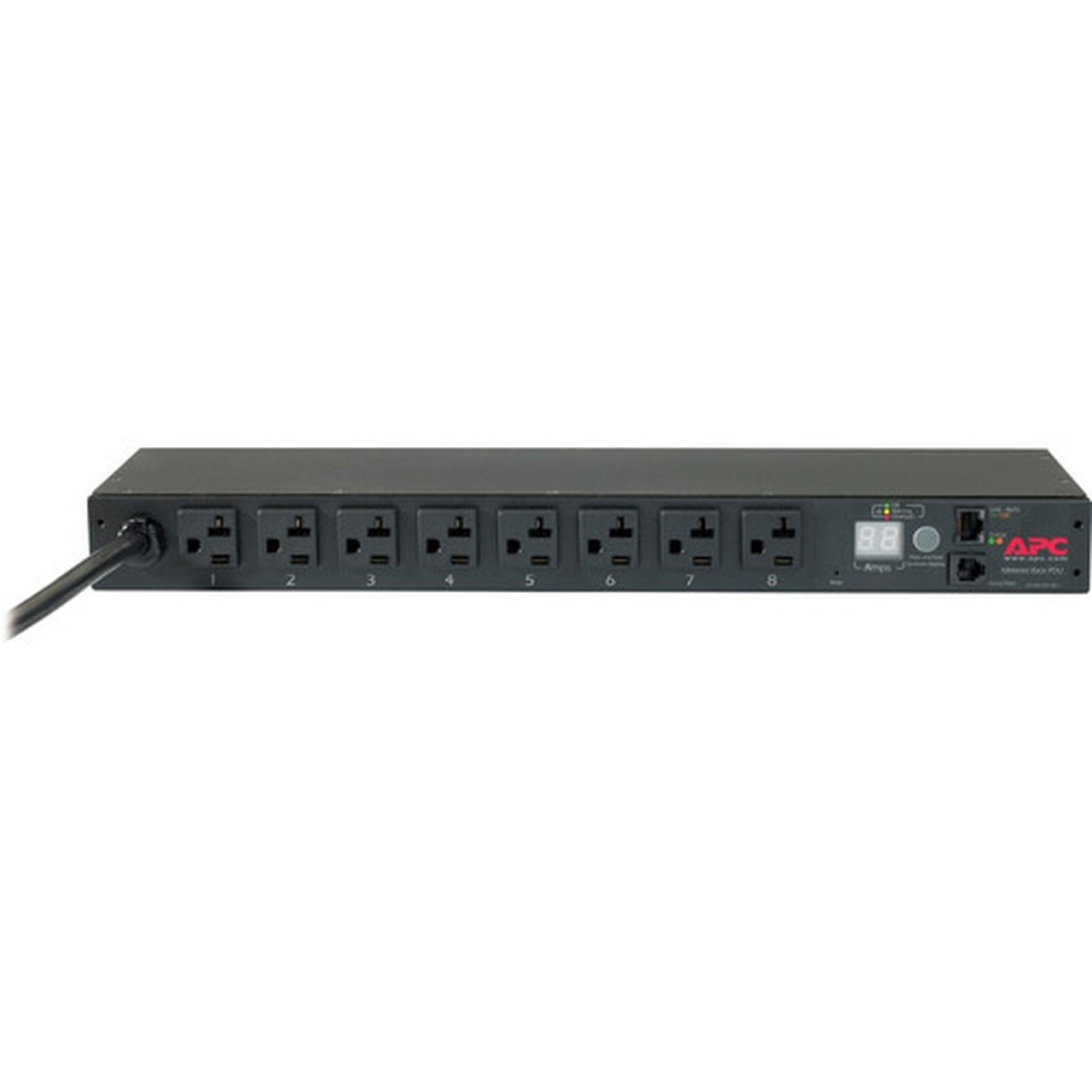

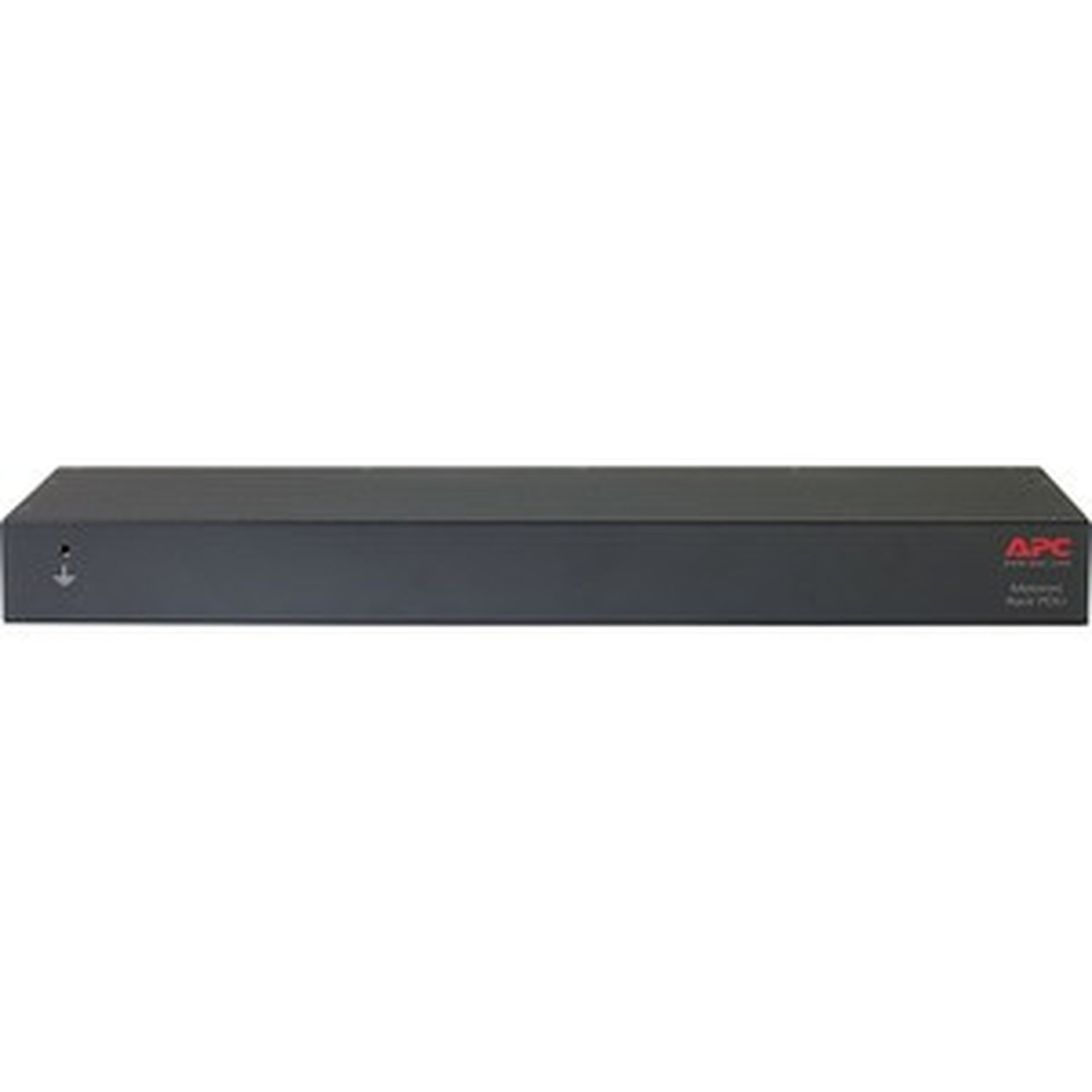

Schneider Electric Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20 - Metered - NEMA L5-20P - 8 x NEMA 5-20R - 120 V AC - 1.92 kW - 1U - (AP7801B)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
- Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20
- Cord retention bracket(s)
- Installation guide
- Rack mounting brackets
- User manual
Marketing Information: Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.
PDU Type: Metered
Plug/Connector Type: NEMA L5-20P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 8 x NEMA 5-20R
Input Voltage: 100 V,120 V
Output Voltage: 120 V AC
Power Rating (VA): 1.92 kVA
Input Current: 20 A
Mount Type: Rack-mountable
Rack Height: 1U
Cord Length: 12 ft
Height: 1.73" (44 mm)
Width: 17.48" (444 mm)
Depth: 4.02" (102 mm)
Weight (Approximate): 1.73 kg
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
[custom-specifications]
Specifications | |
---|---|
Manufacturer | Schneider Electric SA |
Manufacturer Part Number | AP7801B |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | APC by Schneider Electric |
Product Name | Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20 |
Product Type | PDU | Technical Information |
PDU Type | Metered |
Plug/Connector Type | NEMA L5-20P |
Receptacle Type | NEMA 5-20R |
Receptacle Detail | 8 x NEMA 5-20R | Power Description |
Input Voltage | 100 V,120 V |
Output Voltage | 120 V AC |
Power Rating (VA) | 1.92 kVA |
Input Current | 20 A | Physical Characteristics |
Mount Type | Rack-mountable |
Rack Height | 1U |
Cord Length | 12 ft |
Height | 1.73" (44 mm) |
Width | 17.48" (444 mm) |
Depth | 4.02" (102 mm) |
Weight (Approximate) | 1.73 kg | Miscellaneous |
Package Contents | |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) | Warranty |
Limited Warranty | 2 Year |
Additional Warranty Information | 2 years repair or replace |
[/custom-specifications]
