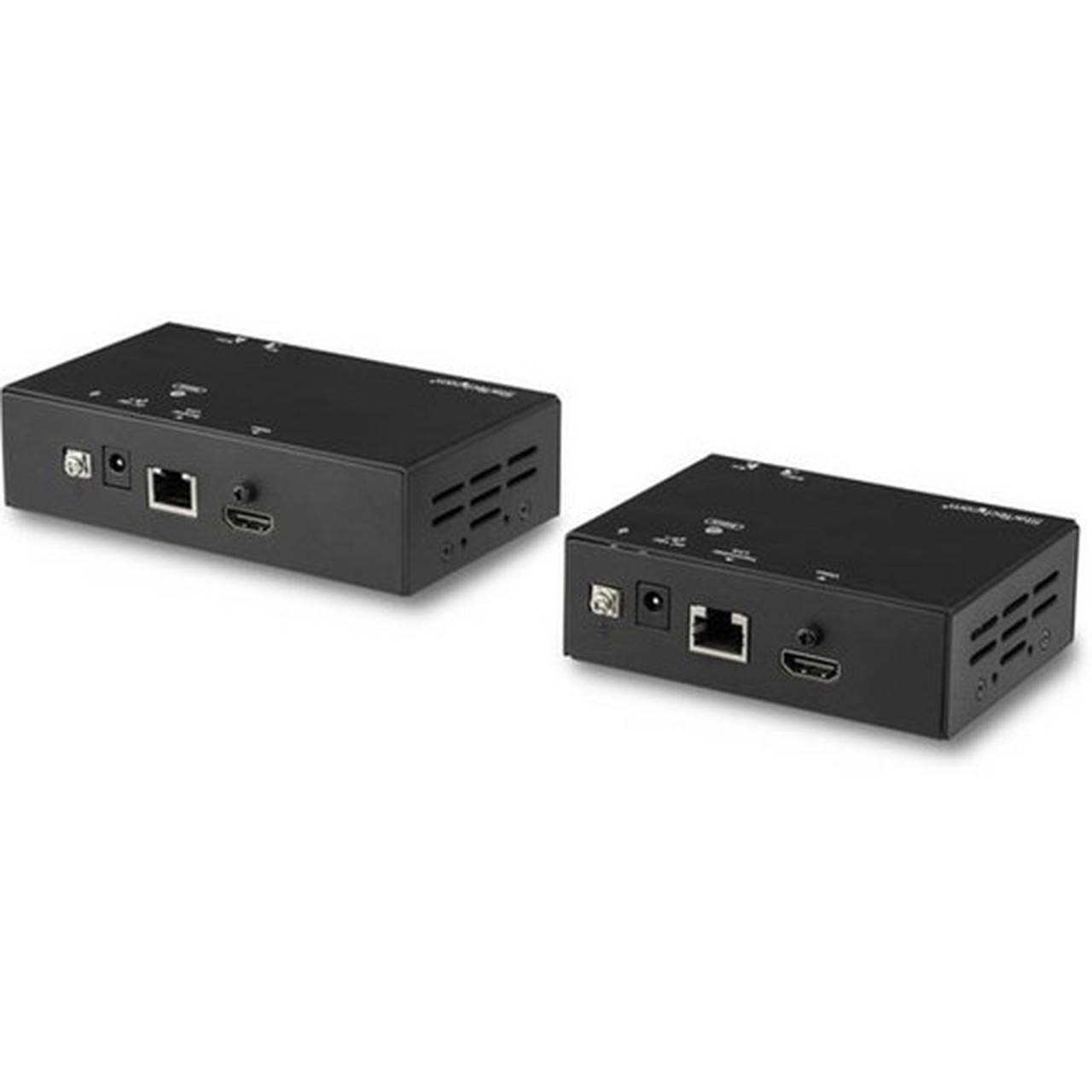

StarTech.com HDMI Over CAT6 Extender - Power Over Cable - 4K 60Hz Up to 70m / 230 ft - 1080p 60Hz up to 100m / 328 ft - Extend HDMI to (ST121HDBT20L)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Free Shipping*

Write a Review
$690.06
SKU: ST121HDBT20L
UPC: 065030877879
Availability: Stock In Canada - Ship UPS & Purolator
Weight: 3.50 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

    Marketing Information:

    This HDMI Over CAT6 extendertransmitsyour HDMI audio/video signal to a remote location up to 100 m (328 ft.)away.

    Get4K at 60Hz from 70 m (230 ft.)away

    This HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 70 m (230 ft.)away from your video source. If you're not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances, up to 100 m (328 ft.)from your HDMI source.

    With full support for your HDMI 2.0 equipment, including4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color.

    Simplify your setup

    The HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extender only requires a single CAT5e or CAT6 cable, so you extend an HDMI signal using existing infrastructure that's already in your building. Plus, this HDMI extender supports Power Over Cable (POC), which means you'll only need one power adapter connected to either your transmitter or receiver. Mounting hardware is also included for discreet, professional installation.

    The ST121HDBT20L is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

    More from the Manufacturer

    Connectivity Technology: Wired

    Number of Input Devices Supported: 1

    Number of Output Devices Supported: 1

    Maximum Operating Distance: 328.08 ft (100000 mm)

    Graphics Modes: 4K

    Maximum Video Resolution: 4096 x 2160

    Network (RJ-45): Yes

    HDMI In: Yes

    HDMI Out: Yes

    Number of Network (RJ-45) Ports: 2

    Number of HDMI Inputs: 1

    Number of HDMI Outputs: 1

    Media Type Supported: Twisted Pair

    Twisted Pair Cable Standard: Category 6

    Product Color: Black

    Transmitter Height: 1" (25.40 mm)

    Transmitter Width: 3" (76.20 mm)

    Transmitter Depth: 4" (101.60 mm)

    Receiver Height: 1" (25.40 mm)

    Receiver Width: 3" (76.20 mm)

    Receiver Depth: 4" (101.60 mm)

    Transmitter Weight (Approximate): 110 g

    Receiver Weight (Approximate): 110 g

    Package Contents:

    • 1 x HDMI Over CAT6 Transmitter
    • 1 x HDMI Over CAT6 Receiver
    • 1 x Universal Power Adapter (NA/JP, EU, UK, ANZ)
    • 1 x IR Blaster
    • 1 x IR Receiver
    • 2 x Mounting Brackets
    • 8 x Rubber Feet
    • 1 x Quick-Start Guide

    Country of Origin: Taiwan

    TAA Compliant: Yes

    Environmentally Friendly: Yes

    Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

    Limited Warranty: 2 Year

[custom-highlights]
  • Get astonishing video quality at impressive distances with UHD 4K 60Hz resolution at up to 70 m (230 ft.) and 1080p 60Hz resolutions at up to 100 m (328 ft.)
  • Hassle-free setup with video and power over a single CAT5e or CAT6 cable
  • Sleek professional installation with optional mounting hardware included
  • Remotely control your video source from the location of your remote display, with support for IR extension
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerStarTech.com
Manufacturer Part NumberST121HDBT20L
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product NameHDMI Over CAT6 Extender - Power Over Cable - Up to 100 m (328 ft.)
Packaged Quantity ConditionKit
Product TypeVideo Extender Transmitter/Receiver
Technical Information
Connectivity TechnologyWired
Number of Input Devices Supported1
Number of Output Devices Supported1
Maximum Operating Distance328.08 ft (100000 mm)
Video
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Interfaces/Ports
Network (RJ-45)Yes
HDMI InYes
HDMI OutYes
Number of Network (RJ-45) Ports2
Number of HDMI Inputs1
Number of HDMI Outputs1
Media & Performance
Media Type SupportedTwisted Pair
Twisted Pair Cable StandardCategory 6
Physical Characteristics
Product ColorBlack
Transmitter Height1" (25.40 mm)
Transmitter Width3" (76.20 mm)
Transmitter Depth4" (101.60 mm)
Receiver Height1" (25.40 mm)
Receiver Width3" (76.20 mm)
Receiver Depth4" (101.60 mm)
Transmitter Weight (Approximate)110 g
Receiver Weight (Approximate)110 g
Miscellaneous
Package Contents
  • 1 x HDMI Over CAT6 Transmitter
  • 1 x HDMI Over CAT6 Receiver
  • 1 x Universal Power Adapter (NA/JP, EU, UK, ANZ)
  • 1 x IR Blaster
  • 1 x IR Receiver
  • 2 x Mounting Brackets
  • 8 x Rubber Feet
  • 1 x Quick-Start Guide
Country of OriginTaiwan
TAA CompliantYes
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty2 Year

[/custom-specifications]

[custom-user-manual]

Available Documentation:


Additional-pdf1
Additional-pdf2

[/custom-user-manual]

Warranty Infomartion

2 Year
