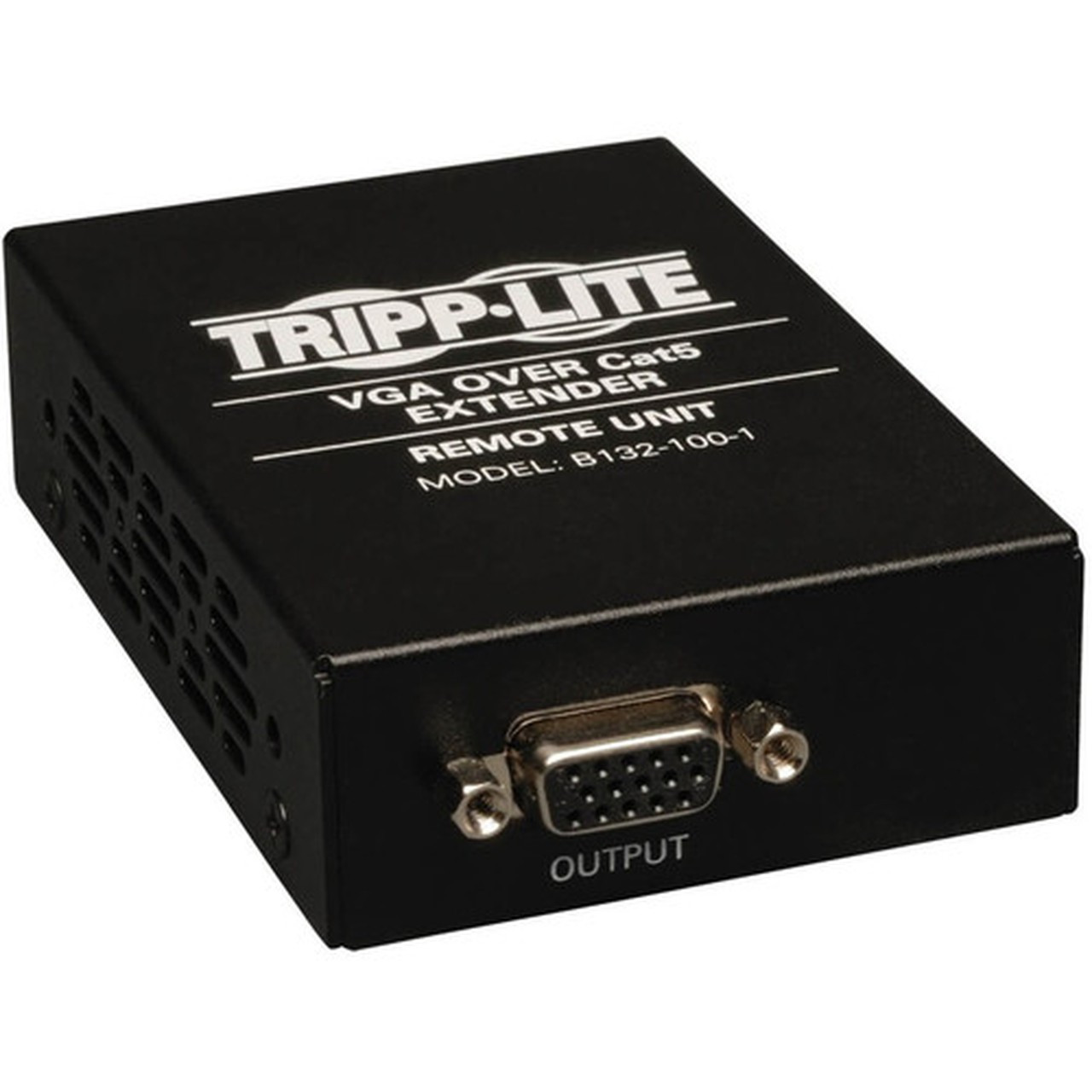

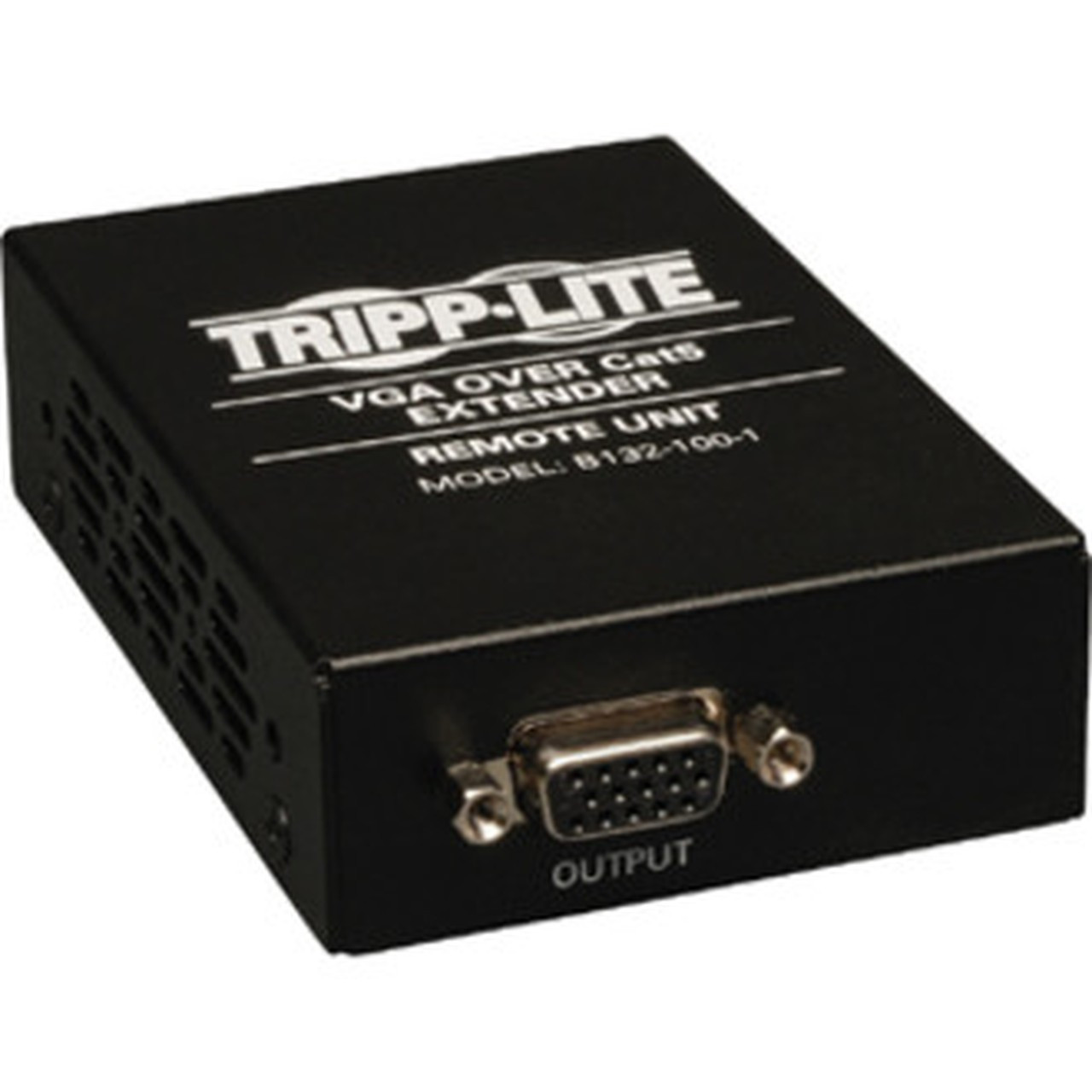

Tripp Lite by Eaton Extender Remote (Receiver) Unit - 1 Input Device - 1 Output Device - 1000 ft (304800 mm) Range - 1 x Network - x - (B132-100-1)

Marketing Information:

Tripp Lite's B132-100-1 works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft.. 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

• Works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft.
• 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
• For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
• Features built-in Equalization and Gain controls to adjust the video image
• Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted
• Ideal for digital signage situations, such as retail, schools, churches, etc..
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
• 1 year limited waranty.

More from the Manufacturer

Connectivity Technology: Wired

Number of Input Devices Supported: 1

Number of Output Devices Supported: 1

Maximum Operating Distance: 1000 ft (304800 mm)

Maximum Video Resolution: 1920 x 1440

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 1

Media Type Supported: Twisted Pair

Twisted Pair Cable Standard: Category 6

Color Family: Black

Product Color: Black

Receiver Height: 1" (25.40 mm)

Receiver Width: 2.50" (63.50 mm)

Receiver Depth: 3.60" (91.44 mm)

Form Factor: Wall Mountable,Rack-mountable,Pole-mountable

Receiver Weight (Approximate): 204.1 g

Package Contents:

• B132-100-1 TAA/GSA Compliant Video Console
• Mini-Screwdriver
• Mounting Hardware
• External Power
• Owner's Manual

Country of Origin: Taiwan

TAA Compliant: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 1 Year
