Tripp Lite by Eaton PDUMH20HVL66 10-Outlets PDU - Metered - NEMA L6-20P - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - Circuit - (PDUMH20HVL66)

Marketing Information:

Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time

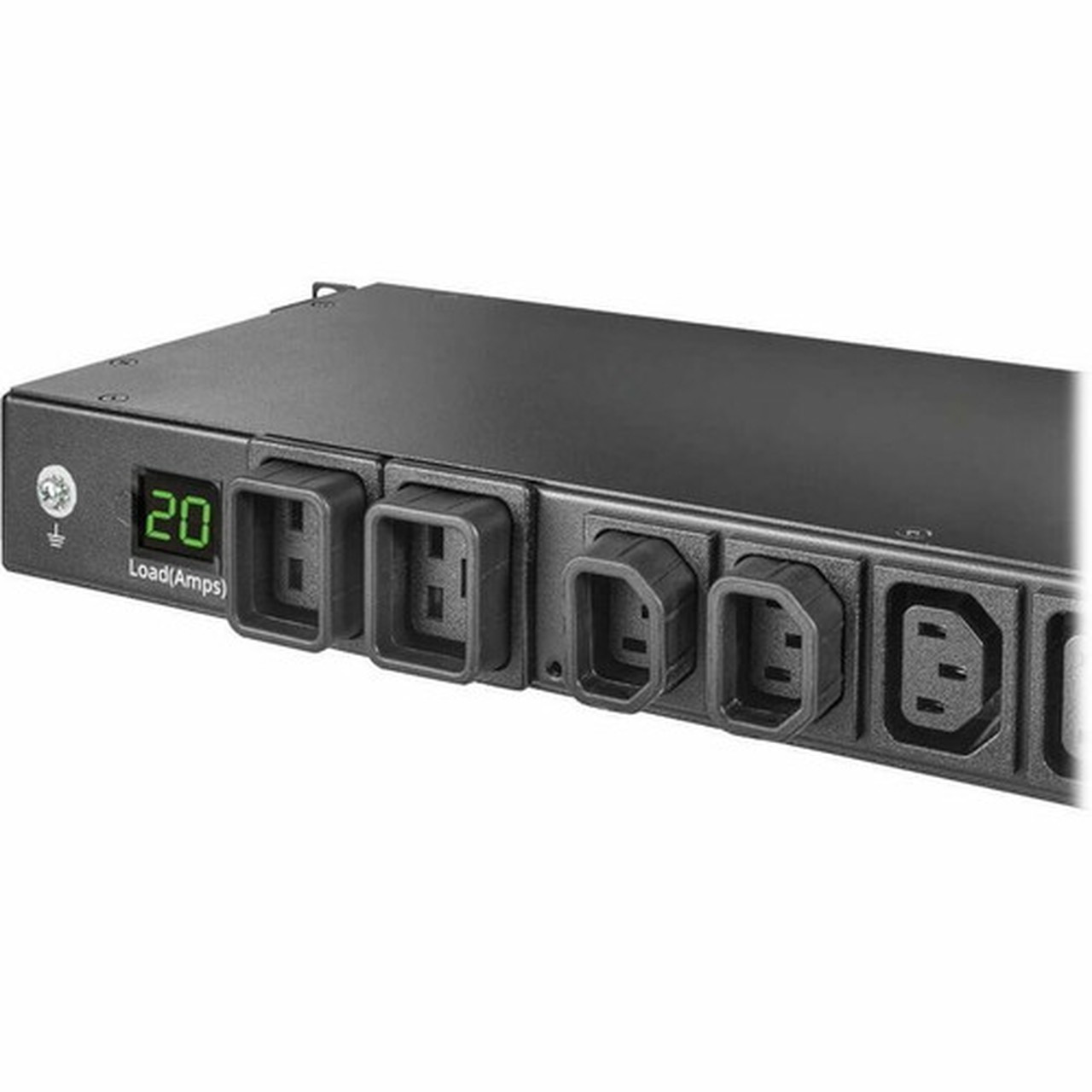

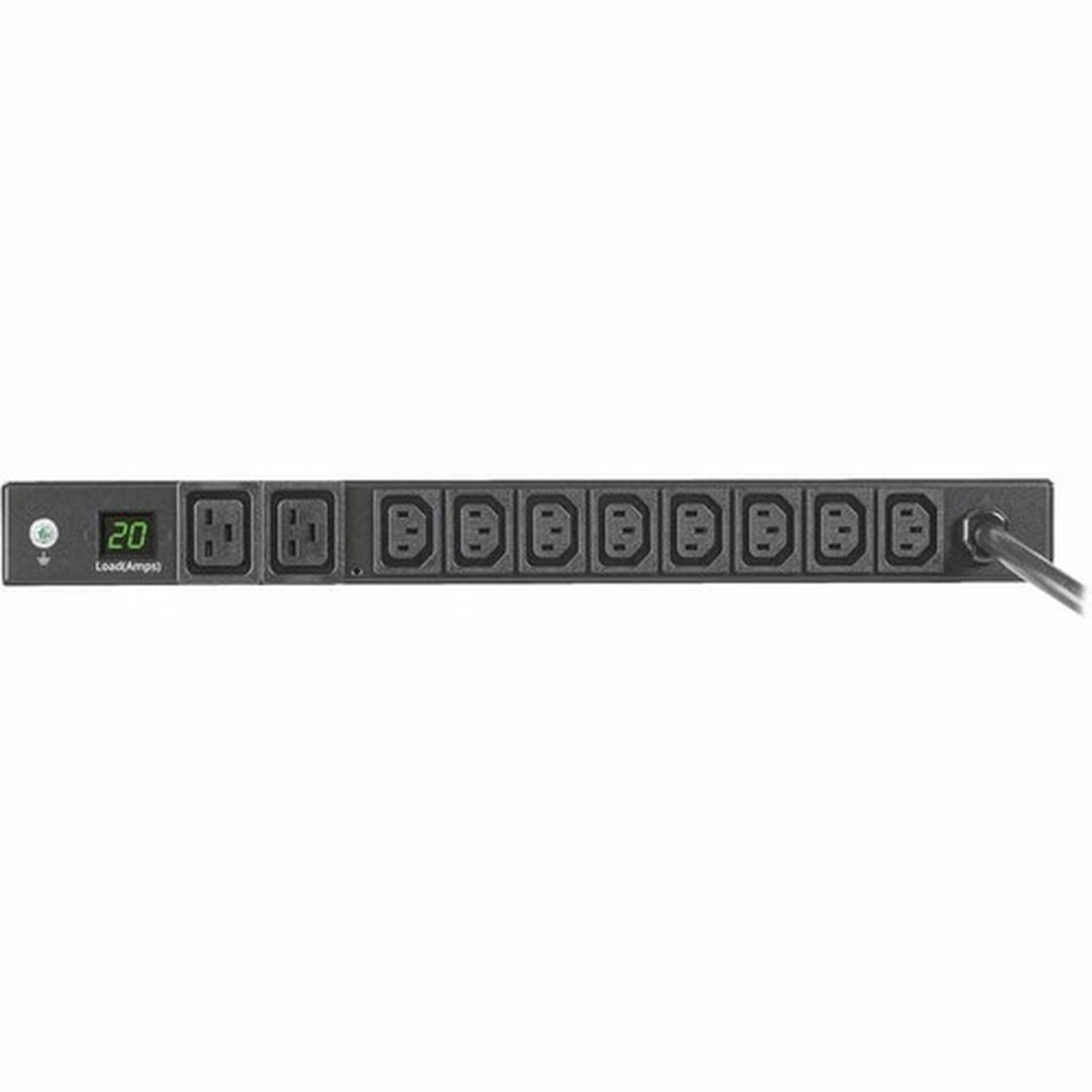

This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20HVL66 features eight C13 and two C19 208/230V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

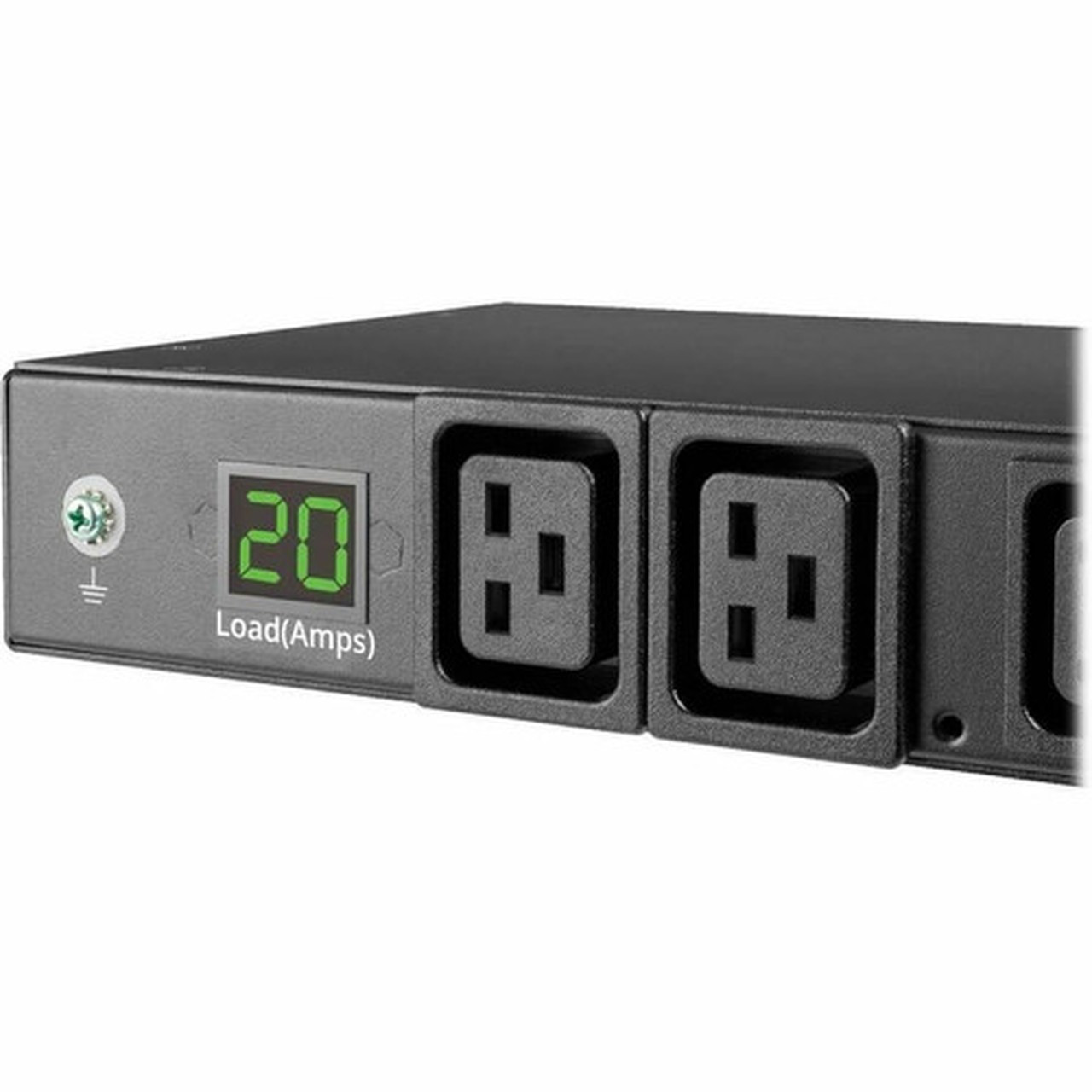

Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.

Versatile Installation Options Give You Plenty of Choices

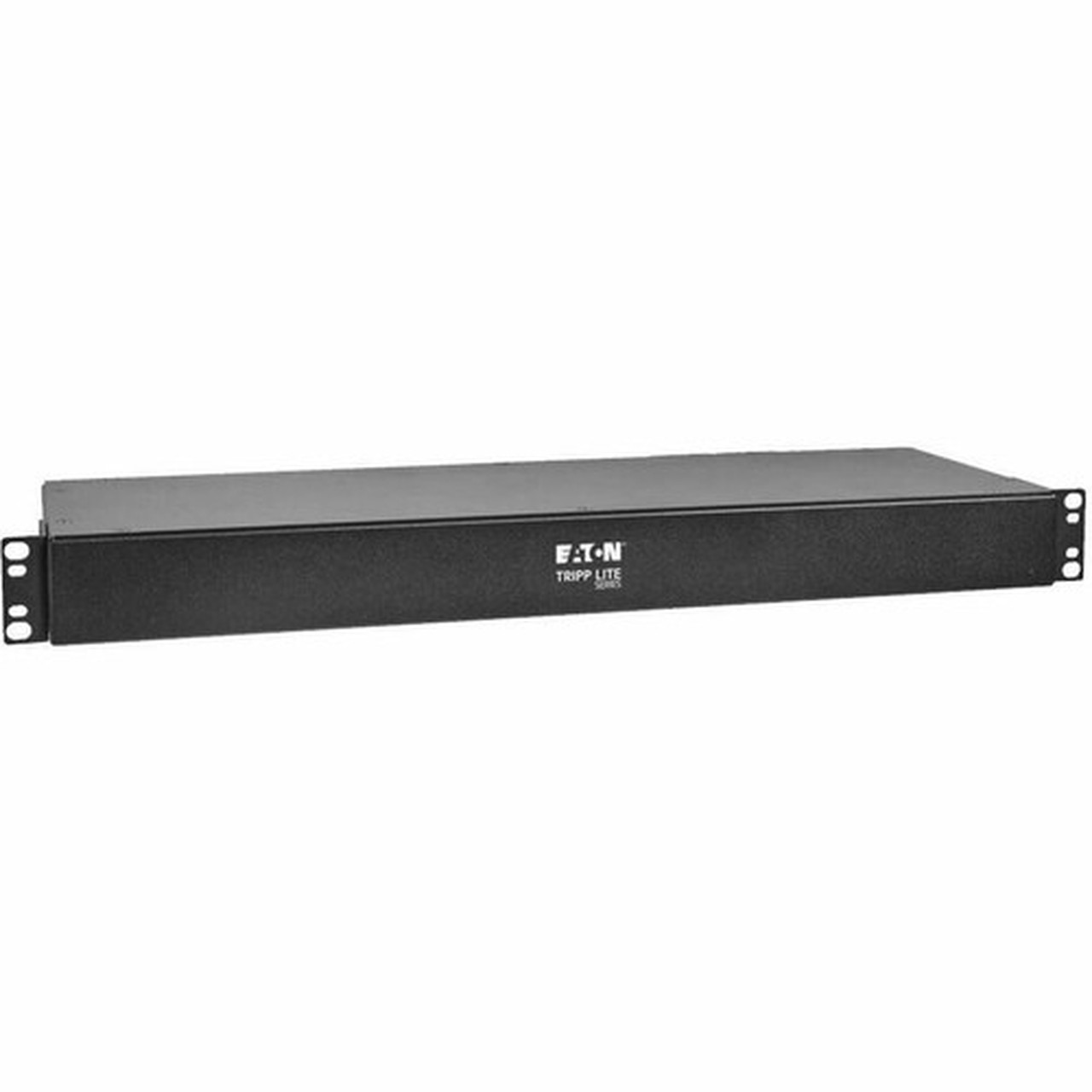

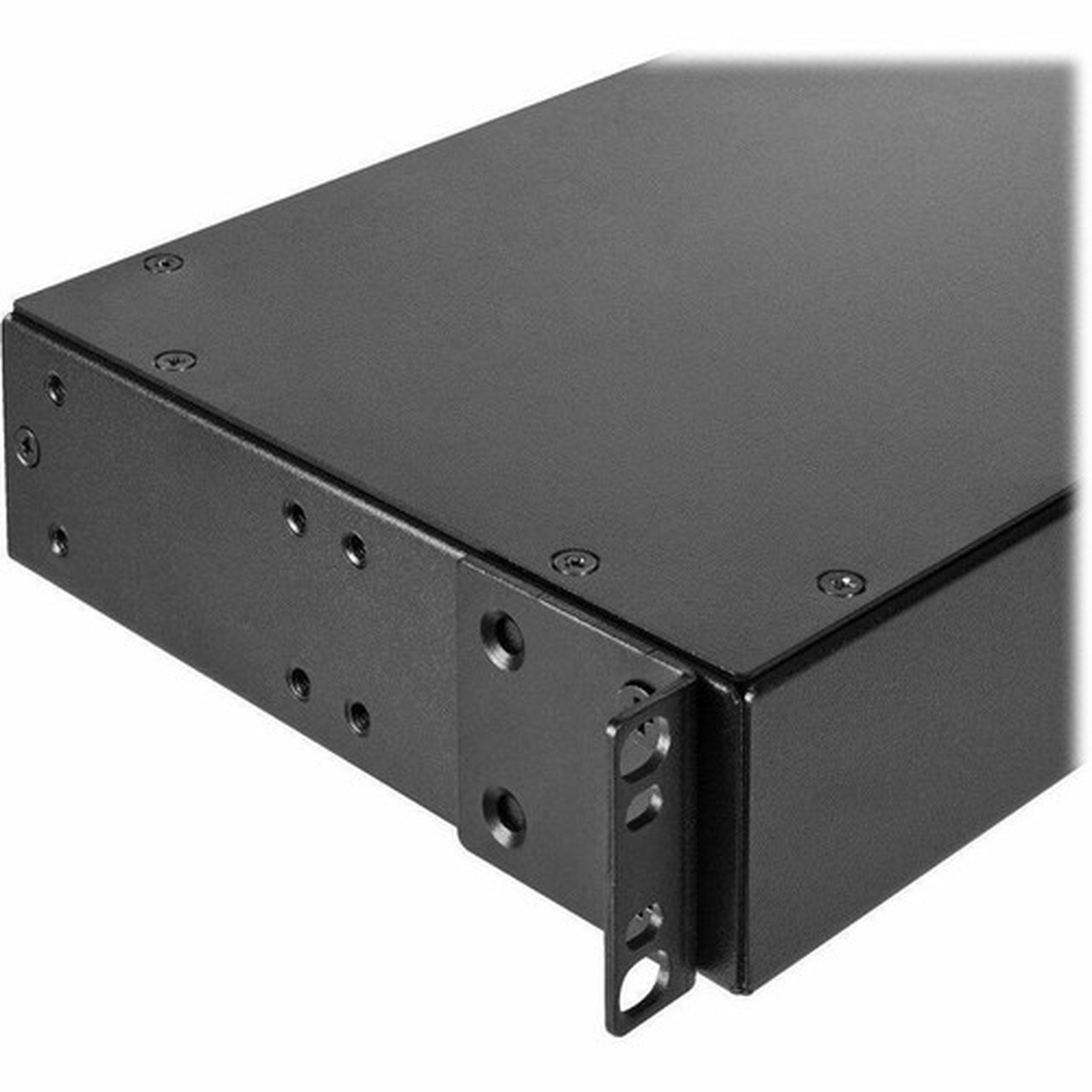

The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. The six-foot cord with NEMA L6-20P input plug connects the single-phase PDU to a protected UPS system, generator or mains input source for reliable multi-outlet power distribution.

TAA-Compliant for GSA Schedule Purchases
The PDUMH20HVL66 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

PDU Type: Metered

Phase: Single Phase

Plug/Connector Type: NEMA L6-20P

Receptacle Type: IEC 60320 C13,IEC 60320 C19

Receptacle Detail: 8 x IEC 60320 C13,2 x IEC 60320 C19

Protection Type: Circuit Protection,Overload Protection,Accidental Power Shutdown

Input Voltage: 230 V AC

Output Voltage: 208 V AC,240 V AC

Power Rating (Watt): 3.80 kW

Input Current: 20 A

Mounting Orientation: Horizontal/Vertical

Mount Type: Wall-mountable,Rack-mountable

Placement: Under-counter

Rack Height: 1U

Cord Length: 6 ft (1.83 m)

Height: 1.75" (44.45 mm)

Width: 17.50" (444.50 mm)

Depth: 6.50" (165.10 mm)

Weight (Approximate): 6.80 lb (3084.43 g)

Package Contents:

• PDUMH20HVL66 10-Outlets PDU
• 10 x Plug-lock Insert Sleeves
• Rack-mounting Hardware
• Owner's Manual

Country of Origin: Taiwan

TAA Compliant: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
